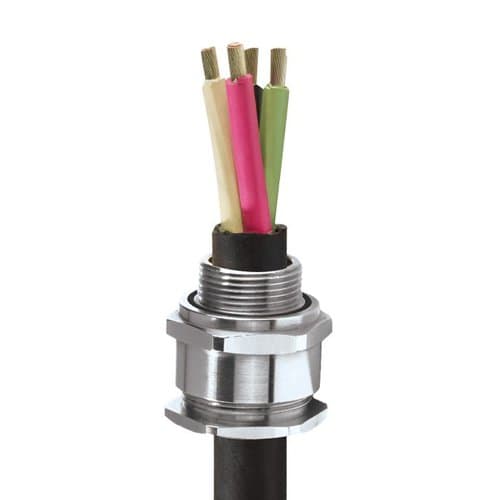

A2e Cable Gland
explosive atmosphere gland single seal international approve gland

Internationally Approved, Ex e, Explosive Atmosphere Cable Gland

• 10mm thread length on sizes 32 and below
• Displacement type flameproof seal
• Deluge protected
• -60°C to +130°C
• Internationally marked, IECEx & ATEXX

Note: please contact CMP when choosing accessories for sizes 90 and above due to sizing restrictions

For all types of Unarmoured & Braid Armour Cables

Description
Download Spec Sheet

Description

A2e Cable Gland Technical Info

Design Specification	BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications*	Impact = Level 8, Retention = Class B
Enclosure Protection	IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
ATEX Certificate	SIRA13ATEX1068X, SIRA13ATEX4074X
Code of Protection	II 2G Ex e IIC Gb, II 1D Ex ta IIIC Da II 3G Ex nR IIC Gc
Compliance Standards	EN 60079-0,7,31
IECEx Certificate	IECEx SIR 13.0023X, IECEx SIM 14.0006
Code of Protection	Ex e IIC Gb, Ex ta IIIC Da, Ex nR IIC Gc
Compliance Standards	IEC 60079-0,7,31
EAC Certificate	TC RU C-GB.AA87.B.00487
KCC Certificate	13_GA4BO_0749X, 13_GA4BO_0750X, 14_GA4BO_0251X
NEPSI Certificate	GYJ13.1140X , GYJ13.1282X
INMETRO Approval	TÜV 12.0619X
CCOE / PESO (India) Certificate	P333688
Marine Approvals	LRS: 01/00172 (E3), DNV: TAE00000Y, ABS: 16-LD1478091-PDA, BV: 43180/A1BV
Ingress Protection Rating **	IP66, IP67 & IP68
Deluge Protection Compliance	DTS01 : 91
Cable Gland Material	Brass, Electroless Nickel Plated Brass, Stainless Steel, Aluminium
Seal Material	CMP SOLO LSF Halogen Free Thermoset Elastomer
Cable Type	Unarmoured & Braided when terminated inside enclosure
Sealing Technique	CMP Unique Displacement Seal Concept
Sealing Area(s)	Cable Outer Sheath
Optional Accessories	Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs
Optional Installation Tools	Spanners

Product Table

Metric

Cable Gland Size	Available Entry Threads “C” (Alternate Metric Thread Lengths Available)					Overall Cable Diameter “A”		Across Flats “D”	Across Corners “D”	Protrusion Length “F”	Combined Ordering Reference (*Brass Metric)			Shroud	Cable Gland Weight (Kgs)
	Standard				Option	Overall Cable Diameter “A”		Across Flats “D”	Across Corners “D”		Combined Ordering Reference (*Brass Metric)
	Metric	Thread Length (Metric) “E”	NPT	Thread Length (NPT) “E”	NPT	Min	Max	Max	Max		Size	Type	Ordering Suffix
16	M16	10.0	–	–	–	3.2	8.7	24.0	26.4	28.6	16	A2E	1RA	PVC02	0.06
20S16	M20	10.0	½”	19.9	¾”	3.2	8.7	24.0	26.4	26.3	20S16	A2E	1RA	PVC04	0.07
20S	M20	10.0	½”	19.9	¾”	6.1	11.7	24.0	26.4	26.0	20S	A2E	1RA	PVC04	0.06
20	M20	10.0	½”	19.9	¾”	6.5	14.0	27.0	29.7	27.7	20	A2E	1RA	PVC05	0.07
25	M25	10.0	¾”	20.2	1″	11.1	20.0	36.0	39.6	36.3	25	A2E	1RA	PVC09	0.13
32	M32	10.0	1″	25.0	1 ¼”	17.0	26.3	41.0	45.1	35.1	32	A2E	1RA	PVC10	0.15
40	M40	15.0	1 ¼”	25.6	1 ½”	23.5	32.2	50.0	55.0	35.1	40	A2E	1RA	PVC13	0.20
50S	M50	15.0	1 ½”	26.1	2″	31.0	38.2	55.0	60.5	33.0	50S	A2E	1RA	PVC15	0.26
50	M50	15.0	2″	26.9	2 ½”	35.6	44.0	60.0	66.0	37.3	50	A2E	1RA	PVC18	0.27
63S	M63	15.0	2″	26.9	2 ½”	41.5	49.9	70.5	77.6	33.5	63S	A2E	1RA	PVC21	0.43
63	M63	15.0	2 ½”	39.9	3″	47.2	55.9	75.0	82.5	36.2	63	A2E	1RA	PVC23	0.40
75S	M75	15.0	2 ½”	39.9	3″	54.0	61.9	84.0	92.4	34.1	75S	A2E	1RA	PVC24	0.52
75	M75	15.0	3″	41.5	3 ½”	61.1	67.9	84.0	92.4	40.9	75	A2E	1RA	PVC26	0.50
90	M90	24.0	3 ½”	42.8	4″	66.6	79.9	108.0	118.8	60.3	90	A2E	1RA	PVC31	1.60
100	M100	24.0	3 ½”	42.8	4″	76.0	91.0	123.0	135.3	57.2	100	A2E	1RA	LSF33	1.78
115	M115	24.0	4″	44.0	5″	86.0	97.9	133.4	146.7	67.3	115	A2E	1RA	LSF34	2.67
130	M130	24.0	5″	46.8	–	97.0	114.9	152.4	167.6	74.7	130	A2E	1RA	LSF35	3.80
Dimensions are displayed in millimetres unless otherwise stated

Imperial

Cable Gland Size	Available Entry Threads “C” (Alternate Metric Thread Lengths Available)					Overall Cable Diameter “A”		Across Flats “D”	Across Corners “D”	Protrusion Length “F”	Combined Ordering Reference (*Brass Metric)			Shroud	Cable Gland Weight (Ozs)
	Standard				Option	Overall Cable Diameter “A”		Across Flats “D”	Across Corners “D”		Combined Ordering Reference (*Brass Metric)
	Metric	Thread Length (Metric) “E”	NPT	Thread Length (NPT) “E”	NPT	Min	Max	Max	Max		Size	Type	Ordering Suffix
16	M16	0.39	–	–	–	0.13	0.34	0.94	1.04	1.13	16	A2E	1RA	PVC02	2.12
20S16	M20	0.39	½”	0.78	¾”	0.13	0.34	0.94	1.04	1.04	20S16	A2E	1RA	PVC04	2.47
20S	M20	0.39	½”	0.78	¾”	0.24	0.46	0.94	1.04	1.02	20S	A2E	1RA	PVC04	2.12
20	M20	0.39	½”	0.78	¾”	0.26	0.55	1.06	1.17	1.09	20	A2E	1RA	PVC05	2.47
25	M25	0.39	¾”	0.80	1″	0.44	0.79	1.42	1.56	1.43	25	A2E	1RA	PVC09	4.59
32	M32	0.39	1″	0.98	1 ¼”	0.67	1.04	1.61	1.78	1.38	32	A2E	1RA	PVC10	5.29
40	M40	0.59	1 ¼”	1.01	1 ½”	0.93	1.27	1.97	2.17	1.38	40	A2E	1RA	PVC13	7.05
50S	M50	0.59	1 ½”	1.03	2″	1.22	1.50	2.17	2.38	1.30	50S	A2E	1RA	PVC15	9.17
50	M50	0.59	2″	1.06	2 ½”	1.40	1.73	2.36	2.60	1.47	50	A2E	1RA	PVC18	9.52
63S	M63	0.59	2″	1.06	2 ½”	1.63	1.96	2.78	3.06	1.32	63S	A2E	1RA	PVC21	15.17
63	M63	0.59	2 ½”	1.57	3″	1.86	2.20	2.95	3.25	1.43	63	A2E	1RA	PVC23	14.11
75S	M75	0.59	2 ½”	1.57	3″	2.13	2.44	3.31	3.64	1.34	75S	A2E	1RA	PVC24	18.34
75	M75	0.59	3″	1.63	3 ½”	2.41	2.67	3.31	3.64	1.61	75	A2E	1RA	PVC26	17.64
90	M90	0.94	3 ½”	1.69	4″	2.62	3.15	4.25	4.68	2.37	90	A2E	1RA	PVC31	56.44
100	M100	0.94	3 ½”	1.69	4″	2.99	3.58	4.84	5.33	2.25	100	A2E	1RA	LSF33	62.79
115	M115	0.94	4″	1.73	5″	3.39	3.85	5.25	5.78	2.65	115	A2E	1RA	LSF34	94.18
130	M130	0.94	5″	1.84	–	3.82	4.52	6.00	6.60	2.94	130	A2E	1RA	LSF35	134.04
Dimensions are displayed in inches unless otherwise stated
