Products > C2KHT Cable Gland – High Temperature Range

Name: C2KHT Cable Gland - High Temperature Range
Availability: InStock

40db2f32-2098-4c13-a70c-0691b3eb1630-large - EUTEX International

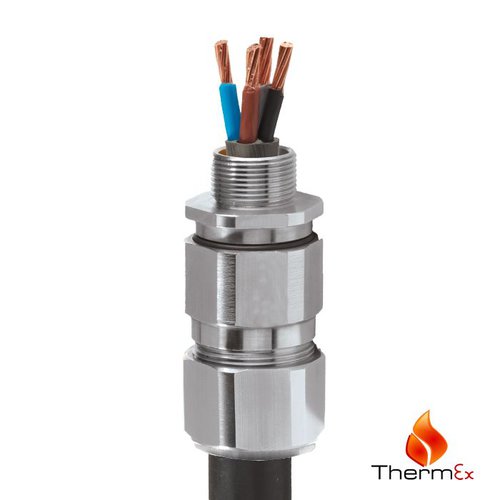

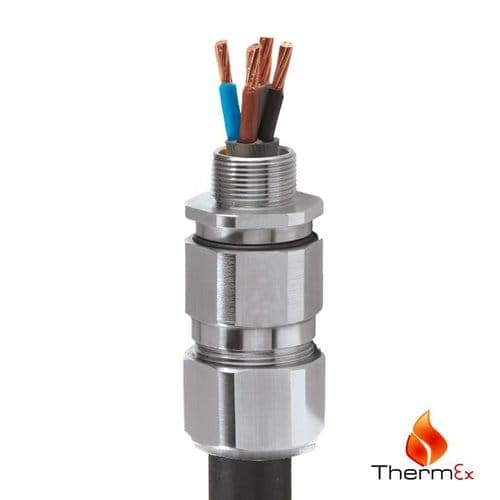

C2KHT Cable Gland – High Temperature Range

Internationally Approved, Ex e, Explosive Atmosphere Cable Gland

• -20°C to 200°C high temperature ThermEx seals
• Metal-to-metal armour clamping
• Direct & remote installation
• Integral protected deluge seal
• Displacement type flameproof seal
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• Internationally marked, IECEx & ATEX
• EMC tested

For under / oversized armour wires

For all types of Armoured cables

Description
Download Spec Sheet

Description

C2KHT Cable Gland Technical Info

Design Specification	BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications*	Impact = Level 8, Retention = Class D
Enclosure Protection	IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
Electrical Classifications *	Category B (Category A when used with braid, tape or pliable wire armour cables)
ATEX Certificate	SIRA13ATEX1070X
Code of Protection	II 2G, II 1D, Ex e IIC Gb, Ex ta IIIC Da
Compliance Standards	EN 60079-0,7,31
IECEx Certificate	IECEx SIR 13.0025X
Code of Protection	Ex e IIC Gb, Ex ta IIIC Da
Compliance Standards	IEC 60079-0,7,31
Continuous Operating Temperature	-20°C to +200°C
Ingress Protection Rating **	IP66, IP67 & IP68 **
Deluge Protection Compliance	DTS01 : 91
Cable Gland Material	Brass, Electroless Nickel Plated Brass, Stainless Steel, Aluminium
Seal Material	CMP SOLO LSF Halogen Free Thermoset Elastomer
Cable Type	Single Wire Armour (SWA), Aluminium Wire Armour (AWA), Pliable Wire Armour (PWA), Steel Tape Armour (STA), Wire Braid Armour (e.g. SWB), Aluminium Strip Armour (ASA), Screened Flexible (EMC) Wire Braid (e.g. CY / SY), Armoured & Jacketed
Armour Clamping	Reversible Armour Cone & AnyWay Universal Clamping Ring
Sealing Technique	Unique CMP ‘LRS’ Outer Seal (Load Retention Seal)
Sealing Area(s)	Cable Outer Sheath
Optional Accessories	Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs
Optional Installation Tools	Spanners, Armour Former Tool

Product Table

Metric

Cable Gland Size	Available Entry Threads “C” (Alternate Metric Thread Lengths Available)					Cable Bedding Diameter “A”	Overall Cable Diameter “B”		Armour Range				Across Flats “D”	Across Corners “D”	Protrusion Length “F”	Combined Ordering Reference (*Brass Metric)			Shroud	Cable Gland Weight (Kgs)
	Standard				Option	Cable Bedding Diameter “A”	Overall Cable Diameter “B”		Grooved Cone (X)		Stepped Cone (W)		Across Flats “D”	Across Corners “D”		Combined Ordering Reference (*Brass Metric)
	Metric	Thread Length (Metric) “E”	NPT	Thread Length (NPT) “E”	NPT	Max	Min	Max	Min	Max	Min	Max	Max	Max		Size	Type	Ordering Suffix
20S16	M20	15.0	½”	19.9	¾”	8.7	6.1	13.1	0.3	1.0	0.8	1.25	30.5	33.6	65.0	20S16	C2KHT	1RA	PVC04	0.23
20S	M20	15.0	½”	19.9	¾”	11.7	9.5	15.9	0.3	1.0	0.8	1.25	30.5	33.6	62.0	20S	C2KHT	1RA	PVC04	0.24
20	M20	15.0	½”	19.9	¾”	14.0	12.5	20.9	0.4	1.0	0.8	1.25	30.5	33.6	63.0	20	C2KHT	1RA	PVC06	0.23
25S	M25	15.0	¾”	20.2	1″	20.0	14.0	22.0	0.4	1.2	1.25	1.6	37.5	41.3	69.5	25S	C2KHT	1RA	PVC09	0.35
25	M25	15.0	¾”	20.2	1″	20.0	18.2	26.2	0.4	1.2	1.25	1.6	37.5	41.3	69.5	25	C2KHT	1RA	PVC09	0.35
32	M32	15.0	1″	25.0	1 ¼”	26.0	23.7	33.9	0.4	1.2	1.6	2.0	46.0	50.6	75.0	32	C2KHT	1RA	PVC11	0.55
40	M40	15.0	1 ¼”	25.6	1 ½”	32.2	27.9	40.4	0.4	1.6	1.6	2.0	55.0	60.5	75.0	40	C2KHT	1RA	PVC15	0.75
50S	M50	15.0	1 ½”	26.1	2″	38.2	35.2	46.7	0.4	1.6	2.0	2.5	60.0	66.0	77.0	50S	C2KHT	1RA	PVC18	0.86
50	M50	15.0	2″	26.9	2 ½”	44.1	40.4	53.0	0.6	1.6	2.0	2.5	70.1	77.1	77.0	50	C2KHT	1RA	PVC21	1.13
63S	M63	15.0	2″	26.9	2 ½”	50.0	45.6	59.4	0.6	1.6	2.0	2.5	75.0	82.5	80.0	63S	C2KHT	1RA	PVC23	1.13
63	M63	15.0	2 ½”	39.9	3″	56.0	54.6	65.8	0.6	1.6	2.0	2.5	80.0	88.0	80.0	63	C2KHT	1RA	PVC25	1.34
75S	M75	15.0	2 ½”	39.9	3″	62.0	59.0	72.0	0.6	1.6	2.0	2.5	90.0	99.0	87.0	75S	C2KHT	1RA	PVC28	2.02
75	M75	15.0	3″	41.5	3 ½”	64.2	66.7	78.4	0.6	1.6	2.5	3.0	100.0	110.0	88.0	75	C2KHT	1RA	PVC30	2.48
90	M90	24.0	3 ½”	42.8	4″	78.6	76.2	90.3	0.8	1.6	3.15	4.0	115.0	126.5	102.0	90	C2KHT	1RA	PVC32	3.52
100	M100	24.0	3 ½”	42.8	4″	91.0	86.1	101.4	0.8	1.6	3.15	4.0	127.0	139.7	114.0	100	C2KHT	1RA	LSF33	4.58
115	M115	24.0	4″	44.0	5″	98.0	101.5	110.2	0.8	1.6	3.15	4.0	133.4	146.7	114.0	115	C2KHT	1RA	LSF34	6.50
130	M130	24.0	5″	46.8	–	115.0	110.2	123.2	0.8	1.6	3.15	4.0	152.4	167.6	114.0	130	C2KHT	1RA	LSF35	8.50
Dimensions displayed in millimeters unless otherwise stated

Imperial

Cable Gland Size	Available Entry Threads “C” (Alternate Metric Thread Lengths Available)					Cable Bedding Diameter “A”	Overall Cable Diameter “B”		Armour Range				Across Flats “D”	Across Corners “D”	Protrusion Length “F”	Combined Ordering Reference (*Brass Metric)			Shroud	Cable Gland Weight (Ozs)
	Standard				Option	Cable Bedding Diameter “A”	Overall Cable Diameter “B”		Grooved Cone (X)		Stepped Cone (W)		Across Flats “D”	Across Corners “D”		Combined Ordering Reference (*Brass Metric)
	Metric	Thread Length (Metric) “E”	NPT	Thread Length (NPT) “E”	NPT	Max	Min	Max	Min	Max	Min	Max	Max	Max		Size	Type	Ordering Suffix
20S16	M20	0.59	½”	0.78	¾”	0.34	0.24	0.52	0.01	0.04	0.03	0.05	1.20	1.32	2.56	20S16	C2KHT	1RA	PVC04	8.11
20S	M20	0.59	½”	0.78	¾”	0.46	0.37	0.63	0.01	0.04	0.03	0.05	1.20	1.32	2.44	20S	C2KHT	1RA	PVC04	8.47
20	M20	0.59	½”	0.78	¾”	0.55	0.49	0.82	0.02	0.04	0.03	0.05	1.20	1.32	2.48	20	C2KHT	1RA	PVC06	8.11
25S	M25	0.59	¾”	0.80	1″	0.79	0.55	0.87	0.02	0.05	0.05	0.06	1.48	1.63	2.74	25S	C2KHT	1RA	PVC09	12.35
25	M25	0.59	¾”	0.80	1″	0.79	0.72	1.03	0.02	0.05	0.05	0.06	1.48	1.63	2.74	25	C2KHT	1RA	PVC09	12.35
32	M32	0.59	1″	0.98	1 ¼”	1.02	0.93	1.33	0.02	0.05	0.06	0.08	1.81	1.99	2.95	32	C2KHT	1RA	PVC11	19.40
40	M40	0.59	1 ¼”	1.01	1 ½”	1.27	1.10	1.59	0.02	0.06	0.06	0.08	2.17	2.38	2.95	40	C2KHT	1RA	PVC15	26.46
50S	M50	0.59	1 ½”	1.03	2″	1.50	1.39	1.84	0.02	0.06	0.08	0.10	2.36	2.60	3.03	50S	C2KHT	1RA	PVC18	30.34
50	M50	0.59	2″	1.06	2 ½”	1.74	1.59	2.09	0.02	0.06	0.08	0.10	2.76	3.04	3.03	50	C2KHT	1RA	PVC21	39.86
63S	M63	0.59	2″	1.06	2 ½”	1.97	1.80	2.34	0.02	0.06	0.08	0.10	2.95	3.25	3.15	63S	C2KHT	1RA	PVC23	39.86
63	M63	0.59	2 ½”	1.57	3″	2.20	2.15	2.59	0.02	0.06	0.08	0.10	3.15	3.46	3.15	63	C2KHT	1RA	PVC25	47.27
75S	M75	0.59	2 ½”	1.57	3″	2.44	2.32	2.83	0.02	0.06	0.08	0.10	3.54	3.90	3.43	75S	C2KHT	1RA	PVC28	71.25
75	M75	0.59	3″	1.63	3 ½”	2.53	2.63	3.09	0.02	0.06	0.10	0.12	3.94	4.33	3.46	75	C2KHT	1RA	PVC30	87.48
90	M90	0.94	3 ½”	1.69	4″	3.09	3.00	3.56	0.03	0.06	0.12	0.16	4.53	4.98	4.02	90	C2KHT	1RA	PVC32	124.16
100	M100	0.94	3 ½”	1.69	4″	3.58	3.39	3.99	0.03	0.06	0.12	0.16	5.00	5.50	4.49	100	C2KHT	1RA	LSF33	161.55
115	M115	0.94	4″	1.73	5″	3.86	4.00	4.34	0.03	0.06	0.12	0.16	5.25	5.78	4.49	115	C2KHT	1RA	LSF34	229.28
130	M130	0.94	5″	1.84	–	4.53	4.34	4.85	0.03	0.06	0.12	0.16	6.00	6.60	4.49	130	C2KHT	1RA	LSF35	299.83
Dimensions displayed in inches unless otherwise stated

Download Spec Sheet

Download

C2KHT Cable Gland Technical Info

Design Specification	BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications*	Impact = Level 8, Retention = Class D
Enclosure Protection	IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
Electrical Classifications *	Category B (Category A when used with braid, tape or pliable wire armour cables)
ATEX Certificate	SIRA13ATEX1070X
Code of Protection	II 2G, II 1D, Ex e IIC Gb, Ex ta IIIC Da
Compliance Standards	EN 60079-0,7,31
IECEx Certificate	IECEx SIR 13.0025X
Code of Protection	Ex e IIC Gb, Ex ta IIIC Da
Compliance Standards	IEC 60079-0,7,31
Continuous Operating Temperature	-20°C to +200°C
Ingress Protection Rating **	IP66, IP67 & IP68 **
Deluge Protection Compliance	DTS01 : 91
Cable Gland Material	Brass, Electroless Nickel Plated Brass, Stainless Steel, Aluminium
Seal Material	CMP SOLO LSF Halogen Free Thermoset Elastomer
Cable Type	Single Wire Armour (SWA), Aluminium Wire Armour (AWA), Pliable Wire Armour (PWA), Steel Tape Armour (STA), Wire Braid Armour (e.g. SWB), Aluminium Strip Armour (ASA), Screened Flexible (EMC) Wire Braid (e.g. CY / SY), Armoured & Jacketed
Armour Clamping	Reversible Armour Cone & AnyWay Universal Clamping Ring
Sealing Technique	Unique CMP ‘LRS’ Outer Seal (Load Retention Seal)
Sealing Area(s)	Cable Outer Sheath
Optional Accessories	Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs
Optional Installation Tools	Spanners, Armour Former Tool

Product Table

Metric

Cable Gland Size	Available Entry Threads “C” (Alternate Metric Thread Lengths Available)					Cable Bedding Diameter “A”	Overall Cable Diameter “B”		Armour Range				Across Flats “D”	Across Corners “D”	Protrusion Length “F”	Combined Ordering Reference (*Brass Metric)			Shroud	Cable Gland Weight (Kgs)
	Standard				Option	Cable Bedding Diameter “A”	Overall Cable Diameter “B”		Grooved Cone (X)		Stepped Cone (W)		Across Flats “D”	Across Corners “D”		Combined Ordering Reference (*Brass Metric)
	Metric	Thread Length (Metric) “E”	NPT	Thread Length (NPT) “E”	NPT	Max	Min	Max	Min	Max	Min	Max	Max	Max		Size	Type	Ordering Suffix
20S16	M20	15.0	½”	19.9	¾”	8.7	6.1	13.1	0.3	1.0	0.8	1.25	30.5	33.6	65.0	20S16	C2KHT	1RA	PVC04	0.23
20S	M20	15.0	½”	19.9	¾”	11.7	9.5	15.9	0.3	1.0	0.8	1.25	30.5	33.6	62.0	20S	C2KHT	1RA	PVC04	0.24
20	M20	15.0	½”	19.9	¾”	14.0	12.5	20.9	0.4	1.0	0.8	1.25	30.5	33.6	63.0	20	C2KHT	1RA	PVC06	0.23
25S	M25	15.0	¾”	20.2	1″	20.0	14.0	22.0	0.4	1.2	1.25	1.6	37.5	41.3	69.5	25S	C2KHT	1RA	PVC09	0.35
25	M25	15.0	¾”	20.2	1″	20.0	18.2	26.2	0.4	1.2	1.25	1.6	37.5	41.3	69.5	25	C2KHT	1RA	PVC09	0.35
32	M32	15.0	1″	25.0	1 ¼”	26.0	23.7	33.9	0.4	1.2	1.6	2.0	46.0	50.6	75.0	32	C2KHT	1RA	PVC11	0.55
40	M40	15.0	1 ¼”	25.6	1 ½”	32.2	27.9	40.4	0.4	1.6	1.6	2.0	55.0	60.5	75.0	40	C2KHT	1RA	PVC15	0.75
50S	M50	15.0	1 ½”	26.1	2″	38.2	35.2	46.7	0.4	1.6	2.0	2.5	60.0	66.0	77.0	50S	C2KHT	1RA	PVC18	0.86
50	M50	15.0	2″	26.9	2 ½”	44.1	40.4	53.0	0.6	1.6	2.0	2.5	70.1	77.1	77.0	50	C2KHT	1RA	PVC21	1.13
63S	M63	15.0	2″	26.9	2 ½”	50.0	45.6	59.4	0.6	1.6	2.0	2.5	75.0	82.5	80.0	63S	C2KHT	1RA	PVC23	1.13
63	M63	15.0	2 ½”	39.9	3″	56.0	54.6	65.8	0.6	1.6	2.0	2.5	80.0	88.0	80.0	63	C2KHT	1RA	PVC25	1.34
75S	M75	15.0	2 ½”	39.9	3″	62.0	59.0	72.0	0.6	1.6	2.0	2.5	90.0	99.0	87.0	75S	C2KHT	1RA	PVC28	2.02
75	M75	15.0	3″	41.5	3 ½”	64.2	66.7	78.4	0.6	1.6	2.5	3.0	100.0	110.0	88.0	75	C2KHT	1RA	PVC30	2.48
90	M90	24.0	3 ½”	42.8	4″	78.6	76.2	90.3	0.8	1.6	3.15	4.0	115.0	126.5	102.0	90	C2KHT	1RA	PVC32	3.52
100	M100	24.0	3 ½”	42.8	4″	91.0	86.1	101.4	0.8	1.6	3.15	4.0	127.0	139.7	114.0	100	C2KHT	1RA	LSF33	4.58
115	M115	24.0	4″	44.0	5″	98.0	101.5	110.2	0.8	1.6	3.15	4.0	133.4	146.7	114.0	115	C2KHT	1RA	LSF34	6.50
130	M130	24.0	5″	46.8	–	115.0	110.2	123.2	0.8	1.6	3.15	4.0	152.4	167.6	114.0	130	C2KHT	1RA	LSF35	8.50
Dimensions displayed in millimeters unless otherwise stated

Imperial

Cable Gland Size	Available Entry Threads “C” (Alternate Metric Thread Lengths Available)					Cable Bedding Diameter “A”	Overall Cable Diameter “B”		Armour Range				Across Flats “D”	Across Corners “D”	Protrusion Length “F”	Combined Ordering Reference (*Brass Metric)			Shroud	Cable Gland Weight (Ozs)
	Standard				Option	Cable Bedding Diameter “A”	Overall Cable Diameter “B”		Grooved Cone (X)		Stepped Cone (W)		Across Flats “D”	Across Corners “D”		Combined Ordering Reference (*Brass Metric)
	Metric	Thread Length (Metric) “E”	NPT	Thread Length (NPT) “E”	NPT	Max	Min	Max	Min	Max	Min	Max	Max	Max		Size	Type	Ordering Suffix
20S16	M20	0.59	½”	0.78	¾”	0.34	0.24	0.52	0.01	0.04	0.03	0.05	1.20	1.32	2.56	20S16	C2KHT	1RA	PVC04	8.11
20S	M20	0.59	½”	0.78	¾”	0.46	0.37	0.63	0.01	0.04	0.03	0.05	1.20	1.32	2.44	20S	C2KHT	1RA	PVC04	8.47
20	M20	0.59	½”	0.78	¾”	0.55	0.49	0.82	0.02	0.04	0.03	0.05	1.20	1.32	2.48	20	C2KHT	1RA	PVC06	8.11
25S	M25	0.59	¾”	0.80	1″	0.79	0.55	0.87	0.02	0.05	0.05	0.06	1.48	1.63	2.74	25S	C2KHT	1RA	PVC09	12.35
25	M25	0.59	¾”	0.80	1″	0.79	0.72	1.03	0.02	0.05	0.05	0.06	1.48	1.63	2.74	25	C2KHT	1RA	PVC09	12.35
32	M32	0.59	1″	0.98	1 ¼”	1.02	0.93	1.33	0.02	0.05	0.06	0.08	1.81	1.99	2.95	32	C2KHT	1RA	PVC11	19.40
40	M40	0.59	1 ¼”	1.01	1 ½”	1.27	1.10	1.59	0.02	0.06	0.06	0.08	2.17	2.38	2.95	40	C2KHT	1RA	PVC15	26.46
50S	M50	0.59	1 ½”	1.03	2″	1.50	1.39	1.84	0.02	0.06	0.08	0.10	2.36	2.60	3.03	50S	C2KHT	1RA	PVC18	30.34
50	M50	0.59	2″	1.06	2 ½”	1.74	1.59	2.09	0.02	0.06	0.08	0.10	2.76	3.04	3.03	50	C2KHT	1RA	PVC21	39.86
63S	M63	0.59	2″	1.06	2 ½”	1.97	1.80	2.34	0.02	0.06	0.08	0.10	2.95	3.25	3.15	63S	C2KHT	1RA	PVC23	39.86
63	M63	0.59	2 ½”	1.57	3″	2.20	2.15	2.59	0.02	0.06	0.08	0.10	3.15	3.46	3.15	63	C2KHT	1RA	PVC25	47.27
75S	M75	0.59	2 ½”	1.57	3″	2.44	2.32	2.83	0.02	0.06	0.08	0.10	3.54	3.90	3.43	75S	C2KHT	1RA	PVC28	71.25
75	M75	0.59	3″	1.63	3 ½”	2.53	2.63	3.09	0.02	0.06	0.10	0.12	3.94	4.33	3.46	75	C2KHT	1RA	PVC30	87.48
90	M90	0.94	3 ½”	1.69	4″	3.09	3.00	3.56	0.03	0.06	0.12	0.16	4.53	4.98	4.02	90	C2KHT	1RA	PVC32	124.16
100	M100	0.94	3 ½”	1.69	4″	3.58	3.39	3.99	0.03	0.06	0.12	0.16	5.00	5.50	4.49	100	C2KHT	1RA	LSF33	161.55
115	M115	0.94	4″	1.73	5″	3.86	4.00	4.34	0.03	0.06	0.12	0.16	5.25	5.78	4.49	115	C2KHT	1RA	LSF34	229.28
130	M130	0.94	5″	1.84	–	4.53	4.34	4.85	0.03	0.06	0.12	0.16	6.00	6.60	4.49	130	C2KHT	1RA	LSF35	299.83
Dimensions displayed in inches unless otherwise stated
