E1W Cable Gland
industrial / general purpose double seal steel & aluminium wire armoured cables gland

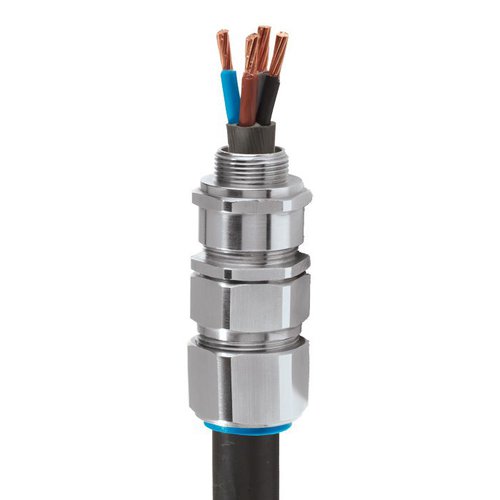

E1W Double Seal Industrial Cable Gland

• Metal-to-metal armour clamping
• Direct & remote installation
• Permanently crimped, low impedance earth termination
• Secure against self-loosening
• Displacement type inner seal
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• Designed to prevent Coldflow
• Deluge protection option
• -60°C to +130°C

For under / oversized armour wires

For all types of Steel & Aluminium Wire Armoured Cables

Description

Technical

Design SpecificationBS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications *Impact = Level 8, Retention = Class D
Enclosure ProtectionIK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
Electrical Classifications *Category B
GOST R CertificatePOCC.GB.35.H00102
Marine ApprovalsLRS: 01/00171 (E1), ABS: 16-LD1472056-PDA
Ingress Protection Rating **IP66 as standard (IP67, IP68 available upon request)
Cable Gland MaterialBrass, Electroless Nickel Plated Brass, Aluminium
Seal MaterialCMP Thermoset Rubber
Cable TypeSingle Wire Armour (SWA), Aluminium Wire Armour (AWA)
Armour ClampingDetachable Armour Cone & AnyWay Universal Clamping Ring
Sealing TechniqueCMP Inner Displacement Seal & Unique CMP ‘LRS’ TM Outer Load Retention Seal
Sealing Area(s)Cable Inner Bedding & Outer Cable Sheath
Optional AccessoriesLocknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs
Optional Installation ToolsSpanners, Armour Former Tool

Product Table

Metric

Cable Gland SizeAvailable Entry Threads “C” (Alternate Metric Thread Lengths Available)Cable
Bedding
Diameter
“A”
Overall
Cable
Diameter
“B”
Armour RangeAcross
Flats
“D”
Across
Corners
“D”
Protrusion
Length “F”
Combined Ordering Reference
(*Brass Metric)
ShroudCable
Gland
Weight
(Kgs)
StandardOption
MetricThread Length (Metric) “E”NPTThread Length
(NPT) “E”
NPTMinMaxMinMaxMinMaxMaxMaxSizeTypeOrdering
Suffix
20s16M2010.01/2″19.93/4″3.18.66.113.10.81.2524.026.472.520S16E1W1RAPVC040.16
20SM2010.01/2″19.93/4″6.111.69.515.90.81.2524.026.470.020SE1W1RAPVC040.15
20M2010.01/2″19.93/4″6.513.912.520.90.81.2530.533.673.020E1W1RAPVC060.21
25SM2510.03/4″20.21″11.119.914.022.01.251.637.541.389.025SE1W1RAPVC090.33
25M2510.03/4″20.21″11.119.918.226.21.251.637.541.389.025E1W1RAPVC090.33
32M3210.01″25.01 1/4″17.026.223.733.91.62.046.050.686.032E1W1RAPVC110.43
40M4015.01 1/4″25.61 1/2″22.032.127.940.41.62.055.060.590.040E1W1RAPVC150.62
50SM5015.01 1/2″26.12″29.538.135.246.72.02.560.066.091.050SE1W1RAPVC180.75
50M5015.02″26.92 1/2″35.644.040.453.02.02.570.177.195.050E1W1RAPVC210.95
63SM6315.02″26.92 1/2″40.149.945.659.42.02.575.082.5102.063SE1W1RAPVC231.34
63M6315.02 1/2″39.93″47.255.954.665.82.02.580.088.0104.063E1W1RAPVC251.34
75SM7515.02 1/2″39.93″52.861.959.072.02.02.590.099.0115.075SE1W1RAPVC282.11
75M7515.03″41.53 1/2″59.167.966.778.42.53.0100.0110.0117.075E1W1RAPVC302.42
90M9024.03 1/2″42.84″66.678.676.290.33.154.0114.3125.4147.090E1W1RAPVC324.21
100M10024.04″44.05″76.090.986.1101.43.154.0123.0135.3140.0100E1W1RALSF334.45
115M11524.04″44.05″86.097.9101.5110.23.154.0133.4146.7162.0115E1W1RALSF346.19
130M13024.05″46.86″97.0114.9110.2123.23.154.0152.4167.6174.0130E1W1RALSF358.34
Dimensions displayed in millimeters unless otherwise stated

Imperial

Cable Gland SizeAvailable Entry Threads “C” (Alternate Metric Thread Lengths Available)Cable
Bedding
Diameter
“A”
Overall
Cable
Diameter
“B”
Armour RangeAcross
Flats
“D”
Across
Corners
“D”
Protrusion
Length “F”
Combined Ordering Reference
(*Brass Metric)
ShroudCable
Gland
Weight
(Ozs)
StandardOption
MetricThread Length (Metric) “E”NPTThread Length
(NPT) “E”
NPTMinMaxMinMaxMinMaxMaxMaxSizeE1WOrdering
Suffix
20s16M200.391/2″0.783/4″0.120.340.240.520.030.050.941.042.8520S16E1W1RAPVC045.75
20SM200.391/2″0.783/4″0.240.460.370.630.030.050.941.042.7620SE1W1RAPVC045.29
20M200.391/2″0.783/4″0.260.550.490.820.030.051.201.322.8720E1W1RAPVC067.41
25SM250.393/4″0.81″0.440.780.550.870.050.061.481.633.5025SE1W1RAPVC0911.64
25M250.393/4″0.81″0.440.780.721.030.050.061.481.633.5025E1W1RAPVC0911.64
32M320.391″0.981 1/4″0.671.030.931.330.060.081.811.993.3932E1W1RAPVC1115.17
40M400.591 1/4″1.011 1/2″0.871.261.101.590.060.082.172.383.5440E1W1RAPVC1521.87
50SM500.591 1/2″1.032″1.161.51.391.840.080.102.362.603.5850SE1W1RAPVC1826.46
50M500.592″1.062 1/2″1.401.731.592.090.080.102.763.043.7450E1W1RAPVC2133.51
63SM630.592″1.062 1/2″1.581.961.82.340.080.102.953.254.0263SE1W1RAPVC2347.27
63M630.592 1/2″1.573″1.862.22.152.590.080.103.153.464.0963E1W1RAPVC2547.27
75SM750.592 1/2″1.573″2.082.442.322.830.080.103.543.904.5375SE1W1RAPVC2874.43
75M750.593″1.633 1/2″2.332.672.633.090.100.123.944.334.6175E1W1RAPVC3085.36
90M900.943 1/2″1.694″2.623.093.003.560.120.164.504.945.7990E1W1RAPVC32148.5
100M1000.944″1.735″2.993.583.393.990.120.164.845.335.51100E1W1RALSF33156.97
115M1150.944″1.735″3.393.854.004.340.120.165.255.786.38115E1W1RALSF34218.35
130M1300.945″1.846″3.824.524.344.850.120.166.006.606.85130E1W1RALSF35294.19
Dimensions displayed in inches unless otherwise stated
