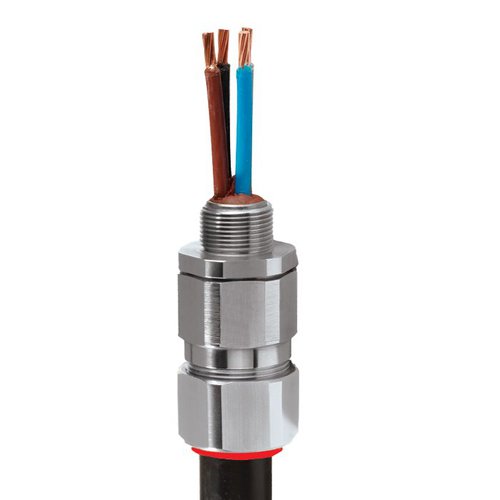

PX2KX Cable Gland
explosive atmosphere braided amored epoxy gland

Globally Approved, Explosive Atmosphere Barrier Cable Gland

• Metal-to-metal armour clamping
• Direct & remote installation
• Compound barrier type flameproof seal
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• Integral protected deluge seal
• -60°C to +85°C
• Class I Zone 1, 21 and Zone 2, 22 Class I Division 1 & 2 ABCD
• Globally marked, IECEx, ATEX, UL & cCSAus
• EMC tested

† Grooved Cone (X) is predominantly used for Wire Braid (e.g. GSWB, TCWB), Steel Tape Armour (STA, DSTA) and Aluminium Strip Armour (ASA) but is also suitable for Single Wire Armour (SWA), Aluminium Wire Armour (AWA) and Pliable Wire Armour (PWA) if the range is outside that of the Stepped Cone (W).

Note: Grooved Cone (X) dimensions shown in the Cable Gland Selection Table below are for a double wire strand of braid armour cables. Tapes can also be doubled over. For cables that have only a single layer of armour such as SWA the clamping range should be used as shown in the table below.

For all types of Braid & Tape Armoured Cables

Description

PX2KX Barrier Cable Gland

The PX2KX barrier cable gland is an explosion-proof method of terminating all types of braided and tape-armored cables. Certified by ATEX for safe glanding of cables in Class I Zone 1, 21, and Zone 2, 22, hazardous areas, it utilizes a compound barrier-type flameproof seal and controlled outer load-retention seal.

This cable gland is manufactured to meet a wide array of standards, specifications, and codes. Examples include:

ATEX Certificates

  • CML 18ATEX1325X
  • CML 18ATEX4317X

Approvals

  • LRS: 01/00172 (E3)
  • DNV: TAE00000Y
  • ABS: 14-LD234401A-4-PDA
  • BV: 43180/A1BV

IECEx Certificates

  • IECEx CML 18.0182X

UL Certificates

  • E201187

Compliance Standards

  • UL 2225
  • CSA C22.2 No 174
  • CAN/CSA-C22.2 No 0,18,25,30,94,174
  • CAN/CSA-E60079-0,1,7,15,31
  • CAN/CSA-E61241-1-1 Part 1-1
  • ANSI/UL 514B Ed 5
  • ANSI/UL 50 Ed 11
  • ANSI/UL 2225 Ed 4, UL60079

PX2KX cable glands feature metal-to-metal armor clamping mechanisms and robust sealing systems. Once a cable’s inner sheath or bedding has been removed, a RapidEx liquid resin barrier seals directly around the internal cable cores. As a result, the risk of coldflow on all cable types is eliminated. Other features include:

  • Direct And Remote Installation
  • Unique OSTG Prevents Overtightening
  • Globally Marked, IECEx, ATEX, UL, And cCSAus
  • EMC Tested
  • Superior EMC Performance
  • PX2KX explosive atmosphere barrier cable glands are available in brass, electroless nickel-plated brass, stainless steel, and aluminum constructions. EUTEX International’s standard offering is nickel-plated brass.

    This cable gland is suitable for operating environments of -60 degrees Celsius, or -76 degrees Fahrenheit, to +85 degrees Celsius, or +185 degrees Fahrenheit. It’s ideal for use in applications across many industries.

    • Aerospace
    • Defense
    • Chemical
    • Mining
    • Minerals & Metals
    • Commercial Construction
    • Downstream Hydrocarbons
    • Food & Beverage
    • Industrial Energy
    • Onsite Utilities

    • Industrial Machinery
    • Laboratory and R&D
    • Life Sciences
    • Medical
    • Marine
    • Oil & Gas
    • Packaging
    • Power
    • Pulp & Paper
    • Textiles
    • Water & Wastewate

    Your Explosive Cable Gland Source

    EUTEX International is a leading provider of electric cables and accessories for demanding industrial use. With locations around the world, our team delivers the products you need on time and within budget. An ISO 9001:2015-certified quality management system ensures every product we supply conforms to your purchase order requirements.

    Contact us for additional information about the PX2KX – Explosive Atmosphere Barrier Cable Gland. Our experts can help you determine whether this is the optimal cable gland for your application.

    Technical

    Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
    Mechanical Classifications * Impact = Level 8, Retention = Class B
    Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
    Electrical Classifications * Category B (Category A when used with braid, tape or pliable wire armour cables)
    ATEX Certificate SIRA13ATEX1072X, SIRA13ATEX4078X
    Code of Protection II 2G, II 1D, Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da,
    II 3G Ex nR IIC Gc, IM2 Ex d I Mb, Ex e I Mb
    Compliance Standards EN 60079-0,1,7,15,31
    IECEx Certificate IECEx SIR 13.0027X, IECEx SIM 14.0008X
    Code of Protection Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex d I Mb, Ex e I Mb
    Compliance Standards IEC 60079-0,1,7,15,31
    cCSAus Certificate (20s16 – 100) 2288626
    CSAus Code of Protection*** Class I, Div. 1, 2 Groups A, B, C and D; Class II, Div. 1, 2 Groups E, F and G; Class III, Div. 1, 2; Type
    4X: Oil Resistant II:
    Class I, Zone 1 AEx d IIC Gb, AEx e IIC Gb, Class I, Zone 2 AEx nR IIC Gc,
    Class I, Zone 20 AEx ta IIIC Da
    CSAus Code of Protection*** Class I, Div. 1, 2 Groups A, B, C and D; Class II, Div. 1, 2 Groups E, F and G; Class III, Div. 1, 2; Type
    4X: Oil Resistant II:
    Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
    Code of Protection Class I, Div 1,2, Groups A,B,C,D; Class II, Div 1,2, Groups E,F,G, Class III, Div 1,2; Class I Zone 1, AEx d IIC, AEx nR II, NEMA 4X , Oil Resistant II
    AEx d IIC Gb, AEx e IIC Gb, Class I, Zone 2 AEx nR IIC Gc, Class I, Zone 20 AEx ta IIIC Da
    Compliance Standards CAN/CSA-C22.2 No 0,18,25,30,94,174, CAN/CSA-E60079-0,1,7,15,31 CAN/CSA-E61241-1-1 Part
    1-1, ANSI/UL 514B Ed 5, ANSI/UL 50 Ed 11, ANSI/UL 2225 Ed 4, UL60079
    UL Certificate (20s16 – 100) E201187, E161256C
    Code of Protection Class I Div 1,2, Groups A,B,C,D, Class II Div 1,2, Groups E,F,G
    Compliance Standards UL 2225, CSA C22.2 No 174, UK 514B, CSA C22.2 No 18, CSA C22.2 No 30
    EAC Certificate (Formerly GOST R, K & B) TC RU C-GB.AA87.B.00487
    UkrSEPRO UA.TR.047.C.0644-15
    KCC Certificate 14-GA4BO-0252X
    CCOE / PESO (India) Certificate P333688
    NEPSI Certificate GYJ13.1140X, GYJ13.1282X
    INMETRO Certificate TÜV 12.2073X
    RETIE Certificate 03866
    Marine Approvals LRS: 01/00172, DNV: TAE00000Y, ABS: 14-LD234401A-4-PDA, BV: 43180/A1BV
    Ingress Protection Rating ** IP66, IP67 & IP68
    Deluge Protection Compliance DTS01 : 91
    Cable Gland Material Electroless Nickel Plated Brass, Brass,   Stainless Steel, Aluminium
    Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer / Epoxy Barrier Compound
    Cable Type Screened Flexible (EMC) Wire Braid (e.g. CY / SY), Pliable Wire Armour (PWA), Steel Tape
    Armour (STA), Wire Braid Armour (e.g. SWB), Aluminium Strip Armour (ASA), Armoured
    & Jacketed***
    Armour Clamping Detachable Compound Tube / Cone & AnyWay Universal Clamping Ring
    Sealing Technique Unique CMP ‘LRS’ Outer Seal (Load Retention Seal)
    Sealing Area(s) Inner Compound Barrier & Outer Sheath
    Optional Accessories Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs
    Optional Installation Tools Spanners

Product Table

Metric

Cable Gland Size Available Entry Threads “C” (Alternate Metric Thread Lengths Available) Number of Cores Diameter Over Conductors
“A”
Cable
Bedding
Diameter
“G”
Overall
Cable
Diameter
“B”
Armour Range Across
Flats
“D”
Across
Corners
“D”
Protrusion
Length “F”
Combined Ordering Reference
(*Brass Metric)
Shroud Cable
Gland
Weight
(Kgs)
Standard Option Grooved Cone (X)
Metric Thread Length (Metric) “E” NPT Thread Length
(NPT) “E”
NPT Max Min Max Min Max Max Max Size Type Ordering
Suffix
20S16 M20 15.0 ½” 19.9 ¾” 11 11.7 11.7 6.1 13.1 0.3 1.0 30.5 33.6 62.0 20S16 PX2KX 1RA PVC06 0.24
20S M20 15.0 ½” 19.9 ¾” 11 11.7 11.7 9.5 15.9 0.3 1.0 30.5 33.6 62.0 20S PX2KX 1RA PVC06 0.23
20 M20 15.0 ½” 19.9 ¾” 11 12.6 12.9 12.5 20.9 0.4 1.0 30.5 33.6 63.0 20 PX2KX 1RA PVC06 0.24
25S M25 15.0 ¾” 20.2 1″ 21 17.5 17.9 14.0 22.0 0.4 1.2 37.5 41.3 69.5 25S PX2KX 1RA PVC09 0.37
25 M25 15.0 ¾” 20.2 1″ 21 17.5 17.9 18.2 26.2 0.4 1.2 37.5 41.3 69.5 25 PX2KX 1RA PVC09 0.37
32 M32 15.0 1″ 25.0 1 ¼” 38 23.6 23.9 23.7 33.9 0.4 1.2 46.0 50.6 75.0 32 PX2KX 1RA PVC11 0.57
40 M40 15.0 1 ¼” 25.6 1 ½” 59 30.0 30.3 27.9 40.4 0.4 1.6 55.0 60.5 75.0 40 PX2KX 1RA PVC15 0.80
50S M50 15.0 1 ½” 26.1 2″ 89 36.6 36.9 35.2 46.7 0.4 1.6 60.0 66.0 77.0 50S PX2KX 1RA PVC18 0.90
50 M50 15.0 2″ 26.9 2 ½” 89 41.0 41.3 40.4 53.0 0.6 1.6 70.0 77.0 77.0 50 PX2KX 1RA PVC21 1.19
63S M63 15.0 2″ 26.9 2 ½” 115 47.9 48.4 45.6 59.4 0.6 1.6 75.0 82.5 79.7 63S PX2KX 1RA PVC23 1.39
63 M63 15.0 2 ½” 39.9 3″ 115 53.7 54.0 54.6 65.8 0.6 1.6 80.0 88.0 80.3 63 PX2KX 1RA PVC25 1.41
75S M75 15.0 2 ½” 39.9 3″ 140 59.9 60.2 59.0 72.0 0.6 1.6 90.0 99.0 86.8 75S PX2KX 1RA PVC28 2.09
75 M75 15.0 3″ 41.5 3 ½” 140 64.2 64.2 66.7 78.4 0.6 1.6 100.0 110.0 88.3 75 PX2KX 1RA PVC30 2.54
90 M90 24.0 3 ½” 42.8 4″ 200 75.3 75.6 76.2 90.3 0.8 1.6 115.0 126.5 102.1 90 PX2KX 1RA PVC32 3.71
100 M100 24.0 3 ½” 42.8 4″ 200 85.6 85.9 86.1 101.4 0.8 1.6 127.0 139.7 114.0 100 PX2KX 1RA LSF33 4.31
Dimensions displayed in millimeters unless otherwise stated

Imperial

Cable Gland Size Available Entry Threads “C” (Alternate Metric Thread Lengths Available) Number of Cores Diameter Over Conductors
“A”
Cable
Bedding
Diameter
“G”
Overall
Cable
Diameter
“B”
Armour Range Across
Flats
“D”
Across
Corners
“D”
Protrusion
Length “F”
Combined Ordering Reference
(*Brass Metric)
Shroud Cable
Gland
Weight
(Ozs)
Standard Option Grooved Cone (X)
Metric Thread Length (Metric) “E” NPT Thread Length
(NPT) “E”
NPT Max Min Max Min Max Max Max Size Type Ordering
Suffix
20S16 M20 0.59 ½” 0.78 ¾” 11 0.46 0.46 0.24 0.52 0.01 0.04 1.20 1.32 2.44 20S16 PX2KX 1RA PVC06 8.47
20S M20 0.59 ½” 0.78 ¾” 11 0.46 0.46 0.37 0.63 0.01 0.04 1.20 1.32 2.44 20S PX2KX 1RA PVC06 8.11
20 M20 0.59 ½” 0.78 ¾” 11 0.50 0.51 0.49 0.82 0.02 0.04 1.20 1.32 2.48 20 PX2KX 1RA PVC06 8.47
25S M25 0.59 ¾” 0.80 1″ 21 0.69 0.70 0.55 0.87 0.02 0.05 1.48 1.63 2.74 25S PX2KX 1RA PVC09 13.05
25 M25 0.59 ¾” 0.80 1″ 21 0.69 0.70 0.72 1.03 0.02 0.05 1.48 1.63 2.74 25 PX2KX 1RA PVC09 13.05
32 M32 0.59 1″ 0.98 1 ¼” 38 0.93 0.94 0.93 1.33 0.02 0.05 1.81 1.99 2.95 32 PX2KX 1RA PVC11 20.11
40 M40 0.59 1 ¼” 1.01 1 ½” 59 1.18 1.19 1.10 1.59 0.02 0.06 2.17 2.38 2.95 40 PX2KX 1RA PVC15 28.22
50S M50 0.59 1 ½” 1.03 2″ 89 1.44 1.45 1.39 1.84 0.02 0.06 2.36 2.60 3.03 50S PX2KX 1RA PVC18 31.75
50 M50 0.59 2″ 1.06 2 ½” 89 1.61 1.63 1.59 2.09 0.02 0.06 2.76 3.03 3.03 50 PX2KX 1RA PVC21 41.98
63S M63 0.59 2″ 1.06 2 ½” 115 1.89 1.91 1.80 2.34 0.02 0.06 2.95 3.25 3.14 63S PX2KX 1RA PVC23 49.03
63 M63 0.59 2 ½” 1.57 3″ 115 2.11 2.13 2.15 2.59 0.02 0.06 3.15 3.46 3.16 63 PX2KX 1RA PVC25 49.74
75S M75 0.59 2 ½” 1.57 3″ 140 2.36 2.37 2.32 2.83 0.02 0.06 3.54 3.90 3.42 75S PX2KX 1RA PVC28 73.72
75 M75 0.59 3″ 1.63 3 ½” 140 2.53 2.53 2.63 3.09 0.02 0.06 3.94 4.33 3.48 75 PX2KX 1RA PVC30 89.60
90 M90 0.94 3 ½” 1.69 4″ 200 2.96 2.98 3.00 3.56 0.03 0.06 4.53 4.98 4.02 90 PX2KX 1RA PVC32 130.87
100 M100 0.94 3 ½” 1.69 4″ 200 3.37 3.38 3.39 3.99 0.03 0.06 5.00 5.50 4.49 100 PX2KX 1RA LSF33 152.03
Dimensions displayed in inches unless otherwise stated

Download Spec Sheet
