Products > PXSS2KREX Cable Gland
explosive atmosphere double seal liquid resin gland

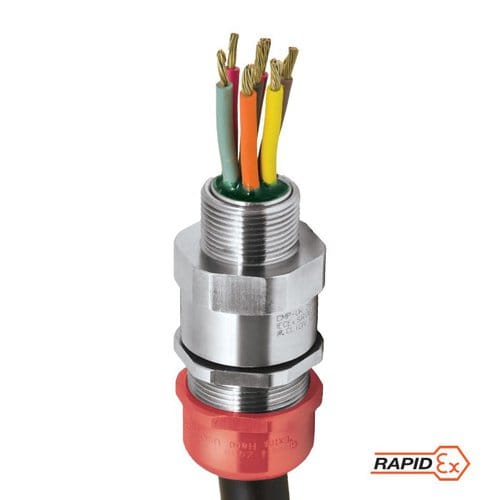

PXSS2KREX Cable Gland
explosive atmosphere double seal liquid resin gland

Globally Approved, Explosive Atmosphere RapidEx Barrier Cable Gland

• RapidEx liquid pour sealing system
– Enhances reliability, reduces risk
– Reduces man hours
– Reduces cost
• Direct & remote installation
• Superior levels of cable retention
• Displacement type environmental seal
• Designed to prevent Coldflow
• Deluge protected
• -60°C to +85°C
• Globally marked, IECEx, ATEX & cCSAus

For all types of Unarmoured & Braid Cables

Description

PXSS2KREX

PXSS2KREX explosive atmosphere barrier cable glands are suitable for all types of unarmored cables. Certified by ATEX for safe glanding of cables in Zone 2 potentially explosive atmospheres, they feature a liquid pour sealing system that enhances reliability while reducing risk, man hours, and costs.

This type of cable gland is manufactured to meet a wide array of standards, specifications, and codes. Examples include:

ATEX Certificates

  • CML 18ATEX1325X
  • CML 18ATEX4317X

Approvals

  • LRS: 01/00172 (E3)
  • DNV: TAE00000Y
  • ABS: 20-LD1948801-PDA
  • BV: 43180/A1BV

IECEx Certificates

  • IECEx SIR 13.0027X
  • IECEx SIM 14.0008

UL Compliance Standards

  • UL 514B Ed 5
  • UL 50 Ed 11
  • UL 2225 Ed 4
  • UL60079-0, 1, 7

Code of Protection

  • Class I, Div. 1,2 Groups A, B, C, D; Class II, Div. 1,2 Groups E, F, G; Class III, Div. 1-2
  • Class I, Zone 1 AEx d IIC Gb, AEx e IIC Gb, Class I, Zone 2 AEx nR IIC Gc

The PXSS2KREX cable gland utilizes a liquid pour resin seal, which curbs installation time and associated costs. It’s particularly effective on multicore cables where a traditional compound is difficult and time-consuming to apply.

Available construction materials include brass, electroless nickel-plated brass, stainless steel, and aluminum constructions. EUTEX International’s standard offering is nickel-plated brass. Optional accessories include locknuts, earth tags, serrated washers, entry thread seals, shrouds, and ingress discs.

This cable gland type features deluge protections and is intended for operating environments of -60°C to +85°C. Many applications can benefit from PXSS2KREX explosive atmosphere barrier cable gland products.

  • Aerospace
  • Defense
  • Chemical
  • Mining
  • Minerals & Metals
  • Commercial Construction
  • Downstream Hydrocarbons
  • Food & Beverage
  • Industrial Energy
  • Onsite Utilities

  • Industrial Machinery
  • Laboratory and R&D
  • Life Sciences
  • Medical
  • Marine
  • Oil & Gas
  • Packaging
  • Power
  • Pulp & Paper
  • Textiles
  • Water & Wastewate

Your Explosive Cable Gland Source

EUTEX International is a top provider of electric cables and accessories for demanding industrial use. With an ISO 9001:2015-certified Quality Management System, every product we supply is guaranteed to be durable, effective, and of the highest quality. Strategically positioned locations worldwide enable us to deliver the electrical products you need on time and within budget.

Feel free to contact us about the PXSS2KREX cable gland. We’re happy to discuss your needs further.

Technical



Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications* Impact = Level 8, Retention = Class B
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
ATEX Certificate SIRA13ATEX1072X, SIRA13ATEX4078X
Code of Protection II 2G, II 1D, Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da
II 3G Ex nR IIC Gc, IM2 Ex d I Mb, Ex e I Mb
Compliance Standards EN 60079-0,1,7,15,31
IECEx Certificate IECEx SIR 13.0027X, IECEx SIM 14.0008X
Code of Protection Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex d I Mb, Ex e I Mb
Compliance Standards IEC 60079-0,1,7,15,31
cCSAus Certificate (20s16 – 100) 2288626
CSAus Code of Protection*** Class I, Div. 1, 2 Groups A, B, C and D; Class II, Div. 1, 2 Groups E, F and G; Class III,
Div. 1, 2; Type 4X: Oil Resistant II:
Class I, Zone 1 AEx d IIC Gb, AEx e IIC Gb, Class I, Zone 2 AEx nR IIC Gc, Class I, Zone
20 AEx ta IIIC Da
cCSA Code of Protection*** Class I, Div. 1, 2 Groups A, B, C and D; Class II, Div. 1, 2 Groups E, F and G; Class III,
Div. 1, 2; Type 4X: Oil Resistant II:
Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
Compliance Standards CAN/CSA-C22.2 No 0,18,25,30,94,174, CAN/CSA-E60079-0,1,7,31
CAN/CSA-E61241-1-1, Part 1-1, ANSI/UL 514B Ed 5, ANSI/UL 50 Ed 11, ANSI/UL 2225 Ed 4,
UL60079-0:07
EAC Certificate TC RU C-GB.AA87.B.00487
UkrSEPRO UA.TR.047.C.0644-15
CCOE / PESO (India) Certificate P333688
NEPSI Certificate GYJ13.1140X, GYJ13.1282X
INMETRO Certificate TÜV 12.2073X
RETIE Certificate 03866
Marine Approvals LRS: 01/00172, DNV: TAE00000Y, ABS: 14-LD234401A-4-PDA, BV: 43180/A1BV
Ingress Protection Rating ** IP66, IP67 & IP68
Deluge Protection Compliance DTS01 : 91
Cable Gland Material Electroless Nickel Plated Brass, Brass, Stainless Steel, Aluminium
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer / RapidEx Barrier Compound
Cable Type Unarmoured (where permitted by code)
Sealing Technique Unique CMP ‘LRS’ Outer Seal (Load Retention Seal)
Sealing Area(s) RapidEx Resin Barrier & Cable Outer Sheath
Optional Accessories Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs
Optional Installation Tools Spanners

Product Table

Metric

Cable Gland Size Available Entry Threads “C” (Alternate Metric Thread Lengths Available) Number of Cores Diameter Over Conductors
“A”
Cable Bedding Diameter “G” Overall
Cable
Diameter
“B”
Across
Flats
“D”
Across
Corners
“D”
Protrusion
Length “F”
Combined Ordering Reference
(*Brass Metric)
Shroud Cable
Gland
Weight
(Kgs)
Standard Option
Metric Thread Length (Metric) “E” NPT Thread Length
(NPT) “E”
NPT Max Min Max Max Max Size Type Ordering
Suffix
20S16 M20 15.0 ½” 19.9 ¾” 11 8.6 8.6 3.1 8.6 30.0 33.0 53.1 20S16 PXSS2KREX 1RA PVC06 0.20
20S M20 15.0 ½” 19.9 ¾” 11 11.7 11.7 6.1 11.7 30.0 33.0 53.1 20S PXSS2KREX 1RA PVC06 0.20
20 M20 15.0 ½” 19.9 ¾” 11 12.6 12.9 6.5 14.0 30.0 33.0 54.2 20 PXSS2KREX 1RA PVC06 0.20
20L M20 15.0 ½” 19.9 ¾” 11 12.6 12.9 10.0 15.9 30.0 33.0 54.2 20L PXSS2KREX 1RA PVC06 0.20
25 M25 15.0 ¾” 20.2 1″ 21 17.5 17.9 11.1 20.0 36.0 39.6 60.0 25 PXSS2KREX 1RA PVC09 0.33
32 M32 15.0 1” 25.0 1¼” 38 23.6 23.9 17.0 26.3 41.0 45.1 61.1 32 PXSS2KREX 1RA PVC10 0.59
32L M32 15.0 1” 25.0 1¼” 38 23.6 23.9 20.0 27.4 41.0 45.1 61.1 32L PXSS2KREX 1RA PVC10 0.59
40 M40 15.0 1¼” 25.6 1½” 59 30.0 30.3 22.0 32.1 50.0 55.0 62.4 40 PXSS2KREX 1RA PVC13 0.56
50S M50 15.0 1½” 26.1 2″ 89 36.6 36.9 29.5 38.2 55.0 60.5 65.2 50S PXSS2KREX 1RA PVC15 0.66
50 M50 15.0 2” 26.9 2½” 89 41.0 41.3 35.6 44.0 60.0 66.0 67.6 50 PXSS2KREX 1RA PVC18 0.73
63S M63 15.0 2” 26.9 2½” 115 47.9 48.4 40.1 49.9 70.0 77.0 71.1 63S PXSS2KREX 1RA PVC21 1.07
63 M63 15.0 2½” 39.9 3″ 115 53.7 54.0 47.2 55.9 75.0 82.5 70.4 63 PXSS2KREX 1RA PVC23 1.06
75S M75 15.0 2½” 39.9 3″ 140 59.9 60.2 52.8 61.9 80.0 88.0 75.3 75S PXSS2KREX 1RA PVC25 1.30
75 M75 15.0 3” 41.5 3½” 140 64.3 64.2 59.1 67.9 85.0 93.5 74.9 75 PXSS2KREX 1RA PVC27 1.30
90 M90 24.0 3½” 42.8 4″ 200 75.3 75.6 66.6 79.4 108.0 118.8 94.8 90 PXSS2KREX 1RA PVC31 3.02
100 M100 24.0 3½” 42.8 4″ 200 85.6 85.9 76.0 90.9 123.0 135.3 86.3 100 PXSS2KREX 1RA LSF33 4.00
Dimensions displayed in millimeters unless otherwise stated

Imperial

Cable Gland Size Available Entry Threads “C” (Alternate Metric Thread Lengths Available) Number of Cores Diameter Over Conductors
“A”
Cable Bedding Diameter “G” Overall
Cable
Diameter
“B”
Across
Flats
“D”
Across
Corners
“D”
Protrusion
Length “F”
Combined Ordering Reference
(*Brass Metric)
Shroud Cable
Gland
Weight
(Ozs)
Standard Option
Metric Thread Length (Metric) “E” NPT Thread Length
(NPT) “E”
NPT Max Min Max Max Max Size Type Ordering
Suffix
20S16 M20 0.59 ½” 0.78 ¾” 11 0.34 0.34 0.12 0.34 1.18 1.3 2.09 20S16 PXSS2KREX 1RA PVC06 7.05
20S M20 0.59 ½” 0.78 ¾” 11 0.46 0.46 0.24 0.46 1.18 1.3 2.09 20S PXSS2KREX 1RA PVC06 7.05
20 M20 0.59 ½” 0.78 ¾” 11 0.5 0.51 0.26 0.55 1.18 1.3 2.13 20 PXSS2KREX 1RA PVC06 7.05
20L M20 0.59 ½” 0.78 ¾” 11 0.5 0.51 0.39 0.63 1.18 1.3 2.13 20L PXSS2KREX 1RA PVC06 7.05
25 M25 0.59 ¾” 0.80 1″ 21 0.69 0.7 0.44 0.79 1.42 1.56 2.36 25 PXSS2KREX 1RA PVC09 11.64
32 M32 0.59 1” 0.98 1¼” 38 0.93 0.94 0.67 1.04 1.61 1.78 2.41 32 PXSS2KREX 1RA PVC10 20.81
32L M32 0.59 1” 0.98 1¼” 38 0.93 0.94 0.79 1.08 1.61 1.78 2.41 32L PXSS2KREX 1RA PVC10 20.81
40 M40 0.59 1¼” 1.01 1½” 59 1.18 1.19 0.87 1.26 1.97 2.17 2.46 40 PXSS2KREX 1RA PVC13 19.75
50S M50 0.59 1½” 1.03 2″ 89 1.44 1.45 1.16 1.5 2.17 2.38 2.57 50S PXSS2KREX 1RA PVC15 23.28
50 M50 0.59 2” 1.06 2½” 89 1.61 1.63 1.4 1.73 2.36 2.6 2.66 50 PXSS2KREX 1RA PVC18 25.75
63S M63 0.59 2” 1.06 2½” 115 1.89 1.91 1.58 1.96 2.76 3.03 2.8 63S PXSS2KREX 1RA PVC21 37.74
63 M63 0.59 2½” 1.57 3″ 115 2.11 2.13 1.86 2.2 2.95 3.25 2.77 63 PXSS2KREX 1RA PVC23 37.39
75S M75 0.59 2½” 1.57 3″ 140 2.36 2.37 2.08 2.44 3.15 3.46 2.96 75S PXSS2KREX 1RA PVC25 45.86
75 M75 0.59 3” 1.63 3½” 140 2.53 2.53 2.33 2.67 3.35 3.68 2.95 75 PXSS2KREX 1RA PVC27 45.86
90 M90 0.94 3½” 1.69 4″ 200 2.96 2.98 2.62 3.13 4.25 4.68 3.73 90 PXSS2KREX 1RA PVC31 106.53
100 M100 0.94 3½” 1.69 4″ 200 3.37 3.38 2.99 3.58 4.84 5.33 3.4 100 PXSS2KREX 1RA LSF33 141.1
Dimensions displayed in inches unless otherwise stated

Download Spec Sheet

Download

PXSS2KREX

PXSS2KREX explosive atmosphere barrier cable glands are suitable for all types of unarmored cables. Certified by ATEX for safe glanding of cables in Zone 2 potentially explosive atmospheres, they feature a liquid pour sealing system that enhances reliability while reducing risk, man hours, and costs.

This type of cable gland is manufactured to meet a wide array of standards, specifications, and codes. Examples include:

ATEX Certificates

  • CML 18ATEX1325X
  • CML 18ATEX4317X

Approvals

  • LRS: 01/00172 (E3)
  • DNV: TAE00000Y
  • ABS: 20-LD1948801-PDA
  • BV: 43180/A1BV

IECEx Certificates

  • IECEx SIR 13.0027X
  • IECEx SIM 14.0008

UL Compliance Standards

  • UL 514B Ed 5
  • UL 50 Ed 11
  • UL 2225 Ed 4
  • UL60079-0, 1, 7

Code of Protection

  • Class I, Div. 1,2 Groups A, B, C, D; Class II, Div. 1,2 Groups E, F, G; Class III, Div. 1-2
  • Class I, Zone 1 AEx d IIC Gb, AEx e IIC Gb, Class I, Zone 2 AEx nR IIC Gc

The PXSS2KREX cable gland utilizes a liquid pour resin seal, which curbs installation time and associated costs. It’s particularly effective on multicore cables where a traditional compound is difficult and time-consuming to apply.

Available construction materials include brass, electroless nickel-plated brass, stainless steel, and aluminum constructions. EUTEX International’s standard offering is nickel-plated brass. Optional accessories include locknuts, earth tags, serrated washers, entry thread seals, shrouds, and ingress discs.

This cable gland type features deluge protections and is intended for operating environments of -60°C to +85°C. Many applications can benefit from PXSS2KREX explosive atmosphere barrier cable gland products.

  • Aerospace
  • Defense
  • Chemical
  • Mining
  • Minerals & Metals
  • Commercial Construction
  • Downstream Hydrocarbons
  • Food & Beverage
  • Industrial Energy
  • Onsite Utilities

  • Industrial Machinery
  • Laboratory and R&D
  • Life Sciences
  • Medical
  • Marine
  • Oil & Gas
  • Packaging
  • Power
  • Pulp & Paper
  • Textiles
  • Water & Wastewate

Your Explosive Cable Gland Source

EUTEX International is a top provider of electric cables and accessories for demanding industrial use. With an ISO 9001:2015-certified Quality Management System, every product we supply is guaranteed to be durable, effective, and of the highest quality. Strategically positioned locations worldwide enable us to deliver the electrical products you need on time and within budget.

Feel free to contact us about the PXSS2KREX cable gland. We’re happy to discuss your needs further.

Technical



Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications* Impact = Level 8, Retention = Class B
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
ATEX Certificate SIRA13ATEX1072X, SIRA13ATEX4078X
Code of Protection II 2G, II 1D, Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da
II 3G Ex nR IIC Gc, IM2 Ex d I Mb, Ex e I Mb
Compliance Standards EN 60079-0,1,7,15,31
IECEx Certificate IECEx SIR 13.0027X, IECEx SIM 14.0008X
Code of Protection Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex d I Mb, Ex e I Mb
Compliance Standards IEC 60079-0,1,7,15,31
cCSAus Certificate (20s16 – 100) 2288626
CSAus Code of Protection*** Class I, Div. 1, 2 Groups A, B, C and D; Class II, Div. 1, 2 Groups E, F and G; Class III,
Div. 1, 2; Type 4X: Oil Resistant II:
Class I, Zone 1 AEx d IIC Gb, AEx e IIC Gb, Class I, Zone 2 AEx nR IIC Gc, Class I, Zone
20 AEx ta IIIC Da
cCSA Code of Protection*** Class I, Div. 1, 2 Groups A, B, C and D; Class II, Div. 1, 2 Groups E, F and G; Class III,
Div. 1, 2; Type 4X: Oil Resistant II:
Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
Compliance Standards CAN/CSA-C22.2 No 0,18,25,30,94,174, CAN/CSA-E60079-0,1,7,31
CAN/CSA-E61241-1-1, Part 1-1, ANSI/UL 514B Ed 5, ANSI/UL 50 Ed 11, ANSI/UL 2225 Ed 4,
UL60079-0:07
EAC Certificate TC RU C-GB.AA87.B.00487
UkrSEPRO UA.TR.047.C.0644-15
CCOE / PESO (India) Certificate P333688
NEPSI Certificate GYJ13.1140X, GYJ13.1282X
INMETRO Certificate TÜV 12.2073X
RETIE Certificate 03866
Marine Approvals LRS: 01/00172, DNV: TAE00000Y, ABS: 14-LD234401A-4-PDA, BV: 43180/A1BV
Ingress Protection Rating ** IP66, IP67 & IP68
Deluge Protection Compliance DTS01 : 91
Cable Gland Material Electroless Nickel Plated Brass, Brass, Stainless Steel, Aluminium
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer / RapidEx Barrier Compound
Cable Type Unarmoured (where permitted by code)
Sealing Technique Unique CMP ‘LRS’ Outer Seal (Load Retention Seal)
Sealing Area(s) RapidEx Resin Barrier & Cable Outer Sheath
Optional Accessories Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs
Optional Installation Tools Spanners

Product Table

Metric

Cable Gland Size Available Entry Threads “C” (Alternate Metric Thread Lengths Available) Number of Cores Diameter Over Conductors
“A”
Cable Bedding Diameter “G” Overall
Cable
Diameter
“B”
Across
Flats
“D”
Across
Corners
“D”
Protrusion
Length “F”
Combined Ordering Reference
(*Brass Metric)
Shroud Cable
Gland
Weight
(Kgs)
Standard Option
Metric Thread Length (Metric) “E” NPT Thread Length
(NPT) “E”
NPT Max Min Max Max Max Size Type Ordering
Suffix
20S16 M20 15.0 ½” 19.9 ¾” 11 8.6 8.6 3.1 8.6 30.0 33.0 53.1 20S16 PXSS2KREX 1RA PVC06 0.20
20S M20 15.0 ½” 19.9 ¾” 11 11.7 11.7 6.1 11.7 30.0 33.0 53.1 20S PXSS2KREX 1RA PVC06 0.20
20 M20 15.0 ½” 19.9 ¾” 11 12.6 12.9 6.5 14.0 30.0 33.0 54.2 20 PXSS2KREX 1RA PVC06 0.20
20L M20 15.0 ½” 19.9 ¾” 11 12.6 12.9 10.0 15.9 30.0 33.0 54.2 20L PXSS2KREX 1RA PVC06 0.20
25 M25 15.0 ¾” 20.2 1″ 21 17.5 17.9 11.1 20.0 36.0 39.6 60.0 25 PXSS2KREX 1RA PVC09 0.33
32 M32 15.0 1” 25.0 1¼” 38 23.6 23.9 17.0 26.3 41.0 45.1 61.1 32 PXSS2KREX 1RA PVC10 0.59
32L M32 15.0 1” 25.0 1¼” 38 23.6 23.9 20.0 27.4 41.0 45.1 61.1 32L PXSS2KREX 1RA PVC10 0.59
40 M40 15.0 1¼” 25.6 1½” 59 30.0 30.3 22.0 32.1 50.0 55.0 62.4 40 PXSS2KREX 1RA PVC13 0.56
50S M50 15.0 1½” 26.1 2″ 89 36.6 36.9 29.5 38.2 55.0 60.5 65.2 50S PXSS2KREX 1RA PVC15 0.66
50 M50 15.0 2” 26.9 2½” 89 41.0 41.3 35.6 44.0 60.0 66.0 67.6 50 PXSS2KREX 1RA PVC18 0.73
63S M63 15.0 2” 26.9 2½” 115 47.9 48.4 40.1 49.9 70.0 77.0 71.1 63S PXSS2KREX 1RA PVC21 1.07
63 M63 15.0 2½” 39.9 3″ 115 53.7 54.0 47.2 55.9 75.0 82.5 70.4 63 PXSS2KREX 1RA PVC23 1.06
75S M75 15.0 2½” 39.9 3″ 140 59.9 60.2 52.8 61.9 80.0 88.0 75.3 75S PXSS2KREX 1RA PVC25 1.30
75 M75 15.0 3” 41.5 3½” 140 64.3 64.2 59.1 67.9 85.0 93.5 74.9 75 PXSS2KREX 1RA PVC27 1.30
90 M90 24.0 3½” 42.8 4″ 200 75.3 75.6 66.6 79.4 108.0 118.8 94.8 90 PXSS2KREX 1RA PVC31 3.02
100 M100 24.0 3½” 42.8 4″ 200 85.6 85.9 76.0 90.9 123.0 135.3 86.3 100 PXSS2KREX 1RA LSF33 4.00
Dimensions displayed in millimeters unless otherwise stated

Imperial

Cable Gland Size Available Entry Threads “C” (Alternate Metric Thread Lengths Available) Number of Cores Diameter Over Conductors
“A”
Cable Bedding Diameter “G” Overall
Cable
Diameter
“B”
Across
Flats
“D”
Across
Corners
“D”
Protrusion
Length “F”
Combined Ordering Reference
(*Brass Metric)
Shroud Cable
Gland
Weight
(Ozs)
Standard Option
Metric Thread Length (Metric) “E” NPT Thread Length
(NPT) “E”
NPT Max Min Max Max Max Size Type Ordering
Suffix
20S16 M20 0.59 ½” 0.78 ¾” 11 0.34 0.34 0.12 0.34 1.18 1.3 2.09 20S16 PXSS2KREX 1RA PVC06 7.05
20S M20 0.59 ½” 0.78 ¾” 11 0.46 0.46 0.24 0.46 1.18 1.3 2.09 20S PXSS2KREX 1RA PVC06 7.05
20 M20 0.59 ½” 0.78 ¾” 11 0.5 0.51 0.26 0.55 1.18 1.3 2.13 20 PXSS2KREX 1RA PVC06 7.05
20L M20 0.59 ½” 0.78 ¾” 11 0.5 0.51 0.39 0.63 1.18 1.3 2.13 20L PXSS2KREX 1RA PVC06 7.05
25 M25 0.59 ¾” 0.80 1″ 21 0.69 0.7 0.44 0.79 1.42 1.56 2.36 25 PXSS2KREX 1RA PVC09 11.64
32 M32 0.59 1” 0.98 1¼” 38 0.93 0.94 0.67 1.04 1.61 1.78 2.41 32 PXSS2KREX 1RA PVC10 20.81
32L M32 0.59 1” 0.98 1¼” 38 0.93 0.94 0.79 1.08 1.61 1.78 2.41 32L PXSS2KREX 1RA PVC10 20.81
40 M40 0.59 1¼” 1.01 1½” 59 1.18 1.19 0.87 1.26 1.97 2.17 2.46 40 PXSS2KREX 1RA PVC13 19.75
50S M50 0.59 1½” 1.03 2″ 89 1.44 1.45 1.16 1.5 2.17 2.38 2.57 50S PXSS2KREX 1RA PVC15 23.28
50 M50 0.59 2” 1.06 2½” 89 1.61 1.63 1.4 1.73 2.36 2.6 2.66 50 PXSS2KREX 1RA PVC18 25.75
63S M63 0.59 2” 1.06 2½” 115 1.89 1.91 1.58 1.96 2.76 3.03 2.8 63S PXSS2KREX 1RA PVC21 37.74
63 M63 0.59 2½” 1.57 3″ 115 2.11 2.13 1.86 2.2 2.95 3.25 2.77 63 PXSS2KREX 1RA PVC23 37.39
75S M75 0.59 2½” 1.57 3″ 140 2.36 2.37 2.08 2.44 3.15 3.46 2.96 75S PXSS2KREX 1RA PVC25 45.86
75 M75 0.59 3” 1.63 3½” 140 2.53 2.53 2.33 2.67 3.35 3.68 2.95 75 PXSS2KREX 1RA PVC27 45.86
90 M90 0.94 3½” 1.69 4″ 200 2.96 2.98 2.62 3.13 4.25 4.68 3.73 90 PXSS2KREX 1RA PVC31 106.53
100 M100 0.94 3½” 1.69 4″ 200 3.37 3.38 2.99 3.58 4.84 5.33 3.4 100 PXSS2KREX 1RA LSF33 141.1
Dimensions displayed in inches unless otherwise stated
