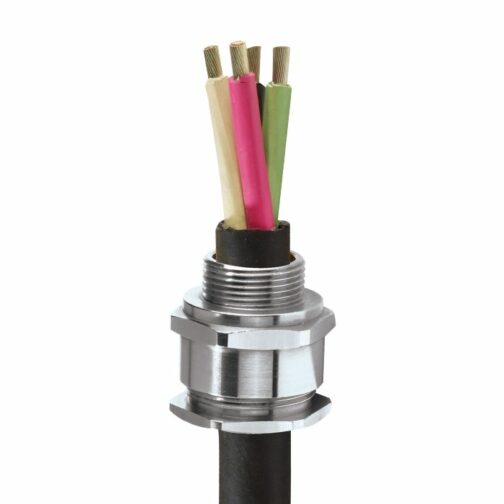

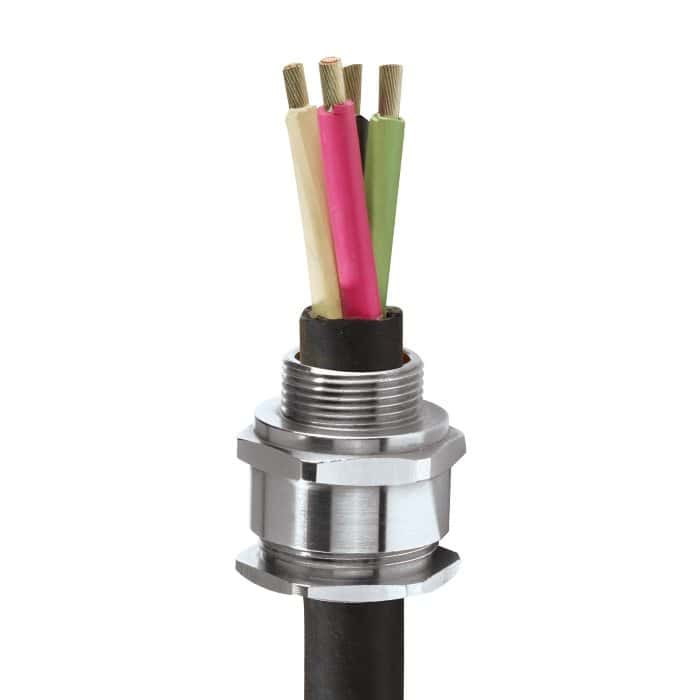

A2 Cable Gland

For all types of Unarmoured & Braid Armoured Cables

Single Seal Industrial Cable Gland

• High quality durable materials
• Robust, heavy duty design
• Displacement type seal
• Deluge protected
• -60°C to +130°C (standard), -20°C to 200°C

Product Selection Table

Cable Gland Size	Available Entry Threads “‘C”‘ (Alternate Metric Thread Lengths Available)		Overall Cable Diameter “‘A”‘		Across Flats “‘D'”	Across Corners ‘”D'”	Protrusion Length “‘F'”	Combined Ordering Reference (Brass Metric)			Shroud	Cable Gland Weight (Kgs)
	Standard		Overall Cable Diameter “‘A”‘		Across Flats “‘D'”	Across Corners ‘”D'”		Combined Ordering Reference (Brass Metric)
	Metric	Thread Length (Metric) ‘”E'”	Min	Max	Max	Max		Size	Type	Ordering Suffix
20S16	M20	10.0	3.2	8.7	24.0	26.4	25.1	20S16	A2	1RA	PVC04	0.070
20S	M20	10.0	6.1	11.7	24.0	26.4	25.1	20S	A2	1RA	PVC04	0.060
20	M20	10.0	6.5	14.0	27.0	29.7	27.2	20	A2	1RA	PVC05	0.070
25	M25	10.0	11.1	20.0	36.0	39.6	35.5	25	A2	1RA	PVC09	0.130
32	M32	10.0	17.0	26.3	41.0	45.1	34.2	32	A2	1RA	PVC10	0.150
40	M40	15.0	23.5	32.2	50.0	55.0	35.1	40	A2	1RA	PVC13	0.200
50S	M50	15.0	31.0	38.2	55.0	60.5	32.0	50S	A2	1RA	PVC15	0.260
50	M50	15.0	35.6	44.0	60.0	66.0	36.3	50	A2	1RA	PVC18	0.270
63S	M63	15.0	41.5	49.9	70.5	77.6	33.5	63S	A2	1RA	PVC21	0.430
63	M63	15.0	47.2	55.9	75.0	82.5	35.8	63	A2	1RA	PVC23	0.460
75S	M75	15.0	54.0	61.9	84.0	92.4	34.2	75S	A2	1RA	PVC24	0.520
75	M75	15.0	61.1	67.9	84.0	92.4	40.6	75	A2	1RA	PVC24	0.500
90	M90	24.0	66.6	79.9	108.0	118.8	58.3	90	A2	1RA	PVC31	1.600
100	M100	24.0	76.0	91.0	123.0	135.3	55.2	100	A2	1RA	LSF33	1.780
115	M115	24.0	86.0	97.9	133.4	146.7	65.2	115	A2	1RA	LSF34	2.670
130	M130	24.0	97.0	114.9	152.4	167.6	73.9	130	A2	1RA	LSF35	3.800
Dimensions are displayed in millimetres unless otherwise stated
