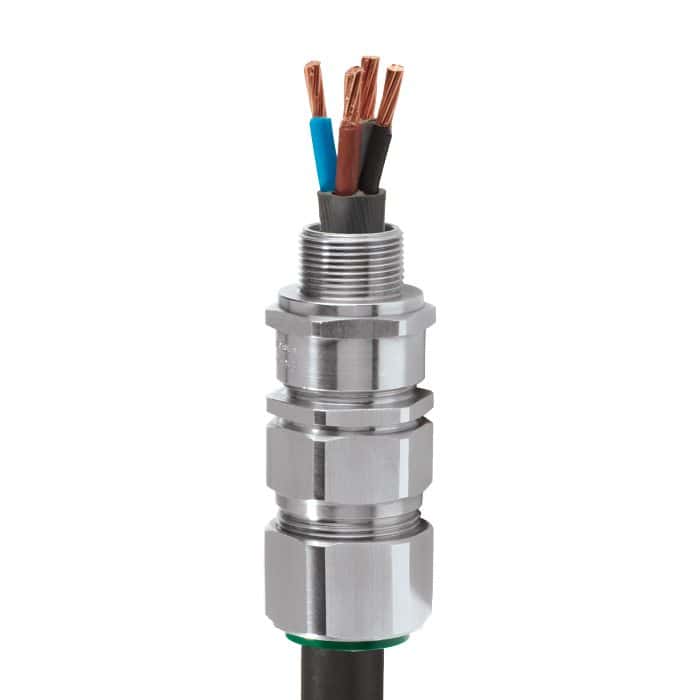

E1FU Cable gland

Ex eb, Ex db, Ex nR, Ex ta | Explosive Atmosphere Cable Gland
For all types of Armoured cables

Globally Approved, Explosive Atmosphere Cable Gland

• Metal-to-metal armour clamping
• Direct & remote installation
• Displacement type flameproof inner seal
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• Designed to prevent Coldflow, see CMP Technical Document TS001 (available upon request)
• -60°C to +130°C
• Globally marked, IECEx, ATEX & cCSAus
• Superior EMC performance

Description

Note: † Grooved Cone (X) is predominantly used for Wire Braid (e.g. GSWB, TCWB), Steel Tape Armour (STA, DSTA) and Aluminium Strip Armour (ASA) but is also suitable for Single Wire Armour (SWA), Aluminium Wire Armour (AWA) and Pliable Wire Armour (PWA) if the range is outside that of the Stepped Cone (W). Note: Grooved Cone (X) dimensions shown in the Cable Gland Selection Table below are for a double wire strand of braid armour cables. Tapes can also be doubled over. For cables that have only a single layer of armour such as SWA the clamping range should be used as shown in the table below. Stepped (W) Cone is suitable for Single Wire Armour (SWA), or Aluminium Wire Armour (AWA) cables. CMP E1FU

CMP E1FU

Cable Gland SizeAvailable Entry Threads ‘C’ (Alternate Metric Thread Lengths Available)Cable
Bedding
Diameter
‘A’
Overall
Cable
Diameter
‘B’
Armour RangeAcross
Flats
‘D’
Across
Corners
‘D’
Protrusion
Length ‘F’
Combined Ordering Reference
(*Brass Metric)
ShroudCable
Gland
Weight
(Kgs)
StandardOptionGrooved
Cone (X)
Stepped Cone (W)
MetricThread Length (Metric) ‘E’NPTThread Length
(NPT) ‘E’
NPTMinMaxMinMaxMinMaxMinMaxMaxMaxSizeTypeOrdering
Suffix
20S16M2015.0½”19.9¾”3.18.66.113.10.31.00.81.2524.026.472.520S16E1FU1RAPVC040.16
20SM2015.0½”19.9¾”6.111.69.515.90.31.00.81.2524.026.470.020SE1FU1RAPVC040.15
20M2015.0½”19.9¾”6.513.912.520.90.41.00.81.2530.533.673.020E1FU1RAPVC060.21
25SM2515.0¾”20.21″11.119.914.022.00.41.21.251.637.541.389.025SE1FU1RAPVC090.33
25M2515.0¾”20.21″11.119.918.226.20.41.21.251.637.541.389.025E1FU1RAPVC090.33
32M3215.01″25.01 ¼”17.026.223.733.90.41.21.62.046.050.686.032E1FU1RAPVC110.43
40M4015.01 ¼”25.61 ½”22.032.127.940.40.41.61.62.055.060.590.040E1FU1RAPVC150.62
50SM5015.01 ½”26.12″29.538.135.246.70.41.62.02.560.066.091.050SE1FU1RAPVC180.75
50M5015.02″26.92 ½”35.644.040.453.00.61.62.02.570.177.195.050E1FU1RAPVC210.95
63SM6315.02″26.92 ½”40.149.945.659.40.61.62.02.575.082.5102.063SE1FU1RAPVC231.34
63M6315.02 ½”39.93″47.255.954.665.80.61.62.02.580.088.0104.063E1FU1RAPVC251.34
75SM7515.02 ½”39.93″52.861.959.072.00.61.62.02.590.099.0115.075SE1FU1RAPVC282.11
75M7515.03″41.53 ½”59.167.966.778.40.61.62.53.0100.0110.0117.075E1FU1RAPVC302.42
90M9024.03 ½”42.84″66.678.676.290.30.81.63.154.0114.3125.4147.090E1FU1RAPVC324.21
100M10024.03 ½”42.84″76.090.986.1101.40.81.63.154.0123.0135.3140.0100E1FU1RALSF334.45
115M11524.04″44.05″86.097.9101.5110.20.81.63.154.0133.4146.7162.0115E1FU1RALSF346.19
130M13024.05″46.897.0114.9110.2123.20.81.63.154.0152.4167.6174.0130E1FU1RALSF358.34
