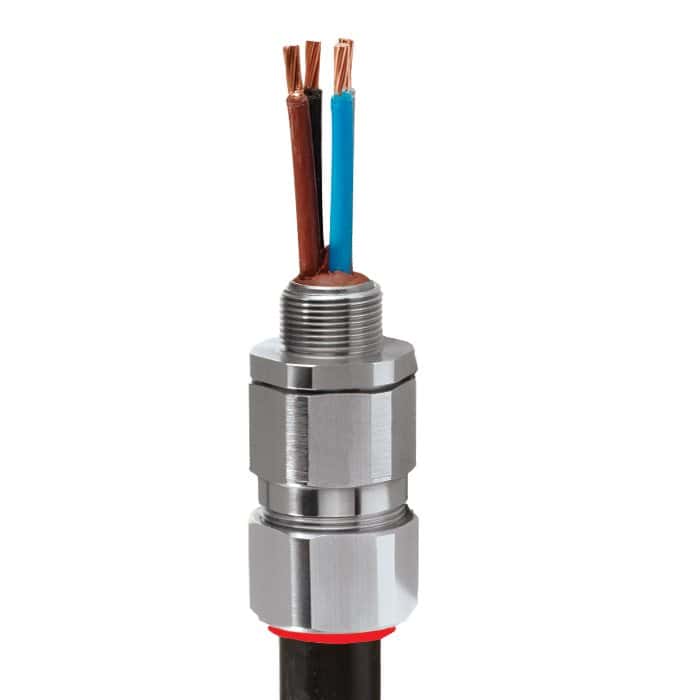

PX2KPB Cable gland

Ex eb, Ex db, Ex nR, Ex ta | Explosive Atmosphere Barrier Cable Gland
For all types of Lead Sheathed Armoured cables

Internationally Approved, Explosive Atmosphere Barrier Cable Gland

• Effectively earths / grounds lead sheathed cables
• Metal-to-metal armour clamping
• Direct & remote installation
• Compound barrier type flameproof seal
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• Integral protected deluge seal
• -60°C to +85°C
• Internationally marked, IECEx & ATEX
• EMC tested
• Once any cable inner sheath/bedding has been removed, the RapidEx liquid resin barrier seals directly around the internal cable cores, completely eliminating any risk of coldflow on all cable types

Description
Download Spec Sheet

Description

Product Selection Table

Cable Gland Size	Available Entry Threads ‘C’ (Alternate Metric Thread Lengths Available)					Number of Cores	Diameter Over Conductors ‘A’	Lead Sheath Diameter ‘G’		Overall Cable Diameter ‘B’		Armour Range				Across Flats ‘D’	Across Corners ‘D’	Protrusion Length ‘F’	Combined Ordering Reference (*Brass Metric)			Shroud	Cable Gland Weight (Kgs)
	Standard				Option			Lead Sheath Diameter ‘G’		Overall Cable Diameter ‘B’		Grooved Cone (X)		Stepped Cone (W)		Across Flats ‘D’	Across Corners ‘D’		Combined Ordering Reference (*Brass Metric)
	Metric	Thread Length (Metric) ‘E’	NPT	Thread Length (NPT) ‘E’	NPT			Min	Max	Min	Max	Min	Max	Min	Max	Max	Max		Size	Type	Ordering Suffix
20S16	M20	15.0	½’	19.9	¾’	21	7.8	3.1	7.8	6.1	13.1	0.3	1.0	0.8	1.25	30.5	33.6	62.0	20S16	PX2KPB	1RA	PVC06	0.25
20S	M20	15.0	½’	19.9	¾’	21	11.0	6.1	11.0	9.5	15.9	0.3	1.0	0.8	1.25	30.5	33.6	62.0	20S	PX2KPB	1RA	PVC06	0.23
20	M20	15.0	½’	19.9	¾’	21	12.6	6.5	13.4	12.5	20.9	0.4	1.0	0.8	1.25	30.5	33.6	63.0	20	PX2KPB	1RA	PVC06	0.24
25S	M25	15.0	¾’	20.2	1′	30	17.5	11.1	19.3	14.0	22.0	0.4	1.2	1.25	1.6	37.5	41.3	69.5	25S	PX2KPB	1RA	PVC09	0.37
25	M25	15.0	¾’	20.2	1′	30	17.5	11.1	19.3	18.2	26.2	0.4	1.2	1.25	1.6	37.5	41.3	69.5	25	PX2KPB	1RA	PVC09	0.37
32	M32	15.0	1′	25.0	1 ¼’	38	23.6	17.0	25.5	23.7	33.9	0.4	1.2	1.6	2.0	46.0	50.6	75.0	32	PX2KPB	1RA	PVC11	0.57
40	M40	15.0	1 ¼’	25.6	1 ½’	59	30.0	22.0	31.2	27.9	40.4	0.4	1.6	1.6	2.0	55.0	60.5	75.0	40	PX2KPB	1RA	PVC15	0.80
50S	M50	15.0	1 ½’	26.1	2′	89	36.6	29.5	37.2	35.2	46.7	0.4	1.6	2.0	2.5	60.0	66.0	77.0	50S	PX2KPB	1RA	PVC18	0.90
50	M50	15.0	2′	26.9	2 ½’	115	41.0	35.6	42.6	40.4	53.0	0.6	1.6	2.0	2.5	70.1	77.1	77.0	50	PX2KPB	1RA	PVC21	1.19
63S	M63	15.0	2′	26.9	2 ½’	115	47.9	40.1	48.5	45.6	59.4	0.6	1.6	2.0	2.5	75.0	82.5	79.7	63S	PX2KPB	1RA	PVC23	1.41
63	M63	15.0	2 ½’	39.9	3′	115	53.7	47.2	54.2	54.6	65.8	0.6	1.6	2.0	2.5	80.0	88.0	80.3	63	PX2KPB	1RA	PVC25	1.44
75S	M75	15.0	2 ½’	39.9	3′	140	59.9	52.8	60.2	59.0	72.0	0.6	1.6	2.0	2.5	90.0	99.0	86.8	75S	PX2KPB	1RA	PVC28	2.13
75	M75	15.0	3′	41.5	3 ½’	140	64.2	59.1	65.2	66.7	78.4	0.6	1.6	2.5	3.0	100.0	110.0	88.3	75	PX2KPB	1RA	PVC30	2.57
90	M90	24.0	3 ½’	42.8	4′	140	75.3	66.6	77.1	76.2	90.3	0.8	1.6	3.15	4.0	115.0	126.5	102.1	90	PX2KPB	1RA	PVC32	3.75
100	M100	24.0	4′	44.0	5′	200	85.6	76.0	88.1	86.1	101.4	0.8	1.6	3.15	4.0	127.0	139.7	114.0	100	PX2KPB	1RA	LSF33	4.87
Dimensions displayed in millimeters unless otherwise stated
