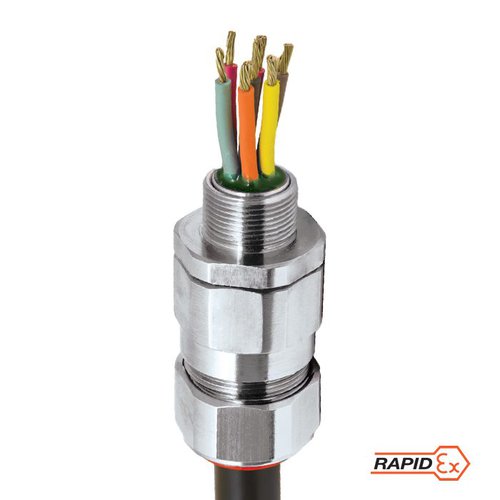

PX2KWREX Cable Gland
explosive atmosphere steel wire armored swa gland liquid resin

Globally Approved, Explosive Atmosphere RapidEx Barrier Cable Gland

• RapidEx liquid pour sealing system
– Enhances reliability, reduces risk
– Reduces man hours
– Reduces cost
• Metal-to-metal armour clamping
• Direct & remote installation
• Integral protected deluge seal
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• Class I Zone 1, 21 and Zone 2, 22 Class I Division 1 & 2 ABCD
• -60°C to +85°C
• Globally marked, IECEx, ATEX & cCSAus
• EMC tested

For under / oversized armour wires

For all types of Steel & Aluminium Wire Armoured Cables

Description

Technical

Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications* Impact = Level 8, Retention = Class D
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
Electrical Classifications * Category B
ATEX Certificate SIRA13ATEX1072X, SIRA13ATEX4078X
Code of Protection II 2G, II 1D, Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da
II 3G Ex nR IIC Gc, IM2 Ex d I Mb, Ex e I Mb
Compliance Standards EN 60079-0,1,7,15,31
IECEx Certificate IECEx SIR 13.0027X, IECEx SIM 14.0008X
Code of Protection Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex d I Mb, Ex e I Mb
Compliance Standards IEC 60079-0,1,7,15,31
cCSAus Certificate 2288626
CSAus Code of Protection*** Class I, Div. 2 Groups A, B, C and D; Class II, Div. 2 Groups F and G; Class III, Div. 2; Type 4X:
Oil Resistant II:
Class I, Zone 1 AEx d IIC Gb, AEx e IIC Gb, Class I, Zone 2 AEx nR IIC Gc, Class I, Zone 20 AEx
ta IIIC Da
cCSA Code of Protection*** Class I, Div. 2 Groups A, B, C and D; Class II, Div. 2 Groups F and G; Class III, Div. 2; Type 4X:
Oil Resistant II:
Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
Compliance Standards CAN/CSA-C22.2 No 0,18,25,30,94,174, CAN/CSA-E60079-0,1,7,31 CAN
CSA-E61241-1-1 Part 1-1, ANSI/UL 514B Ed 5, ANSI/UL 50 Ed 11, ANSI/UL 2225 Ed 4,
UL60079
EAC Certificate (Formerly GOST R, K & B) TC RU C-GB.AA87.B.00487
CCOE / PESO (India) Certificate P333688
NEPSI Certificate GYJ13.1140X, GYJ13.1282X
INMETRO Approval TÜV 12.2073X
RETIE Approval 03866
Marine Approvals LRS: 01/00172 (E3), DNV: TAE00000Y, ABS: 14-LD234401A-4-PDA, BV: 43180/A1BV
Ingress Protection Rating ** IP66, IP67 & IP68**
Deluge Protection Compliance DTS01 : 91
Cable Gland Material Electroless Nickel Plated Brass, Brass, Stainless Steel, Aluminium
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer / RapidEx Barrier Compound
Cable Type Single Wire Armour (SWA), Aluminium Wire Armour (AWA)
Armour Clamping Detachable Resin Tube / Cone & AnyWay Universal Clamping Ring
Sealing Technique Unique CMP ‘LRS’ Outer Seal (Load Retention Seal)
Sealing Area(s) RapidEx Resin Barrier & Cable Outer Sheath
Optional Accessories Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs
Optional Installation Tools Spanners, Armour Former Tool

Product Table

Metric

Cable Gland Size Available Entry Threads “C” (Alternate Metric Thread Lengths Available) Number of Cores Diameter Over Conductors
“A”
Cable Bedding Diameter “G” Overall
Cable
Diameter
“B”
Armour Range Across
Flats
“D”
Across
Corners
“D”
Protrusion
Length “F”
Combined Ordering Reference
(*Brass Metric)
Shroud Cable
Gland
Weight
(Ozs)
Standard Option
Metric Thread Length (Metric) “E” NPT Thread Length
(NPT) “E”
NPT Max Max Max Min Max Min Max Max Max Size Type Ordering
Suffix
20S16 M20 15.0 ½” 0.78 ¾” 11 11.7 11.7 6.1 13.1 0.8 1.25 30.5 33.6 62.0 20S16 PX2KWREX 1RA PVC06 0.24
20S M20 15.0 ½” 0.78 ¾” 11 11.7 11.7 9.5 15.9 0.8 1.25 30.5 33.6 62.0 20S PX2KWREX 1RA PVC06 0.23
20 M20 15.0 ½” 0.78 ¾” 11 12.6 12.9 12.5 20.9 0.8 1.25 30.5 33.6 63.0 20 PX2KWREX 1RA PVC06 0.24
25S M25 15.0 ¾” 0.80 1″ 21 17.5 17.9 14.0 22.0 1.25 1.6 37.5 41.3 69.5 25S PX2KWREX 1RA PVC09 0.37
25 M25 15.0 ¾” 0.80 1″ 21 17.5 17.9 18.2 26.2 1.25 1.6 37.5 41.3 69.5 25 PX2KWREX 1RA PVC09 0.37
32 M32 15.0 1″ 0.98 1 ¼” 38 23.6 23.9 23.7 33.9 1.6 2.0 46.0 50.6 75.0 32 PX2KWREX 1RA PVC11 0.57
40 M40 15.0 1 ¼” 1.01 1 ½” 59 30.0 30.3 27.9 40.4 1.6 2.0 55.0 60.5 75.0 40 PX2KWREX 1RA PVC15 0.80
50S M50 15.0 1 ½” 1.03 2″ 89 36.6 36.9 35.2 46.7 2.0 2.5 60.0 66.0 77.0 50S PX2KWREX 1RA PVC18 0.90
50 M50 15.0 2″ 1.06 2 ½” 89 41.0 41.3 40.4 53.0 2.0 2.5 70.1 77.1 77.0 50 PX2KWREX 1RA PVC21 1.19
63S M63 15.0 2″ 1.06 2 ½” 115 47.9 48.4 45.6 59.4 2.0 2.5 75.0 82.5 79.7 63S PX2KWREX 1RA PVC23 1.39
63 M63 15.0 2 ½” 1.57 3″ 115 53.7 54.0 54.6 65.8 2.0 2.5 80.0 88.0 80.3 63 PX2KWREX 1RA PVC25 1.41
75S M75 15.0 2 ½” 1.57 3″ 140 59.9 60.2 59.0 72.0 2.0 2.5 90.0 99.0 86.8 75S PX2KWREX 1RA PVC28 2.09
75 M75 15.0 3″ 1.63 3 ½” 140 64.2 64.2 66.7 78.4 2.5 3.0 100.0 110.0 88.3 75 PX2KWREX 1RA PVC30 2.54
90 M90 24.0 3 ½” 1.69 4″ 200 75.3 75.6 76.2 90.3 3.15 4.0 115.0 126.5 102.1 90 PX2KWREX 1RA PVC32 3.71
100 M100 24.0 3 ½” 1.69 4″ 200 85.6 85.9 86.1 101.4 3.15 4.0 127.0 139.7 114.0 100 PX2KWREX 1RA LSF33 4.81
Dimensions displayed in inches unless otherwise stated

Imperial

Cable Gland Size Available Entry Threads “C” (Alternate Metric Thread Lengths Available) Number of Cores Diameter Over Conductors
“A”
Cable Bedding Diameter “G” Overall
Cable
Diameter
“B”
Armour Range Across
Flats
“D”
Across
Corners
“D”
Protrusion
Length “F”
Combined Ordering Reference
(*Brass Metric)
Shroud Cable Gland Weight (Ozs)
Standard Option
Metric Thread Length (Metric) “E” NPT Thread Length
(NPT) “E”
NPT Max Max Max Min Max Min Max Max Max Size Type Ordering
Suffix
20S16 M20 0.59 ½” 0.03 ¾” 11 0.46 0.46 0.24 0.52 0.03 0.05 1.20 1.32 2.44 20S16 PX2KWREX 1RA PVC06 8.47
20S M20 0.59 ½” 0.03 ¾” 11 0.46 0.46 0.37 0.63 0.03 0.05 1.20 1.32 2.44 20S PX2KWREX 1RA PVC06 8.11
20 M20 0.59 ½” 0.03 ¾” 11 0.50 0.51 0.49 0.82 0.03 0.05 1.20 1.32 2.48 20 PX2KWREX 1RA PVC06 8.47
25S M25 0.59 ¾” 0.03 1″ 21 0.69 0.70 0.55 0.87 0.05 0.06 1.48 1.63 2.74 25S PX2KWREX 1RA PVC09 13.05
25 M25 0.59 ¾” 0.03 1″ 21 0.69 0.70 0.72 1.03 0.05 0.06 1.48 1.63 2.74 25 PX2KWREX 1RA PVC09 13.05
32 M32 0.59 1″ 0.04 1 ¼” 38 0.93 0.94 0.93 1.33 0.06 0.08 1.81 1.99 2.95 32 PX2KWREX 1RA PVC11 20.11
40 M40 0.59 1 ¼” 0.04 1 ½” 59 1.18 1.19 1.10 1.59 0.06 0.08 2.17 2.38 2.95 40 PX2KWREX 1RA PVC15 28.22
50S M50 0.59 1 ½” 0.04 2″ 89 1.44 1.45 1.39 1.84 0.08 0.10 2.36 2.60 3.03 50S PX2KWREX 1RA PVC18 31.75
50 M50 0.59 2″ 0.04 2 ½” 89 1.61 1.63 1.59 2.09 0.08 0.10 2.76 3.04 3.03 50 PX2KWREX 1RA PVC21 41.98
63S M63 0.59 2″ 0.04 2 ½” 115 1.89 1.91 1.80 2.34 0.08 0.10 2.95 3.25 3.14 63S PX2KWREX 1RA PVC23 49.03
63 M63 0.59 2 ½” 0.06 3″ 115 2.11 2.13 2.15 2.59 0.08 0.10 3.15 3.46 3.16 63 PX2KWREX 1RA PVC25 49.74
75S M75 0.59 2 ½” 0.06 3″ 140 2.36 2.37 2.32 2.83 0.08 0.10 3.54 3.90 3.42 75S PX2KWREX 1RA PVC28 73.72
75 M75 0.59 3″ 0.06 3 ½” 140 2.53 2.53 2.63 3.09 0.10 0.12 3.94 4.33 3.48 75 PX2KWREX 1RA PVC30 89.60
90 M90 0.94 3 ½” 0.07 4″ 200 2.96 2.98 3.00 3.56 0.13 0.16 4.53 4.98 4.02 90 PX2KWREX 1RA PVC32 130.87
100 M100 0.94 3 ½” 0.07 4″ 200 3.37 3.38 3.39 3.99 0.13 0.16 5.00 5.50 4.49 100 PX2KWREX 1RA LSF33 169.67
Dimensions displayed in inches unless otherwise stated
