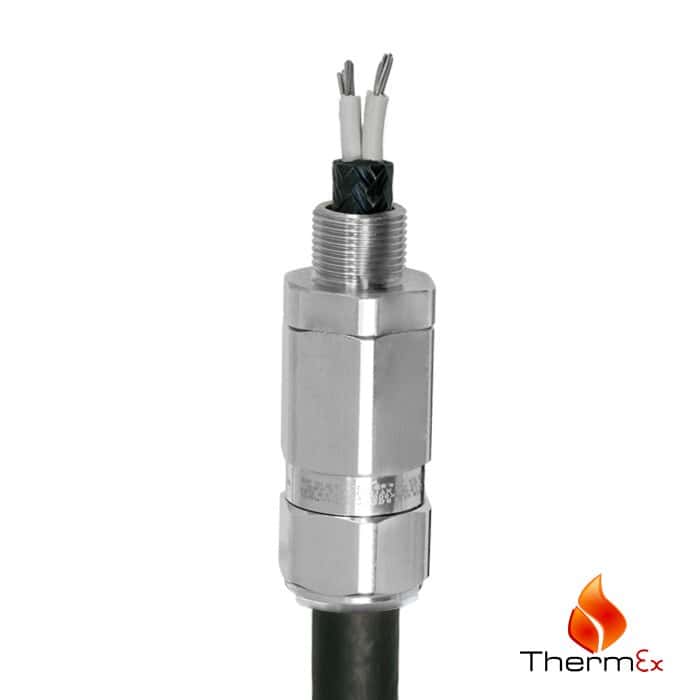

Product Selection Table



Cable Gland Size	Available Entry Threads “‘C'” (Alternate Metric Thread Lengths Available)					Cable Bedding Diameter ‘”A'”		Overall Cable Diameter ‘”B'”		Armour Range †				Across Flats “‘D'”	Across Corners ‘”D”‘	Protrusion Length ‘”F'”	Combined Ordering Reference (Brass Metric)			Shroud	Cable Gland Weight (Kgs)
	Standard				Option					Grooved Cone (X)		Stepped Cone (W)
	Metric	Thread Length (Metric) ‘”E'”	NPT	Thread Length (NPT) ‘”E”‘	NPT	Min	Max	Min	Max	Min	Max	Min	Max	Max	Max		Size	Type	Ordering Suffix
20s16	M20	15.0	1/2′”	19.9	3/4′”	3.1	8.6	6.1	13.1	0.3	1.0	0.8	1.25	24.0	26.4	78.7	20S16	T3CDSHT	1RA	PVC36	0.200
20S	M20	15.0	1/2′”	19.9	3/4′”	6.1	11.6	9.5	15.9	0.3	1.0	0.8	1.25	24.0	26.4	78.7	20S	T3CDSHT	1RA	PVC36	0.200
20	M20	15.0	1/2′”	19.9	3/4′”	6.5	13.9	12.5	20.9	0.4	1.0	0.8	1.25	30.5	33.6	76.2	20	T3CDSHT	1RA	PVC06	0.280
25S	M25	15.0	3/4′”	20.2	1′”	11.1	19.9	14.0	22.0	0.4	1.2	1.25	1.6	37.5	41.3	88.8	25S	T3CDSHT	1RA	PVC09	0.440
25	M25	15.0	3/4′”	20.2	1′”	11.1	19.9	18.2	26.2	0.4	1.2	1.25	1.6	37.5	41.3	88.7	25	T3CDSHT	1RA	PVC09	0.440
32	M32	15.0	1′”	25.0	1 1/4′”	17.0	26.2	23.7	33.9	0.4	1.2	1.6	2.0	46.0	50.6	90.7	32	T3CDSHT	1RA	PVC11	0.630
40	M40	15.0	1 1/4′”	25.6	1 1/2′”	22.0	32.1	27.9	40.4	0.4	1.6	1.6	2.0	55.0	60.5	93.2	40	T3CDSHT	1RA	PVC15	0.910
50S	M50	15.0	1 1/2′”	26.1	2′”	29.5	38.1	35.2	46.7	0.4	1.6	2.0	2.5	60.0	66.0	100.7	50S	T3CDSHT	1RA	PVC18	1.120
50	M50	15.0	2′”	26.9	2 1/2′”	35.6	44.0	40.4	53.0	0.6	1.6	2.0	2.5	70.1	77.1	105.8	50	T3CDSHT	1RA	PVC21	1.600
63S	M63	15.0	2′”	26.9	2 1/2′”	40.1	49.9	45.6	59.4	0.6	1.6	2.0	2.5	75.0	82.4	102.5	63S	T3CDSHT	1RA	PVC23	1.730
63	M63	15.0	2 1/2′”	39.9	3′”	47.2	55.9	54.6	65.8	0.6	1.6	2.0	2.5	80.0	88.0	105.4	63	T3CDSHT	1RA	PVC25	1.780
75S	M75	15.0	2 1/2′”	39.9	3′”	52.8	61.9	59.0	72.0	0.6	1.6	2.0	2.5	90.0	99.0	110.6	75S	T3CDSHT	1RA	PVC28	2.570
75	M75	15.0	3′”	41.5	3 1/2′”	59.1	67.9	66.7	78.4	0.6	1.6	2.5	3.0	100.0	110.0	120.3	75	T3CDSHT	1RA	PVC30	3.330
90	M90	24.0	3 1/2′”	42.8	4′”	66.6	78.6	76.2	90.3	0.8	1.6	3.15	4.0	115.0	126.5	138.9	90	T3CDSHT	1RA	PVC32	4.870
100	M100	24.0	3 1/2′”	42.8	4′”	76.0	90.9	86.1	101.4	0.8	1.6	3.15	4.0	127.0	139.7	128.2	100	T3CDSHT	1RA	LSF33	4.970
115	M115	24.0	4′”	44.0	5′”	86.0	97.9	101.5	110.2	0.8	1.6	3.15	4.0	138.0	151.8	161.3	115	T3CDSHT	1RA	LSF34	7.720
130	M130	24.0	5′”	46.8	–	97.0	114.9	110.2	123.2	0.8	1.6	3.15	4.0	157.0	172.7	173.3	130	T3CDSHT	1RA	LSF35	9.780
Dimensions are displayed in millimetres unless otherwise stated



† Grooved Cone (X) is predominantly used for Wire Braid (e.g. GSWB, TCWB), Steel Tape Armour (STA, DSTA) and Aluminium Strip Armour (ASA) but is also suitable for Single Wire Armour (SWA), Aluminium Wire Armour (AWA) and Pliable Wire Armour (PWA) if the range is outside that of the Stepped Cone (W).

Note: Grooved Cone (X) dimensions shown in the Cable Gland Selection Table below are for a double wire strand of braid armour cables. Tapes can also be doubled over. For cables that have only a single layer of armour such as SWA the clamping range should be used as shown in the table below. Stepped (W) Cone is suitable for Single Wire Armour (SWA), or Aluminium Wire Armour (AWA) cables.
