Name: TC Gland
Availability: InStock

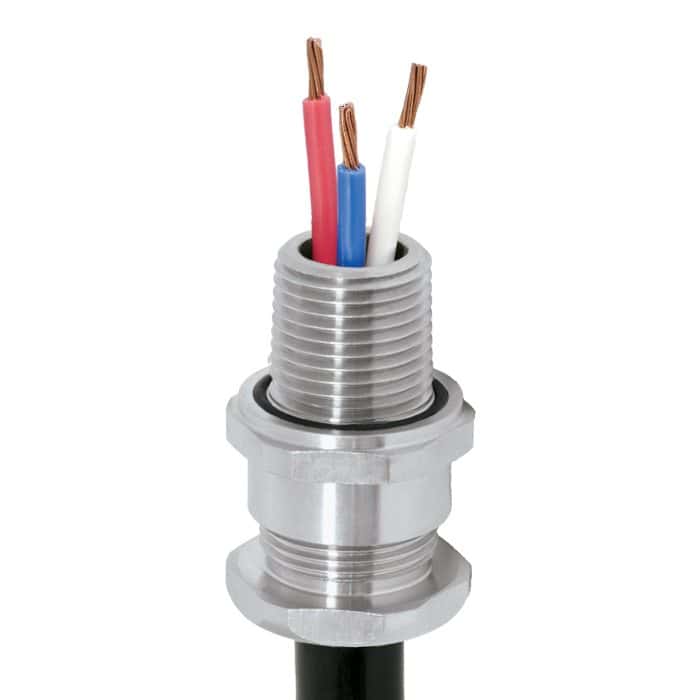

TC Gland

Class I, Div 2 | AEx e | Hazardous Location Cable Gland
For all types of Unarmoured Tray Cables, Flexible Cables & Cord

Globally Approved, Hazardous (Classified) Location Cable Gland

• Aluminium, nickel plated or stainless steel design
• Increased cable range with removable insert
• Optional thread sizes
• -76°F to 230°F
• Class I Zone 1, 21 AEx e and Zone 2, 22 Class I Division 2 ABCD
• CEC Class I Zone 1 Ex e & Class I Division 2 ABCD
• Globally marked, cCSAus, IECEx & ATEX
• Heavy-duty design
• Entry thread seal as standard

Patent granted: CA 2726252, US 8440919

Description
Download Spec Sheet

Description

Product Selection Table

Order Reference (NPT)			Entry Thread ‘C’		Minimum Thread Length ‘E’	Cable Range ‘A’		Cable Range ‘A’		Across Flats ‘D’	Across Corners ‘D’	Nominal Assembly Length ‘F’	Shroud	Approx Weight Aluminum (oz)
Order Reference (NPT)			Entry Thread ‘C’			Insert		No Insert		Across Flats ‘D’	Across Corners ‘D’
Aluminum	Nickel Plated Brass	Stainless Steel	NPT	NPT Option		Min	Max	Min	Max	Max	Max
TC-050A0281RA	TC-050NB0281RA	TC-050SS0281RA	½”	–	0.78	0.13	0.28	–	–	1.20	1.32	1.20	PVC06	1.94
TC-075A0281RA	TC-075NB0281RA	TC-075SS0281RA	–	¾”	0.80	0.13	0.28	–	–	1.48	1.63	1.24	PVC09	1.69
TC-050A0551RA	TC-050NB0551RA	TC-050SS0551RA	½”	–	0.78	0.26	0.41	0.41	0.55	1.20	1.32	1.20	PVC06	1.94
TC-075A0551RA	TC-075NB0551RA	TC-075SS0551RA	–	¾”	0.80	0.26	0.41	0.41	0.55	1.48	1.63	1.24	PVC09	1.69
TC-075A0791RA	TC-075NB0791RA	TC-075SS0791RA	¾”	–	0.80	0.44	0.61	0.61	0.79	1.48	1.63	1.24	PVC09	1.69
TC-100A0791RA	TC-100NB0791RA	TC-100SS0791RA	–	1″	0.98	0.44	0.61	0.61	0.79	1.81	1.99	1.65	PVC11	3.17
TC-100A1041RA	TC-100NB1041RA	TC-100SS1041RA	1″	–	0.98	0.67	0.85	0.85	1.04	1.81	1.99	1.65	PVC11	3.88
TC-125A1041RA	TC-125NB1041RA	TC-125SS1041RA	–	1¼”	1.01	0.67	0.85	0.85	1.04	2.05	2.25	1.65	PVC13	3.88
TC-125A1271RA	TC-125NB1271RA	TC-125SS1271RA	1¼”	–	1.01	0.93	1.10	1.10	1.27	2.05	2.25	1.65	PVC13	4.94
TC-150A1271RA	TC-150NB1271RA	TC-150SS1271RA	–	1½”	1.03	0.93	1.10	1.10	1.27	2.36	2.60	1.65	PVC18	4.94
TC-150A1501RA	TC-150NB1501RA	TC-150SS1501RA	1½”	–	1.03	1.22	1.37	1.37	1.50	2.36	2.60	1.65	PVC18	6.00
TC-200A1501RA	TC-200NB1501RA	TC-200SS1501RA	–	2″	1.06	1.22	1.37	1.37	1.50	2.95	3.25	1.65	PVC23	6.00
TC-200A1741RA	TC-200NB1741RA	TC-200SS1741RA	2″	–	1.06	–	–	1.40	1.74	2.76	3.03	1.63	PVC21	8.64
TC-250A1741RA	TC-250NB1741RA	TC-250SS1741RA	–	2½”	1.57	–	–	1.40	1.74	3.54	3.90	1.63	PVC27	8.64
TC-200A1971RA	TC-200NB1971RA	TC-200SS1971RA	2″	–	1.06	–	–	1.63	1.97	2.76	3.03	1.74	PVC21	8.29
TC-250A1971RA	TC-250NB1971RA	TC-250SS1971RA	–	2½”	1.57	–	–	1.63	1.97	3.54	3.90	1.74	PVC27	8.29
TC-250A2201RA	TC-250NB2201RA	TC-250SS2201RA	2½”	–	1.57	–	–	1.86	2.20	3.54	3.90	1.74	PVC27	13.58
TC-300A2201RA	TC-300NB2201RA	TC-300SS2201RA	–	3″	1.63	–	–	1.86	2.20	4.33	4.77	1.74	PVC31	13.58
TC-250A2441RA	TC-250NB2441RA	TC-250SS2441RA	2½”	–	1.57	–	–	2.13	2.44	3.54	3.90	1.79	PVC28	13.58
TC-300A2441RA	TC-300NB2441RA	TC-300SS2441RA	–	3″	1.63	–	–	2.13	2.44	4.33	4.77	1.79	PVC31	13.58
TC-300A2681RA	TC-300NB2681RA	TC-300SS2681RA	3″	–	1.63	–	–	2.41	2.68	4.33	4.77	1.79	PVC31	23.63
TC-350A2681RA	TC-350NB2681RA	TC-350SS2681RA	–	3½”	1.69	–	–	2.41	2.68	4.84	5.33	1.79	LSF32	23.63
TC-350A3151RA	TC-350NB3151RA	TC-350SS3151RA	3½”	–	1.69	–	–	2.62	3.15	4.84	5.33	2.50	LSF32	34.22
TC-400A3151RA	TC-400NB3151RA	TC-400SS3151RA	–	4″	1.73	–	–	2.62	3.15	5.25	5.78	2.50	LSF33	34.22
TC-400A3541RA	TC-400NB3541RA	TC-400SS3541RA	4″	–	1.73	–	–	2.99	3.54	5.25	5.78	2.36	LSF34	38.80
Order code example: TC-050A028 – “TC” (Type Gland) – “050” (½” NPT Thread) – ‘A’ (Material Aluminum) – “028”(Max Cable Diameter 0.28”)
Dimensions displayed in inches unless otherwise stated

Part Numbers

TC-050A028	TC-050NB028
TC-050A055	TC-050NB055
TC-075A028	TC-075NB028
TC-075A055	TC-075NB055
TC-075A079	TC-075NB079
TC-100A079	TC-100NB079
TC-100A104	TC-100NB104
TC-125A104	TC-125NB104
TC-125A127	TC-125NB127
TC-150A127	TC-150NB127
TC-150A150	TC-150NB150
TC-200A150	TC-200NB150
TC-200A174	TC-200NB174
TC-200A197	TC-200NB197
TC-250A174	TC-250NB174
TC-250A197	TC-250NB197
TC-250A220	TC-250NB220
TC-250A244	TC-250NB244
TC-300A220	TC-300NB220
TC-300A244	TC-300NB244
TC-300A268	TC-300NB268
TC-350A268	TC-350NB268
TC-350A315	TC-350NB315
TC-400A315	TC-400NB315
TC-400A354	TC-400NB354
