Products > TMC2X REX Cable Gland

Name: TMC2X REX Cable Gland
Availability: InStock

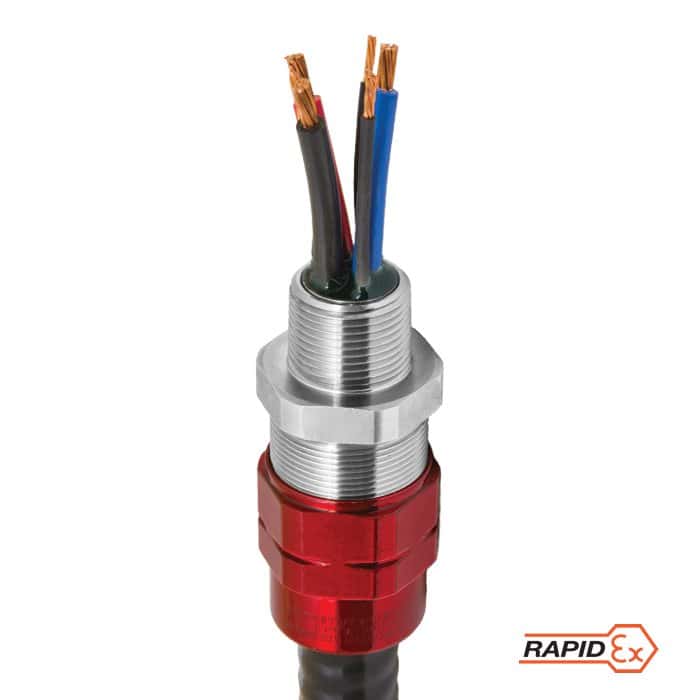

TMC2X REX Cable Gland

Ex eb, Ex db, Ex ta | Hazardous Location Barrier Cable Gland
For MC, MC-HL, Interlocked & Teck Armoured Cables

Globally Approved, Hazardous (Classified) Location Barrier Cable Gland

• RapidEx liquid pour sealing system
– Enhances reliability, reduces risk
– Reduces man hours
– Reduces cost
• Simplified two part design
• Compact slim profile
• Independent sealing & armour clamping
• Simple, sequential installation process
• 360° grounding spring (non-magnetic)
• Disconnectable, union design feature
• -76°F to 185°F / -60°C to 85°C
• Globally marked, cCSAus, IECEx & ATEX

Note: Supplied in pack with RapidEx resin

Description
Download Spec Sheet

Description

Product Selection Table

Order Reference (NPT with RapidEx Resin)			Entry Thread ‘C’		Minimum Thread Length ‘E’	Cable Armor Diameter ‘A’				Cable Jacket Diameter ‘B’		Max Over Conductors ‘G’	Across Flats ‘D’	Across Corners ‘D’	Nominal Assembly Length ‘F’	Shroud	Approx Weight Aluminum (Kgs)
Order Reference (NPT with RapidEx Resin)			Entry Thread ‘C’			Armor Stop In		Armor Stop Out		Cable Jacket Diameter ‘B’			Across Flats ‘D’	Across Corners ‘D’
Aluminum	Nickel Plated Brass	Stainless Steel	NPT	NPT Option		Min	Max	Min	Max	Min	Max		Max	Max
TMC2X-050A075X	TMC2X-050NB075X	TMC2X-050SS075X	½’	–	19.8	10.7	14.0	14.0	16.0	12.7	19.1	13.0	30.5	33.5	62.0	PVC06	0.06
TMC2X-075A075X	TMC2X-075NB075X	TMC2X-075SS075X	–	¾’	20.3	10.7	14.0	14.0	16.0	12.7	19.1	13.0	30.5	33.5	62.0	PVC06	0.06
TMC2X-075A099X	TMC2X-075NB099X	TMC2X-075SS099X	¾’	–	20.3	15.2	16.5	16.5	22.6	17.5	25.1	18.0	37.6	41.4	75.2	PVC09	0.09
TMC2X-050A099X	TMC2X-050NB099X	TMC2X-050SS099X	–	½’	19.8	15.2	19.8	19.8	22.6	17.5	25.1	13.0	37.6	41.4	75.2	PVC09	0.09
TMC2X-100A118X	TMC2X-100NB118X	TMC2X-100SS118X	1′	–	24.9	20.1	21.8	21.8	27.9	22.1	30.0	23.9	46.0	50.5	80.0	PVC11	0.14
TMC2X-075A118X	TMC2X-075NB118X	TMC2X-075SS118X	–	¾’	20.3	20.1	24.9	24.9	27.9	22.1	30.0	18.0	46.0	50.5	80.0	PVC11	0.14
TMC2X-125A137X	TMC2X-125NB137X	TMC2X-125SS137X	1¼’	–	25.4	23.9	27.4	27.4	32.5	25.9	34.8	30.5	52.1	57.4	90.2	PVC15	0.19
TMC2X-100A137X	TMC2X-100NB137X	TMC2X-100SS137X	–	1′	24.9	23.9	30.0	30.0	32.5	25.9	34.8	23.9	52.1	57.4	90.2	PVC15	0.19
TMC2X-150A162X	TMC2X-150NB162X	TMC2X-150SS162X	1½’	–	26.2	31.0	34.3	34.3	38.1	33.0	41.1	37.1	59.9	66.0	91.2	PVC18	0.25
TMC2X-125A162X	TMC2X-125NB162X	TMC2X-125SS162X	–	1¼’	25.4	31.0	36.1	36.1	38.1	33.0	41.1	30.5	59.9	66.0	91.2	PVC18	0.25
TMC2X-150A190X	TMC2X-150NB190X	TMC2X-150SS190X	1½’	–	26.2	–	–	38.4	43.7	39.9	48.3	37.1	65.0	71.6	91.2	PVC37	0.27
TMC2X-125A190X	TMC2X-125NB190X	TMC2X-125SS190X	–	1¼’	25.4	–	–	38.4	43.7	39.9	48.3	30.5	65.0	71.6	91.2	PVC37	0.27
TMC2X-200A200X	TMC2X-200NB200X	TMC2X-200SS200X	2′	–	38.9	39.9	43.2	43.2	47.8	41.9	50.8	41.4	69.9	77.0	95.5	PVC21	0.31
TMC2X-150A200X	TMC2X-150NB200X	TMC2X-150SS200X	–	1½’	26.2	39.9	43.2	43.2	47.8	41.9	50.8	37.1	69.9	77.0	95.5	PVC21	0.31
TMC2X-250A233X	TMC2X-250NB233X	TMC2X-250SS233X	2½’	–	41.4	–	–	46.0	56.1	48.5	59.2	54.1	74.9	82.6	100.8	PVC28	0.36
TMC2X-200A233X	TMC2X-200NB233X	TMC2X-200SS233X	–	2′	38.9	–	–	46.0	56.1			48.3				PVC23
TMC2X-150A233X	TMC2X-150NB233X	TMC2X-150SS233X	–	1½’	26.2	–	–	46.0	56.1			37.1				PVC23
TMC2X-300A272X	TMC2X-300NB272X	TMC2X-300SS272X	3′	–	41.4	54.4	62.5	55.1	66.3	57.7	69.1	64.8	89.9	98.8	104.1	PVC31	0.70
TMC2X-250A272X	TMC2X-250NB272X	TMC2X-250SS272X	–	2½’	41.4	54.4	62.5	62.5	66.3			54.1				PVC28
TMC2X-200A272X	TMC2X-200NB272X	TMC2X-200SS272X	–	2′	38.9	54.4	62.5	62.5	66.3			48.3				PVC28
TMC2X-350A325X	TMC2X-350NB325X	TMC2X-350SS325X	3½’	–	42.7	63.2	70.6	70.6	75.4	66.5	82.6	75.7	110.0	120.9	118.6	PVC32	1.21
TMC2X-300A325X	TMC2X-300NB325X	TMC2X-300SS325X	–	3′	41.4	63.2	70.6	70.6	75.4	66.5	82.6	75.7	110.0	120.9	118.6	PVC32	1.21
TMC2X-400A376X	TMC2X-400NB376X	TMC2X-400SS376X	4′	–	43.9	74.9	87.6	87.6	89.9	80.3	95.5	85.9	122.9	135.1	125.7	LSF33	1.51
TMC2X-350A376X	TMC2X-350NB376X	TMC2X-350SS376X	–	3½’	42.7	74.9	87.6	87.6	89.9	80.3	95.5	85.9	122.9	135.1	125.7	LSF33	1.51
TMC2X-400A425X	TMC2X-400NB425X	TMC2X-400SS425X	4′	–	43.9	–	–	90.4	100.1	94.0	108.0	85.9	132.8	146.1	131.1	LSF34	1.68
Dimensions in millimeters unless otherwise stated

Part Numbers

TMC2-050NB075

TMC2-050NB099

TMC2-075NB075

TMC2-075NB099

TMC2-075NB118

TMC2-100NB118

TMC2-100NB137

TMC2-125NB137

TMC2-125NB162

TMC2-125NB190

TMC2-150NB162

TMC2-150NB190

TMC2-150NB200

TMC2-150NB233

TMC2-200NB200

TMC2-200NB233

TMC2-200NB272

TMC2-250NB272

TMC2-300NB325

TMC2-350NB325

TMC2-350NB376

TMC2-400NB376

TMC2-400NB425

Download Spec Sheet

Download

Product Selection Table

Order Reference (NPT with RapidEx Resin)			Entry Thread ‘C’		Minimum Thread Length ‘E’	Cable Armor Diameter ‘A’				Cable Jacket Diameter ‘B’		Max Over Conductors ‘G’	Across Flats ‘D’	Across Corners ‘D’	Nominal Assembly Length ‘F’	Shroud	Approx Weight Aluminum (Kgs)
Order Reference (NPT with RapidEx Resin)			Entry Thread ‘C’			Armor Stop In		Armor Stop Out		Cable Jacket Diameter ‘B’			Across Flats ‘D’	Across Corners ‘D’
Aluminum	Nickel Plated Brass	Stainless Steel	NPT	NPT Option		Min	Max	Min	Max	Min	Max		Max	Max
TMC2X-050A075X	TMC2X-050NB075X	TMC2X-050SS075X	½’	–	19.8	10.7	14.0	14.0	16.0	12.7	19.1	13.0	30.5	33.5	62.0	PVC06	0.06
TMC2X-075A075X	TMC2X-075NB075X	TMC2X-075SS075X	–	¾’	20.3	10.7	14.0	14.0	16.0	12.7	19.1	13.0	30.5	33.5	62.0	PVC06	0.06
TMC2X-075A099X	TMC2X-075NB099X	TMC2X-075SS099X	¾’	–	20.3	15.2	16.5	16.5	22.6	17.5	25.1	18.0	37.6	41.4	75.2	PVC09	0.09
TMC2X-050A099X	TMC2X-050NB099X	TMC2X-050SS099X	–	½’	19.8	15.2	19.8	19.8	22.6	17.5	25.1	13.0	37.6	41.4	75.2	PVC09	0.09
TMC2X-100A118X	TMC2X-100NB118X	TMC2X-100SS118X	1′	–	24.9	20.1	21.8	21.8	27.9	22.1	30.0	23.9	46.0	50.5	80.0	PVC11	0.14
TMC2X-075A118X	TMC2X-075NB118X	TMC2X-075SS118X	–	¾’	20.3	20.1	24.9	24.9	27.9	22.1	30.0	18.0	46.0	50.5	80.0	PVC11	0.14
TMC2X-125A137X	TMC2X-125NB137X	TMC2X-125SS137X	1¼’	–	25.4	23.9	27.4	27.4	32.5	25.9	34.8	30.5	52.1	57.4	90.2	PVC15	0.19
TMC2X-100A137X	TMC2X-100NB137X	TMC2X-100SS137X	–	1′	24.9	23.9	30.0	30.0	32.5	25.9	34.8	23.9	52.1	57.4	90.2	PVC15	0.19
TMC2X-150A162X	TMC2X-150NB162X	TMC2X-150SS162X	1½’	–	26.2	31.0	34.3	34.3	38.1	33.0	41.1	37.1	59.9	66.0	91.2	PVC18	0.25
TMC2X-125A162X	TMC2X-125NB162X	TMC2X-125SS162X	–	1¼’	25.4	31.0	36.1	36.1	38.1	33.0	41.1	30.5	59.9	66.0	91.2	PVC18	0.25
TMC2X-150A190X	TMC2X-150NB190X	TMC2X-150SS190X	1½’	–	26.2	–	–	38.4	43.7	39.9	48.3	37.1	65.0	71.6	91.2	PVC37	0.27
TMC2X-125A190X	TMC2X-125NB190X	TMC2X-125SS190X	–	1¼’	25.4	–	–	38.4	43.7	39.9	48.3	30.5	65.0	71.6	91.2	PVC37	0.27
TMC2X-200A200X	TMC2X-200NB200X	TMC2X-200SS200X	2′	–	38.9	39.9	43.2	43.2	47.8	41.9	50.8	41.4	69.9	77.0	95.5	PVC21	0.31
TMC2X-150A200X	TMC2X-150NB200X	TMC2X-150SS200X	–	1½’	26.2	39.9	43.2	43.2	47.8	41.9	50.8	37.1	69.9	77.0	95.5	PVC21	0.31
TMC2X-250A233X	TMC2X-250NB233X	TMC2X-250SS233X	2½’	–	41.4	–	–	46.0	56.1	48.5	59.2	54.1	74.9	82.6	100.8	PVC28	0.36
TMC2X-200A233X	TMC2X-200NB233X	TMC2X-200SS233X	–	2′	38.9	–	–	46.0	56.1			48.3				PVC23
TMC2X-150A233X	TMC2X-150NB233X	TMC2X-150SS233X	–	1½’	26.2	–	–	46.0	56.1			37.1				PVC23
TMC2X-300A272X	TMC2X-300NB272X	TMC2X-300SS272X	3′	–	41.4	54.4	62.5	55.1	66.3	57.7	69.1	64.8	89.9	98.8	104.1	PVC31	0.70
TMC2X-250A272X	TMC2X-250NB272X	TMC2X-250SS272X	–	2½’	41.4	54.4	62.5	62.5	66.3			54.1				PVC28
TMC2X-200A272X	TMC2X-200NB272X	TMC2X-200SS272X	–	2′	38.9	54.4	62.5	62.5	66.3			48.3				PVC28
TMC2X-350A325X	TMC2X-350NB325X	TMC2X-350SS325X	3½’	–	42.7	63.2	70.6	70.6	75.4	66.5	82.6	75.7	110.0	120.9	118.6	PVC32	1.21
TMC2X-300A325X	TMC2X-300NB325X	TMC2X-300SS325X	–	3′	41.4	63.2	70.6	70.6	75.4	66.5	82.6	75.7	110.0	120.9	118.6	PVC32	1.21
TMC2X-400A376X	TMC2X-400NB376X	TMC2X-400SS376X	4′	–	43.9	74.9	87.6	87.6	89.9	80.3	95.5	85.9	122.9	135.1	125.7	LSF33	1.51
TMC2X-350A376X	TMC2X-350NB376X	TMC2X-350SS376X	–	3½’	42.7	74.9	87.6	87.6	89.9	80.3	95.5	85.9	122.9	135.1	125.7	LSF33	1.51
TMC2X-400A425X	TMC2X-400NB425X	TMC2X-400SS425X	4′	–	43.9	–	–	90.4	100.1	94.0	108.0	85.9	132.8	146.1	131.1	LSF34	1.68
Dimensions in millimeters unless otherwise stated

Part Numbers

TMC2-050NB075

TMC2-050NB099

TMC2-075NB075

TMC2-075NB099

TMC2-075NB118

TMC2-100NB118

TMC2-100NB137

TMC2-125NB137

TMC2-125NB162

TMC2-125NB190

TMC2-150NB162

TMC2-150NB190

TMC2-150NB200

TMC2-150NB233

TMC2-200NB200

TMC2-200NB233

TMC2-200NB272

TMC2-250NB272

TMC2-300NB325

TMC2-350NB325

TMC2-350NB376

TMC2-400NB376

TMC2-400NB425
