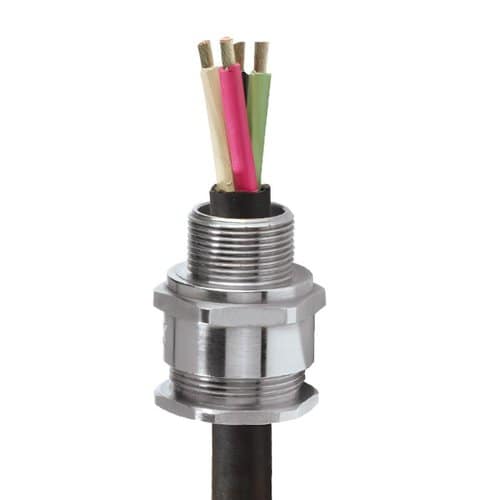

A2F Cable Gland
explosive atmosphere single seal globally approved gland

Globally Approved, Explosive Atmosphere Cable Gland

• Displacement type flameproof seal
• Deluge protected
• -60°C to +130°C (standard), -20°C to 200°C (ThermEx option )
• Globally marked, IECEx, ATEX & CSA
• Class I Zone 1, Class I Division 2 BCD (Canada Only)

For all types of Unarmoured & Braid Armour Cables

Description

Eutex-A2F Cable Gland Explosive

A2F explosive proof cable glands are suitable for all types of unarmored cables. Certified by ATEX for the safe glanding of cables in Class 1, Zone 1, potentially explosive atmospheres, they’re manufactured in accordance with the following:

ATEX Certificates

  • SIRA13ATEX1068X
  • SIRA13ATEX4074X

Approvals

  • LRS: 01/00172 (E3)
  • DNV: TAE00000Y
  • ABS: 14-LD234401A-4-PDA
  • BV: 43180/A1BV

IECEx Certificates

  • IECEx SIR 13.0023X
  • IECEx SIM 14.0006

An A2F explosive atmosphere cable gland is available in brass, electroless nickel-plated brass, stainless steel, and aluminum constructions, but EUTEX International’s standard offering is nickel-plated brass. Optional accessories include locknuts, earth tags, serrated washers, entry thread seals, shrouds, and ingress discs.

This cable gland type features a displacement-type flameproof seal and deluge protections. Standard cable operating environments are -60°C to +130°C, whereas ThermEx options are 20°C to 200°C.

They’re ideal for onshore and offshore use as well as other hazardous areas exposed to gases and dust. Common applications include:

  • Aerospace
  • Defense
  • Chemical
  • Mining
  • Minerals & Metals
  • Commercial Construction
  • Downstream Hydrocarbons
  • Food & Beverage
  • Industrial Energy
  • Onsite Utilities

  • Industrial Machinery
  • Laboratory and R&D
  • Life Sciences
  • Medical
  • Marine
  • Oil & Gas
  • Packaging
  • Power
  • Pulp & Paper
  • Textiles
  • Water & Wastewate

Why Choose EUTEX International?

EUTEX International is a leading provider of electric cables and accessories for demanding industrial use. With an ISO 9001:2015-certified Quality Management System, every product we supply is guaranteed to be durable, effective, and of the highest quality. Strategically positioned locations worldwide enable us to deliver the electrical products you need on time and within budget.

Contact us to learn more about A2F cable gland explosives. Our experts are happy to discuss your needs in greater detail.

Technical



Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications* Impact = Level 8, Retention = Class B
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
ATEX Certificate SIRA13ATEX1068X, SIRA13ATEX4074X
Code of Protection II 2G, II 1D Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da
II 3G Ex nR IIC Gc I M2 Ex d I Mb, Ex e I Mb
Compliance Standards EN 60079-0,1,7,15,31
IECEx Certificate IECEx SIR 13.0023X, IECEx SIM 14.0006
Code of Protection Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex d I Mb, Ex e I Mb
Compliance Standards IEC 60079-0,1,7,15,31
CSA Certificate 1211841
Code of Protection Class I, Div 2 Groups B, C, D; Class II, Div 2 Groups E, F, G; Class III, Div 2; Type 4X: Oil Resistant II: Ex d IIC, Ex e II, Ex nR II
Compliance Standards C22.2 No 0,0.4, 94, 174, CAN/CSA-E60079-0,1,7,15
EAC Certificate C-GB.AA87.B.00487
KCC Certificate 13_GA4BO_0748X, 13_GA4BO_0749X, 13_GA4BO_0750X, 14_GA4BO_0251X
NEPSI Certificate GYJ13.1140X , GYJ13.1282X
INMETRO Certificate TÜV 12.0619X
CCOE / PESO (India) Certificate P333688
RETIE Certificate 03866
Marine Approvals LRS: 01/00172 (E3), DNV: TAE00000Y, ABS: 14-LD234401A-4-PDA, BV: 43180/A1BV
Ingress Protection Rating ** IP66, IP67 & IP68
Deluge Protection Compliance DTS01 : 91
Cable Gland Material Brass, Electroless Nickel Plated Brass, Stainless Steel, Aluminium
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer
Cable Type Unarmoured & Braided when terminated inside enclosure
Sealing Technique CMP Unique Displacement Seal Concept
Sealing Area(s) Cable Outer Sheath
Optional Accessories Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs
Optional Installation Tools Spanners, Armour Former Tool

Product Table

Metric

Cable Gland Size Available Entry Threads “C” (Alternate Metric Thread Lengths Available) Overall
Cable
Diameter
“A”
Across
Flats
“D”
Across
Corners
“D”
Protrusion
Length “F”
Combined Ordering Reference
(*Brass Metric)
Shroud Cable
Gland
Weight
(Kgs)
Standard Option
Metric Thread Length (Metric) “E” NPT Thread Length
(NPT) “E”
NPT Min Max Max Max Size Type Ordering
Suffix
16 M16 15.0 3.2 8.7 24.0 26.4 29.9 16 A2F 1RA PVC02 0.06
20S16 M20 15.0 ½” 19.9 ¾” 3.2 8.7 24.0 26.4 26.0 20S16 A2F 1RA PVC04 0.07
20S M20 15.0 ½” 19.9 ¾” 6.1 11.7 24.0 26.4 26.0 20S A2F 1RA PVC04 0.06
20 M20 15.0 ½” 19.9 ¾” 6.5 14.0 27.0 29.7 27.7 20 A2F 1RA PVC05 0.07
25 M25 15.0 ¾” 20.2 1″ 11.1 20.0 36.0 39.6 35.5 25 A2F 1RA PVC09 0.13
32 M32 15.0 1″ 25.0 1 ¼” 17.0 26.3 41.0 45.1 35.1 32 A2F 1RA PVC10 0.15
40 M40 15.0 1 ¼” 25.6 1 ½” 23.5 32.2 50.0 55.0 35.1 40 A2F 1RA PVC13 0.20
50S M50 15.0 1 ½” 26.1 2″ 31.0 38.2 55.0 60.5 33.0 50S A2F 1RA PVC15 0.26
50 M50 15.0 2″ 26.9 2 ½” 35.6 44.0 60.0 66.0 37.3 50 A2F 1RA PVC18 0.27
63S M63 15.0 2″ 26.9 2 ½” 41.5 49.9 70.5 77.6 33.5 63S A2F 1RA PVC21 0.43
63 M63 15.0 2 ½” 39.9 3″ 47.2 55.9 75.0 82.5 36.2 63 A2F 1RA PVC23 0.40
75S M75 15.0 2 ½” 39.9 3″ 54.0 61.9 84.0 92.4 34.1 75S A2F 1RA PVC26 0.52
75 M75 15.0 3″ 41.5 3 ½” 61.1 67.9 84.0 92.4 40.9 75 A2F 1RA PVC26 0.50
90 M90 24.0 3 ½” 42.8 4″ 66.6 79.9 108.0 118.8 60.3 90 A2F 1RA PVC31 1.60
100 M100 24.0 3 ½” 42.8 4″ 76.0 91.0 123.0 135.3 57.2 100 A2F 1RA 1.78
115 M115 24.0 4″ 44.0 5″ 86.0 97.9 133.4 146.7 67.3 115 A2F 1RA 2.67
130 M130 24.0 5″ 46.8 97.0 114.9 152.4 167.6 74.7 130 A2F 1RA 3.80
Dimensions are displayed in millimetres unless otherwise stated

Imperial

Cable Gland Size Available Entry Threads “C” (Alternate Metric Thread Lengths Available) Overall
Cable
Diameter
“A”
Across
Flats
“D”
Across
Corners
“D”
Protrusion
Length “F”
Combined Ordering Reference
(*Brass Metric)
Shroud Cable
Gland
Weight
(Ozs)
Standard Option
Metric Thread Length (Metric) “E” NPT Thread Length
(NPT) “E”
NPT Min Max Max Max Size Type Ordering
Suffix
16 M16 0.59 0.13 0.34 0.94 1.04 1.18 16 A2F 1RA PVC02 2.12
20S16 M20 0.59 ½” 0.78 ¾” 0.13 0.34 0.94 1.04 1.02 20S16 A2F 1RA PVC04 2.47
20S M20 0.59 ½” 0.78 ¾” 0.24 0.46 0.94 1.04 1.02 20S A2F 1RA PVC04 2.12
20 M20 0.59 ½” 0.78 ¾” 0.26 0.55 1.06 1.17 1.09 20 A2F 1RA PVC05 2.47
25 M25 0.59 ¾” 0.80 1″ 0.44 0.79 1.42 1.56 1.40 25 A2F 1RA PVC09 4.59
32 M32 0.59 1″ 0.98 1 ¼” 0.67 1.04 1.61 1.78 1.38 32 A2F 1RA PVC10 5.29
40 M40 0.59 1 ¼” 1.01 1 ½” 0.93 1.27 1.97 2.17 1.38 40 A2F 1RA PVC13 7.05
50S M50 0.59 1 ½” 1.03 2″ 1.22 1.50 2.17 2.38 1.30 50S A2F 1RA PVC15 9.17
50 M50 0.59 2″ 1.06 2 ½” 1.40 1.73 2.36 2.60 1.47 50 A2F 1RA PVC18 9.52
63S M63 0.59 2″ 1.06 2 ½” 1.63 1.96 2.78 3.06 1.32 63S A2F 1RA PVC21 15.17
63 M63 0.59 2 ½” 1.57 3″ 1.86 2.20 2.95 3.25 1.43 63 A2F 1RA PVC23 14.11
75S M75 0.59 2 ½” 1.57 3″ 2.13 2.44 3.31 3.64 1.34 75S A2F 1RA PVC26 18.34
75 M75 0.59 3″ 1.63 3 ½” 2.41 2.67 3.31 3.64 1.61 75 A2F 1RA PVC26 17.64
90 M90 0.94 3 ½” 1.69 4″ 2.62 3.15 4.25 4.68 2.37 90 A2F 1RA PVC31 56.44
100 M100 0.94 3 ½” 1.69 4″ 2.99 3.58 4.84 5.33 2.25 100 A2F 1RA 62.79
115 M115 0.94 4″ 1.73 5″ 3.39 3.85 5.25 5.78 2.65 115 A2F 1RA 94.18
130 M130 0.94 5″ 1.84 3.82 4.52 6.00 6.60 2.94 130 A2F 1RA 134.04
Dimensions are displayed in inches unless otherwise stated

Download Spec Sheet
