A2F100

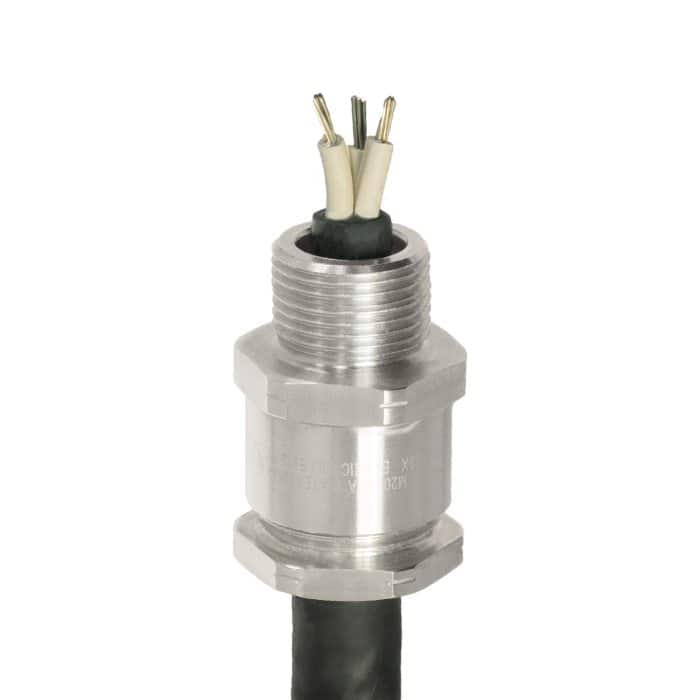

A2F100 Cable gland

INQUIRE

For all types of Unarmoured & Braided Cables

Internationally Approved, Explosive Atmosphere Cable Gland

  • Complies 100% with IEC 60079-0 cable retention requirements
  • No special conditions for safe use
  • No external cable clamping required
  • Displacement type flameproof seal
  • Deluge protected
  • -60°C to +130°C
  • Internationlly marked, IECEx, ATEX
  • Ingress disc available

Description

Cable Gland Size Available Entry Threads ‘C’
(Alternate Metric Thread Lengths Available)		 Overall Cable Diameter ‘A’ Across Flats ‘D’ Across Corners ‘D’ Protrusion Length ‘F’ Combined Ordering Reference
(*Brass Metric)		 Shroud Cable
Gland Weight
(Kgs)
Standard Option
Metric Thread Length (Metric) ‘E” NPT Thread Length (NPT) ‘E’ NPT Min Max Max Max Size Type Ordering Suffix
16 M16 15.0 – – – 3.2 8.0 24.0 26.4 34.9 16 A2F100 1RA PVC04 0.07
20S16 M20 15.0 ½’ 19.9 ¾’ 3.2 8.0 24.0 26.4 30.4 20S16 A2F100 1RA PVC04 0.08
20S M20 15.0 ½’ 19.9 ¾’ 6.5 11.2 24.0 26.4 31.9 20S A2F100 1RA PVC04 0.07
20 M20 15.0 ½’ 19.9 ¾’ 7.0 13.5 27.0 29.7 35.8 20 A2F100 1RA PVC05 0.09
20L M20 15.0 ½’ 19.9 ¾’ 8.7 14.0 27.0 29.7 34.3 20L A2F100 1RA PVC05 0.09
25 M25 15.0 ¾’ 20.2 1′ 11.5 19.5 36.0 39.6 40.4 25 A2F100 1RA PVC09 0.16
25L M25 15.0 ¾’ 20.2 1′ 14.0 20.0 36.0 39.6 39.9 25L A2F100 1RA PVC09 0.16
32 M32 15.0 1′ 25.0 1 ¼’ 19.0 25.5 41.0 45.1 38.5 32 A2F100 1RA PVC10 0.18
32L M32 15.0 1′ 25.0 1 ¼’ 20.2 26.3 41.0 45.1 35.5 32L A2F100 1RA PVC10 0.18
40 M40 15.0 1 ¼’ 25.6 1 ½’ 25.0 32.2 50.0 55.0 38.8 40 A2F100 1RA PVC13 0.25
50S M50 15.0 1 ½’ 26.1 2′ 31.0 38.2 55.0 60.5 41.4 50S A2F100 1RA PVC15 0.33
50 M50 15.0 2′ 26.9 2 ½’ 35.6 44.0 60.0 66.0 45.8 50 A2F100 1RA PVC18 0.35
63S M63 15.0 2′ 26.9 2 ½’ 41.5 49.9 70.5 77.6 43.3 63S A2F100 1RA PVC21 0.56
63 M63 15.0 2 ½’ 39.9 3′ 48.2 54.9 75.0 82.5 43.6 63 A2F100 1RA PVC23 0.55
75S M75 15.0 2 ½’ 39.9 3′ 54.0 61.9 84.0 92.4 45.4 75S A2F100 1RA PVC26 0.73
75 M75 15.0 3′ 41.5 3 ½’ 61.1 67.9 84.0 92.4 49.0 75 A2F100 1RA PVC26 0.58
90 M90 24.0 3 ½’ 42.8 4′ 66.6 79.9 108.0 118.8 66.0 90 A2F100 1RA PVC31 1.71
100 M100 24.0 3½” 42.8 4″ 76.0 89.0 123.0 135.3 72.2 100 A2F100 1RA LSF33 2.26
115 M115 24.0 4′ 44.0 5′ 86.0 97.9 133.4 146.7 67.9 115 A2F100 1RA LSF34 2.74
130 M130 24.0 5′ 46.8 – 97.0 114.9 152.4 167.6 81.1 130 A2F100 1RA LSF35 4.07
Dimensions are displayed in millimetres unless otherwise stated
