A2FFC

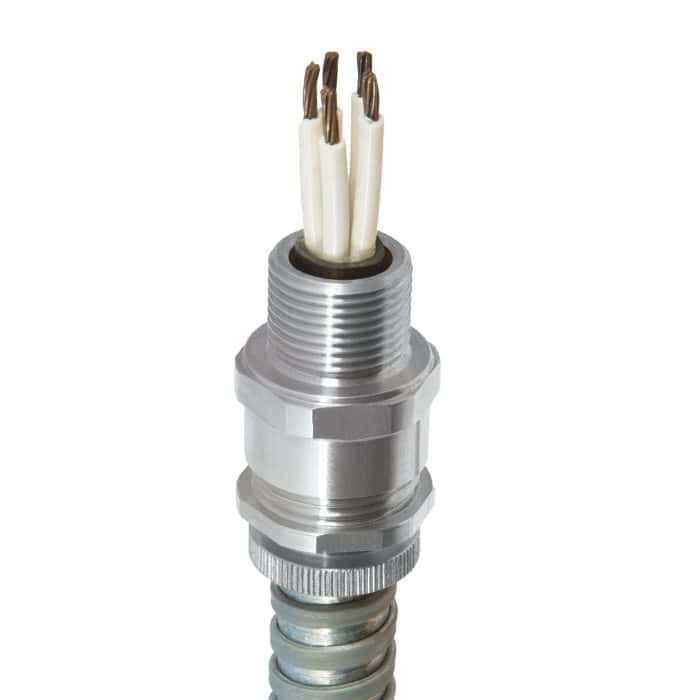

A2FFC Cable Gland

INQUIRE

For all types of Unarmoured & Braid Armour Cables housed in Conduit

Globally Approved, Flexible Conduit Explosive Atmosphere Cable Gland

• Designed for flexible & rigid conduits
• Rigid conduits require thread adaptor from conduit supplier
• Suitable for conduit with rubber sheath/coating
• Displacement-type flameproof seal
• Designed to prevent Coldflow
• -60°C to +130°C
• Globally marked, IECEx, ATEX & CSA

Description

Product Selection Table

Cable Gland Size Entry Threads ‘C’ Thread Length (Metric) ‘E’
(Alternate Metric Thread Lengths Available)		 Diameter of Cable ‘A’ Specific Internal Diameter of Conduit ‘G’ Maximum External Diameter of Conduit ‘B’ Across Flats “D” Across Corners ‘D’ Protrusion Length ‘F’ Maximum Envelope Diameter Combined Ordering Reference
(*Brass Metric)		 Cable
Gland Weight (Kgs)
Min Max Max Max Size Type Ordering Suffix
20S16 M20 x 1.5 15.0 3.2 4.1 5.1 12.0 24.0 26.4 33.2 26.4 20S16 A2FFC 1RAC000 0.09
20S16 M20 x 1.5 15.0 3.2 5.2 6.8 13.0 24.0 26.4 33.2 26.4 20S16 A2FFC 1RAC001 0.09
20S16 M20 x 1.5 15.0 3.2 5.5 7.8 13.0 24.0 26.4 33.2 26.4 20S16 A2FFC 1RAC004 0.09
20S16 M20 x 1.5 15.0 3.2 8.0 9.1 15.0 24.0 26.4 33.2 26.4 20S16 A2FFC 1RAC009 0.08
20S16 M20 x 1.5 15.0 3.2 8.1 9.5 15.0 24.0 26.4 33.2 26.4 20S16 A2FFC 1RAC010 0.09
20S16 M20 x 1.5 15.0 3.2 8.1 10.2 16.0 24.0 26.4 33.2 26.4 20S16 A2FFC 1RAC020 0.09
20S16 M20 x 1.5 15.0 3.2 8.1 10.9 17.0 24.0 26.4 33.2 26.4 20S16 A2FFC 1RAC025 0.09
20S16 M20 x 1.5 15.0 3.2 8.1 11.7 17.4 24.0 26.4 33.2 26.4 20S16 A2FFC 1RAC030 0.09
20S M20 x 1.5 15.0 6.1 11.4 13.0 20.0 24.0 26.4 33.1 26.4 20S A2FFC 1RAC040 0.09
20S M20 x 1.5 15.0 6.1 11.7 13.9 20.0 24.0 26.4 33.1 26.4 20S A2FFC 1RAC045 0.09
20S M20 x 1.5 15.0 6.1 11.7 14.7 21.5 24.0 26.4 33.1 26.4 20S A2FFC 1RAC060 0.09
20 M20 x 1.5 15.0 6.5 13.1 15.6 21.6 27.0 29.7 35.4 29.7 20 A2FFC 1RAC050 0.10
20 M20 x 1.5 15.0 6.5 14.0 16.9 23.4 27.0 29.7 35.4 29.7 20 A2FFC 1RAC066 0.10
20 M20 x 1.5 15.0 6.5 14.0 18.0 24.0 27.0 29.7 35.4 29.7 20 A2FFC 1RAC070 0.10
20 M20 x 1.5 15.0 6.5 14.0 18.7 25.0 27.0 29.7 35.4 29.7 20 A2FFC 1RAC075 0.10
20 M20 x 1.5 15.0 6.5 14.0 20.0 26.3 27.0 29.7 35.4 29.7 20 A2FFC 1RAC080 0.12
20 M20 x 1.5 15.0 6.5 14.0 20.5 28.0 27.0 29.7 35.4 31.0 20 A2FFC 1RAC085 0.11
25 M25 x 1.5 15.0 11.1 15.3 17.6 25.0 36.0 39.6 43.1 39.6 25 A2FFC 1RAC100 0.16
25 M25 x 1.5 15.0 11.1 18.4 20.7 27.0 36.0 39.6 43.1 39.6 25 A2FFC 1RAC105 0.16
25 M25 x 1.5 15.0 11.1 19.0 22.3 28.5 36.0 39.6 43.1 39.6 25 A2FFC 1RAC110 0.17
25 M25 x 1.5 15.0 11.1 20.0 23.7 32.0 36.0 39.6 43.1 39.6 25 A2FFC 1RAC115 0.18
25 M25 x 1.5 15.0 11.1 20.0 25.1 31.0 36.0 39.6 43.1 39.6 25 A2FFC 1RAC120 0.17
25 M25 X 1.5 15.0 11.1 20.0 26.5 35.0 36.0 39.6 43.1 39.6 25 A2FFC 1RAC180 0.18
32 M32 x 1.5 15.0 17.0 26.0 28.1 35.8 41.0 45.1 43.1 45.1 32 A2FFC 1RAC250 0.21
32 M32 x 1.5 15.0 17.0 26.3 30.4 38.0 41.0 45.1 43.1 45.1 32 A2FFC 1RAC280 0.21
32 M32 x 1.5 15.0 17.0 26.3 34.6 45.0 41.0 45.1 43.6 48.0 32 A2FFC 1RAC290 0.25
40 M40 x 1.5 15.0 23.5 32.2 36.4 45.0 50.0 55.0 45.1 55.0 40 A2FFC 1RAC300 0.28
40 M40 x 1.5 15.0 23.5 32.2 40.0 49.0 50.0 55.0 45.1 55.0 40 A2FFC 1RAC380 0.30
50S M50 x 1.5 15.0 31.0 38.2 46.5 58.7 55.0 60.5 43.8 63.7 50S A2FFC 1RAC450 0.48
50S M50 x 1.5 15.0 31.0 38.2 51.2 61.0 55.0 60.5 43.8 65.0 50S A2FFC 1RAC500 0.49
50 M50 x 1.5 15.0 35.6 44.0 51.2 61.0 60.0 66.0 48.0 66.0 50 A2FFC 1RAC550 0.49
Dimensions displayed in millimeters unless otherwise stated



Download Spec Sheet

Download

Product Selection Table

Cable Gland Size Entry Threads ‘C’ Thread Length (Metric) ‘E’
(Alternate Metric Thread Lengths Available)		 Diameter of Cable ‘A’ Specific Internal Diameter of Conduit ‘G’ Maximum External Diameter of Conduit ‘B’ Across Flats “D” Across Corners ‘D’ Protrusion Length ‘F’ Maximum Envelope Diameter Combined Ordering Reference
(*Brass Metric)		 Cable
Gland Weight (Kgs)
Min Max Max Max Size Type Ordering Suffix
20S16 M20 x 1.5 15.0 3.2 4.1 5.1 12.0 24.0 26.4 33.2 26.4 20S16 A2FFC 1RAC000 0.09
20S16 M20 x 1.5 15.0 3.2 5.2 6.8 13.0 24.0 26.4 33.2 26.4 20S16 A2FFC 1RAC001 0.09
20S16 M20 x 1.5 15.0 3.2 5.5 7.8 13.0 24.0 26.4 33.2 26.4 20S16 A2FFC 1RAC004 0.09
20S16 M20 x 1.5 15.0 3.2 8.0 9.1 15.0 24.0 26.4 33.2 26.4 20S16 A2FFC 1RAC009 0.08
20S16 M20 x 1.5 15.0 3.2 8.1 9.5 15.0 24.0 26.4 33.2 26.4 20S16 A2FFC 1RAC010 0.09
20S16 M20 x 1.5 15.0 3.2 8.1 10.2 16.0 24.0 26.4 33.2 26.4 20S16 A2FFC 1RAC020 0.09
20S16 M20 x 1.5 15.0 3.2 8.1 10.9 17.0 24.0 26.4 33.2 26.4 20S16 A2FFC 1RAC025 0.09
20S16 M20 x 1.5 15.0 3.2 8.1 11.7 17.4 24.0 26.4 33.2 26.4 20S16 A2FFC 1RAC030 0.09
20S M20 x 1.5 15.0 6.1 11.4 13.0 20.0 24.0 26.4 33.1 26.4 20S A2FFC 1RAC040 0.09
20S M20 x 1.5 15.0 6.1 11.7 13.9 20.0 24.0 26.4 33.1 26.4 20S A2FFC 1RAC045 0.09
20S M20 x 1.5 15.0 6.1 11.7 14.7 21.5 24.0 26.4 33.1 26.4 20S A2FFC 1RAC060 0.09
20 M20 x 1.5 15.0 6.5 13.1 15.6 21.6 27.0 29.7 35.4 29.7 20 A2FFC 1RAC050 0.10
20 M20 x 1.5 15.0 6.5 14.0 16.9 23.4 27.0 29.7 35.4 29.7 20 A2FFC 1RAC066 0.10
20 M20 x 1.5 15.0 6.5 14.0 18.0 24.0 27.0 29.7 35.4 29.7 20 A2FFC 1RAC070 0.10
20 M20 x 1.5 15.0 6.5 14.0 18.7 25.0 27.0 29.7 35.4 29.7 20 A2FFC 1RAC075 0.10
20 M20 x 1.5 15.0 6.5 14.0 20.0 26.3 27.0 29.7 35.4 29.7 20 A2FFC 1RAC080 0.12
20 M20 x 1.5 15.0 6.5 14.0 20.5 28.0 27.0 29.7 35.4 31.0 20 A2FFC 1RAC085 0.11
25 M25 x 1.5 15.0 11.1 15.3 17.6 25.0 36.0 39.6 43.1 39.6 25 A2FFC 1RAC100 0.16
25 M25 x 1.5 15.0 11.1 18.4 20.7 27.0 36.0 39.6 43.1 39.6 25 A2FFC 1RAC105 0.16
25 M25 x 1.5 15.0 11.1 19.0 22.3 28.5 36.0 39.6 43.1 39.6 25 A2FFC 1RAC110 0.17
25 M25 x 1.5 15.0 11.1 20.0 23.7 32.0 36.0 39.6 43.1 39.6 25 A2FFC 1RAC115 0.18
25 M25 x 1.5 15.0 11.1 20.0 25.1 31.0 36.0 39.6 43.1 39.6 25 A2FFC 1RAC120 0.17
25 M25 X 1.5 15.0 11.1 20.0 26.5 35.0 36.0 39.6 43.1 39.6 25 A2FFC 1RAC180 0.18
32 M32 x 1.5 15.0 17.0 26.0 28.1 35.8 41.0 45.1 43.1 45.1 32 A2FFC 1RAC250 0.21
32 M32 x 1.5 15.0 17.0 26.3 30.4 38.0 41.0 45.1 43.1 45.1 32 A2FFC 1RAC280 0.21
32 M32 x 1.5 15.0 17.0 26.3 34.6 45.0 41.0 45.1 43.6 48.0 32 A2FFC 1RAC290 0.25
40 M40 x 1.5 15.0 23.5 32.2 36.4 45.0 50.0 55.0 45.1 55.0 40 A2FFC 1RAC300 0.28
40 M40 x 1.5 15.0 23.5 32.2 40.0 49.0 50.0 55.0 45.1 55.0 40 A2FFC 1RAC380 0.30
50S M50 x 1.5 15.0 31.0 38.2 46.5 58.7 55.0 60.5 43.8 63.7 50S A2FFC 1RAC450 0.48
50S M50 x 1.5 15.0 31.0 38.2 51.2 61.0 55.0 60.5 43.8 65.0 50S A2FFC 1RAC500 0.49
50 M50 x 1.5 15.0 35.6 44.0 51.2 61.0 60.0 66.0 48.0 66.0 50 A2FFC 1RAC550 0.49
Dimensions displayed in millimeters unless otherwise stated
