Products > A2FHT Cable gland

Name: A2FHT Cable gland
Availability: InStock

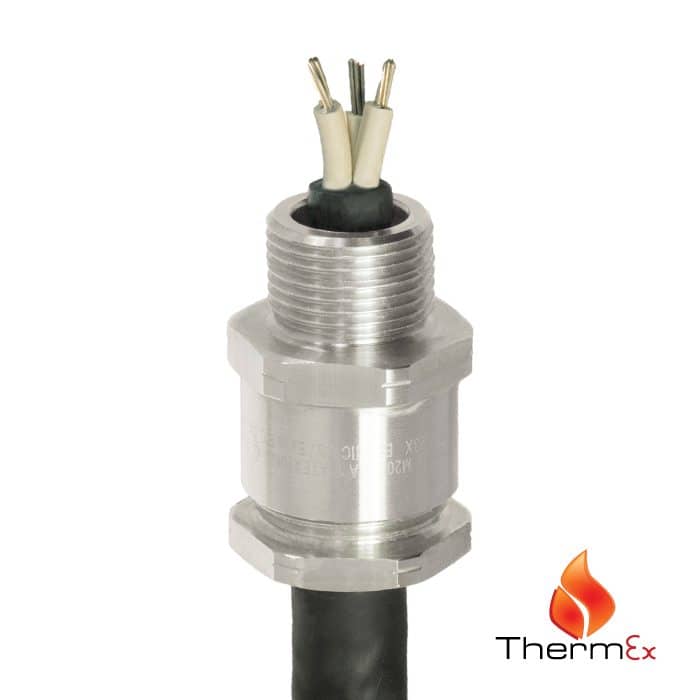

A2FHT Cable gland

For all types of Unarmoured & Braid Armour Cablescable

Internationally Approved, Explosive Atmosphere Cable Gland

• -60°C to 180°C high temperature ThermEx seals
• Displacement type flameproof seal
• Deluge protected
• Internationally marked, IECEx & ATEX

Product Selection Table

Cable Gland Size	Available Entry Threads ‘C’ (Alternate Metric Thread Lengths Available)					Overall Cable Diameter ‘A’		Across Flats ‘D’	Across Corners ‘D’	Protrusion Length ‘F’	Combined Ordering Reference (*Brass Metric)
	Standard				Option	Overall Cable Diameter ‘A’		Across Flats ‘D’	Across Corners ‘D’		Combined Ordering Reference (*Brass Metric)
	Metric	Thread Length (Metric) ‘E’	NPT	Thread Length (NPT) ‘E’	NPT	Min	Max	Max	Max		Size	Type	Ordering Suffix
16	M16	15.0	–	–	–	3.2	8.0	24.0	26.4	34.9	16	A2FHT	1RA
16P	M16	15.0	–	–	–	3.2	8.0	22.0	24.2	34.7	16P	A2FHT	1RA
20S/16	M20	15.0	1/2′	19.9	3/4′	3.2	8.0	24.0	26.4	31.4	20S16	A2FHT	1RA
20S/16P	M20	15.0	–	–	–	3.2	8.0	22.0	24.2	32.1	20S16P	A2FHT	1RA
20S	M20	15.0	1/2′	19.9	3/4′	6.5	11.2	24.0	26.4	32.1	20S	A2FHT	1RA
20SP	M20	15.0	–	–	–	6.5	11.2	22.0	24.2	32.1	20SP	A2FHT	1RA
20	M20	15.0	1/2′	19.9	3/4′	7.0	13.5	27.0	29.7	35.8	20	A2FHT	1RA
20P	M20	15.0	–	–	–	7.0	13.5	24.0	26.4	41.4	20P	A2FHT	1RA
25	M25	15.0	3/4′	20.2	1′	11.5	19.5	36.0	39.6	40.4	25	A2FHT	1RA
25P	M25	15.0	–	–	–	11.5	19.5	32.0	35.2	49.7	25P	A2FHT	1RA
32	M32	15.0	1′	25.0	1 1/4′	19.0	25.5	41.0	45.1	38.5	32	A2FHT	1RA
40	M40	15.0	1 1/4′	25.6	1 1/2′	25.0	32.2	50.0	55.0	39.1	40	A2FHT	1RA
50S	M50	15.0	1 1/2′	26.1	2′	31.0	38.2	55.0	60.5	41.4	50S	A2FHT	1RA
50	M50	15.0	2′	26.9	2 1/2′	35.6	44.0	60.0	66.0	45.8	50	A2FHT	1RA
63S	M63	15.0	2′	26.9	2 1/2′	41.5	49.9	70.5	77.6	43.3	63S	A2FHT	1RA
63	M63	15.0	2 1/2′	39.9	3′	48.2	54.9	75.0	82.5	43.6	63	A2FHT	1RA
75S	M75	15.0	2 1/2′	39.9	3′	54.0	61.9	84.0	92.4	45.4	75S	A2FHT	1RA
Dimensions displayed in millimeters unless otherwise stated

Product Selection Table

Cable Gland Size	Available Entry Threads ‘C’ (Alternate Metric Thread Lengths Available)					Overall Cable Diameter ‘A’		Across Flats ‘D’	Across Corners ‘D’	Protrusion Length ‘F’	Combined Ordering Reference (*Brass Metric)
	Standard				Option	Overall Cable Diameter ‘A’		Across Flats ‘D’	Across Corners ‘D’		Combined Ordering Reference (*Brass Metric)
	Metric	Thread Length (Metric) ‘E’	NPT	Thread Length (NPT) ‘E’	NPT	Min	Max	Max	Max		Size	Type	Ordering Suffix
16	M16	15.0	–	–	–	3.2	8.0	24.0	26.4	34.9	16	A2FHT	1RA
16P	M16	15.0	–	–	–	3.2	8.0	22.0	24.2	34.7	16P	A2FHT	1RA
20S/16	M20	15.0	1/2′	19.9	3/4′	3.2	8.0	24.0	26.4	31.4	20S16	A2FHT	1RA
20S/16P	M20	15.0	–	–	–	3.2	8.0	22.0	24.2	32.1	20S16P	A2FHT	1RA
20S	M20	15.0	1/2′	19.9	3/4′	6.5	11.2	24.0	26.4	32.1	20S	A2FHT	1RA
20SP	M20	15.0	–	–	–	6.5	11.2	22.0	24.2	32.1	20SP	A2FHT	1RA
20	M20	15.0	1/2′	19.9	3/4′	7.0	13.5	27.0	29.7	35.8	20	A2FHT	1RA
20P	M20	15.0	–	–	–	7.0	13.5	24.0	26.4	41.4	20P	A2FHT	1RA
25	M25	15.0	3/4′	20.2	1′	11.5	19.5	36.0	39.6	40.4	25	A2FHT	1RA
25P	M25	15.0	–	–	–	11.5	19.5	32.0	35.2	49.7	25P	A2FHT	1RA
32	M32	15.0	1′	25.0	1 1/4′	19.0	25.5	41.0	45.1	38.5	32	A2FHT	1RA
40	M40	15.0	1 1/4′	25.6	1 1/2′	25.0	32.2	50.0	55.0	39.1	40	A2FHT	1RA
50S	M50	15.0	1 1/2′	26.1	2′	31.0	38.2	55.0	60.5	41.4	50S	A2FHT	1RA
50	M50	15.0	2′	26.9	2 1/2′	35.6	44.0	60.0	66.0	45.8	50	A2FHT	1RA
63S	M63	15.0	2′	26.9	2 1/2′	41.5	49.9	70.5	77.6	43.3	63S	A2FHT	1RA
63	M63	15.0	2 1/2′	39.9	3′	48.2	54.9	75.0	82.5	43.6	63	A2FHT	1RA
75S	M75	15.0	2 1/2′	39.9	3′	54.0	61.9	84.0	92.4	45.4	75S	A2FHT	1RA
Dimensions displayed in millimeters unless otherwise stated
