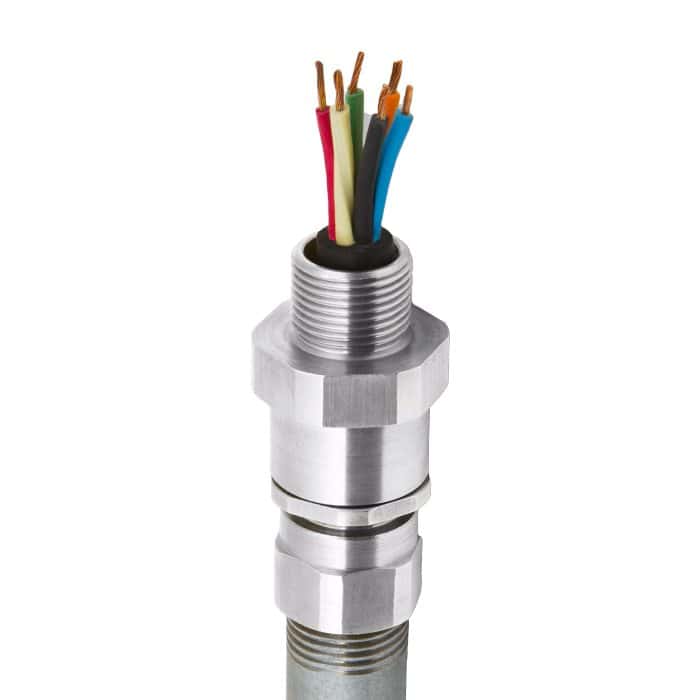

A2FRC | Ex eb, Ex db, Ex nR, Ex ta | Explosive Atmosphere Cable Gland

Globally Approved, Rigid & Flexible Conduit Explosive Atmosphere Cable Gland

For all types of Unarmoured & Braid Armour Cables housed in Conduit

• Designed for rigid & flexible conduits
• Easy install running coupler design
• Displacement type flameproof seal
• -60°C to +130°C
• Globally marked, IECEx, ATEX & CSA

Description
Download Spec Sheet

Description

CERTIFICATES

Product Selection Table

Cable Gland Size	Available Entry Threads ‘C’ (Alternate Metric Thread Lengths Available)					Female Connection Thread ‘G’	Female Connection Thread (NPT) ‘G’	Overall Cable Diameter ‘A’		Across Flats ‘D’	Across Corners ‘D’	Protrusion Length ‘F’	Combined Ordering Reference (*Brass Metric male and female)			Shroud	Cable Gland Weight (Kgs)
	Standard				Option			Overall Cable Diameter ‘A’		Across Flats ‘D’	Across Corners ‘D’		Combined Ordering Reference (*Brass Metric male and female)
	Metric	Thread Length (Metric) ‘E’	NPT	Thread Length (NPT) ‘E’	NPT			Min	Max	Max	Max		Size	Type	Ordering Suffix
20S16	M20	15.0	½’	19.9	¾”	M20	½’	3.2	8.7	24.0	26.4	46.9	20S16	A2FRC	1RA	PVC04	0.11
20S	M20	15.0	½’	19.9	¾”	M20	½’	6.1	11.7	24.0	26.4	46.1	20S	A2FRC	1RA	PVC04	0.11
20	M20	15.0	½’	19.9	¾”	M20	½’	6.5	14.0	27.0	29.7	47.9	20	A2FRC	1RA	PVC05	0.11
25	M25	15.0	¾’	20.2	1″	M25	¾’	11.1	20.0	36.0	39.6	56.1	25	A2FRC	1RA	PVC09	0.20
32	M32	15.0	1′	25.0	1 ¼”	M32	1′	17.0	26.3	41.0	45.1	55.5	32	A2FRC	1RA	PVC10	0.24
40	M40	15.0	1 ¼’	25.6	1 ½”	M40	1 ¼’	23.5	32.2	50.0	55.0	57.7	40	A2FRC	1RA	PVC13	0.33
50S	M50	15.0	1 ½’	26.1	2″	M50	1 ½’	31.0	38.2	55.0	60.5	59.1	50S	A2FRC	1RA	PVC15	0.43
50	M50	15.0	2′	26.9	2 ½”	M50	2′	35.6	44.0	60.0	66.0	64.3	50	A2FRC	1RA	PVC18	0.44
63S	M63	15.0	2′	26.9	2 ½”	M63	2′	41.5	49.9	70.5	77.6	61.6	63S	A2FRC	1RA	PVC21	0.72
63	M63	15.0	2 ½’	39.9	3″	M63	2 ½’	47.2	55.9	75.0	82.5	71.0	63	A2FRC	1RA	PVC23	0.64
75S	M75	15.0	2 ½’	39.9	3″	M75	2 ½’	54.0	61.9	84.0	92.4	70.1	75S	A2FRC	1RA	PVC26	0.96
75	M75	15.0	3′	41.5	3 ½”	M75	3′	61.1	67.9	84.0	92.4	73.2	75	A2FRC	1RA	PVC26	0.86
90	M90	24.0	3 ½’	42.8	4″	M90	3 ½’	66.6	79.9	108.0	118.8	106.3	90	A2FRC	1RA	PVC31	2.25
Dimensions displayed in millimeters unless otherwise stated

Download Spec Sheet

Download

CERTIFICATES

Product Selection Table

Cable Gland Size	Available Entry Threads ‘C’ (Alternate Metric Thread Lengths Available)					Female Connection Thread ‘G’	Female Connection Thread (NPT) ‘G’	Overall Cable Diameter ‘A’		Across Flats ‘D’	Across Corners ‘D’	Protrusion Length ‘F’	Combined Ordering Reference (*Brass Metric male and female)			Shroud	Cable Gland Weight (Kgs)
	Standard				Option			Overall Cable Diameter ‘A’		Across Flats ‘D’	Across Corners ‘D’		Combined Ordering Reference (*Brass Metric male and female)
	Metric	Thread Length (Metric) ‘E’	NPT	Thread Length (NPT) ‘E’	NPT			Min	Max	Max	Max		Size	Type	Ordering Suffix
20S16	M20	15.0	½’	19.9	¾”	M20	½’	3.2	8.7	24.0	26.4	46.9	20S16	A2FRC	1RA	PVC04	0.11
20S	M20	15.0	½’	19.9	¾”	M20	½’	6.1	11.7	24.0	26.4	46.1	20S	A2FRC	1RA	PVC04	0.11
20	M20	15.0	½’	19.9	¾”	M20	½’	6.5	14.0	27.0	29.7	47.9	20	A2FRC	1RA	PVC05	0.11
25	M25	15.0	¾’	20.2	1″	M25	¾’	11.1	20.0	36.0	39.6	56.1	25	A2FRC	1RA	PVC09	0.20
32	M32	15.0	1′	25.0	1 ¼”	M32	1′	17.0	26.3	41.0	45.1	55.5	32	A2FRC	1RA	PVC10	0.24
40	M40	15.0	1 ¼’	25.6	1 ½”	M40	1 ¼’	23.5	32.2	50.0	55.0	57.7	40	A2FRC	1RA	PVC13	0.33
50S	M50	15.0	1 ½’	26.1	2″	M50	1 ½’	31.0	38.2	55.0	60.5	59.1	50S	A2FRC	1RA	PVC15	0.43
50	M50	15.0	2′	26.9	2 ½”	M50	2′	35.6	44.0	60.0	66.0	64.3	50	A2FRC	1RA	PVC18	0.44
63S	M63	15.0	2′	26.9	2 ½”	M63	2′	41.5	49.9	70.5	77.6	61.6	63S	A2FRC	1RA	PVC21	0.72
63	M63	15.0	2 ½’	39.9	3″	M63	2 ½’	47.2	55.9	75.0	82.5	71.0	63	A2FRC	1RA	PVC23	0.64
75S	M75	15.0	2 ½’	39.9	3″	M75	2 ½’	54.0	61.9	84.0	92.4	70.1	75S	A2FRC	1RA	PVC26	0.96
75	M75	15.0	3′	41.5	3 ½”	M75	3′	61.1	67.9	84.0	92.4	73.2	75	A2FRC	1RA	PVC26	0.86
90	M90	24.0	3 ½’	42.8	4″	M90	3 ½’	66.6	79.9	108.0	118.8	106.3	90	A2FRC	1RA	PVC31	2.25
Dimensions displayed in millimeters unless otherwise stated
