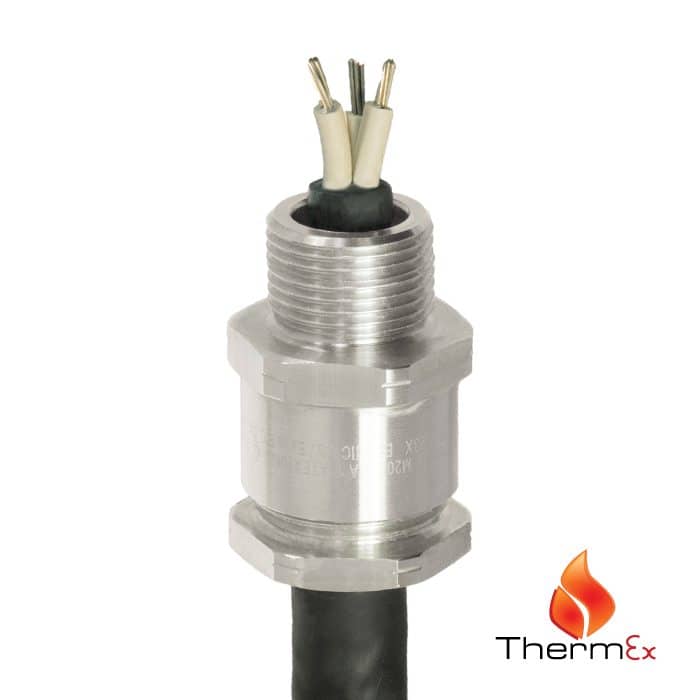

High-Temperature Industrial Cable Gland
For all types of Unarmoured & Braid Armoured Cables

High Temperature, Single Seal Industrial Cable Gland

• -60°C to 180°C high temperature ThermIn seals
• High quality durable materials
• Robust, heavy-duty design
• Displacement type seal
• Designed to prevent Coldflow
• Deluge protected

Description

Product Selection Table

Cable Gland Size Available Entry Threads ‘C’ (Alternate Metric Thread Lengths
Available)		 Overall Cable
Diameter ‘A’		 Across
Flats ‘D’		 Across
Corners
‘D’		 Protrusion
Length ‘F’		 Combined Ordering
Reference
(*Brass Metric)		 Shroud Cable
Gland
Weight
(Kgs)
Standard
Metric Thread Length (Metric) ‘E’ Min Max Max Max Size Type Ordering Suffix
16 M16 10.0 – – – 3.2 8.0 24.0 26.4 34.9 16 A2HT 1RA
16P M16 10.0 – – – 3.2 8.0 22.0 24.2 34.7 16P A2HT 1RA
20S/16 M20 10.0 1/2′ 19.9 3/4′ 3.2 8.0 24.0 26.4 32.9 20S16 A2HT 1RA
20S/16P M20 10.0 – – – 3.2 8.0 22.0 24.2 32.4 20S16P A2HT 1RA
20S M20 10.0 1/2′ 19.9 3/4′ 6.5 11.2 24.0 26.4 34.9 20S A2HT 1RA
20SP M20 10.0 – – – 6.5 11.2 22.0 24.2 34.4 20SP A2HT 1RA
20 M20 10.0 1/2′ 19.9 3/4′ 7.0 13.5 27.0 29.7 36.8 20 A2HT 1RA
20P M20 10.0 – – – 7.0 13.5 24.0 26.4 41.1 20P A2HT 1RA
25 M25 10.0 3/4′ 20.2 1′ 11.5 19.5 36.0 39.6 43.1 25 A2HT 1RA
25P M25 10.0 – – – 11.5 19.5 32.0 35.2 49.4 25P A2HT 1RA
32 M32 10.0 1′ 25.0 1 1/4′ 19.0 25.5 41.0 45.1 41.5 32 A2HT 1RA
40 M40 15.0 1 1/4′ 25.6 1 1/2′ 25.0 32.2 50.0 55.0 39.1 40 A2HT 1RA
50S M50 15.0 1 1/2′ 26.1 2′ 31.0 38.2 55.0 60.5 41.4 50S A2HT 1RA
50 M50 15.0 2′ 26.9 2 1/2′ 35.6 44.0 60.0 66.0 45.8 50 A2HT 1RA
63S M63 15.0 2′ 26.9 2 1/2′ 41.5 49.9 70.5 77.6 43.3 63S A2HT 1RA
63 M63 15.0 2 1/2′ 39.9 3′ 48.2 54.9 75.0 82.5 43.6 63 A2HT 1RA
75S M75 15.0 2 1/2′ 39.9 3′ 54.0 61.9 84.0 92.4 45.4 75S A2HT 1RA
Dimensions displayed in millimeters unless otherwise stated

Download Spec Sheet

Download

Product Selection Table

Cable Gland Size Available Entry Threads ‘C’ (Alternate Metric Thread Lengths
Available)		 Overall Cable
Diameter ‘A’		 Across
Flats ‘D’		 Across
Corners
‘D’		 Protrusion
Length ‘F’		 Combined Ordering
Reference
(*Brass Metric)		 Shroud Cable
Gland
Weight
(Kgs)
Standard
Metric Thread Length (Metric) ‘E’ Min Max Max Max Size Type Ordering Suffix
16 M16 10.0 – – – 3.2 8.0 24.0 26.4 34.9 16 A2HT 1RA
16P M16 10.0 – – – 3.2 8.0 22.0 24.2 34.7 16P A2HT 1RA
20S/16 M20 10.0 1/2′ 19.9 3/4′ 3.2 8.0 24.0 26.4 32.9 20S16 A2HT 1RA
20S/16P M20 10.0 – – – 3.2 8.0 22.0 24.2 32.4 20S16P A2HT 1RA
20S M20 10.0 1/2′ 19.9 3/4′ 6.5 11.2 24.0 26.4 34.9 20S A2HT 1RA
20SP M20 10.0 – – – 6.5 11.2 22.0 24.2 34.4 20SP A2HT 1RA
20 M20 10.0 1/2′ 19.9 3/4′ 7.0 13.5 27.0 29.7 36.8 20 A2HT 1RA
20P M20 10.0 – – – 7.0 13.5 24.0 26.4 41.1 20P A2HT 1RA
25 M25 10.0 3/4′ 20.2 1′ 11.5 19.5 36.0 39.6 43.1 25 A2HT 1RA
25P M25 10.0 – – – 11.5 19.5 32.0 35.2 49.4 25P A2HT 1RA
32 M32 10.0 1′ 25.0 1 1/4′ 19.0 25.5 41.0 45.1 41.5 32 A2HT 1RA
40 M40 15.0 1 1/4′ 25.6 1 1/2′ 25.0 32.2 50.0 55.0 39.1 40 A2HT 1RA
50S M50 15.0 1 1/2′ 26.1 2′ 31.0 38.2 55.0 60.5 41.4 50S A2HT 1RA
50 M50 15.0 2′ 26.9 2 1/2′ 35.6 44.0 60.0 66.0 45.8 50 A2HT 1RA
63S M63 15.0 2′ 26.9 2 1/2′ 41.5 49.9 70.5 77.6 43.3 63S A2HT 1RA
63 M63 15.0 2 1/2′ 39.9 3′ 48.2 54.9 75.0 82.5 43.6 63 A2HT 1RA
75S M75 15.0 2 1/2′ 39.9 3′ 54.0 61.9 84.0 92.4 45.4 75S A2HT 1RA
Dimensions displayed in millimeters unless otherwise stated
