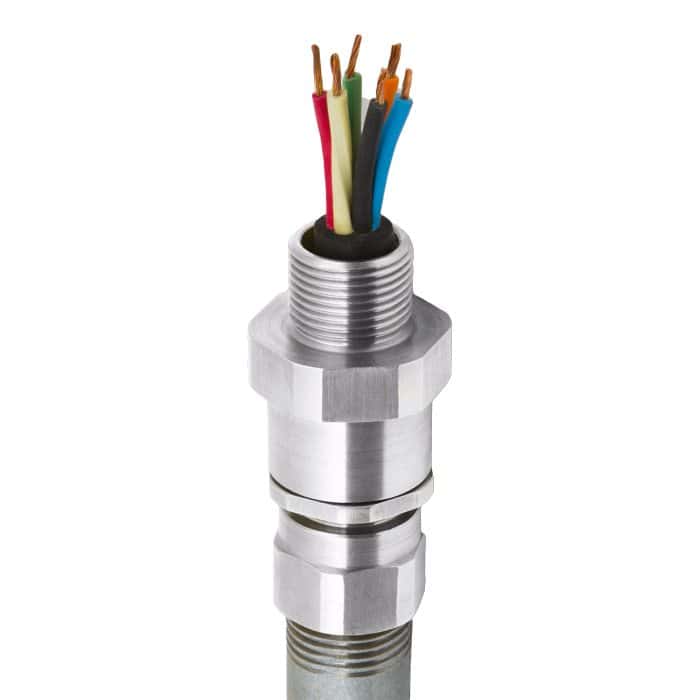

Industrial Cable Gland
For all types of Unarmoured & Braid Armoured Cables

Industrial Cable Gland with Conduit Connection Facility

• Designed for rigid & flexible conduits
• Easy install running coupler design
• Displacement type seal
• -60°C to +130°C

Note: Alternative conduit sizes available upon request.

See cable gland selection table below for full NPT & Metric thread ordering references

Thread Option Ordering Examples
Ordering Reference Male Thread Female Thread
20A2RC1RA M20 M20
20A2RC1RA031 M20 1/2″ NPT
20A2RC1RA03131 1/2″ NPT 1/2″ NPT
20A2RC1RA03101 1/2″ NPT M20

Description

Product Selection Table

Cable Gland Size Available Entry Threads ‘C’ (Alternate Metric Thread Lengths Available) Overall Cable Diameter ‘A’ Across Flats ‘D’ Across Corners ‘D’ Female Conduit Connection (Metric) ‘G’ Female Conduit Connection (NPT) “G” Protrusion Length ‘F’ Combined Ordering Reference
(*Brass Metric male & female)		 Cable
Gland Weight (Kgs)
Standard Option
Metric Thread Length (Metric) ‘E’ NPT Thread Length (NPT)
‘E’		 NPT Min Max Max Max Size Type Ordering Suffix Shroud
20S16 M20 10.0 ½’ 19.9 ¾’ 3.2 8.7 24.0 26.4 M20 1/2″ 43.6 20S16 A2RC 1RA PVC04 0.10
20S M20 10.0 ½’ 19.9 ¾’ 6.1 11.7 24.0 26.4 M20 1/4″ 43.6 20S A2RC 1RA PVC04 0.10
20 M20 10.0 ½’ 19.9 ¾’ 6.5 14.0 27.0 29.7 M20 1/2″ 42.4 20 A2RC 1RA PVC05 0.10
25 M25 10.0 ¾’ 20.2 1′ 11.1 20.0 36.0 39.6 M25 3/4″ 50.4 25 A2RC 1RA PVC09 0.19
32 M32 10.0 1′ 25.0 1 ¼’ 17.0 26.3 41.0 45.1 M32 1″ 50.7 32 A2RC 1RA PVC10 0.23
40 M40 15.0 1 ¼’ 25.6 1 ½’ 23.5 32.2 50.0 55.0 M40 1 1/4″ 51.4 40 A2RC 1RA PVC13 0.33
50S M50 15.0 1 ½’ 26.1 2′ 31.0 38.2 55.0 60.5 M50 1 1/2″ 55.2 50S A2RC 1RA PVC15 0.43
50 M50 15.0 2′ 26.9 2 ½’ 35.6 44.0 60.0 66.0 M50 2″ 62.0 50 A2RC 1RA PVC18 0.44
63S M63 15.0 2′ 26.9 2 ½’ 41.5 49.9 70.5 77.6 M63 2″ 58.4 63S A2RC 1RA PVC21 0.72
63 M63 15.0 2 ½’ 39.9 3′ 47.2 55.9 75.0 82.5 M63 2 1/2″ 61.5 63 A2RC 1RA PVC23 0.64
75S M75 15.0 2 ½’ 39.9 3′ 54.0 61.9 79.0 88.0 M75 2 1/2″ 63.2 75S A2RC 1RA PVC26 0.90
75 M75 15.0 3′ 41.5 3 ½’ 61.1 67.9 84.0 92.4 M75 3″ 68.6 75 A2RC 1RA PVC26 0.80
90 M90 24.0 3 ½’ 42.8 4′ 66.6 79.9 108.0 118.8 M90 3 1/2″ 94.2 90 A2RC 1RA PVC31 2.20
Dimensions displayed in millimeters unless otherwise stated

Download Spec Sheet

Download

Product Selection Table

Cable Gland Size Available Entry Threads ‘C’ (Alternate Metric Thread Lengths Available) Overall Cable Diameter ‘A’ Across Flats ‘D’ Across Corners ‘D’ Female Conduit Connection (Metric) ‘G’ Female Conduit Connection (NPT) “G” Protrusion Length ‘F’ Combined Ordering Reference
(*Brass Metric male & female)		 Cable
Gland Weight (Kgs)
Standard Option
Metric Thread Length (Metric) ‘E’ NPT Thread Length (NPT)
‘E’		 NPT Min Max Max Max Size Type Ordering Suffix Shroud
20S16 M20 10.0 ½’ 19.9 ¾’ 3.2 8.7 24.0 26.4 M20 1/2″ 43.6 20S16 A2RC 1RA PVC04 0.10
20S M20 10.0 ½’ 19.9 ¾’ 6.1 11.7 24.0 26.4 M20 1/4″ 43.6 20S A2RC 1RA PVC04 0.10
20 M20 10.0 ½’ 19.9 ¾’ 6.5 14.0 27.0 29.7 M20 1/2″ 42.4 20 A2RC 1RA PVC05 0.10
25 M25 10.0 ¾’ 20.2 1′ 11.1 20.0 36.0 39.6 M25 3/4″ 50.4 25 A2RC 1RA PVC09 0.19
32 M32 10.0 1′ 25.0 1 ¼’ 17.0 26.3 41.0 45.1 M32 1″ 50.7 32 A2RC 1RA PVC10 0.23
40 M40 15.0 1 ¼’ 25.6 1 ½’ 23.5 32.2 50.0 55.0 M40 1 1/4″ 51.4 40 A2RC 1RA PVC13 0.33
50S M50 15.0 1 ½’ 26.1 2′ 31.0 38.2 55.0 60.5 M50 1 1/2″ 55.2 50S A2RC 1RA PVC15 0.43
50 M50 15.0 2′ 26.9 2 ½’ 35.6 44.0 60.0 66.0 M50 2″ 62.0 50 A2RC 1RA PVC18 0.44
63S M63 15.0 2′ 26.9 2 ½’ 41.5 49.9 70.5 77.6 M63 2″ 58.4 63S A2RC 1RA PVC21 0.72
63 M63 15.0 2 ½’ 39.9 3′ 47.2 55.9 75.0 82.5 M63 2 1/2″ 61.5 63 A2RC 1RA PVC23 0.64
75S M75 15.0 2 ½’ 39.9 3′ 54.0 61.9 79.0 88.0 M75 2 1/2″ 63.2 75S A2RC 1RA PVC26 0.90
75 M75 15.0 3′ 41.5 3 ½’ 61.1 67.9 84.0 92.4 M75 3″ 68.6 75 A2RC 1RA PVC26 0.80
90 M90 24.0 3 ½’ 42.8 4′ 66.6 79.9 108.0 118.8 M90 3 1/2″ 94.2 90 A2RC 1RA PVC31 2.20
Dimensions displayed in millimeters unless otherwise stated
