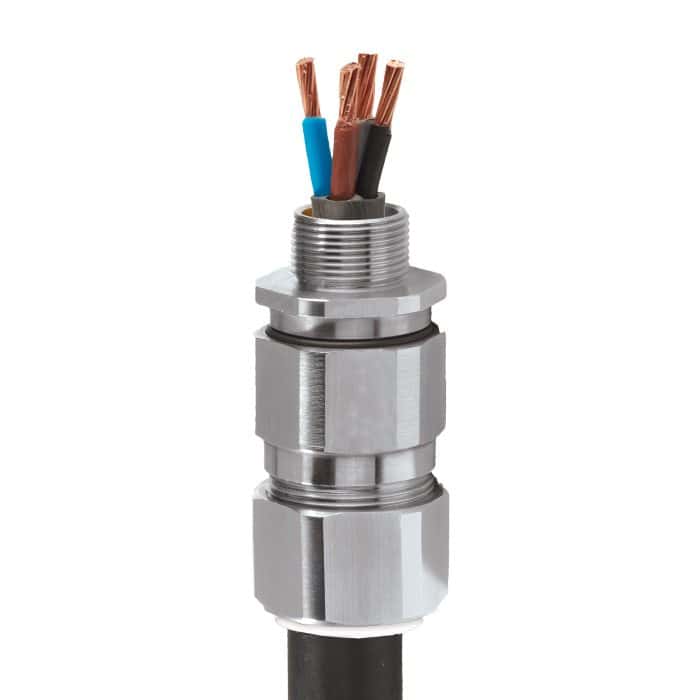

C2K Cable gland

Ex eb, Ex ta | Explosive Atmosphere Cable Gland
For all types of Armoured cables

Internationally Approved, Ex e, Explosive Atmosphere Cable Gland

• Metal-to-metal armour clamping
• Direct & remote installation
• Integral protected deluge seal
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• Integral protected deluge seal
• -60°C to +130°C (standard), -20°C to 200°C
• Class I Zone 1, 21 and Zone 2
• Internationally marked, IECEx & ATEX
• Superior EMC performance

Description
Download Spec Sheet

Description

Product Selection Table

Cable Gland Size	Available Entry Threads ‘C’ (Alternate Metric Thread Lengths Available)					Cable Bedding Diameter ‘A’	Overall Cable Diameter ‘B’		Armour Range				Across Flats ‘D’	Across Corners ‘D’	Protrusion Length ‘F’	Combined Ordering Reference (*Brass Metric)			Shroud	Cable Gland Weight (Kgs)
	Standard				Option	Cable Bedding Diameter ‘A’	Overall Cable Diameter ‘B’		Grooved Cone (X)		Stepped Cone (W)		Across Flats ‘D’	Across Corners ‘D’		Combined Ordering Reference (*Brass Metric)
	Metric	Thread Length (Metric) ‘E’	NPT	Thread Length (NPT) ‘E’	NPT	Max	Min	Max	Min	Max	Min	Max	Max	Max		Size	Type	Ordering Suffix
20S16	M20	15.0	½’	19.9	¾”	8.7	6.1	13.1	0.3	1.0	0.8	1.25	30.5	33.6	65.0	20S16	C2K	1RA	PVC04	0.23
20S	M20	15.0	½’	19.9	¾”	11.7	9.5	15.9	0.3	1.0	0.8	1.25	30.5	33.6	62.0	20S	C2K	1RA	PVC04	0.24
20	M20	15.0	½’	19.9	¾”	14.0	12.5	20.9	0.4	1.0	0.8	1.25	30.5	33.6	63.0	20	C2K	1RA	PVC06	0.22
25S	M25	15.0	¾’	20.2	1″	20.0	14.0	22.0	0.4	1.2	1.25	1.6	37.5	41.3	69.5	25S	C2K	1RA	PVC09	0.35
25	M25	15.0	¾’	20.2	1″	20.0	18.2	26.2	0.4	1.2	1.25	1.6	37.5	41.3	69.5	25	C2K	1RA	PVC09	0.35
32	M32	15.0	1′	25.0	1 ¼”	26.0	23.7	33.9	0.4	1.2	1.6	2.0	46.0	50.6	75.0	32	C2K	1RA	PVC11	0.55
40	M40	15.0	1 ¼’	25.6	1 ½”	32.2	27.9	40.4	0.4	1.6	1.6	2.0	55.0	60.5	75.0	40	C2K	1RA	PVC15	0.75
50S	M50	15.0	1 ½’	26.1	2″	38.2	35.2	46.7	0.4	1.6	2.0	2.5	60.0	66.0	77.0	50S	C2K	1RA	PVC18	0.86
50	M50	15.0	2′	26.9	2 ½”	44.1	40.4	53.0	0.6	1.6	2.0	2.5	70.1	77.1	77.0	50	C2K	1RA	PVC21	1.13
63S	M63	15.0	2′	26.9	2 ½”	50.0	45.6	59.4	0.6	1.6	2.0	2.5	75.0	82.5	80.0	63S	C2K	1RA	PVC23	1.35
63	M63	15.0	2 ½’	39.9	3″	56.0	54.6	65.8	0.6	1.6	2.0	2.5	80.0	88.0	80.0	63	C2K	1RA	PVC25	1.34
75S	M75	15.0	2 ½’	39.9	3″	62.0	59.0	72.0	0.6	1.6	2.0	2.5	90.0	99.0	87.0	75S	C2K	1RA	PVC28	2.02
75	M75	15.0	3′	41.5	3 ½”	64.2	66.7	78.4	0.6	1.6	2.5	3.0	100.0	110.0	88.0	75	C2K	1RA	PVC30	2.48
90	M90	24.0	3 ½’	42.8	4″	78.6	76.2	90.3	0.8	1.6	3.15	4.0	115.0	126.5	102.0	90	C2K	1RA	PVC32	3.52
100	M100	24.0	3 ½’	42.8	4″	91.0	86.1	101.4	0.8	1.6	3.15	4.0	127.0	139.7	114.0	100	C2K	1RA	LSF33	4.58
115	M115	24.0	4″	44.0	5″	98.0	101.5	110.2	0.8	1.6	3.15	4.0	133.4	146.7	114.0	115	C2K	1RA	LSF34	6.50
130	M130	24.0	5″	46.8	–	115.0	110.2	123.2	0.8	1.6	3.15	4.0	152.4	167.6	114.0	130	C2K	1RA	LSF35	8.50
Dimensions displayed in millimeters unless otherwise stated

Download Spec Sheet

Download

Product Selection Table

Cable Gland Size	Available Entry Threads ‘C’ (Alternate Metric Thread Lengths Available)					Cable Bedding Diameter ‘A’	Overall Cable Diameter ‘B’		Armour Range				Across Flats ‘D’	Across Corners ‘D’	Protrusion Length ‘F’	Combined Ordering Reference (*Brass Metric)			Shroud	Cable Gland Weight (Kgs)
	Standard				Option	Cable Bedding Diameter ‘A’	Overall Cable Diameter ‘B’		Grooved Cone (X)		Stepped Cone (W)		Across Flats ‘D’	Across Corners ‘D’		Combined Ordering Reference (*Brass Metric)
	Metric	Thread Length (Metric) ‘E’	NPT	Thread Length (NPT) ‘E’	NPT	Max	Min	Max	Min	Max	Min	Max	Max	Max		Size	Type	Ordering Suffix
20S16	M20	15.0	½’	19.9	¾”	8.7	6.1	13.1	0.3	1.0	0.8	1.25	30.5	33.6	65.0	20S16	C2K	1RA	PVC04	0.23
20S	M20	15.0	½’	19.9	¾”	11.7	9.5	15.9	0.3	1.0	0.8	1.25	30.5	33.6	62.0	20S	C2K	1RA	PVC04	0.24
20	M20	15.0	½’	19.9	¾”	14.0	12.5	20.9	0.4	1.0	0.8	1.25	30.5	33.6	63.0	20	C2K	1RA	PVC06	0.22
25S	M25	15.0	¾’	20.2	1″	20.0	14.0	22.0	0.4	1.2	1.25	1.6	37.5	41.3	69.5	25S	C2K	1RA	PVC09	0.35
25	M25	15.0	¾’	20.2	1″	20.0	18.2	26.2	0.4	1.2	1.25	1.6	37.5	41.3	69.5	25	C2K	1RA	PVC09	0.35
32	M32	15.0	1′	25.0	1 ¼”	26.0	23.7	33.9	0.4	1.2	1.6	2.0	46.0	50.6	75.0	32	C2K	1RA	PVC11	0.55
40	M40	15.0	1 ¼’	25.6	1 ½”	32.2	27.9	40.4	0.4	1.6	1.6	2.0	55.0	60.5	75.0	40	C2K	1RA	PVC15	0.75
50S	M50	15.0	1 ½’	26.1	2″	38.2	35.2	46.7	0.4	1.6	2.0	2.5	60.0	66.0	77.0	50S	C2K	1RA	PVC18	0.86
50	M50	15.0	2′	26.9	2 ½”	44.1	40.4	53.0	0.6	1.6	2.0	2.5	70.1	77.1	77.0	50	C2K	1RA	PVC21	1.13
63S	M63	15.0	2′	26.9	2 ½”	50.0	45.6	59.4	0.6	1.6	2.0	2.5	75.0	82.5	80.0	63S	C2K	1RA	PVC23	1.35
63	M63	15.0	2 ½’	39.9	3″	56.0	54.6	65.8	0.6	1.6	2.0	2.5	80.0	88.0	80.0	63	C2K	1RA	PVC25	1.34
75S	M75	15.0	2 ½’	39.9	3″	62.0	59.0	72.0	0.6	1.6	2.0	2.5	90.0	99.0	87.0	75S	C2K	1RA	PVC28	2.02
75	M75	15.0	3′	41.5	3 ½”	64.2	66.7	78.4	0.6	1.6	2.5	3.0	100.0	110.0	88.0	75	C2K	1RA	PVC30	2.48
90	M90	24.0	3 ½’	42.8	4″	78.6	76.2	90.3	0.8	1.6	3.15	4.0	115.0	126.5	102.0	90	C2K	1RA	PVC32	3.52
100	M100	24.0	3 ½’	42.8	4″	91.0	86.1	101.4	0.8	1.6	3.15	4.0	127.0	139.7	114.0	100	C2K	1RA	LSF33	4.58
115	M115	24.0	4″	44.0	5″	98.0	101.5	110.2	0.8	1.6	3.15	4.0	133.4	146.7	114.0	115	C2K	1RA	LSF34	6.50
130	M130	24.0	5″	46.8	–	115.0	110.2	123.2	0.8	1.6	3.15	4.0	152.4	167.6	114.0	130	C2K	1RA	LSF35	8.50
Dimensions displayed in millimeters unless otherwise stated
