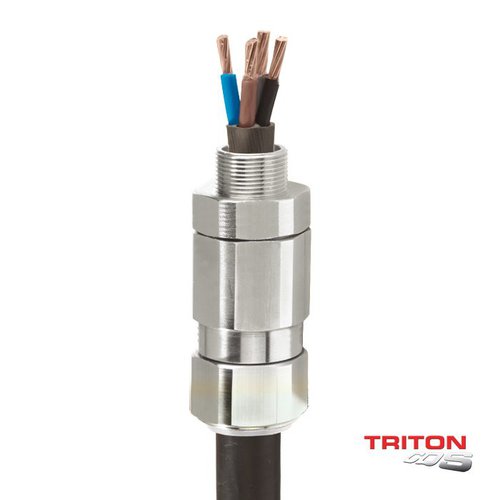

C2KX Cable Glands

Class I, Div 2 | AEx e & AEx ta | Hazardous Location Cable Gland
For all types of Braid Armoured cables

Globally Approved, Hazardous (Classified) Location Cable Gland

• Metal-to-metal armour clamping
• Direct & remote installation
• Integral protected deluge seal
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• Integral protected deluge seal
• -76°F to 266°F (standard), -4°F to 392°F (ThermEx option C2KXHT)
• Class I Zone 1, 21 and Zone 2, 22 Class I Division 2 ABCD
• Globally marked, UL, cCSAus, IECEx & ATEX
• Superior EMC tested
• VAR design available for VFD/VSD cables
• As standard in nickel plated brass with NPT thread form

Description
Download Spec Sheet

Description

CERTIFICATES

Product Selection Table

Combined Ordering Reference (*Nickel Plated Brass NPT)			Available Entry Threads ‘C’			Minimum Thread Length ‘E’	Cable Bedding Diameter ‘A’	Overall Cable Diameter ‘B’		Armor Range Grooved Cone (X)		Across Flats ‘D’	Across Corners ‘D’	Protrusion Length ‘F’	Shroud	Cable Gland Weight (oz)
Size	Type	Ordering Suffix	NPT	NPT (Option)	Metric (Option)	Minimum Thread Length ‘E’	Max	Min	Max	Min	Max	Max	Max	Protrusion Length ‘F’	Shroud	Cable Gland Weight (oz)
20S16	C2KX	1RA531	½”	¾”	M20	0.78	0.34	0.24	0.52	0.01	0.04	0.95	1.04	2.56	PVC04	8.19
20S	C2KX	1RA531	½”	¾”	M20	0.78	0.46	0.37	0.63	0.01	0.04	0.95	1.04	2.44	PVC04	7.96
20	C2KX	1RA531	½”	¾”	M20	0.78	0.55	0.49	0.82	0.02	0.04	1.20	1.32	2.48	PVC06	7.86
25S	C2KX	1RA532	¾”	1″	M25	0.80	0.79	0.55	0.87	0.02	0.05	1.48	1.62	2.74	PVC09	12.24
25	C2KX	1RA532	¾”	1″	M25	0.80	0.79	0.72	1.03	0.02	0.05	1.48	1.62	2.74	PVC09	12.24
32	C2KX	1RA533	1″	1 ¼”	M32	0.98	1.02	0.93	1.34	0.02	0.05	1.81	1.99	2.95	PVC11	19.47
40	C2KX	1RA534	1 ¼”	1 ½”	M40	1.01	1.27	1.10	1.59	0.02	0.06	2.17	2.38	2.95	PVC15	26.46
50S	C2KX	1RA535	1 ½”	2″	M50	1.03	1.50	1.39	1.84	0.02	0.06	2.36	2.60	3.03	PVC18	30.27
50	C2KX	1RA536	2″	2 ½”	M50	1.06	1.74	1.59	2.09	0.02	0.06	2.76	3.04	3.03	PVC21	40.00
63S	C2KX	1RA536	2″	2 ½”	M63	1.06	1.97	1.80	2.34	0.02	0.06	2.95	3.25	3.15	PVC23	46.77
63	C2KX	1RA537	2 ½”	3″	M63	1.57	2.21	2.15	2.59	0.02	0.06	3.15	3.47	3.15	PVC25	47.37
75S	C2KX	1RA537	2 ½”	3″	M75	1.57	2.44	2.32	2.84	0.02	0.06	3.54	3.90	3.43	PVC28	71.39
75	C2KX	1RA538	3″	3 ½”	M75	1.63	2.53	2.63	3.09	0.02	0.06	3.94	4.33	3.47	PVC30	87.41
90	C2KX	1RA539	3 ½”	4″	M90	1.69	3.09	3.00	3.56	0.03	0.06	4.53	4.98	4.02	PVC32	124.27
100	C2KX	1RA539	3 ½”	4″	M100	1.69	3.58	3.39	3.99	0.03	0.06	4.84	5.50	4.49	LSF33	101.13
*Note : For material options please change the suffix in the ordering reference ; Brass (no suffix required), Nickel Plated Brass “5” (as standard), 316 Grade Stainless Steel “4”, Copper Free Aluminum “1” For NPT options please change the following digits after the material suffix ; ½” = 31, ¾” = 32, 1” = 33, 1 ¼” = 34, 1 ½” = 35, 2” = 36, 2 ½” = 37, 3” = 38, 3 ½” = 39, 4” = 310 (Brass requires prefix “0”)
Examples: 32C2KX1RA5 = Nickel Plated Brass 32mm, 32C2KX1RA1 = Copper Free Aluminum 32mm
Dimensions in inches unless otherwise stated

Download Spec Sheet

Download

CERTIFICATES

Product Selection Table

Combined Ordering Reference (*Nickel Plated Brass NPT)			Available Entry Threads ‘C’			Minimum Thread Length ‘E’	Cable Bedding Diameter ‘A’	Overall Cable Diameter ‘B’		Armor Range Grooved Cone (X)		Across Flats ‘D’	Across Corners ‘D’	Protrusion Length ‘F’	Shroud	Cable Gland Weight (oz)
Size	Type	Ordering Suffix	NPT	NPT (Option)	Metric (Option)	Minimum Thread Length ‘E’	Max	Min	Max	Min	Max	Max	Max	Protrusion Length ‘F’	Shroud	Cable Gland Weight (oz)
20S16	C2KX	1RA531	½”	¾”	M20	0.78	0.34	0.24	0.52	0.01	0.04	0.95	1.04	2.56	PVC04	8.19
20S	C2KX	1RA531	½”	¾”	M20	0.78	0.46	0.37	0.63	0.01	0.04	0.95	1.04	2.44	PVC04	7.96
20	C2KX	1RA531	½”	¾”	M20	0.78	0.55	0.49	0.82	0.02	0.04	1.20	1.32	2.48	PVC06	7.86
25S	C2KX	1RA532	¾”	1″	M25	0.80	0.79	0.55	0.87	0.02	0.05	1.48	1.62	2.74	PVC09	12.24
25	C2KX	1RA532	¾”	1″	M25	0.80	0.79	0.72	1.03	0.02	0.05	1.48	1.62	2.74	PVC09	12.24
32	C2KX	1RA533	1″	1 ¼”	M32	0.98	1.02	0.93	1.34	0.02	0.05	1.81	1.99	2.95	PVC11	19.47
40	C2KX	1RA534	1 ¼”	1 ½”	M40	1.01	1.27	1.10	1.59	0.02	0.06	2.17	2.38	2.95	PVC15	26.46
50S	C2KX	1RA535	1 ½”	2″	M50	1.03	1.50	1.39	1.84	0.02	0.06	2.36	2.60	3.03	PVC18	30.27
50	C2KX	1RA536	2″	2 ½”	M50	1.06	1.74	1.59	2.09	0.02	0.06	2.76	3.04	3.03	PVC21	40.00
63S	C2KX	1RA536	2″	2 ½”	M63	1.06	1.97	1.80	2.34	0.02	0.06	2.95	3.25	3.15	PVC23	46.77
63	C2KX	1RA537	2 ½”	3″	M63	1.57	2.21	2.15	2.59	0.02	0.06	3.15	3.47	3.15	PVC25	47.37
75S	C2KX	1RA537	2 ½”	3″	M75	1.57	2.44	2.32	2.84	0.02	0.06	3.54	3.90	3.43	PVC28	71.39
75	C2KX	1RA538	3″	3 ½”	M75	1.63	2.53	2.63	3.09	0.02	0.06	3.94	4.33	3.47	PVC30	87.41
90	C2KX	1RA539	3 ½”	4″	M90	1.69	3.09	3.00	3.56	0.03	0.06	4.53	4.98	4.02	PVC32	124.27
100	C2KX	1RA539	3 ½”	4″	M100	1.69	3.58	3.39	3.99	0.03	0.06	4.84	5.50	4.49	LSF33	101.13
*Note : For material options please change the suffix in the ordering reference ; Brass (no suffix required), Nickel Plated Brass “5” (as standard), 316 Grade Stainless Steel “4”, Copper Free Aluminum “1” For NPT options please change the following digits after the material suffix ; ½” = 31, ¾” = 32, 1” = 33, 1 ¼” = 34, 1 ½” = 35, 2” = 36, 2 ½” = 37, 3” = 38, 3 ½” = 39, 4” = 310 (Brass requires prefix “0”)
Examples: 32C2KX1RA5 = Nickel Plated Brass 32mm, 32C2KX1RA1 = Copper Free Aluminum 32mm
Dimensions in inches unless otherwise stated
