CG | Cord Grip Cable Connector

The CG cable connector series is cULus Listed to the latest editions of UL514B and CSA 22.2 No.18.3-12, for use with all types of flexible cables and cords for installations in accordance with the NEC and CEC. Its wide sealing range reduces the need for multiple connector sizes to cover a varied range of cables.

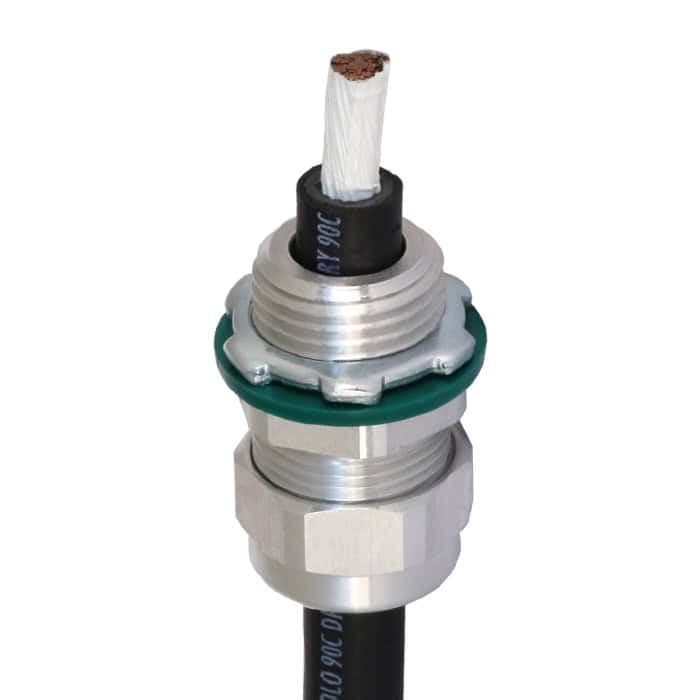

The CG is supplied complete with an entry thread seal and locknut, for sizes up to 1-1/2”, and is available in Aluminum or Zinc Plated Steel , as standard, with Electroless Nickel Plated Brass and 316L Stainless Steel optional. The product has an operational temperature range of -76°F to 194°F and if additional cable support or retention is required, the CG can easily accommodate a strain relief, making the CMP CG series suitable for use in many harsh and corrosive environments.

  • Fully machined from high grade series 6000 aluminum or zinc plated steel
  • Can also be supplied in stainless steel or nickel plated brass on request
  • Product supplied with entry thread seal and locknut up to CG-150*104
  • Safe sealing solution manufactured from LSF halogen free thermoset elastomer, with a large temperature range of -76°F to +194°F
  • Wide cable sealing range
  • Easy to install
  • Approved to the latest edition of UL 514B & CSA C22.2 No.18.3-12
  • Suitable for use in hazardous locations when installed per National Electrical Code (NEC 501.10(B)(4)) & Canadian Electrical Code (CSA 22.1)
  • Strain relief available

Description

Technical Information

Metric

ORDER REFERENCE
(NPT)
ENTRY THREAD ‘C’ MINIMUM
THREAD
LENGTH ‘E’
CABLE RANGE ‘A’ ACROSS
FLATS ‘D’
ACROSS
CORNERS ‘D’
NOMINAL ASSEMBLY
LENGTH ‘B’
ALUMINUM ZINC PLATED STEEL NPT Min Max Max Max
*CG-0375A046 *CG-0375MS046 ⅜” 10.4 7.7 11.6 24.0 26.4 29.1
CG-050A046 CG-050MS046 ½” 13.5 24.0 26.4 29.1
CG-075A046 CG-075MS046 ¾” 14.0 30.5 33.6 30.0
CG-100A046 CG-100MS046 1″ 17.3 37.5 41.3 31.0
CG-050A054 CG-050MS054 ½” 13.5 7.7 13.7 30.5 33.6 28.7
CG-075A054 CG-075MS054 ¾” 14.0 37.5 41.3 29.7
CG-100A054 CG-100MS054 1″ 17.3 37.5 41.3 30.7
CG-075A080 CG-075MS080 ¾” 14.0 13.0 20.3 37.5 41.3 37.3
CG-100A080 CG-100MS080 1” 17.3 37.5 41.3 38.3
CG-100A104 CG-100MS104 1” 17.3 19.1 26.5 43.0 47.3 36.1
CG-125A104 CG-125MS104 1 ¼” 18.0 50.0 55.0 36.1
CG-150A104 CG-150MS104 1 ½” 18.3 55.0 60.5 38.1
CG-125A128 CG-125MS128 1 ¼” 18.0 23.0 32.5 52.0 57.2 36.8
CG-150A128 CG-150MS128 1 ½” 18.3 55.0 60.5 38.8
CG-150A149 CG-150MS149 1 ½” 18.3 31.0 37.9 60.0 66.0 39.5
CG-200A149 CG-200MS149 2” 19.3 65.0 71.5 39.5
CG-200A174 CG-200MS174 2” 19.3 36.4 44.3 65.0 71.5 39.8
CG-250A174 CG-250MS174 2 ½” 29.0 75.0 83.0 39.8
Additional combinations of body size and thread are available upon request
Product supplied with entry thread seal and locknut up to CG-150*104
For cable glands suitable for larger cable OD please see TC product page
*All sizes UL Listed, except NPT 3/8” – UL Recognized Component



Imperial

ORDER REFERENCE
(NPT)
ENTRY THREAD ‘C’ MINIMUM
THREAD
LENGTH ‘E’
CABLE RANGE ‘A’ ACROSS
FLATS ‘D’
ACROSS
CORNERS ‘D’
NOMINAL ASSEMBLY
LENGTH ‘B’
ALUMINUM ZINC PLATED STEEL NPT Min Max Max Max
*CG-0375A046 *CG-0375MS046 ⅜” 0.41 0.30 0.46 0.94 1.04 1.15
CG-050A046 CG-050MS046 ½” 0.53 0.94 1.04 1.15
CG-075A046 CG-075MS046 ¾” 0.55 1.20 1.32 1.18
CG-100A046 CG-100MS046 1″ 0.68 1.48 1.63 1.22
CG-050A054 CG-050MS054 ½” 0.53 0.30 0.54 1.20 1.32 1.13
CG-075A054 CG-075MS054 ¾” 0.55 1.48 1.63 1.17
CG-100A054 CG-100MS054 1″ 0.68 1.48 1.63 1.21
CG-075A080 CG-075MS080 ¾” 0.55 0.51 0.80 1.48 1.63 1.47
CG-100A080 CG-100MS080 1” 0.68 1.48 1.63 1.51
CG-100A104 CG-100MS104 1” 0.68 0.75 1.04 1.69 1.86 1.42
CG-125A104 CG-125MS104 1 ¼” 0.71 1.97 2.17 1.42
CG-150A104 CG-150MS104 1 ½” 0.72 2.17 2.38 1.50
CG-125A128 CG-125MS128 1 ¼” 0.71 0.91 1.28 2.05 2.25 1.45
CG-150A128 CG-150MS128 1 ½” 0.72 2.17 2.38 1.53
CG-150A149 CG-150MS149 1 ½” 0.72 1.22 1.49 2.36 2.60 1.56
CG-200A149 CG-200MS149 2” 0.76 2.56 2.81 1.56
CG-200A174 CG-200MS174 2” 0.76 1.43 1.74 2.56 2.81 1.57
CG-250A174 CG-250MS174 2 ½” 1.14 2.95 3.27 1.57
Product supplied with entry thread seal and locknut up to CG-150*104
Additional combinations of body size and thread are available upon request
*All sizes UL Listed, except NPT 3/8” – UL Recognized Component
