Name: CXe Cable Gland for braid & steel tape armored cables
Availability: InStock

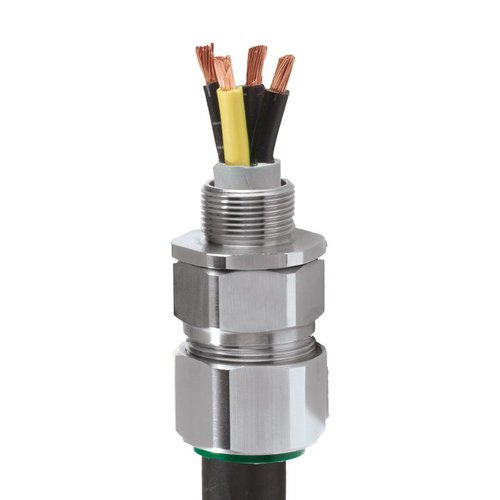

bec90d16-263c-4828-b5a8-9e95080e2594-large - EUTEX International

CXe Cable Gland for braid & steel tape armored cables

Internationally Approved, Ex e, Explosive Atmosphere Cable Gland

• Metal-to-metal armour clamping
• Direct & remote installation
• Permanently crimped, low impedance earth termination
• Secure against self-loosening
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• -60°C to +130°C
• Internationally marked, IECEx & ATEX
• EMC tested

For Braid & Steel Tape Armoured Cables

Description
Download Spec Sheet

Description

CXe Cable Gland Technical Info

Design Specification	BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications*	Impact = Level 8, Retention = Class D
Enclosure Protection	IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
Electrical Classifications *	Category B (Category A when used with braid, tape or pliable wire armour cables)
ATEX Certificate	SIRA13ATEX1070X
Code of Protection	II 2G, II 1D, Ex e IIC Gb, Ex ta IIIC Da
Compliance Standards	EN 60079-0,7,31
IECEx Certificate	IECEx SIR 13.0025X
Code of Protection	Ex e IIC Gb, Ex ta IIIC Da
Compliance Standards	IEC 60079-0,7,31
EAC Certificate	C-GB.AA87.B.00487
NEPSI Certificate	GYJ13.1140X
INMETRO Approval	TÜV 12.0617X
CCOE / PESO (India) Certificate	P333688
RETIE Approval	03866
Marine Approvals	LRS: 01/00172, DNV: TAE00000Y, ABS: 16-LD1478091-PDA, BV: 43180/A1BV
Ingress Protection Rating **	IP66 as standard (IP67, IP68 available upon request)
Cable Gland Material	Brass, Electroless Nickel Plated Brass, Aluminium, Stainless Steel
Seal Material	CMP SOLO LSF Halogen Free Thermoset Elastomer
Cable Type	Wire Braid Armour (e.g. SWB), Screened Flexible (EMC) Wire Braid (e.g. CY / SY), Pliable Wire Armour (PWA), Steel Tape Armour (STA), Strip Armour (e.g. ASA)
Armour Clamping	Detachable Armour Cone & AnyWay Universal Clamping Ring
Sealing Technique	Unique CMP ‘LRS’ Outer Seal (Load Retention Seal)
Sealing Area(s)	Cable Outer Sheath
Optional Accessories	Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs
Optional Installation Tools	Spanners

Product Table

Metric

Cable Gland Size	Available Entry Threads “C” (Alternate Metric Thread Lengths Available)		Cable Bedding Diameter “A”	Overall Cable Diameter “B”		Armour Range ” Grooved Cone (X)		Across Flats “D”	Across Corners “D”	Protrusion Length “F”	Combined Ordering Reference (*Brass Metric)			Shroud	Cable Gland Weight (Kgs)
Cable Gland Size	Metric	Thread Length (Metric) “E”	Max	Max	Max	Min	Max	Max	Max	Protrusion Length “F”	Size	Type	Ordering Suffix	Shroud	Cable Gland Weight (Kgs)
20S16	M20	15.0	8.7	6.1	13.1	0.3	1.0	24.0	26.4	48.0	20S16	CXE	1RA	PVC04	0.10
20S	M20	15.0	11.7	9.5	15.9	0.3	1.0	24.0	26.4	48.0	20S	CXE	1RA	PVC04	0.10
20	M20	15.0	14.0	12.5	20.9	0.4	1.0	30.5	33.6	48.0	20	CXE	1RA	PVC06	0.15
25S	M25	15.0	20.0	14.0	22.0	0.4	1.2	37.5	41.3	56.0	25S	CXE	1RA	PVC09	0.22
25	M25	15.0	20.0	18.2	26.2	0.4	1.2	37.5	41.3	56.0	25	CXE	1RA	PVC09	0.22
32	M32	15.0	26.0	23.7	33.9	0.4	1.2	46.0	50.6	54.0	32	CXE	1RA	PVC11	0.31
40	M40	15.0	32.2	27.9	40.4	0.4	1.6	55.0	60.5	58.0	40	CXE	1RA	PVC15	0.45
50S	M50	15.0	38.2	35.2	46.7	0.4	1.6	60.0	66.0	61.0	50S	CXE	1RA	PVC18	0.57
50	M50	15.0	44.1	40.4	53.0	0.6	1.6	70.1	77.1	60.0	50	CXE	1RA	PVC21	0.75
63S	M63	15.0	50.0	45.6	59.4	0.6	1.6	75.0	82.5	74.0	63S	CXE	1RA	PVC23	1.04
63	M63	15.0	56.0	54.6	65.8	0.6	1.6	80.0	88.0	71.0	63	CXE	1RA	PVC25	1.02
75S	M75	15.0	62.0	59.0	72.0	0.6	1.6	90.0	99.0	86.0	75S	CXE	1RA	PVC28	1.79
75	M75	15.0	64.2	66.7	78.4	0.6	1.6	100.0	110.0	82.0	75	CXE	1RA	PVC30	2.09
90	M90	24.0	78.6	76.2	90.3	0.8	1.6	114.3	125.7	95.0	90	CXE	1RA	PVC32	3.04
100	M100	24.0	91.0	86.1	101.4	0.8	1.6	123.0	135.3	95.0	100	CXE	1RA	LSF33	3.13
115	M115	24.0	98.0	101.5	110.2	0.8	1.6	133.4	146.7	107.5	115	CXE	1RA	LSF34	4.48
130	M130	24.0	115.0	110.2	123.2	0.8	1.6	152.4	167.6	110.0	130	CXE	1RA	LSF35	5.77
Dimensions are displayed in millimeters unless otherwise stated

Imperial

Cable Gland Size	Available Entry Threads “C” (Alternate Metric Thread Lengths Available)		Cable Bedding Diameter “A”	Overall Cable Diameter “B”		Armour Range ” Grooved Cone (X)		Across Flats “D”	Across Corners “D”	Protrusion Length “F”	Combined Ordering Reference (*Brass Metric)			Shroud	Cable Gland Weight (Kgs)
Cable Gland Size	Metric	Thread Length (Metric) “E”	Max	Max	Max	Min	Max	Max	Max	Protrusion Length “F”	Size	Type	Ordering Suffix	Shroud	Cable Gland Weight (Kgs)
20S16	M20	0.59	0.34	0.24	0.52	0.01	0.04	0.94	1.04	1.89	20S16	CXE	1RA	PVC04	3.53
20S	M20	0.59	0.46	0.37	0.63	0.01	0.04	0.94	1.04	1.89	20S	CXE	1RA	PVC04	3.53
20	M20	0.59	0.55	0.49	0.82	0.02	0.04	1.20	1.32	1.89	20	CXE	1RA	PVC06	5.29
25S	M25	0.59	0.79	0.55	0.87	0.02	0.05	1.48	1.63	2.20	25S	CXE	1RA	PVC09	7.76
25	M25	0.59	0.79	0.72	1.03	0.02	0.05	1.48	1.63	2.20	25	CXE	1RA	PVC09	7.76
32	M32	0.59	1.02	0.93	1.33	0.02	0.05	1.81	1.99	2.13	32	CXE	1RA	PVC11	10.93
40	M40	0.59	1.27	1.10	1.59	0.02	0.06	2.17	2.38	2.28	40	CXE	1RA	PVC15	15.87
50S	M50	0.59	1.50	1.39	1.84	0.02	0.06	2.36	2.60	2.40	50S	CXE	1RA	PVC18	20.11
50	M50	0.59	1.74	1.59	2.09	0.02	0.06	2.76	3.04	2.36	50	CXE	1RA	PVC21	26.46
63S	M63	0.59	1.97	1.80	2.34	0.02	0.06	2.95	3.25	2.91	63S	CXE	1RA	PVC23	36.68
63	M63	0.59	2.20	2.15	2.59	0.02	0.06	3.15	3.46	2.80	63	CXE	1RA	PVC25	35.98
75S	M75	0.59	2.44	2.32	2.83	0.02	0.06	3.54	3.90	3.39	75S	CXE	1RA	PVC28	63.14
75	M75	0.59	2.53	2.63	3.09	0.02	0.06	3.94	4.33	3.23	75	CXE	1RA	PVC30	73.72
90	M90	0.94	3.09	3.00	3.56	0.03	0.06	4.50	4.95	3.74	90	CXE	1RA	PVC32	107.23
100	M100	0.94	3.58	3.39	3.99	0.03	0.06	4.84	5.33	3.74	100	CXE	1RA	LSF33	110.41
115	M115	0.94	3.86	4.00	4.34	0.03	0.06	5.25	5.78	4.23	115	CXE	1RA	LSF34	158.03
130	M130	0.94	4.53	4.34	4.85	0.03	0.06	6.00	6.60	4.33	130	CXE	1RA	LSF35	203.53
Dimensions displayed in inches unless otherwise stated
