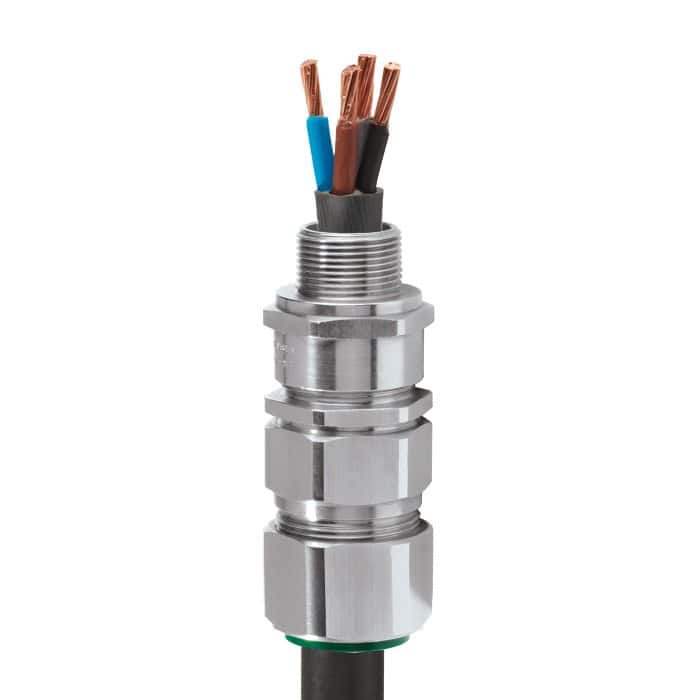

E1FX Cable gland

Ex eb, Ex db, Ex nR, Ex ta | Explosive Atmosphere Cable Gland
For Braid & Steel Tape Armoured Cables

Internationally Approved, Explosive Atmosphere Cable Gland

• Metal-to-metal armour clamping
• Direct & remote installation
• Displacement type flameproof inner seal
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• Designed to prevent Coldflow, see CMP Technical Document TS001 (available upon request)
• -60°C to +130°C
• Class I Zone 1, 21 and Zone 2, 22 Class I Division 2 ABCD
• Globally marked, IECEx, ATEX & cCSAus
• Superior EMC performance





Description

Note: † Grooved Cone (X) is predominantly used for Wire Braid (e.g. GSWB, TCWB), Steel Tape Armour (STA, DSTA) and Aluminium Strip Armour (ASA) but is also suitable for Single Wire Armour (SWA), Aluminium Wire Armour (AWA) and Pliable Wire Armour (PWA) if the range is outside that of the Stepped Cone (W).

Note: Grooved Cone (X) dimensions shown in the Cable Gland Selection Table below are for a double wire strand of braid armour cables. Tapes can also be doubled over. For cables that have only a single layer of armour such as SWA the clamping range should be used as shown in the table below.

Product Selection Table

Cable Gland SizeAvailable Entry Threads ‘C’ (Alternate Metric Thread Lengths Available)Cable
Bedding
Diameter
‘A’
Overall
Cable
Diameter
‘B’
Armour Range †
Grooved Cone (X)
Across
Flats
‘D’
Across
Corners
‘D’
Protrusion
Length ‘F’
Combined Ordering Reference
(*Brass Metric)
ShroudCable
Gland
Weight
(Kgs)
StandardOption
MetricThread Length (Metric) ‘E’NPTThread Length
(NPT) ‘E’
NPTMinMaxMinMaxMinMaxMaxMaxSizeTypeOrdering
Suffix
20S16M2015.0½’19.9¾”3.18.66.113.10.31.024.026.472.520S16E1FX1RAPVC040.16
20SM2015.0½’19.9¾”6.111.69.515.90.31.024.026.470.020SE1FX1RAPVC040.15
20M2015.0½’19.9¾”6.513.912.520.90.41.030.533.673.020E1FX1RAPVC060.21
25SM2515.0¾’20.21″11.119.914.022.00.41.237.541.389.025SE1FX1RAPVC090.33
25M2515.0¾’20.21″11.119.918.226.20.41.237.541.389.025E1FX1RAPVC090.33
32M3215.01′25.01 ¼”17.026.223.733.90.41.246.050.686.032E1FX1RAPVC110.43
40M4015.01 ¼’25.61 ½”22.032.127.940.40.41.655.060.590.040E1FX1RAPVC150.62
50SM5015.01 ½’26.12″29.538.135.246.70.41.660.066.091.050SE1FX1RAPVC180.75
50M5015.02′26.92 ½”35.644.040.453.00.61.670.177.195.050E1FX1RAPVC210.95
63SM6315.02′26.92 ½”40.149.945.659.40.61.675.082.5102.063SE1FX1RAPVC231.34
63M6315.02 ½’39.93″47.255.954.665.80.61.680.088.0104.063E1FX1RAPVC251.34
75SM7515.02 ½’39.93″52.861.959.072.00.61.690.099.0115.075SE1FX1RAPVC282.11
75M7515.03′41.53 ½”59.167.966.778.40.61.6100.0110.0117.075E1FX1RAPVC302.42
90M9024.03 ½’42.84″66.678.676.290.30.81.6114.3125.4147.090E1FX1RAPVC324.21
100M10024.03 ½’42.84″76.090.986.1101.40.81.6123.0135.3140.0100E1FX1RALSF334.45
115M11524.04″44.05″86.097.9101.5110.20.81.6133.4146.7162.0115E1FX1RALSF346.19
130M13024.05″46.897.0114.9110.2123.20.81.6152.4167.6174.0130E1FX1RALSF358.34
Dimensions displayed in millimeters unless otherwise stated
