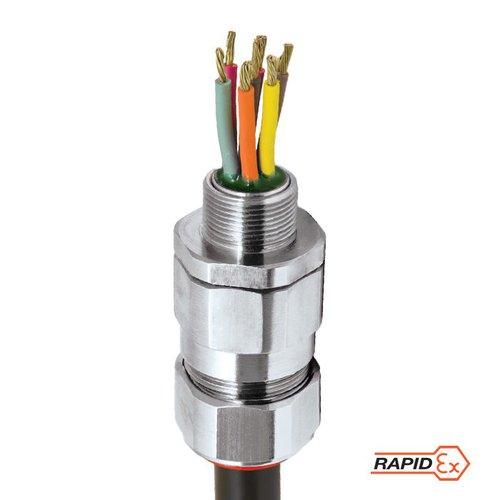

PX2KREX Cable Gland
Iarmored

Globally Approved, Explosive Atmosphere RapidEx Barrier Cable Gland

• RapidEx liquid pour sealing system
– Enhances reliability, reduces risk
– Reduces man hours
– Reduces cost
• Metal-to-metal armour clamping
• Direct & remote installation
• Integral protected deluge seal
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• -60°C to +85°C
• Class I Zone 1, 21 and Zone 2, 22 Class I Division 1 & 2 ABCD
• Globally marked, IECEx, ATEX & cCSAus
• EMC tested

† Grooved Cone (X) is predominantly used for Wire Braid (e.g. GSWB, TCWB), Steel Tape Armour (STA, DSTA) and Aluminium Strip Armour (ASA) but is also suitable for Single Wire Armour (SWA), Aluminium Wire Armour (AWA) and Pliable Wire Armour (PWA) if the range is outside that of the Stepped Cone (W).

Note: Grooved Cone (X) dimensions shown in the Cable Gland Selection Table below are for a double wire strand of braid armour cables. Tapes can also be doubled over. For cables that have only a single layer of armour such as SWA the clamping range should be used as shown in the table below

Stepped (W) Cone is suitable for Single Wire Armour (SWA), or Aluminium Wire Armour (AWA) cables.

For under / oversized armour wires

For all types of Armoured Cables

Description

PX2KREX

PX2KREX explosive atmosphere barrier cable glands are suitable for terminating all types of unarmored and braid-armored cables. Certified by ATEX for safe glanding of cables in Class I Zone 1, 21, and Zone 2, 22, hazardous areas, they feature a liquid pour sealing system that enhances reliability while reducing risk, installation time, and costs.

This type of cable gland is manufactured to meet a wide array of standards, specifications, and codes. Examples include:

ATEX Certificates

  • SIRA13ATEX1072X
  • SIRA13ATEX4078X

Approvals

  • LRS: 01/00172 (E3)
  • DNV: TAE00000Y
  • ABS: 14-LD234401A-4-PDA
  • BV: 43180/A1BV

Compliance Standards

  • IEC 60079-0,1,7,15,31

IECEx Certificates

  • IECEx SIR 13.0027X
  • IECEx SIM 14.0008X

Code of Protection

  • Class I, Div. 1, 2 Groups A, B, C, and D; Class II, Div. 1, 2 Groups E, F and G; Class III, Div. 1,2
  • Class I, Zone 2 AEx nR IIC Gc, Class I, Zone 20 AEx ta IIIC Da




PX2KREX barrier glands utilize a RapidEx liquid pour resin sealing system, which curbs installation time and associated costs. It’s particularly effective on multicore cables where a traditional compound is difficult and time-consuming to apply. Other features of this cable gland type include:

  • Direct And Remote Installation
  • Controlled Outer Load-Retention Seal
  • Unique OSTG Prevents Overtightening
  • Globally Marked, IECEx, ATEX, UL, And cCSAus
  • EMC Tested



This cable gland has an IP66 rating and features deluge protections. It’s intended for operating environments of -60 degrees Celsius, or -76 degrees Fahrenheit, to +85 degrees Celsius, or +185 degrees Fahrenheit. The PX2KREX explosive atmosphere barrier cable gland is perfect for use in a variety of industries.

  • Aerospace
  • Defense
  • Chemical
  • Mining
  • Minerals & Metals
  • Commercial Construction
  • Downstream Hydrocarbons
  • Food & Beverage
  • Industrial Energy
  • Onsite Utilities

  • Industrial Machinery
  • Laboratory and R&D
  • Life Sciences
  • Medical
  • Marine
  • Oil & Gas
  • Packaging
  • Power
  • Pulp & Paper
  • Textiles
  • Water & Wastewate

Your Explosive Cable Gland Source

EUTEX International is an ISO 9001:2015-certified supplier of electric cables and accessories for industrial use. We’re dedicated to providing quality products to clients with superior customer service.

Multiple locations worldwide enable our team to deliver the electrical products you need on time and within budget.

Give us a call to learn more about the PX2KREX cable gland.



Technical



Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications* Impact = Level 8, Retention = Class D
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
Electrical Classifications * Category B (Category A when used with braid, tape or pliable wire armour cables)
ATEX Certificate SIRA13ATEX1072X, SIRA13ATEX4078X
Code of Protection II 2G, II 1D, Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da
II 3G Ex nR IIC Gc, IM2 Ex d I Mb, Ex e I Mb
Compliance Standards EN 60079-0,1,7,15,31
IECEx Certificate IECEx SIR 13.0027X, IECEx SIM 14.0008X
Code of Protection Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex d I Mb, Ex e I Mb
Compliance Standards IEC 60079-0,1,7,15,31
cCSAus Certificate 2288626
CSAus Code of Protection*** Class I, Div. 1, 2 Groups A, B, C and D; Class II, Div. 1, 2 Groups E, F and G; Class III, Div. 1,
2; Type 4X: Oil Resistant II:
Class I, Zone 1 AEx d IIC Gb, AEx e IIC Gb, Class I, Zone 2 AEx nR IIC Gc,
Class I, Zone 20 AEx ta IIIC Da
cCSA Code of Protection*** Class I, Div. 1, 2 Groups A, B, C and D; Class II, Div. 1, 2
Groups E, F and G; Class III, Div. 1, 2; Type 4X: Oil Resistant II:
Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
Compliance Standards CAN/CSA-C22.2 No 0,18,25,30,94,174, CAN/CSA-E60079-0,1,7,15,31 CAN/CSA-E61241-1-1 Part 1-1, ANSI/UL 514B Ed 5, ANSI/UL 50 Ed 11, ANSI/UL 2225 Ed 4, UL60079-0,1,7,15,31
EAC Certificate TC RU C-GB.AA87.B.00487
UkrSEPRO UA.TR.047.C.0644-15
CCOE / PESO (India) Certificate P333688
NEPSI Certificate GYJ13.1140X, GYJ13.1282X
INMETRO Certificate TÜV 12.2073X
RETIE Certificate 03866
Marine Approvals LRS: 01/00172, DNV: TAE00000Y, ABS: 14-LD234401A-4-PDA, BV: 43180/A1BV
Ingress Protection Rating ** IP66, IP67 & IP68
Deluge Protection Compliance DTS01 : 91
Cable Gland Material Brass, Electroless Nickel Plated Brass, Stainless Steel, Aluminium
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer / RapidEx Resin Barrier
Cable Type Single Wire Armour (SWA), Aluminium Wire Armour (AWA), Wire Braid Armour (e.g.
SWB), Screened Flexible (EMC) Wire Braid (e.g. CY / SY), Pliable Wire Armour (PWA), Steel Tape Armour (STA), Strip Armour (e.g. ASA)
Armour Clamping Detachable Resin Tube / Cone & AnyWay Universal Clamping Ring
Sealing Technique Unique CMP ‘LRS’ Outer Seal (Load Retention Seal)
Sealing Area(s) Inner RapidEx Barrier Seal & Outer Sheath
Optional Accessories Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs
Optional Installation Tools Spanners, Armour Former Tool

Product Table

Metric

Cable Gland Size Available Entry Threads “C” (Alternate Metric Thread Lengths Available) Number of Cores Diameter Over Conductors “A” Cable Bedding Diameter “G” Overall Cable Diameter “B” Armour Range Across
Flats
“D”
Across
Corners
“D”
Protrusion
Length “F”
Combined Ordering Reference
(*Brass Metric)
Shroud Cable
Gland
Weight
(Kgs)
Standard Option Grooved Cone (X) Stepped Cone (W)
Metric Thread Length (Metric) “E” NPT Thread Length (NPT) “E” NPT Max Max Max Min Max Min Max Min Max Max Max Size Type Ordering
Suffix
20S16 M20 15.0 ½” 19.9 ¾” 11 11.7 11.7 6.1 13.1 0.3 1.0 0.8 1.25 30.5 33.6 62.0 20S16 PX2KREX 1RA PVC06 0.24
20S M20 15.0 ½” 19.9 ¾” 11 11.7 11.7 9.5 15.9 0.3 1.0 0.8 1.25 30.5 33.6 62.0 20S PX2KREX 1RA PVC06 0.23
20 M20 15.0 ½” 19.9 ¾” 11 12.6 12.9 12.5 20.9 0.4 1.0 0.8 1.25 30.5 33.6 63.0 20 PX2KREX 1RA PVC06 0.24
25S M25 15.0 ¾” 20.2 1″ 21 17.5 17.9 14.0 22.0 0.4 1.2 1.25 1.6 37.5 41.3 69.5 25S PX2KREX 1RA PVC09 0.37
25 M25 15.0 ¾” 20.2 1″ 21 17.5 17.9 18.2 26.2 0.4 1.2 1.25 1.6 37.5 41.3 69.5 25 PX2KREX 1RA PVC09 0.37
32 M32 15.0 1″ 25.0 1 ¼” 38 23.6 23.9 23.7 33.9 0.4 1.2 1.6 2.0 46.0 50.6 75.0 32 PX2KREX 1RA PVC11 0.57
40 M40 15.0 1 ¼” 25.6 1 ½” 59 30.0 30.3 27.9 40.4 0.4 1.6 1.6 2.0 55.0 60.5 75.0 40 PX2KREX 1RA PVC15 0.80
50S M50 15.0 1 ½” 26.1 2″ 89 36.6 36.9 35.2 46.7 0.4 1.6 2.0 2.5 60.0 66.0 77.0 50S PX2KREX 1RA PVC18 0.90
50 M50 15.0 2″ 26.9 2 ½” 89 41.0 41.3 40.4 53.0 0.6 1.6 2.0 2.5 70.0 77.0 77.0 50 PX2KREX 1RA PVC21 1.19
63S M63 15.0 2″ 26.9 2 ½” 115 47.9 48.4 45.6 59.4 0.6 1.6 2.0 2.5 75.0 82.5 79.7 63S PX2KREX 1RA PVC23 1.39
63 M63 15.0 2 ½” 39.9 3″ 115 53.7 54.0 54.6 65.8 0.6 1.6 2.0 2.5 80.0 88.0 80.3 63 PX2KREX 1RA PVC25 1.41
75S M75 15.0 2 ½” 39.9 3″ 140 59.9 60.2 59.0 72.0 0.6 1.6 2.0 2.5 90.0 99.0 86.8 75S PX2KREX 1RA PVC28 2.09
75 M75 15.0 3″ 41.5 3 ½” 140 64.2 64.2 66.7 78.4 0.6 1.6 2.5 3.0 100.0 110.0 88.3 75 PX2KREX 1RA PVC30 2.54
90 M90 24.0 3 ½” 42.8 4″ 200 75.3 75.6 76.2 90.3 0.8 1.6 3.15 4.0 115.0 126.5 102.1 90 PX2KREX 1RA PVC32 3.71
100 M100 24.0 3 ½” 42.8 4″ 200 85.6 85.9 86.1 101.4 0.8 1.6 3.15 4.0 127.0 139.7 114.0 100 PX2KREX 1RA LSF33 4.81
Dimensions are displayed in millimeters unless otherwise stated

Imperial

Cable Gland Size Available Entry Threads “C” (Alternate Metric Thread Lengths Available) Number of Cores Diameter Over Conductors “A” Cable Bedding Diameter “G” Overall Cable Diameter “B” Armour Range Across
Flats
“D”
Across
Corners
“D”
Protrusion
Length “F”
Combined Ordering Reference
(*Brass Metric)
Shroud Cable
Gland
Weight
(Ozs)
Standard Option Grooved Cone (X) Stepped Cone (W)
Metric Thread Length (Metric) “E” NPT Thread Length (NPT) “E” NPT Max Max Max Min Max Min Max Min Max Max Max Size Type Ordering
Suffix
20S16 M20 0.59 ½” 0.78 ¾” 11 0.46 0.46 0.24 0.52 0.01 0.04 0.03 0.05 1.20 1.32 2.44 20S16 PX2KREX 1RA PVC06 8.47
20S M20 0.59 ½” 0.78 ¾” 11 0.46 0.46 0.37 0.63 0.01 0.04 0.03 0.05 1.20 1.32 2.44 20S PX2KREX 1RA PVC06 8.11
20 M20 0.59 ½” 0.78 ¾” 11 0.50 0.51 0.49 0.82 0.02 0.04 0.03 0.05 1.20 1.32 2.48 20 PX2KREX 1RA PVC06 8.47
25S M25 0.59 ¾” 0.80 1″ 21 0.69 0.70 0.55 0.87 0.02 0.05 0.05 0.06 1.48 1.63 2.74 25S PX2KREX 1RA PVC09 13.05
25 M25 0.59 ¾” 0.80 1″ 21 0.69 0.70 0.72 1.03 0.02 0.05 0.05 0.06 1.48 1.63 2.74 25 PX2KREX 1RA PVC09 13.05
32 M32 0.59 1″ 0.98 1 ¼” 38 0.93 0.94 0.93 1.33 0.02 0.05 0.06 0.08 1.81 1.99 2.95 32 PX2KREX 1RA PVC11 20.11
40 M40 0.59 1 ¼” 1.01 1 ½” 59 1.18 1.19 1.10 1.59 0.02 0.06 0.06 0.08 2.17 2.38 2.95 40 PX2KREX 1RA PVC15 28.22
50S M50 0.59 1 ½” 1.03 2″ 89 1.44 1.45 1.39 1.84 0.02 0.06 0.08 0.10 2.36 2.60 3.03 50S PX2KREX 1RA PVC18 31.75
50 M50 0.59 2″ 1.06 2 ½” 89 1.61 1.63 1.59 2.09 0.02 0.06 0.08 0.10 2.76 3.03 3.03 50 PX2KREX 1RA PVC21 41.98
63S M63 0.59 2″ 1.06 2 ½” 115 1.89 1.91 1.80 2.34 0.02 0.06 0.08 0.10 2.95 3.25 3.14 63S PX2KREX 1RA PVC23 49.03
63 M63 0.59 2 ½” 1.57 3″ 115 2.11 2.13 2.15 2.59 0.02 0.06 0.08 0.10 3.15 3.46 3.16 63 PX2KREX 1RA PVC25 49.74
75S M75 0.59 2 ½” 1.57 3″ 140 2.36 2.37 2.32 2.83 0.02 0.06 0.08 0.10 3.54 3.90 3.42 75S PX2KREX 1RA PVC28 73.72
75 M75 0.59 3″ 1.63 3 ½” 140 2.53 2.53 2.63 3.09 0.02 0.06 0.10 0.12 3.94 4.33 3.48 75 PX2KREX 1RA PVC30 89.60
90 M90 0.94 3 ½” 1.69 4″ 200 2.96 2.98 3.00 3.56 0.03 0.06 0.12 0.16 4.53 4.98 4.02 90 PX2KREX 1RA PVC32 130.87
100 M100 0.94 3 ½” 1.69 4″ 200 3.37 3.38 3.39 3.99 0.03 0.06 0.12 0.16 5.00 5.50 4.49 100 PX2KREX 1RA LSF33 169.67
Dimensions are displayed in inches unless otherwise stated

Download Spec Sheet

Download

PX2KREX

PX2KREX explosive atmosphere barrier cable glands are suitable for terminating all types of unarmored and braid-armored cables. Certified by ATEX for safe glanding of cables in Class I Zone 1, 21, and Zone 2, 22, hazardous areas, they feature a liquid pour sealing system that enhances reliability while reducing risk, installation time, and costs.

This type of cable gland is manufactured to meet a wide array of standards, specifications, and codes. Examples include:

ATEX Certificates

  • SIRA13ATEX1072X
  • SIRA13ATEX4078X

Approvals

  • LRS: 01/00172 (E3)
  • DNV: TAE00000Y
  • ABS: 14-LD234401A-4-PDA
  • BV: 43180/A1BV

Compliance Standards

  • IEC 60079-0,1,7,15,31

IECEx Certificates

  • IECEx SIR 13.0027X
  • IECEx SIM 14.0008X

Code of Protection

  • Class I, Div. 1, 2 Groups A, B, C, and D; Class II, Div. 1, 2 Groups E, F and G; Class III, Div. 1,2
  • Class I, Zone 2 AEx nR IIC Gc, Class I, Zone 20 AEx ta IIIC Da




PX2KREX barrier glands utilize a RapidEx liquid pour resin sealing system, which curbs installation time and associated costs. It’s particularly effective on multicore cables where a traditional compound is difficult and time-consuming to apply. Other features of this cable gland type include:

  • Direct And Remote Installation
  • Controlled Outer Load-Retention Seal
  • Unique OSTG Prevents Overtightening
  • Globally Marked, IECEx, ATEX, UL, And cCSAus
  • EMC Tested



This cable gland has an IP66 rating and features deluge protections. It’s intended for operating environments of -60 degrees Celsius, or -76 degrees Fahrenheit, to +85 degrees Celsius, or +185 degrees Fahrenheit. The PX2KREX explosive atmosphere barrier cable gland is perfect for use in a variety of industries.

  • Aerospace
  • Defense
  • Chemical
  • Mining
  • Minerals & Metals
  • Commercial Construction
  • Downstream Hydrocarbons
  • Food & Beverage
  • Industrial Energy
  • Onsite Utilities

  • Industrial Machinery
  • Laboratory and R&D
  • Life Sciences
  • Medical
  • Marine
  • Oil & Gas
  • Packaging
  • Power
  • Pulp & Paper
  • Textiles
  • Water & Wastewate

Your Explosive Cable Gland Source

EUTEX International is an ISO 9001:2015-certified supplier of electric cables and accessories for industrial use. We’re dedicated to providing quality products to clients with superior customer service.

Multiple locations worldwide enable our team to deliver the electrical products you need on time and within budget.

Give us a call to learn more about the PX2KREX cable gland.



Technical



Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications* Impact = Level 8, Retention = Class D
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
Electrical Classifications * Category B (Category A when used with braid, tape or pliable wire armour cables)
ATEX Certificate SIRA13ATEX1072X, SIRA13ATEX4078X
Code of Protection II 2G, II 1D, Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da
II 3G Ex nR IIC Gc, IM2 Ex d I Mb, Ex e I Mb
Compliance Standards EN 60079-0,1,7,15,31
IECEx Certificate IECEx SIR 13.0027X, IECEx SIM 14.0008X
Code of Protection Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex d I Mb, Ex e I Mb
Compliance Standards IEC 60079-0,1,7,15,31
cCSAus Certificate 2288626
CSAus Code of Protection*** Class I, Div. 1, 2 Groups A, B, C and D; Class II, Div. 1, 2 Groups E, F and G; Class III, Div. 1,
2; Type 4X: Oil Resistant II:
Class I, Zone 1 AEx d IIC Gb, AEx e IIC Gb, Class I, Zone 2 AEx nR IIC Gc,
Class I, Zone 20 AEx ta IIIC Da
cCSA Code of Protection*** Class I, Div. 1, 2 Groups A, B, C and D; Class II, Div. 1, 2
Groups E, F and G; Class III, Div. 1, 2; Type 4X: Oil Resistant II:
Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
Compliance Standards CAN/CSA-C22.2 No 0,18,25,30,94,174, CAN/CSA-E60079-0,1,7,15,31 CAN/CSA-E61241-1-1 Part 1-1, ANSI/UL 514B Ed 5, ANSI/UL 50 Ed 11, ANSI/UL 2225 Ed 4, UL60079-0,1,7,15,31
EAC Certificate TC RU C-GB.AA87.B.00487
UkrSEPRO UA.TR.047.C.0644-15
CCOE / PESO (India) Certificate P333688
NEPSI Certificate GYJ13.1140X, GYJ13.1282X
INMETRO Certificate TÜV 12.2073X
RETIE Certificate 03866
Marine Approvals LRS: 01/00172, DNV: TAE00000Y, ABS: 14-LD234401A-4-PDA, BV: 43180/A1BV
Ingress Protection Rating ** IP66, IP67 & IP68
Deluge Protection Compliance DTS01 : 91
Cable Gland Material Brass, Electroless Nickel Plated Brass, Stainless Steel, Aluminium
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer / RapidEx Resin Barrier
Cable Type Single Wire Armour (SWA), Aluminium Wire Armour (AWA), Wire Braid Armour (e.g.
SWB), Screened Flexible (EMC) Wire Braid (e.g. CY / SY), Pliable Wire Armour (PWA), Steel Tape Armour (STA), Strip Armour (e.g. ASA)
Armour Clamping Detachable Resin Tube / Cone & AnyWay Universal Clamping Ring
Sealing Technique Unique CMP ‘LRS’ Outer Seal (Load Retention Seal)
Sealing Area(s) Inner RapidEx Barrier Seal & Outer Sheath
Optional Accessories Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs
Optional Installation Tools Spanners, Armour Former Tool

Product Table

Metric

Cable Gland Size Available Entry Threads “C” (Alternate Metric Thread Lengths Available) Number of Cores Diameter Over Conductors “A” Cable Bedding Diameter “G” Overall Cable Diameter “B” Armour Range Across
Flats
“D”
Across
Corners
“D”
Protrusion
Length “F”
Combined Ordering Reference
(*Brass Metric)
Shroud Cable
Gland
Weight
(Kgs)
Standard Option Grooved Cone (X) Stepped Cone (W)
Metric Thread Length (Metric) “E” NPT Thread Length (NPT) “E” NPT Max Max Max Min Max Min Max Min Max Max Max Size Type Ordering
Suffix
20S16 M20 15.0 ½” 19.9 ¾” 11 11.7 11.7 6.1 13.1 0.3 1.0 0.8 1.25 30.5 33.6 62.0 20S16 PX2KREX 1RA PVC06 0.24
20S M20 15.0 ½” 19.9 ¾” 11 11.7 11.7 9.5 15.9 0.3 1.0 0.8 1.25 30.5 33.6 62.0 20S PX2KREX 1RA PVC06 0.23
20 M20 15.0 ½” 19.9 ¾” 11 12.6 12.9 12.5 20.9 0.4 1.0 0.8 1.25 30.5 33.6 63.0 20 PX2KREX 1RA PVC06 0.24
25S M25 15.0 ¾” 20.2 1″ 21 17.5 17.9 14.0 22.0 0.4 1.2 1.25 1.6 37.5 41.3 69.5 25S PX2KREX 1RA PVC09 0.37
25 M25 15.0 ¾” 20.2 1″ 21 17.5 17.9 18.2 26.2 0.4 1.2 1.25 1.6 37.5 41.3 69.5 25 PX2KREX 1RA PVC09 0.37
32 M32 15.0 1″ 25.0 1 ¼” 38 23.6 23.9 23.7 33.9 0.4 1.2 1.6 2.0 46.0 50.6 75.0 32 PX2KREX 1RA PVC11 0.57
40 M40 15.0 1 ¼” 25.6 1 ½” 59 30.0 30.3 27.9 40.4 0.4 1.6 1.6 2.0 55.0 60.5 75.0 40 PX2KREX 1RA PVC15 0.80
50S M50 15.0 1 ½” 26.1 2″ 89 36.6 36.9 35.2 46.7 0.4 1.6 2.0 2.5 60.0 66.0 77.0 50S PX2KREX 1RA PVC18 0.90
50 M50 15.0 2″ 26.9 2 ½” 89 41.0 41.3 40.4 53.0 0.6 1.6 2.0 2.5 70.0 77.0 77.0 50 PX2KREX 1RA PVC21 1.19
63S M63 15.0 2″ 26.9 2 ½” 115 47.9 48.4 45.6 59.4 0.6 1.6 2.0 2.5 75.0 82.5 79.7 63S PX2KREX 1RA PVC23 1.39
63 M63 15.0 2 ½” 39.9 3″ 115 53.7 54.0 54.6 65.8 0.6 1.6 2.0 2.5 80.0 88.0 80.3 63 PX2KREX 1RA PVC25 1.41
75S M75 15.0 2 ½” 39.9 3″ 140 59.9 60.2 59.0 72.0 0.6 1.6 2.0 2.5 90.0 99.0 86.8 75S PX2KREX 1RA PVC28 2.09
75 M75 15.0 3″ 41.5 3 ½” 140 64.2 64.2 66.7 78.4 0.6 1.6 2.5 3.0 100.0 110.0 88.3 75 PX2KREX 1RA PVC30 2.54
90 M90 24.0 3 ½” 42.8 4″ 200 75.3 75.6 76.2 90.3 0.8 1.6 3.15 4.0 115.0 126.5 102.1 90 PX2KREX 1RA PVC32 3.71
100 M100 24.0 3 ½” 42.8 4″ 200 85.6 85.9 86.1 101.4 0.8 1.6 3.15 4.0 127.0 139.7 114.0 100 PX2KREX 1RA LSF33 4.81
Dimensions are displayed in millimeters unless otherwise stated

Imperial

Cable Gland Size Available Entry Threads “C” (Alternate Metric Thread Lengths Available) Number of Cores Diameter Over Conductors “A” Cable Bedding Diameter “G” Overall Cable Diameter “B” Armour Range Across
Flats
“D”
Across
Corners
“D”
Protrusion
Length “F”
Combined Ordering Reference
(*Brass Metric)
Shroud Cable
Gland
Weight
(Ozs)
Standard Option Grooved Cone (X) Stepped Cone (W)
Metric Thread Length (Metric) “E” NPT Thread Length (NPT) “E” NPT Max Max Max Min Max Min Max Min Max Max Max Size Type Ordering
Suffix
20S16 M20 0.59 ½” 0.78 ¾” 11 0.46 0.46 0.24 0.52 0.01 0.04 0.03 0.05 1.20 1.32 2.44 20S16 PX2KREX 1RA PVC06 8.47
20S M20 0.59 ½” 0.78 ¾” 11 0.46 0.46 0.37 0.63 0.01 0.04 0.03 0.05 1.20 1.32 2.44 20S PX2KREX 1RA PVC06 8.11
20 M20 0.59 ½” 0.78 ¾” 11 0.50 0.51 0.49 0.82 0.02 0.04 0.03 0.05 1.20 1.32 2.48 20 PX2KREX 1RA PVC06 8.47
25S M25 0.59 ¾” 0.80 1″ 21 0.69 0.70 0.55 0.87 0.02 0.05 0.05 0.06 1.48 1.63 2.74 25S PX2KREX 1RA PVC09 13.05
25 M25 0.59 ¾” 0.80 1″ 21 0.69 0.70 0.72 1.03 0.02 0.05 0.05 0.06 1.48 1.63 2.74 25 PX2KREX 1RA PVC09 13.05
32 M32 0.59 1″ 0.98 1 ¼” 38 0.93 0.94 0.93 1.33 0.02 0.05 0.06 0.08 1.81 1.99 2.95 32 PX2KREX 1RA PVC11 20.11
40 M40 0.59 1 ¼” 1.01 1 ½” 59 1.18 1.19 1.10 1.59 0.02 0.06 0.06 0.08 2.17 2.38 2.95 40 PX2KREX 1RA PVC15 28.22
50S M50 0.59 1 ½” 1.03 2″ 89 1.44 1.45 1.39 1.84 0.02 0.06 0.08 0.10 2.36 2.60 3.03 50S PX2KREX 1RA PVC18 31.75
50 M50 0.59 2″ 1.06 2 ½” 89 1.61 1.63 1.59 2.09 0.02 0.06 0.08 0.10 2.76 3.03 3.03 50 PX2KREX 1RA PVC21 41.98
63S M63 0.59 2″ 1.06 2 ½” 115 1.89 1.91 1.80 2.34 0.02 0.06 0.08 0.10 2.95 3.25 3.14 63S PX2KREX 1RA PVC23 49.03
63 M63 0.59 2 ½” 1.57 3″ 115 2.11 2.13 2.15 2.59 0.02 0.06 0.08 0.10 3.15 3.46 3.16 63 PX2KREX 1RA PVC25 49.74
75S M75 0.59 2 ½” 1.57 3″ 140 2.36 2.37 2.32 2.83 0.02 0.06 0.08 0.10 3.54 3.90 3.42 75S PX2KREX 1RA PVC28 73.72
75 M75 0.59 3″ 1.63 3 ½” 140 2.53 2.53 2.63 3.09 0.02 0.06 0.10 0.12 3.94 4.33 3.48 75 PX2KREX 1RA PVC30 89.60
90 M90 0.94 3 ½” 1.69 4″ 200 2.96 2.98 3.00 3.56 0.03 0.06 0.12 0.16 4.53 4.98 4.02 90 PX2KREX 1RA PVC32 130.87
100 M100 0.94 3 ½” 1.69 4″ 200 3.37 3.38 3.39 3.99 0.03 0.06 0.12 0.16 5.00 5.50 4.49 100 PX2KREX 1RA LSF33 169.67
Dimensions are displayed in inches unless otherwise stated
