Name: PXRC Cable gland
Availability: InStock

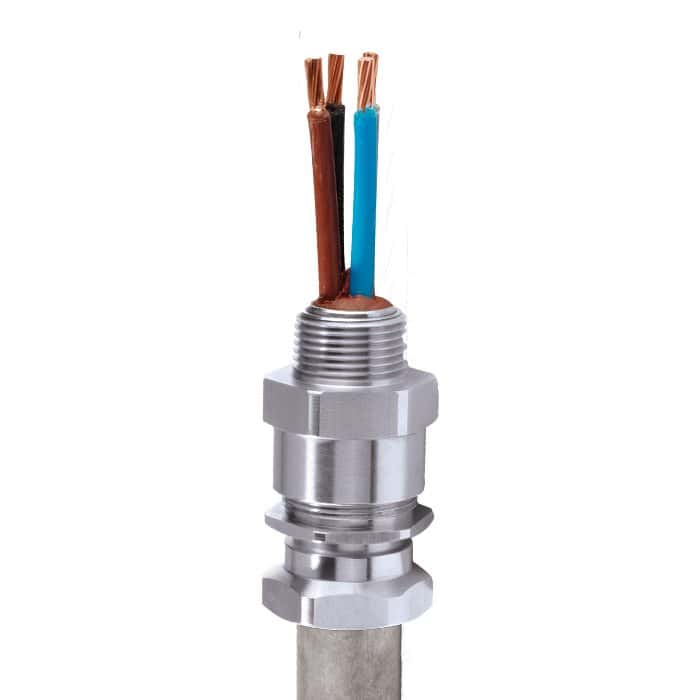

PXRC Cable gland

Ex eb, Ex db, Ex ta | Explosive Atmosphere Barrier Cable Gland
For all types of Unarmoured Cables

Internationally Approved, Rigid & Flexible Conduit Explosive Atmosphere Barrier Cable Gland

• Designed for rigid & flexible conduits
• Easy install running coupler design
• Compound barrier type flameproof seal
• -60°C to +85°C
• Class I Zone 1, 21 and Zone 2, 22
• Internationally marked, IECEx & ATEX
• Once any cable inner sheath/bedding has been removed, the RapidEx liquid resin barrier seals directly around the internal cable cores, completely eliminating any risk of coldflow on all cable types

Description
Download Spec Sheet

Description

Product Selection Table

Cable Gland Size	Available Entry Threads ‘C’ (Alternate Metric Thread Lengths Available)					Number of Cores	Female Connection Thread ‘H’	Female Connection Thread (NPT) ‘H’	Diameter Over Conductors ‘A’	Cable Bedding Diameter ‘G’	Overall Cable Diameter ‘B’	Across Flats ‘D’	Across Corners ‘D’	Protrusion Length ‘F’	Combined Ordering Reference (*Brass Metric)			Cable Gland Weight (Kgs)
	Standard				Option	Number of Cores		Female Connection Thread (NPT) ‘H’	Diameter Over Conductors ‘A’	Cable Bedding Diameter ‘G’	Overall Cable Diameter ‘B’	Across Flats ‘D’	Across Corners ‘D’		Combined Ordering Reference (*Brass Metric)
	Metric	Thread Length (Metric) ‘E’	NPT	Thread Length (NPT) ‘E’	NPT	Max		Max	Max	Min	Max	Max	Max		Size	Type	Ordering Suffix
20	M20	15.0	½’	19.9	¾’	21	M20	½’	12.6	12.9	13.9	30.0	33.0	45.9	20	PXRC	1RA	0.17
25	M25	15.0	¾’	20.2	1′	30	M25	¾’	17.5	17.9	19.9	36.0	39.6	48.6	25	PXRC	1RA	0.33
32	M32	15.0	1′	25.0	1 ¼’	38	M32	1′	23.6	23.9	26.2	41.0	45.1	53.0	32	PXRC	1RA	0.32
40	M40	15.0	1 ¼’	25.6	1 ½’	59	M40	1 ¼’	30.0	30.3	32.3	50.0	55.0	50.5	40	PXRC	1RA	0.41
50S	M50	15.0	1 ½’	26.1	2′	89	M50	1 ½’	36.6	36.9	38.9	55.0	60.5	59.6	50S	PXRC	1RA	0.57
50	M50	15.0	2′	26.9	2 ½’	115	M50	2′	41.0	41.3	44.2	60.0	66.0	64.5	50	PXRC	1RA	0.61
63S	M63	15.0	2′	26.9	2 ½’	115	M63	2′	47.9	48.4	50.0	70.1	77.1	63.5	63S	PXRC	1RA	0.94
63	M63	15.0	2 ½’	39.9	3′	115	M63	2 ½’	53.7	54.0	56.0	75.0	82.5	64.6	63	PXRC	1RA	0.89
75S	M75	15.0	2 ½’	39.9	3′	140	M75	2 ½’	59.9	60.2	62.4	84.0	92.4	72.9	75S	PXRC	1RA	1.29
75	M75	15.0	3′	41.5	3 ½’	140	M75	3′	64.3	64.2	68.1	85.0	93.5	72.5	75	PXRC	1RA	1.16
90	M90	20.0	3 ½’	42.8	4′	140	M90	3 ½’	75.3	75.6	80.1	108.0	118.8	89.5	90	PXRC	1RA	2.63
Dimensions displayed in millimeters unless otherwise stated

Download Spec Sheet

Download

Product Selection Table

Cable Gland Size	Available Entry Threads ‘C’ (Alternate Metric Thread Lengths Available)					Number of Cores	Female Connection Thread ‘H’	Female Connection Thread (NPT) ‘H’	Diameter Over Conductors ‘A’	Cable Bedding Diameter ‘G’	Overall Cable Diameter ‘B’	Across Flats ‘D’	Across Corners ‘D’	Protrusion Length ‘F’	Combined Ordering Reference (*Brass Metric)			Cable Gland Weight (Kgs)
	Standard				Option	Number of Cores		Female Connection Thread (NPT) ‘H’	Diameter Over Conductors ‘A’	Cable Bedding Diameter ‘G’	Overall Cable Diameter ‘B’	Across Flats ‘D’	Across Corners ‘D’		Combined Ordering Reference (*Brass Metric)
	Metric	Thread Length (Metric) ‘E’	NPT	Thread Length (NPT) ‘E’	NPT	Max		Max	Max	Min	Max	Max	Max		Size	Type	Ordering Suffix
20	M20	15.0	½’	19.9	¾’	21	M20	½’	12.6	12.9	13.9	30.0	33.0	45.9	20	PXRC	1RA	0.17
25	M25	15.0	¾’	20.2	1′	30	M25	¾’	17.5	17.9	19.9	36.0	39.6	48.6	25	PXRC	1RA	0.33
32	M32	15.0	1′	25.0	1 ¼’	38	M32	1′	23.6	23.9	26.2	41.0	45.1	53.0	32	PXRC	1RA	0.32
40	M40	15.0	1 ¼’	25.6	1 ½’	59	M40	1 ¼’	30.0	30.3	32.3	50.0	55.0	50.5	40	PXRC	1RA	0.41
50S	M50	15.0	1 ½’	26.1	2′	89	M50	1 ½’	36.6	36.9	38.9	55.0	60.5	59.6	50S	PXRC	1RA	0.57
50	M50	15.0	2′	26.9	2 ½’	115	M50	2′	41.0	41.3	44.2	60.0	66.0	64.5	50	PXRC	1RA	0.61
63S	M63	15.0	2′	26.9	2 ½’	115	M63	2′	47.9	48.4	50.0	70.1	77.1	63.5	63S	PXRC	1RA	0.94
63	M63	15.0	2 ½’	39.9	3′	115	M63	2 ½’	53.7	54.0	56.0	75.0	82.5	64.6	63	PXRC	1RA	0.89
75S	M75	15.0	2 ½’	39.9	3′	140	M75	2 ½’	59.9	60.2	62.4	84.0	92.4	72.9	75S	PXRC	1RA	1.29
75	M75	15.0	3′	41.5	3 ½’	140	M75	3′	64.3	64.2	68.1	85.0	93.5	72.5	75	PXRC	1RA	1.16
90	M90	20.0	3 ½’	42.8	4′	140	M90	3 ½’	75.3	75.6	80.1	108.0	118.8	89.5	90	PXRC	1RA	2.63
Dimensions displayed in millimeters unless otherwise stated
