Products > PXRC REX Cable gland

Name: PXRC REX Cable gland
Availability: InStock

PXRC REX Cable gland

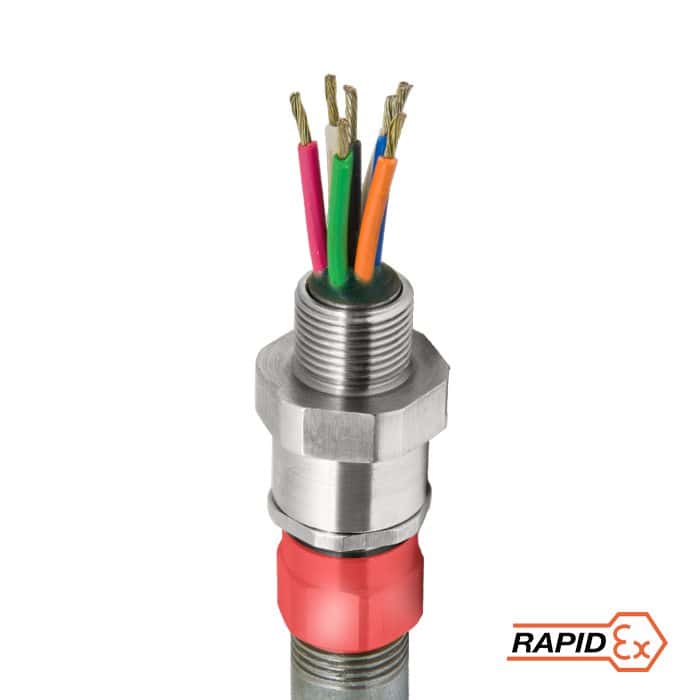

Ex eb, Ex db, Ex ta | Explosive Atmosphere Barrier Cable Gland
For all types of Unarmoured & Braid Cables housed in Conduit

Globally Approved, Explosive Atmosphere RapidEx Barrier Cable Gland

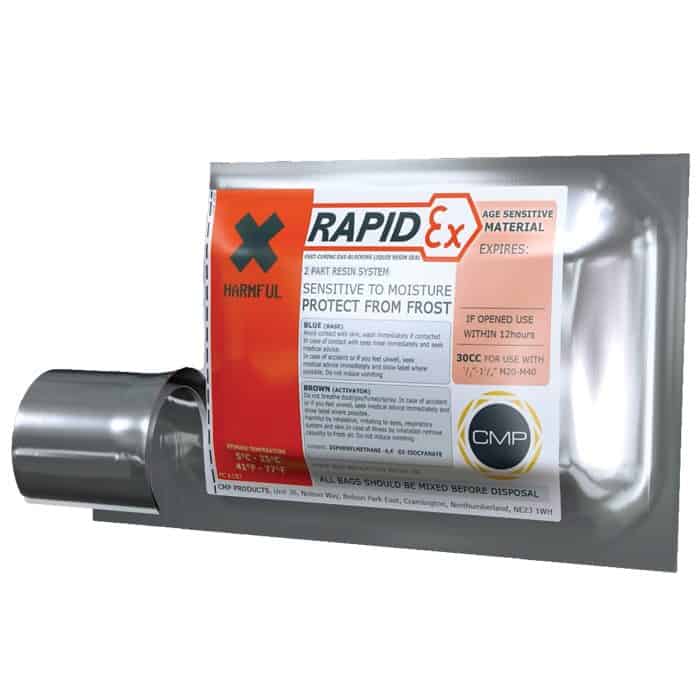

• RapidEx liquid pour sealing system
– Enhances reliability, reduces risk
– Reduces man hours
– Reduces cost
• Designed for rigid & flexible conduits
• Easy install running coupler design
• Compound barrier type flameproof seal
• -60°C to +85°C
• Class I Zone 1, 21 and Zone 2, 22
• Internationally marked, IECEx & ATEX
• Once any cable inner sheath/bedding has been removed, the RapidEx liquid resin barrier seals directly around the internal cable cores, completely eliminating any risk of coldflow on all cable types

Description
Download Spec Sheet

Description

Patent granted: DE 2287986, ES 2287986, FR 2287986, IT 2287986, NL 2287986, NO 2287986, TR 2287986, AU 2010284848, AU 2014274614, CA 2771713, GB 2485114, MY 153846, SG 178839, US 8872027, US 9484133, US 9774178

Product Selection Table

Cable Gland Size	Available Entry Threads ‘C’ (Alternate Metric Thread Lengths Available)					Number of Cores	Standard Female Connection Thread ‘H’	Diameter Over Conductors ‘A’	Cable Bedding Diameter ‘G’	Overall Cable Diameter ‘B’	Across Flats ‘D’	Across Corners ‘D’	Protrusion Length ‘F’	Combined Ordering Reference (*Brass Metric)			Shroud	Cable Gland Weight (Kgs)
	Standard				Option	Number of Cores		Diameter Over Conductors ‘A’	Cable Bedding Diameter ‘G’	Overall Cable Diameter ‘B’	Across Flats ‘D’	Across Corners ‘D’		Combined Ordering Reference (*Brass Metric)
	Metric	Thread Length (Metric) ‘E’	NPT	Thread Length (NPT) ‘E’	NPT	Max		Max	Max	Min	Max	Max		Size	Type	Ordering Suffix
20	M20	15.0	½”	19.9	¾”	21	M20	12.6	12.9	13.9	30.0	33.0	45.9	20	PXRCREX	1RA	PVC06	0.17
25	M25	15.0	¾”	20.2	1″	30	M25	17.5	17.9	19.9	36.0	39.6	48.6	25	PXRCREX	1RA	PVC09	0.33
32	M32	15.0	1″	25.0	1 ¼”	50	M32	23.6	23.9	26.2	41.0	45.1	53.0	32	PXRCREX	1RA	PVC10	0.32
40	M40	15.0	1 ¼v	25.6	1 ½”	59	M40	30.0	30.3	32.3	50.0	55.0	50.5	40	PXRCREX	1RA	PVC13	0.42
50S	M50	15.0	1 ½”	26.1	2″	89	M50	36.6	36.9	38.9	55.0	60.5	59.6	50S	PXRCREX	1RA	PVC15	0.57
50	M50	15.0	2″	26.9	2 ½”	115	M50	41.0	41.3	44.2	60.0	66.0	64.5	50	PXRCREX	1RA	PVC18	0.61
63S	M63	15.0	2″	26.9	2 ½”	115	M63	47.9	48.4	50.0	70.1	77.1	63.5	63S	PXRCREX	1RA	PVC21	0.94
63	M63	15.0	2 ½”	39.9	3″	115	M63	53.7	54.0	56.0	75.0	82.5	64.6	63	PXRCREX	1RA	PVC23	0.89
75S	M75	15.0	2 ½”	39.9	3″	140	M75	59.9	60.2	62.4	84.0	92.4	72.9	75S	PXRCREX	1RA	PVC27	1.29
75	M75	15.0	3″	41.5	3 ½”	140	M75	64.2	64.2	68.1	85.0	93.5	72.5	75	PXRCREX	1RA	PVC27	1.16
90	M90	20.0	3 ½”	42.8	4″	140	M90	75.3	75.6	80.1	108.0	118.8	89.5	90	PXRCREX	1RA	PVC31	2.63
Dimensions displayed in millimeters unless otherwise stated

Download Spec Sheet

Download

Product Selection Table

Cable Gland Size	Available Entry Threads ‘C’ (Alternate Metric Thread Lengths Available)					Number of Cores	Standard Female Connection Thread ‘H’	Diameter Over Conductors ‘A’	Cable Bedding Diameter ‘G’	Overall Cable Diameter ‘B’	Across Flats ‘D’	Across Corners ‘D’	Protrusion Length ‘F’	Combined Ordering Reference (*Brass Metric)			Shroud	Cable Gland Weight (Kgs)
	Standard				Option	Number of Cores		Diameter Over Conductors ‘A’	Cable Bedding Diameter ‘G’	Overall Cable Diameter ‘B’	Across Flats ‘D’	Across Corners ‘D’		Combined Ordering Reference (*Brass Metric)
	Metric	Thread Length (Metric) ‘E’	NPT	Thread Length (NPT) ‘E’	NPT	Max		Max	Max	Min	Max	Max		Size	Type	Ordering Suffix
20	M20	15.0	½”	19.9	¾”	21	M20	12.6	12.9	13.9	30.0	33.0	45.9	20	PXRCREX	1RA	PVC06	0.17
25	M25	15.0	¾”	20.2	1″	30	M25	17.5	17.9	19.9	36.0	39.6	48.6	25	PXRCREX	1RA	PVC09	0.33
32	M32	15.0	1″	25.0	1 ¼”	50	M32	23.6	23.9	26.2	41.0	45.1	53.0	32	PXRCREX	1RA	PVC10	0.32
40	M40	15.0	1 ¼v	25.6	1 ½”	59	M40	30.0	30.3	32.3	50.0	55.0	50.5	40	PXRCREX	1RA	PVC13	0.42
50S	M50	15.0	1 ½”	26.1	2″	89	M50	36.6	36.9	38.9	55.0	60.5	59.6	50S	PXRCREX	1RA	PVC15	0.57
50	M50	15.0	2″	26.9	2 ½”	115	M50	41.0	41.3	44.2	60.0	66.0	64.5	50	PXRCREX	1RA	PVC18	0.61
63S	M63	15.0	2″	26.9	2 ½”	115	M63	47.9	48.4	50.0	70.1	77.1	63.5	63S	PXRCREX	1RA	PVC21	0.94
63	M63	15.0	2 ½”	39.9	3″	115	M63	53.7	54.0	56.0	75.0	82.5	64.6	63	PXRCREX	1RA	PVC23	0.89
75S	M75	15.0	2 ½”	39.9	3″	140	M75	59.9	60.2	62.4	84.0	92.4	72.9	75S	PXRCREX	1RA	PVC27	1.29
75	M75	15.0	3″	41.5	3 ½”	140	M75	64.2	64.2	68.1	85.0	93.5	72.5	75	PXRCREX	1RA	PVC27	1.16
90	M90	20.0	3 ½”	42.8	4″	140	M90	75.3	75.6	80.1	108.0	118.8	89.5	90	PXRCREX	1RA	PVC31	2.63
Dimensions displayed in millimeters unless otherwise stated
