Products > PXSS2K Cable Gland
explosive atmosphere double seal epoxy gland

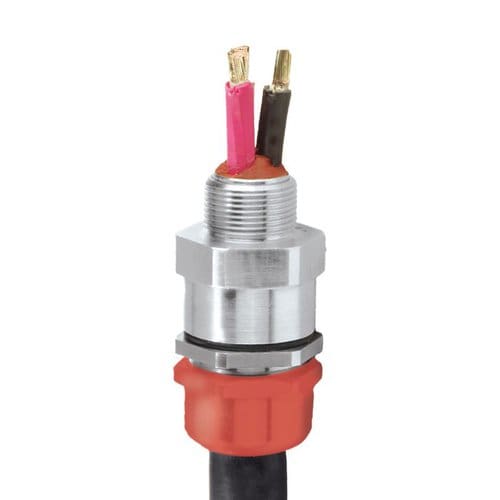

PXSS2K Cable Gland
explosive atmosphere double seal epoxy gland

Double Seal, Globally Approved, Explosive Atmosphere Barrier Cable Gland

• Direct & remote installation
• Superior levels of cable retention
• Displacement type environmental seal
• Compound barrier type flameproof seal
• Designed to prevent Coldflow
• Deluge protected
• -60°C to +85°C
• Class I Zone 1, 21 and Zone 2, 22
• Globally marked, IECEx, ATEX, UL & cCSAus

For all types of Unarmoured & Braid Armour Cables

Description

PXSS2K Gland Explosive

The PXSS2K explosive-atmosphere cable gland is suitable for all types of unarmored cables. Certified by ATEX for the safe glanding of cables in Class 1 Zone 1, 21, and Zone 2, 22, hazardous areas, they’re manufactured in accordance with the following:

ATEX Certificates

  • SIRA13ATEX1068X
  • SIRA13ATEX4074X

Approvals

  • LRS: 01/00172 (E3)
  • DNV: TAE00000Y
  • ABS: 14-LD234401A-4-PDA
  • BV: 43180/A1BV

IECEx Certificates

  • IECEx SIR 13.0023X
  • IECEx SIM 14.0006

UL Certificates

  • E201187B
  • E253914

Code of Protection

  • Class I, Div. 1,2 Groups A, B, C, D; Class II, Div. 1,2 Groups F, G
  • Class I, Zone 1, AEx d IIC, AEx e II

This cable gland type features a double-seal design. Displacement-type environmental and compound barrier-type flameproof seals combine to offer superior levels of cable retention while preventing coldflow. Optional accessories include locknuts, earth tags, serrated washers, entry thread seals, shrouds, and ingress discs.

PXSS2K explosive-atmosphere cable glands are available in brass, electroless nickel-plated brass, stainless steel, and aluminum constructions. EUTEX International’s standard offering is nickel-plated brass.

This cable gland type features deluge protections and is intended for operating environments of -60°C to +85°C. Many applications can benefit from PXSS2K cable gland explosive atmosphere products.

  • Aerospace
  • Defense
  • Chemical
  • Mining
  • Minerals & Metals
  • Commercial Construction
  • Downstream Hydrocarbons
  • Food & Beverage
  • Industrial Energy
  • Onsite Utilities

  • Industrial Machinery
  • Laboratory and R&D
  • Life Sciences
  • Medical
  • Marine
  • Oil & Gas
  • Packaging
  • Power
  • Pulp & Paper
  • Textiles
  • Water & Wastewate

Your Explosive Cable Gland Source

EUTEX International is a top provider of electric cables and accessories for demanding industrial use. With an ISO 9001:2015-certified Quality Management System, every product we supply is guaranteed to be durable, effective, and of the highest quality. Strategically positioned locations worldwide enable us to deliver the electrical products you need on time and within budget.

Feel free to contact us about PXSS2K cable gland explosive atmosphere products. We’re happy to discuss your needs in greater detail.



Technical



Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications* Impact = Level 8, Retention = Class B
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
ATEX Certificate SIRA13ATEX1072X, SIRA13ATEX4078X
Code of Protection II 2 GD, II 1D, Ex d IIC Gb, Ex e IIc Gb, Ex ta IIIC Da
II 3 G Ex nR IIC Gc, IM2 Ex d I Mb, Ex e I Mb
Compliance Standards EN 60079-0,1,7,15,31
IECEx Certificate IECEx SIR 13.0027X, IECEx SIM 14.0008X
Code of Protection Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex d I Mb, Ex e I Mb
Compliance Standards IEC 60079-0,1,7,15,31
cCSAus Certificate (20s16 – 100) 2288626
CSAus Code of Protection*** Class I, Div. 1, 2 Groups A, B, C and D; Class II, Div. 1, 2 Groups E, F and G; Class III,
Div. 1, 2; Type 4X: Oil Resistant II:
Class I, Zone 1 AEx d IIC Gb, AEx e IIC Gb, Class I, Zone 2 AEx nR IIC Gc, Class I,
Zone 20 AEx ta IIIC Da
cCSA Code of Protection*** Class I, Div. 1, 2 Groups A, B, C and D; Class II, Div. 1, 2 Groups E, F and G; Class III,
Div. 1, 2; Type 4X: Oil Resistant II:
Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
Compliance Standards CAN/CSA-C22.2 No 0,18,25,30,174,94, CAN/CSA-E60079-0,1,7,15,31, CAN/
CSA-E61241-1-1 Part 1-1, ANSI/UL 514B Ed 5, ANSI/UL 50 Ed 11, ANSI/UL 2225 Ed
4, UL60079
UL Certificate (20s16 – 100) E201187B, E253914
Code of Protection Class I, Groups A,B,C,D, Class II, Groups F,G
Class I, Zone 1, AEx d IIC, AEx e II
Compliance Standards UL 2225, CSA C22.2 No 174
UL 2225, UL 514B, UL 60079-0, UL 60079-7
EAC Certificate C-GB.AA87.B.00487
UkrSEPRO UA.TR.047.C.0644-15
KCC Certificate 14-GA4BO-0252X
CCOE / PESO (India) Certificate P333688
NEPSI Certificate GYJ13.1140X, GYJ13.1282X
INMETRO Certificate TÜV 12.2073X
RETIE Certificate 03866
Marine Approvals LRS: 01/00172, DNV: TAE00000Y, ABS: 14-LD234401A-4-PDA, BV: 43180/A1BV
Ingress Protection Rating ** IP66, IP67 & IP68
Deluge Protection Compliance DTS01 : 91
Cable Gland Material Brass, Electroless Nickel Plated Brass, Stainless Steel, Aluminium
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer / Epoxy Barrier Compound
Cable Type Unarmoured***
Sealing Technique CMP Unique Displacement Seal Concept
Sealing Area(s) Inner Compound Barrier & Outer Sheath
Optional Accessories Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs
Optional Installation Tools Spanners

Product Table

Metric

Cable Gland Size Available Entry Threads “C” (Alternate Metric Thread Lengths Available) Number of Cores Diameter Over Conductors
“A”
Cable Bedding Diameter “G” Overall
Cable
Diameter
“B”
Across
Flats
“D”
Across
Corners
“D”
Protrusion
Length “F”
Combined Ordering Reference
(*Brass Metric)
Shroud Cable
Gland
Weight
(Kgs)
Standard Option
Metric Thread Length (Metric) “E” NPT Thread Length
(NPT) “E”
NPT Max Min Max Max Max Size Type Ordering
Suffix
20S16 M20 15.0 ½” 19.9 ¾” 11 8.6 8.6 3.1 8.6 30.0 33.0 53.1 20S16 PXSS2K 1RA PVC06 0.20
20S M20 15.0 ½” 19.9 ¾” 11 11.7 11.7 6.1 11.7 30.0 33.0 53.1 20S PXSS2K 1RA PVC06 0.20
20 M20 15.0 ½” 19.9 ¾” 11 12.6 12.9 6.5 14.0 30.0 33.0 54.2 20 PXSS2K 1RA PVC06 0.20
20L M20 15.0 ½” 19.9 ¾” 11 12.6 12.9 10.0 15.9 30.0 33.0 54.2 20L PXSS2K 1RA PVC06 0.20
25 M25 15.0 ¾” 20.2 1″ 21 17.5 17.9 11.1 20.0 36.0 39.6 60.0 25 PXSS2K 1RA PVC09 0.33
32 M32 15.0 1″ 25.0 1 ¼” 38 23.6 23.9 17.0 26.3 41.0 45.1 61.1 32 PXSS2K 1RA PVC10 0.39
32L M32 15.0 1″ 25.0 1 ¼” 38 23.6 23.9 20.0 27.4 41.0 45.1 61.1 32L PXSS2K 1RA PVC10 0.59
40 M40 15.0 1¼” 25.6 1 ½” 59 30.0 30.3 22.0 32.1 50.0 55.0 62.4 40 PXSS2K 1RA PVC13 0.56
50S M50 15.0 1½” 26.1 2″ 89 36.6 36.9 29.5 38.2 55.0 60.5 65.2 50S PXSS2K 1RA PVC15 0.66
50 M50 15.0 2″ 26.9 2 ½” 89 41.0 41.3 35.6 44.0 60.0 66.0 67.6 50 PXSS2K 1RA PVC18 0.73
63S M63 15.0 2″ 26.9 2 ½” 115 47.9 48.4 40.1 49.9 70.1 77.1 71.1 63S PXSS2K 1RA PVC21 1.07
63 M63 15.0 2½” 39.9 3″ 115 53.7 54.0 47.2 55.9 75.0 82.5 70.4 63 PXSS2K 1RA PVC23 1.06
75S M75 15.0 2½” 39.9 3″ 140 59.9 60.2 52.8 61.9 80.0 88.0 75.3 75S PXSS2K 1RA PVC25 1.30
75 M75 15.0 3″ 41.5 3 ½” 140 64.3 64.2 59.1 67.9 85.0 93.5 74.9 75 PXSS2K 1RA PVC27 1.30
90 M90 24.0 3½” 42.8 4″ 200 75.3 75.6 66.6 79.4 108.0 118.8 94.8 90 PXSS2K 1RA PVC31 3.02
100 M100 24.0 3½” 42.8 4″ 200 85.6 85.9 76.0 90.9 123.0 135.3 86.3 100 PXSS2K 1RA LSF33 4.00
Dimensions displayed in millimeters unless otherwise stated

Imperial

Cable Gland Size Available Entry Threads “C” (Alternate Metric Thread Lengths Available) Number of Cores Diameter Over Conductors
“A”
Cable Bedding Diameter “G” Overall
Cable
Diameter
“B”
Across
Flats
“D”
Across
Corners
“D”
Protrusion
Length “F”
Combined Ordering Reference
(*Brass Metric)
Shroud Cable
Gland
Weight
(Ozs)
Standard Option
Metric Thread Length (Metric) “E” NPT Thread Length
(NPT) “E”
NPT Max Min Max Max Max Size Type Ordering
Suffix
20S16 M20 0.59 ½” 0.78 ¾” 11 0.34 0.34 0.12 0.34 1.18 1.30 2.09 20S16 PXSS2K 1RA PVC06 7.05
20S M20 0.59 ½” 0.78 ¾” 11 0.46 0.46 0.24 0.46 1.18 1.30 2.09 20S PXSS2K 1RA PVC06 7.05
20 M20 0.59 ½” 0.78 ¾” 11 0.50 0.51 0.26 0.55 1.18 1.30 2.13 20 PXSS2K 1RA PVC06 7.05
20L M20 0.59 ½” 0.78 ¾” 11 0.50 0.51 0.39 0.63 1.18 1.30 2.13 20L PXSS2K 1RA PVC06 7.05
25 M25 0.59 ¾” 0.80 1″ 21 0.69 0.70 0.44 0.79 1.42 1.56 2.36 25 PXSS2K 1RA PVC09 11.64
32 M32 0.59 1″ 0.98 1 ¼” 38 0.93 0.94 0.67 1.04 1.61 1.78 2.41 32 PXSS2K 1RA PVC10 13.76
32L M32 0.59 1″ 0.98 1 ¼” 38 0.93 0.94 0.79 1.08 1.61 1.78 2.41 32L PXSS2K 1RA PVC10 20.81
40 M40 0.59 1¼” 1.01 1 ½” 59 1.18 1.19 0.87 1.26 1.97 2.17 2.46 40 PXSS2K 1RA PVC13 19.75
50S M50 0.59 1½” 1.03 2″ 89 1.44 1.45 1.16 1.50 2.17 2.38 2.57 50S PXSS2K 1RA PVC15 23.28
50 M50 0.59 2″ 1.06 2 ½” 89 1.61 1.63 1.40 1.73 2.36 2.60 2.66 50 PXSS2K 1RA PVC18 25.75
63S M63 0.59 2″ 1.06 2 ½” 115 1.89 1.91 1.58 1.96 2.76 3.04 2.80 63S PXSS2K 1RA PVC21 37.74
63 M63 0.59 2½” 1.57 3″ 115 2.11 2.13 1.86 2.20 2.95 3.25 2.77 63 PXSS2K 1RA PVC23 37.39
75S M75 0.59 2½” 1.57 3″ 140 2.36 2.37 2.08 2.44 3.15 3.46 2.96 75S PXSS2K 1RA PVC25 45.86
75 M75 0.59 3″ 1.63 3 ½” 140 2.53 2.53 2.33 2.67 3.35 3.68 2.95 75 PXSS2K 1RA PVC27 45.86
90 M90 0.94 3½” 1.69 4″ 200 2.96 2.98 2.62 3.13 4.25 4.68 3.73 90 PXSS2K 1RA PVC31 106.53
100 M100 0.94 3½” 1.69 4″ 200 3.37 3.38 2.99 3.58 4.84 5.33 3.40 100 PXSS2K 1RA LSF33 141.10
Dimensions displayed in inches unless otherwise stated
