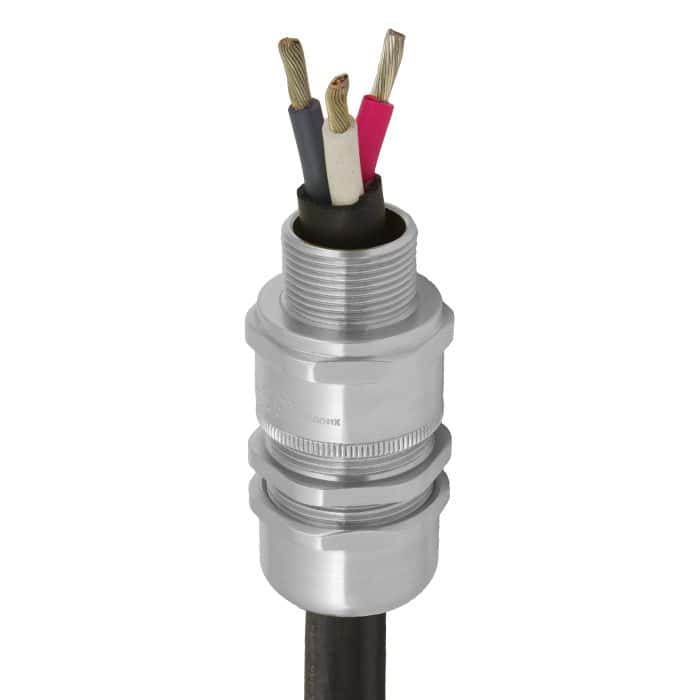

SS2K Cable Gland

INQUIRE

Ex eb, Ex db, Ex nR, Ex ta | Explosive Atmosphere Cable Gland
For all types of Unarmoured & Braid Armour Cables

Double Seal, Globally Approved, Explosive Atmosphere Cable Gland

  • Provides double seal on outer sheath or single on outer & inner
  • Direct & remote installation
  • Superior levels of cable retention
  • Displacement-type flameproof seals
  • Deluge protected
  • -60°C to +130°C (standard), -20°C to 200°C (ThermEx option SS2KHT)
  • Ex e only version available
  • Globally marked, IECEx, ATEX & CSA

Description

CMP SS2K

Product Selection Table

Cable Gland Size Available Entry Threads ‘C’ (Alternate Metric Thread Lengths Available) Cable
Bedding
Diameter
‘A’		 Overall
Cable
Diameter
‘B’		 Across
Flats
‘D’		 Across
Corners
‘D’		 Protrusion
Length ‘F’		 Combined Ordering Reference
(*Brass Metric)		 Shroud Cable
Gland
Weight
(Kgs)
Standard Option
Metric Thread Length (Metric) ‘E’ NPT Thread Length
(NPT) ‘E’		 NPT Min Max Min Max Max Max Size Type Ordering
Suffix
20S16 M20 15.0 ½’ 19.9 ¾” 3.2 8.6 3.2 8.6 24.0 26.4 49.0 20S16 SS2K 1RA PVC04 0.14
20S M20 15.0 ½’ 19.9 ¾” 6.1 11.7 6.1 11.7 24.0 26.4 49.0 20S SS2K 1RA PVC04 0.13
20 M20 15.0 ½’ 19.9 ¾” 6.5 14.0 6.5 14.0 27.0 29.7 54.0 20 SS2K 1RA PVC05 0.16
25 M25 15.0 ¾’ 20.2 1″ 11.1 20.0 11.1 20.0 36.0 39.6 66.0 25 SS2K 1RA PVC09 0.30
32 M32 15.0 1′ 25.0 1 ¼” 17.0 26.3 17.0 26.3 41.0 45.1 67.0 32 SS2K 1RA PVC10 0.35
40 M40 15.0 1 ¼’ 25.6 1 ½” 23.5 32.1 23.5 32.1 50.0 55.0 70.0 40 SS2K 1RA PVC13 0.50
50S M50 15.0 1 ½’ 26.1 2″ 31.0 38.2 31.0 38.2 55.0 60.5 65.0 50S SS2K 1RA PVC15 0.56
50 M50 15.0 2′ 26.9 2 ½” 35.6 44.0 35.6 44.0 60.0 66.0 70.0 50 SS2K 1RA PVC18 0.59
63S M63 15.0 2′ 26.9 2 ½” 41.5 49.9 41.5 49.9 70.5 77.6 70.0 63S SS2K 1RA PVC21 0.89
63 M63 15.0 2 ½’ 39.9 3″ 47.2 55.9 47.2 55.9 75.0 82.5 71.0 63 SS2K 1RA PVC23 0.85
75S M75 15.0 2 ½’ 39.9 3″ 54.0 61.9 54.0 61.9 80.0 88.0 70.0 75S SS2K 1RA PVC25 1.02
75 M75 15.0 3′ 41.5 3 ½” 61.1 67.9 61.1 67.9 84.0 92.4 75.0 75 SS2K 1RA PVC26 0.99
90 M90 24.0 3 ½’ 42.8 4″ 66.6 79.4 66.6 79.4 108.0 118.8 113.0 90 SS2K 1RA PVC31 2.99
100 M100 24.0 3 ½’ 42.8 4″ 76.0 90.9 76.0 90.9 123.0 134.2 106.0 100 SS2K 1RA LSF33 3.39
115 M115 24.0 4″ 44.0 5″ 86.0 97.9 86.0 97.9 133.4 146.7 128.0 115 SS2K 1RA LSF34 5.32
130 M130 24.0 5″ 46.8 – 97.0 114.9 97.0 114.9 152.4 167.6 129.0 130 SS2K 1RA LSF35 6.35
Dimensions displayed in millimeters unless otherwise stated
