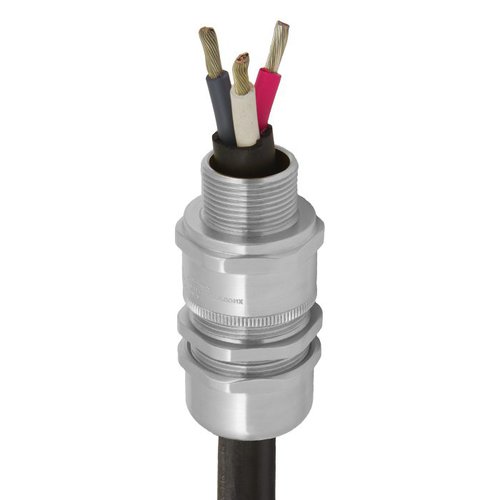

SS2KGP Cable Gland
industrial / general purpose double seal gland

Double Seal Industrial Cable Gland

• Direct & remote installation
• Superior levels of cable retention
• Displacement type seals
• Designed to prevent Coldflow
• Deluge protected
• -60°C to +130°C

For all types of Unarmoured & Braid Armoured Cables

Description

Technical

Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications* Impact = Level 8, Retention = Class B
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
GOST R Certificate POCC.GB.35.H00102
Marine Approvals LRS: 01/00171 (E1), ABS: 16-LD1472056-PDA
Ingress Protection Rating ** IP66, IP67 & IP68
Cable Gland Material Brass, Electroless Nickel Plated Brass, Stainless Steel, Aluminium
Seal Material CMP Thermoset Rubber
Cable Type Unarmoured
Sealing Technique CMP Unique Displacement Seal Concept
Sealing Area(s) Cable Inner Bedding & Outer Cable Sheath
Optional Accessories Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs
Optional Installation Tools Spanners

Product Table

Metric

Cable Gland Size Available Entry Threads “C”
(Alternate Metric Thread Lengths Available)
Overall Cable Diameter “A/B” Across
Flats
“D”
Across
Corners
“D”
Protrusion
Length “F”
Combined Ordering Reference
(*Brass Metric)
Shroud Cable
Gland
Weight
(Kgs)
Standard Option
Metric Metric Thread Length (Metric) “E” Thread Length
(NPT) “E”
NPT Max Max Max Max Size Type Ordering
Suffix
20S16 M20 10.0 ½” 19.9 ¾” 3.2 8.6 24.0 26.4 49.0 20S16 SS2KGP 1RA PVC04 0.14
20S M20 10.0 ½” 19.9 ¾” 6.1 11.7 24.0 26.4 49.0 20S SS2KGP 1RA PVC04 0.13
20 M20 10.0 ½” 19.9 ¾” 6.5 14.0 27.0 29.7 54.0 20 SS2KGP 1RA PVC05 0.16
25 M25 10.0 ¾” 20.2 1” 11.1 20.0 36.0 39.6 66.0 25 SS2KGP 1RA PVC09 0.30
32 M32 10.0 1” 25.0 1 ¼” 17.0 26.3 41.0 45.1 67.0 32 SS2KGP 1RA PVC10 0.35
40 M40 15.0 1 ¼” 25.6 1 ½” 23.5 32.1 50.0 55.0 70.0 40 SS2KGP 1RA PVC13 0.50
50S M50 15.0 1 ½” 26.1 2” 31.0 38.2 55.0 60.5 65.0 50S SS2KGP 1RA PVC15 0.56
50 M50 15.0 2” 26.9 2 ½” 35.6 44.0 60.0 66.0 70.0 50 SS2KGP 1RA PVC18 0.59
63S M63 15.0 2” 26.9 2 ½” 41.5 49.9 70.5 77.6 70.0 63S SS2KGP 1RA PVC21 0.89
63 M63 15.0 2 ½” 39.9 3” 47.2 55.9 75.0 82.5 71.0 63 SS2KGP 1RA PVC23 0.85
75S M75 15.0 2 ½” 39.9 3” 54.0 61.9 80.0 88.0 70.0 75S SS2KGP 1RA PVC25 1.02
75 M75 15.0 3” 41.5 3 ½” 61.1 67.9 84.0 92.4 75.0 75 SS2KGP 1RA PVC26 0.99
90 M90 24.0 3 ½” 42.8 4” 66.6 79.4 108.0 118.8 113.0 90 SS2KGP 1RA PVC31 2.99
100 M100 24.0 4” 44.0 5” 76.0 90.9 123.0 134.2 106.0 100 SS2KGP 1RA LSF33 3.39
115 M115 24.0 4” 44.0 5” 86.0 97.9 133.4 146.7 128.0 115 SS2KGP 1RA LSF34 5.32
130 M130 24.0 5” 46.8 97.0 114.9 152.4 167.6 129.0 130 SS2KGP 1RA LSF35 6.35
Dimensions displayed in millimeters unless otherwise stated

Imperial

Cable Gland Size Available Entry Threads “C”
(Alternate Metric Thread Lengths Available)
Overall Cable Diameter “A/B” Across
Flats
“D”
Across
Corners
“D”
Protrusion
Length “F”
Combined Ordering Reference
(*Brass Metric)
Shroud Cable
Gland
Weight
(Ozs)
Standard Option
Metric Metric Thread Length (Metric) “E” Thread Length
(NPT) “E”
NPT Max Max Max Max Size Type Ordering
Suffix
20S16 M20 0.39 ½” 0.78 ¾” 0.13 0.34 0.94 1.04 1.93 20S16 SS2KGP 1RA PVC04 4.94
20S M20 0.39 ½” 0.78 ¾” 0.24 0.46 0.94 1.04 1.93 20S SS2KGP 1RA PVC04 4.59
20 M20 0.39 ½” 0.78 ¾” 0.26 0.55 1.06 1.17 2.13 20 SS2KGP 1RA PVC05 5.64
25 M25 0.39 ¾” 0.80 1” 0.44 0.79 1.42 1.56 2.60 25 SS2KGP 1RA PVC09 10.58
32 M32 0.39 1” 0.98 1 ¼” 0.67 1.04 1.61 1.78 2.64 32 SS2KGP 1RA PVC10 12.35
40 M40 0.59 1 ¼” 1.01 1 ½” 0.93 1.26 1.97 2.17 2.76 40 SS2KGP 1RA PVC13 17.64
50S M50 0.59 1 ½” 1.03 2” 1.22 1.50 2.17 2.38 2.56 50S SS2KGP 1RA PVC15 19.75
50 M50 0.59 2” 1.06 2 ½” 1.40 1.73 2.36 2.60 2.76 50 SS2KGP 1RA PVC18 20.81
63S M63 0.59 2” 1.06 2 ½” 1.63 1.96 2.78 3.06 2.76 63S SS2KGP 1RA PVC21 31.39
63 M63 0.59 2 ½” 1.57 3” 1.86 2.20 2.95 3.25 2.80 63 SS2KGP 1RA PVC23 29.98
75S M75 0.59 2 ½” 1.57 3” 2.13 2.44 3.15 3.46 2.76 75S SS2KGP 1RA PVC25 35.98
75 M75 0.59 3” 1.63 3 ½” 2.41 2.67 3.31 3.64 2.95 75 SS2KGP 1RA PVC26 34.92
90 M90 0.94 3 ½” 1.69 4” 2.62 3.13 4.25 4.68 4.45 90 SS2KGP 1RA PVC31 105.47
100 M100 0.94 4” 1.73 5” 2.99 3.58 4.84 5.28 4.17 100 SS2KGP 1RA LSF33 119.58
115 M115 0.94 4” 1.73 5” 3.39 3.85 5.25 5.78 5.04 115 SS2KGP 1RA LSF34 187.66
130 M130 0.94 5” 1.84 3.82 4.52 6.00 6.60 5.08 130 SS2KGP 1RA LSF35 223.99
Dimensions displayed in millimeters unless otherwise stated

Download Spec Sheet
