SS2KHT

SS2KHT Cable gland

INQUIRE

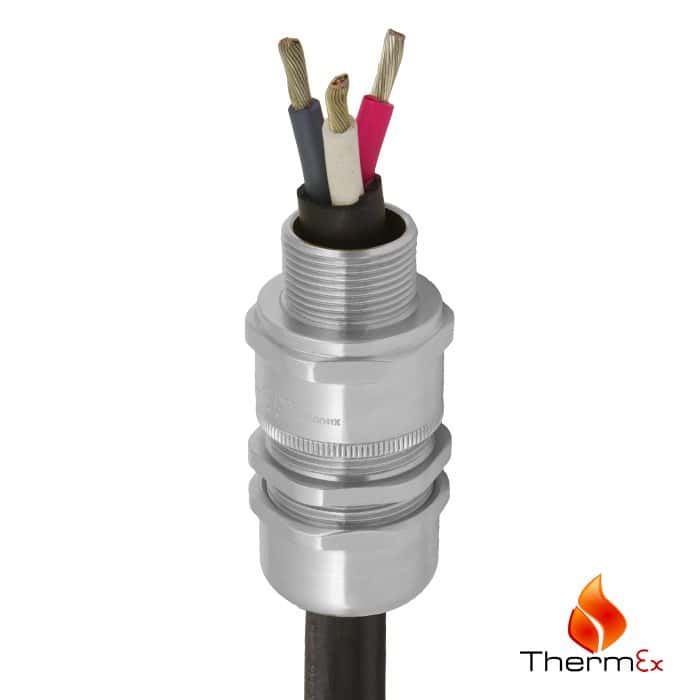

Double Seal, Internationally Approved, Explosive Atmosphere Cable Gland

• -20°C to 200°C high temperature ThermEx seals
• Provides double seal on outer sheath or single on outer & inner
• Direct & remote installation
• Superior levels of cable retention
• Displacement type flameproof seals
• Designed to prevent Coldflow
• Deluge protected
• Class I Zone 1, 21 and Zone 2, 22
• Internationally marked IECEx & ATEX

Description

Product Selection Table

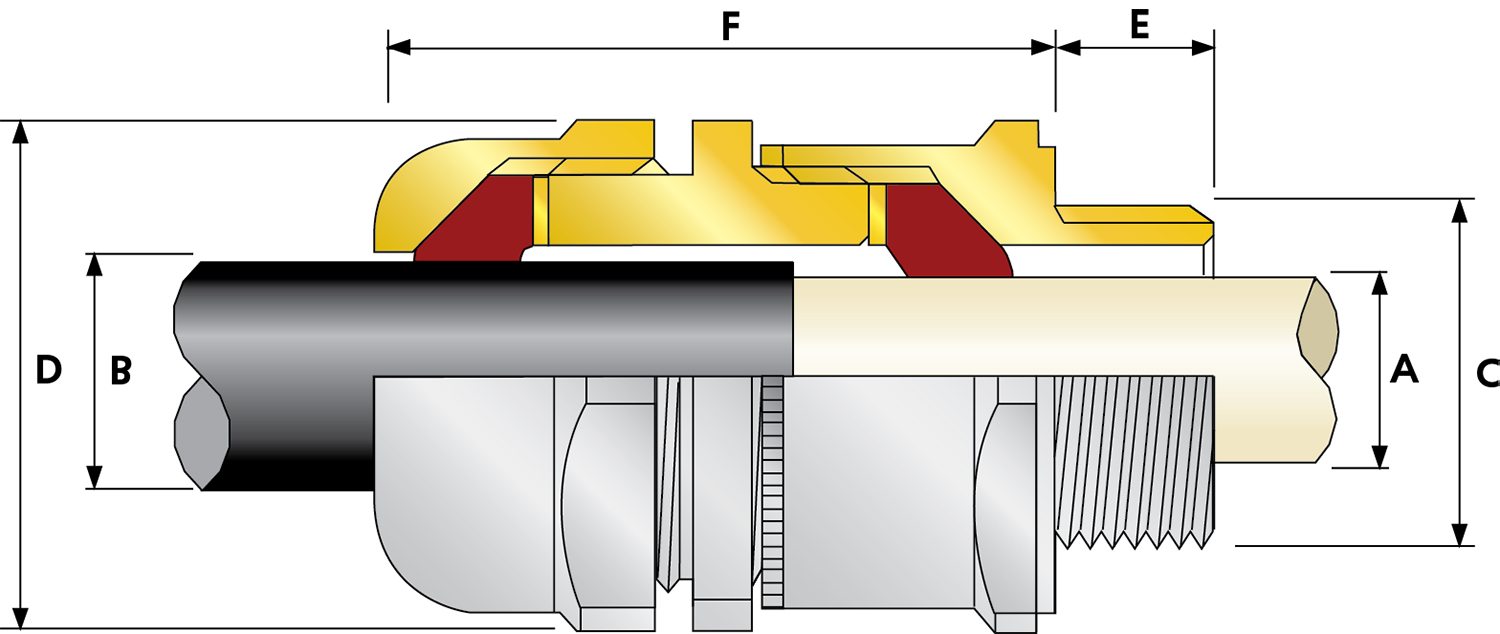

Cable Gland SizeAvailable Entry Threads ‘C’ (Alternate Metric Thread Lengths Available)Cable
Bedding
Diameter
‘A’		Overall
Cable
Diameter
‘B’		Across
Flats
‘D’		Across
Corners
‘D’		Protrusion
Length ‘F’		Combined Ordering Reference
(*Brass Metric)		ShroudCable
Gland
Weight
(Kgs)
StandardOption
MetricThread Length (Metric) ‘E’NPTThread Length
(NPT) ‘E’		NPTMinMaxMinMaxMaxMaxSizeTypeOrdering
Suffix
20S16M2015.0½’19.9¾”3.28.63.28.624.026.449.020S16SS2KHT1RAPVC040.14
20SM2015.0½’19.9¾”6.111.76.111.724.026.449.020SSS2KHT1RAPVC040.13
20M2015.0½’19.9¾”6.514.06.514.027.029.754.020SS2KHT1RAPVC050.16
25M2515.0¾’20.21″11.120.011.120.036.039.666.025SS2KHT1RAPVC090.30
32M3215.01′25.01 ¼”17.026.317.026.341.045.167.032SS2KHT1RAPVC100.35
40M4015.01 ¼’25.61 ½”23.532.123.532.150.055.070.040SS2KHT1RAPVC130.50
50SM5015.01 ½’26.12″31.038.231.038.255.060.565.050SSS2KHT1RAPVC150.56
50M5015.02′26.92 ½”35.644.035.644.060.066.070.050SS2KHT1RAPVC180.59
63SM6315.02′26.92 ½”41.549.941.549.970.577.670.063SSS2KHT1RAPVC210.89
63M6315.02 ½’39.93″47.255.947.255.975.082.571.063SS2KHT1RAPVC230.85
75SM7515.02 ½’39.93″54.061.954.061.980.088.070.075SSS2KHT1RAPVC251.02
75M7515.03′41.53 ½”61.167.961.167.984.092.475.075SS2KHT1RAPVC260.99
90M9024.03 ½’42.84″66.679.466.679.4108.0118.8113.090SS2KHT1RAPVC312.99
100M10024.03 ½’42.84″76.090.976.090.9123.0134.2106.0100SS2KHT1RALSF333.39
115M11524.04″44.05″86.097.986.097.9133.4146.7128.0115SS2KHT1RALSF345.32
130M13024.05″46.8–97.0114.997.0114.9152.4167.6129.0130SS2KHT1RALSF356.35
Dimensions displayed in millimeters unless otherwise stated



Download Spec Sheet

Download

Product Selection Table



Cable Gland SizeAvailable Entry Threads ‘C’ (Alternate Metric Thread Lengths Available)Cable
Bedding
Diameter
‘A’		Overall
Cable
Diameter
‘B’		Across
Flats
‘D’		Across
Corners
‘D’		Protrusion
Length ‘F’		Combined Ordering Reference
(*Brass Metric)		ShroudCable
Gland
Weight
(Kgs)
StandardOption
MetricThread Length (Metric) ‘E’NPTThread Length
(NPT) ‘E’		NPTMinMaxMinMaxMaxMaxSizeTypeOrdering
Suffix
20S16M2015.0½’19.9¾”3.28.63.28.624.026.449.020S16SS2KHT1RAPVC040.14
20SM2015.0½’19.9¾”6.111.76.111.724.026.449.020SSS2KHT1RAPVC040.13
20M2015.0½’19.9¾”6.514.06.514.027.029.754.020SS2KHT1RAPVC050.16
25M2515.0¾’20.21″11.120.011.120.036.039.666.025SS2KHT1RAPVC090.30
32M3215.01′25.01 ¼”17.026.317.026.341.045.167.032SS2KHT1RAPVC100.35
40M4015.01 ¼’25.61 ½”23.532.123.532.150.055.070.040SS2KHT1RAPVC130.50
50SM5015.01 ½’26.12″31.038.231.038.255.060.565.050SSS2KHT1RAPVC150.56
50M5015.02′26.92 ½”35.644.035.644.060.066.070.050SS2KHT1RAPVC180.59
63SM6315.02′26.92 ½”41.549.941.549.970.577.670.063SSS2KHT1RAPVC210.89
63M6315.02 ½’39.93″47.255.947.255.975.082.571.063SS2KHT1RAPVC230.85
75SM7515.02 ½’39.93″54.061.954.061.980.088.070.075SSS2KHT1RAPVC251.02
75M7515.03′41.53 ½”61.167.961.167.984.092.475.075SS2KHT1RAPVC260.99
90M9024.03 ½’42.84″66.679.466.679.4108.0118.8113.090SS2KHT1RAPVC312.99
100M10024.03 ½’42.84″76.090.976.090.9123.0134.2106.0100SS2KHT1RALSF333.39
115M11524.04″44.05″86.097.986.097.9133.4146.7128.0115SS2KHT1RALSF345.32
130M13024.05″46.8–97.0114.997.0114.9152.4167.6129.0130SS2KHT1RALSF356.35
Dimensions displayed in millimeters unless otherwise stated
