T3CDS

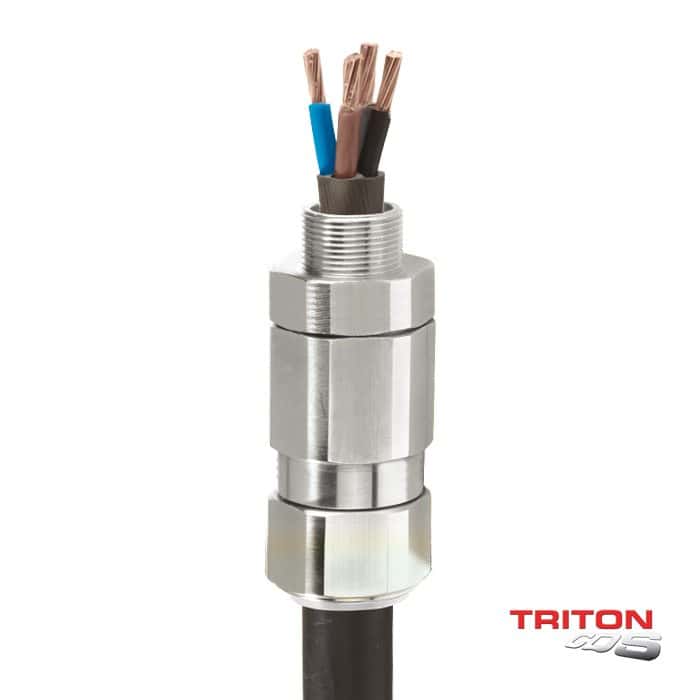

Triton T3CDS Cable Gland

INQUIRE

Ex eb, Ex db, Ex nR & Ex ta | Explosive Atmosphere Cable Gland
For all types of Armoured Cables

Globally Approved, Explosive Atmosphere Cable Gland

• Fully sequential, three step installation procedure
• Reduces installation times, cost & risk
• Direct & remote installation
• Unique compensating displacement seal system (CDS)
– Metal-to-metal installation every time regardless of cable diameter
• Designed to prevent Coldflow, see CMP Technical Document TS002 (available upon request)
• Integral protected deluge seal
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• -60°C to +130°C (standard), -20°C to 200°C (ThermEx option T3CDSHT)
• Globally marked, IECEx, ATEX, UL & cCSAus
• EMC tested

Patents granted: DE 1077517, FR 1077517, GB 1077517

Description

cmp t3cds

† Grooved Cone (X) is predominantly used for Wire Braid (e.g. GSWB, TCWB), Steel Tape Armour (STA, DSTA) and Aluminium Strip Armour (ASA) but is also suitable for Single Wire Armour (SWA), Aluminium Wire Armour (AWA) and Pliable Wire Armour (PWA) if the range is outside that of the Stepped Cone (W). cmp t3cds

Note: Grooved Cone (X) dimensions shown in the Cable Gland Selection Table below are for a double wire strand of braid armour cables. Tapes can also be doubled over. For cables that have only a single layer of armour such as SWA the clamping range should be used as shown in the table below.

Stepped (W) Cone is suitable for Single Wire Armour (SWA), or Aluminium Wire Armour (AWA) cables.

Product Selection Table

Cable Gland Size Available Entry Threads ‘C’ (Alternate Metric Thread Lengths Available) Cable
Bedding
Diameter
‘A’		 Overall
Cable
Diameter
‘B’		 Armour Range Across
Flats
‘D’		 Across
Corners
‘D’		 Protrusion
Length ‘F’		 Combined Ordering Reference
(*Brass Metric)		 Shroud Cable
Gland
Weight
(Kgs)
Standard Option Grooved Cone (X) Stepped Cone (W)
Metric Thread Length (Metric) ‘E’ NPT Thread Length
(NPT) ‘E’		 NPT Min Max Min Max Min Max Min Max Max Max Size Type Ordering
Suffix
16 M16 15.0 – – – 3.1 8.6 6.1 13.1 0.3 1.0 0.8 1.25 24.0 26.4 78.7 16 T3CDS 1RA PVC36 0.18
20S16 M20 15.0 ½” 19.9 ¾” 3.1 8.6 6.1 13.1 0.3 1.0 0.8 1.25 24.0 26.4 78.7 20S16 T3CDS 1RA PVC36 0.20
20S M20 15.0 ½” 19.9 ¾” 6.1 11.6 9.5 15.9 0.3 1.0 0.8 1.25 24.0 26.4 78.7 20S T3CDS 1RA PVC36 0.20
20 M20 15.0 ½” 19.9 ¾” 6.5 13.9 12.5 20.9 0.4 1.0 0.8 1.25 30.5 33.6 76.2 20 T3CDS 1RA PVC06 0.28
25S M25 15.0 ¾” 20.2 1″ 11.1 19.9 14.0 22.0 0.4 1.2 1.25 1.6 37.5 41.3 88.8 25S T3CDS 1RA PVC09 0.44
25 M25 15.0 ¾” 20.2 1″ 11.1 19.9 18.2 26.2 0.4 1.2 1.25 1.6 37.5 41.3 88.7 25 T3CDS 1RA PVC09 0.44
32 M32 15.0 1″ 25.0 1 ¼” 17.0 26.2 23.7 33.9 0.4 1.2 1.6 2.0 46.0 50.6 90.7 32 T3CDS 1RA PVC11 0.63
40 M40 15.0 1 ¼” 25.6 1 ½” 22.0 32.1 27.9 40.4 0.4 1.6 1.6 2.0 55.0 60.5 93.2 40 T3CDS 1RA PVC15 0.91
50S M50 15.0 1 ½” 26.1 2″ 29.5 38.1 35.2 46.7 0.4 1.6 2.0 2.5 60.0 66.0 100.7 50S T3CDS 1RA PVC18 1.12
50 M50 15.0 2″ 26.9 2 ½” 35.6 44.0 40.4 53.0 0.6 1.6 2.0 2.5 70.1 77.1 105.8 50 T3CDS 1RA PVC21 1.60
63S M63 15.0 2″ 26.9 2 ½” 40.1 49.9 45.6 59.4 0.6 1.6 2.0 2.5 75.0 82.5 102.5 63S T3CDS 1RA PVC23 1.73
63 M63 15.0 2 ½” 39.9 3″ 47.2 55.9 54.6 65.8 0.6 1.6 2.0 2.5 80.0 88.0 105.4 63 T3CDS 1RA PVC25 1.78
75S M75 15.0 2 ½” 39.9 3″ 52.8 61.9 59.0 72.0 0.6 1.6 2.0 2.5 90.0 99.0 110.6 75S T3CDS 1RA PVC28 2.57
75 M75 15.0 3″ 41.5 3 ½” 59.1 67.9 66.7 78.4 0.6 1.6 2.5 3.0 100.0 110.0 120.3 75 T3CDS 1RA PVC30 3.33
90 M90 24.0 3 ½” 42.8 4″ 66.6 78.6 76.2 90.3 0.8 1.6 3.15 4.0 115.0 126.5 138.9 90 T3CDS 1RA PVC32 4.87
100 M100 24.0 3 ½” 42.8 4″ 76.0 90.9 86.1 101.4 0.8 1.6 3.15 4.0 127.0 139.7 128.2 100 T3CDS 1RA LSF33 4.97
115 M115 24.0 4″ 44.0 5″ 86.0 97.9 101.5 110.2 0.8 1.6 3.15 4.0 138.0 151.8 161.3 115 T3CDS 1RA LSF34 7.72
130 M130 24.0 5″ 46.8 – 97.0 114.9 110.2 123.2 0.8 1.6 3.15 4.0 157.0 172.7 173.3 130 T3CDS 1RA LSF35 9.78
Dimensions displayed in millimeters unless otherwise stated

Part Numbers

20S16T3CDS1RA5 20S16T3CDSM20FNP 20S16T3CDS1RA531 20S16T3CDS050FNP
20ST3CDS1RA5 20ST3CDSM20FNP 20S16T3CDS1RA532 20S16T3CDS075FNP
20T3CDS1RA5 20T3CDSM20FNP 20ST3CDS1RA531 20ST3CDS050FNP
25ST3CDS1RA5 25ST3CDSM25FNP 20ST3CDS1RA532 20ST3CDS075FNP
25T3CDS1RA5 25T3CDSM25FNP 20T3CDS1RA531 20T3CDS050FNP
32T3CDS1RA5 32T3CDSM32FNP 20T3CDS1RA532 20T3CDS075FNP
40T3CDS1RA5 40T3CDSM40FNP 25ST3CDS1RA532 25ST3CDS075FNP
50ST3CDS1RA5 50ST3CDSM50FNP 25T3CDS1RA532 25T3CDS075FNP
50T3CDS1RA5 50T3CDSM50FNP 32T3CDS1RA533 32T3CDS100FNP
63ST3CDS1RA5 63ST3CDSM63FNP 40T3CDS1RA534 40T3CDS125FNP
63T3CDS1RA5 63T3CDSM63FNP 50ST3CDS1RA535 50ST3CDS150FNP
75ST3CDS1RA5 75ST3CDSM75FNP 50T3CDS1RA536 50T3CDS200FNP
75T3CDS1RA5 75T3CDSM75FNP 63ST3CDS1RA536 63ST3CDS200FNP
90T3CDS1RA5 90T3CDSM90FNP 63T3CDS1RA537 63T3CDS250FNP
75ST3CDS1RA537 75ST3CDS250FNP
75T3CDS1RA538 75T3CDS300FNP
90T3CDS1RA539 90T3CDS350FNP
