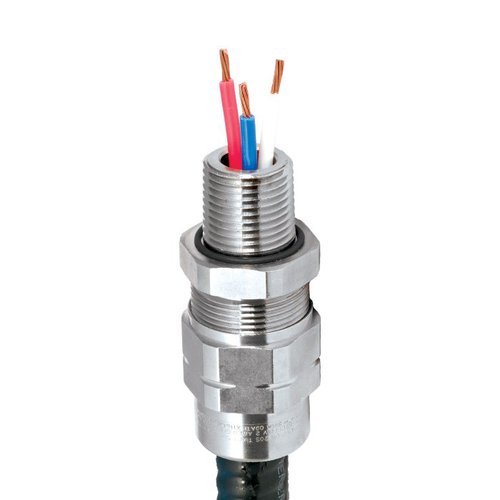

TMC2 Cable Gland
hazardous area mc, mc-hl, interlocked & teck armoured cables

Description

TMC2 Cable Gland

TMC2 cable glands are used with MC/MC-HL, corrugated interlocked aluminum and steel armor or continuously welded armor (TECK or CLx) cables. At termination, they form a watertight mechanical connection that provides ground continuity for cable armor.

This cable gland type is certified by ATEX for safe glanding in Class II, Division 1 and 2, environments. It’s manufactured to meet a wide array of standards, specifications, and codes.

ATEX Certificates

  • CML 18ATEX1335X

Approvals

  • LRS: 01/00172
  • DNV: TAE00000Y
  • ABS: 20-LD1948801-PDA
  • BV: 43180/A1BV

Compliance Standards

  • IEC 60079-0,1,7,31

IECEx Certificates

  • IECEx CML 18.0192X

UL Compliance Standards

  • UL 514B Ed 5
  • UL 2225
  • UL 50

Code of Protection

  • Class I, Div 2, Groups A, B, C, and D; Class II, Div 1 and 2, Groups E, F, and G; Class III, Div 1 and 2; Encl. Type 4X; Ex e II
  • Class I, Zone 1, AEx e II; AEx ta IIIC

TMC2s feature a compact profile and low-impedance, copper-plated stainless steel 360-degree grounding spring. A simple, sequential installation process improves reliability while minimizing risk, cost, and setup time.

Available construction materials include brass, electroless nickel-plated brass, stainless steel, and aluminum constructions. EUTEX International’s standard offering is nickel-plated brass. Optional accessories include locknuts, earth tags, serrated washers, entry thread seals, shrouds, and ingress discs.

This cable gland is designed to excel in operating conditions from -76°F, or -60°C, to 230°F, or 110°C. With an extensive operating range, TMC2 cable glands can support many applications.

  • Aerospace
  • Defense
  • Chemical
  • Mining
  • Minerals & Metals
  • Commercial Construction
  • Downstream Hydrocarbons
  • Food & Beverage
  • Industrial Energy
  • Onsite Utilities

  • Industrial Machinery
  • Laboratory and R&D
  • Life Sciences
  • Medical
  • Marine
  • Oil & Gas
  • Packaging
  • Power
  • Pulp & Paper
  • Textiles
  • Water & Wastewate

Ready To Help

EUTEX International is an ISO 9001:2015-certified supplier of electric cables and accessories for industrial use. We’re dedicated to providing quality products to clients with superior customer service.

With locations worldwide, our team can deliver orders on time and within budget.

Give us a call for more information about the TMC2 cable gland. We’re available to answer any questions.

Technical



Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
Mechanical Classifications* Impact = Level 8, Retention = Class D
ATEX Certificate SIRA09ATEX1164X
Code of Protection II 2GD, Ex e IIC Gb, Ex ta IIIC Da
Compliance Standards EN 60079-0,7, EN 61241-0,1
IECEx Certificate IECEx SIR 09.0068X
Code of Protection Ex e IIC Gb, Ex ta IIIC Da
Compliance Standards IEC 60079-0,1,7,31
cCSAus Certificate 2194053
CSAus Code of Protection Class I, Div 2, Groups A, B, C and D; Class II, Div 1 and 2, Groups E, F, and G; Class III, Div
1 and 2; Encl. Type 4X.
Class I, Zone 1, AEx e II; AEx ta IIC:
cCSA Code of Protection Class I, Div 2, Groups A, B, C and D; Class II, Div 1 and 2, Groups E, F, and G; Class III, Div
1 and 2; Encl. Type 4X.
Ex e II;
Compliance Standards CAN/CSA-C22.2 Various Sections (See Certificate) CAN/CSA-E60079-0,7, CAN/
CSA-E61241-1-1, ANSI/UL 514B Ed 5, ANSI/UL 50 Ed 11
EAC Certificate (Formerly GOST R, K & B) TC RU C-GB.AA87.B.00487
UkrSEPRO UA.TR.047.C.0644-15
CCOE / PESO (India) Certificate P333688
RETIE Approval 03866
Marine Approvals LRS: 01/00172, DNV: TAE00000Y, ABS: 15-LD1410479-PDA, BV: 43180/A1BV
Ingress Protection Rating** NEMA 4X & IP66
Cable Type Corrugated & Interlocked Metal Clad Armour (MC) or TECK90, Continuously Welded Metal
Clad Armour (MCHL), ACIC-HL, ACWU90-HL, RC90-HL, RA90-HL
Armour Clamping 360° Stainless Steel Grounding Spring (non-magnetic)
Jacket Sealing Technique CMP Load Retention Seal
Sealing Area(s) Cable Outer Jacket
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer
Cable Gland Material Copper Free (<0.4%) Aluminium, Stainless Steel, Electroless Nickel Plated Brass

Product Table

Metric

Order Reference
(NPT suffix required)
Entry Thread “C” Minimum
Thread Length “E”
Cable Armor Diameter “A” Cable Jacket Diameter “B” Thru
Bore
“G”
Across Flats
“D”
Across Corners “D” Nominal Assembly Length “F” Shroud Approx
Weight
Aluminum
(Kgs)
Armor Stop
In
Armor Stop Out
Aluminum Nickel Plated Brass Stainless Steel NPT
Standard
NPT Option Min Max Min Max Min Max Max Max Max
TMC2050A075 TMC2050NB075 TMC2050SS075 ½” 19.8 10.7 14.0 14.0 16.0 12.7 19.1 13.0 30.5 33.5 62.0 PVC06 0.06
TMC2075A075 TMC2075NB075 TMC2075SS075 ¾” 20.3 10.7 14.0 14.0 16.0 13.0
TMC2050A099 TMC2050NB099 TMC2050SS099 ½” 19.8 15.2 16.5 16.5 22.6 17.5 25.1 15.5 37.6 41.4 75.2 PVC09 0.09
TMC2075A099 TMC2075NB099 TMC2075SS099 ¾” 20.3 15.2 19.8 19.8 22.6 19.1
TMC2075A118 TMC2075NB118 TMC2075SS118 ¾” 20.3 20.1 21.8 21.8 27.9 22.1 30.0 20.8 46.0 50.5 80.0 PVC11 0.14
TMC2100A118 TMC2100NB118 TMC2100SS118 1″ 24.9 20.1 24.9 24.9 27.9 24.1
TMC2100A137 TMC2100NB137 TMC2100SS137 1″ 24.9 23.9 27.4 27.4 32.5 25.9 34.8 26.4 52.1 57.4 90.2 PVC15 0.19
TMC2125A137 TMC2125NB137 TMC2125SS137 1¼” 25.7 23.9 30.0 30.0 32.5 29.0
TMC2125A162 TMC2125NB162 TMC2125SS162 1¼” 25.7 31.0 34.3 34.3 38.1 33.0 41.1 33.3 59.9 66.0 91.2 PVC18 0.25
TMC2150A162 TMC2150NB162 TMC2150SS162 1½” 26.2 31.0 36.1 36.1 38.1 35.1
TMC2125A190 TMC2125NB190 TMC2125SS190 1¼” 25.7 38.4 43.7 39.9 48.3 34.8 65.0 71.6 91.2 PVC37 0.27
TMC2150A190 TMC2150NB190 TMC2150SS190 1½” 26.2 38.4 43.7 39.1
TMC2150A200 TMC2150NB200 TMC2150SS200 1½” 26.2 39.9 43.2 43.2 47.8 41.9 50.8 40.9 69.9 77.0 95.5 PVC21 0.31
TMC2200A200 TMC2200NB200 TMC2200SS200 2″ 26.9 39.9 43.2 43.2 47.8 41.9
TMC2150A233 TMC2150NB233 TMC2150SS233 1½” 26.2 46.0 56.1 48.3 59.2 40.9 74.9 82.6 100.8 PVC23 0.36
TMC2200A233 TMC2200NB233 TMC2200SS233 2″ 26.9 46.0 56.1 51.6
TMC2250A233 TMC2250NB233 TMC2250SS233 2½” 39.9 46.0 56.1 51.6
TMC2200A272 TMC2200NB272 TMC2200SS272 2″ 26.9 54.4 62.5 55.1 66.3 57.7 69.1 52.6 89.9 98.8 104.1 PVC28 0.70
TMC2250A272 TMC2250NB272 TMC2250SS272 2½” 39.9 54.4 62.5 62.5 66.3 61.0
TMC2300A272 TMC2300NB272 TMC2300SS272 3″ 41.4 54.4 62.5 62.5 66.3 61.0
TMC2300A325 TMC2300NB325 TMC2300SS325 3″ 41.4 63.2 70.6 70.6 75.4 66.5 82.6 69.1 110.0 120.9 118.6 PVC32 1.21
TMC2350A325 TMC2350NB325 TMC2350SS325 3½” 42.9 63.2 70.6 70.6 75.4 69.1
TMC2350A376 TMC2350NB376 TMC2350SS376 3½” 42.9 74.9 87.6 87.6 89.9 80.3 95.5 85.9 122.9 135.1 125.7 LSF33 1.51
TMC2400A376 TMC2400NB376 TMC2400SS376 4″ 43.9 74.9 87.6 87.6 89.9 85.9
TMC2400A425 TMC2400NB425 TMC2400SS425 4″ 43.9 90.4 100.1 94.0 108.0 91.2 132.8 146.1 131.1 LSF34 1.68
Dimensions displayed in millimeters unless otherwise stated

Imperial

Order Reference
(NPT suffix required)
Entry Thread “C” Minimum
Thread Length “E”
Cable Armor Diameter “A” Cable Jacket Diameter “B” Thru
Bore
“G”
Across Flats
“D”
Across Corners “D” Nominal Assembly Length “F” Shroud Approx
Weight
Aluminum
(Ozs)
Armor Stop
In
Armor Stop Out
Aluminum Nickel Plated Brass Stainless Steel NPT
Standard
NPT Option Min Max Min Max Min Max Max Max Max
TMC2050A075 TMC2050NB075 TMC2050SS075 ½” 0.78 0.42 0.55 0.55 0.63 0.50 0.75 0.51 1.20 1.32 2.44 PVC06 2.29
TMC2075A075 TMC2075NB075 TMC2075SS075 ¾” 0.80 0.42 0.55 0.55 0.63 0.51
TMC2050A099 TMC2050NB099 TMC2050SS099 ½” 0.78 0.60 0.65 0.65 0.89 0.69 0.99 0.61 1.48 1.63 2.96 PVC09 3.00
TMC2075A099 TMC2075NB099 TMC2075SS099 ¾” 0.80 0.60 0.78 0.78 0.89 0.75
TMC2075A118 TMC2075NB118 TMC2075SS118 ¾” 0.80 0.79 0.86 0.86 1.10 0.87 1.18 0.82 1.81 1.99 3.15 PVC11 5.11
TMC2100A118 TMC2100NB118 TMC2100SS118 1″ 0.98 0.79 0.98 0.98 1.10 0.95
TMC2100A137 TMC2100NB137 TMC2100SS137 1″ 0.98 0.94 1.08 1.08 1.28 1.02 1.37 1.04 2.05 2.26 3.55 PVC15 6.70
TMC2125A137 TMC2125NB137 TMC2125SS137 1¼” 1.01 0.94 1.18 1.18 1.28 1.14
TMC2125A162 TMC2125NB162 TMC2125SS162 1¼” 1.01 1.22 1.35 1.35 1.50 1.30 1.62 1.31 2.36 2.60 3.59 PVC18 8.82
TMC2150A162 TMC2150NB162 TMC2150SS162 1½” 1.03 1.22 1.42 1.42 1.50 1.38
TMC2125A190 TMC2125NB190 TMC2125SS190 1¼” 1.01 1.51 1.72 1.57 1.90 1.37 2.56 2.82 3.59 PVC37 9.45
TMC2150A190 TMC2150NB190 TMC2150SS190 1½” 1.03 1.51 1.72 1.54
TMC2150A200 TMC2150NB200 TMC2150SS200 1½” 1.03 1.57 1.70 1.70 1.88 1.65 2.00 1.61 2.75 3.03 3.76 PVC21 11.06
TMC2200A200 TMC2200NB200 TMC2200SS200 2″ 1.06 1.57 1.70 1.70 1.88 1.65
TMC2150A233 TMC2150NB233 TMC2150SS233 1½” 1.03 1.81 2.21 1.90 2.33 1.61 2.95 3.25 3.97 PVC23 12.77
TMC2200A233 TMC2200NB233 TMC2200SS233 2″ 1.06 1.81 2.21 2.03
TMC2250A233 TMC2250NB233 TMC2250SS233 2½” 1.57 1.81 2.21 2.03
TMC2200A272 TMC2200NB272 TMC2200SS272 2″ 1.06 2.14 2.46 2.17 2.61 2.27 2.72 2.07 3.54 3.89 4.10 PVC28 24.69
TMC2250A272 TMC2250NB272 TMC2250SS272 2½” 1.57 2.14 2.46 2.46 2.61 2.40
TMC2300A272 TMC2300NB272 TMC2300SS272 3″ 1.63 2.14 2.46 2.46 2.61 2.40
TMC2300A325 TMC2300NB325 TMC2300SS325 3″ 1.63 2.49 2.78 2.78 2.97 2.62 3.25 2.72 4.33 4.76 4.67 PVC32 42.68
TMC2350A325 TMC2350NB325 TMC2350SS325 3½” 1.69 2.49 2.78 2.78 2.97 2.72
TMC2350A376 TMC2350NB376 TMC2350SS376 3½” 1.69 2.95 3.45 3.45 3.54 3.16 3.76 3.38 4.84 5.32 4.95 LSF33 53.44
TMC2400A376 TMC2400NB376 TMC2400SS376 4″ 1.73 2.95 3.45 3.45 3.54 3.38
TMC2400A425 TMC2400NB425 TMC2400SS425 4″ 1.73 3.56 3.94 3.70 4.25 3.59 5.23 5.75 5.16 LSF34 59.19
Dimensions displayed in inches unless otherwise stated

Download Spec Sheet

Download

TMC2 Cable Gland

TMC2 cable glands are used with MC/MC-HL, corrugated interlocked aluminum and steel armor or continuously welded armor (TECK or CLx) cables. At termination, they form a watertight mechanical connection that provides ground continuity for cable armor.

This cable gland type is certified by ATEX for safe glanding in Class II, Division 1 and 2, environments. It’s manufactured to meet a wide array of standards, specifications, and codes.

ATEX Certificates

  • CML 18ATEX1335X

Approvals

  • LRS: 01/00172
  • DNV: TAE00000Y
  • ABS: 20-LD1948801-PDA
  • BV: 43180/A1BV

Compliance Standards

  • IEC 60079-0,1,7,31

IECEx Certificates

  • IECEx CML 18.0192X

UL Compliance Standards

  • UL 514B Ed 5
  • UL 2225
  • UL 50

Code of Protection

  • Class I, Div 2, Groups A, B, C, and D; Class II, Div 1 and 2, Groups E, F, and G; Class III, Div 1 and 2; Encl. Type 4X; Ex e II
  • Class I, Zone 1, AEx e II; AEx ta IIIC

TMC2s feature a compact profile and low-impedance, copper-plated stainless steel 360-degree grounding spring. A simple, sequential installation process improves reliability while minimizing risk, cost, and setup time.

Available construction materials include brass, electroless nickel-plated brass, stainless steel, and aluminum constructions. EUTEX International’s standard offering is nickel-plated brass. Optional accessories include locknuts, earth tags, serrated washers, entry thread seals, shrouds, and ingress discs.

This cable gland is designed to excel in operating conditions from -76°F, or -60°C, to 230°F, or 110°C. With an extensive operating range, TMC2 cable glands can support many applications.

  • Aerospace
  • Defense
  • Chemical
  • Mining
  • Minerals & Metals
  • Commercial Construction
  • Downstream Hydrocarbons
  • Food & Beverage
  • Industrial Energy
  • Onsite Utilities

  • Industrial Machinery
  • Laboratory and R&D
  • Life Sciences
  • Medical
  • Marine
  • Oil & Gas
  • Packaging
  • Power
  • Pulp & Paper
  • Textiles
  • Water & Wastewate

Ready To Help

EUTEX International is an ISO 9001:2015-certified supplier of electric cables and accessories for industrial use. We’re dedicated to providing quality products to clients with superior customer service.

With locations worldwide, our team can deliver orders on time and within budget.

Give us a call for more information about the TMC2 cable gland. We’re available to answer any questions.

Technical



Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
Mechanical Classifications* Impact = Level 8, Retention = Class D
ATEX Certificate SIRA09ATEX1164X
Code of Protection II 2GD, Ex e IIC Gb, Ex ta IIIC Da
Compliance Standards EN 60079-0,7, EN 61241-0,1
IECEx Certificate IECEx SIR 09.0068X
Code of Protection Ex e IIC Gb, Ex ta IIIC Da
Compliance Standards IEC 60079-0,1,7,31
cCSAus Certificate 2194053
CSAus Code of Protection Class I, Div 2, Groups A, B, C and D; Class II, Div 1 and 2, Groups E, F, and G; Class III, Div
1 and 2; Encl. Type 4X.
Class I, Zone 1, AEx e II; AEx ta IIC:
cCSA Code of Protection Class I, Div 2, Groups A, B, C and D; Class II, Div 1 and 2, Groups E, F, and G; Class III, Div
1 and 2; Encl. Type 4X.
Ex e II;
Compliance Standards CAN/CSA-C22.2 Various Sections (See Certificate) CAN/CSA-E60079-0,7, CAN/
CSA-E61241-1-1, ANSI/UL 514B Ed 5, ANSI/UL 50 Ed 11
EAC Certificate (Formerly GOST R, K & B) TC RU C-GB.AA87.B.00487
UkrSEPRO UA.TR.047.C.0644-15
CCOE / PESO (India) Certificate P333688
RETIE Approval 03866
Marine Approvals LRS: 01/00172, DNV: TAE00000Y, ABS: 15-LD1410479-PDA, BV: 43180/A1BV
Ingress Protection Rating** NEMA 4X & IP66
Cable Type Corrugated & Interlocked Metal Clad Armour (MC) or TECK90, Continuously Welded Metal
Clad Armour (MCHL), ACIC-HL, ACWU90-HL, RC90-HL, RA90-HL
Armour Clamping 360° Stainless Steel Grounding Spring (non-magnetic)
Jacket Sealing Technique CMP Load Retention Seal
Sealing Area(s) Cable Outer Jacket
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer
Cable Gland Material Copper Free (<0.4%) Aluminium, Stainless Steel, Electroless Nickel Plated Brass

Product Table

Metric

Order Reference
(NPT suffix required)
Entry Thread “C” Minimum
Thread Length “E”
Cable Armor Diameter “A” Cable Jacket Diameter “B” Thru
Bore
“G”
Across Flats
“D”
Across Corners “D” Nominal Assembly Length “F” Shroud Approx
Weight
Aluminum
(Kgs)
Armor Stop
In
Armor Stop Out
Aluminum Nickel Plated Brass Stainless Steel NPT
Standard
NPT Option Min Max Min Max Min Max Max Max Max
TMC2050A075 TMC2050NB075 TMC2050SS075 ½” 19.8 10.7 14.0 14.0 16.0 12.7 19.1 13.0 30.5 33.5 62.0 PVC06 0.06
TMC2075A075 TMC2075NB075 TMC2075SS075 ¾” 20.3 10.7 14.0 14.0 16.0 13.0
TMC2050A099 TMC2050NB099 TMC2050SS099 ½” 19.8 15.2 16.5 16.5 22.6 17.5 25.1 15.5 37.6 41.4 75.2 PVC09 0.09
TMC2075A099 TMC2075NB099 TMC2075SS099 ¾” 20.3 15.2 19.8 19.8 22.6 19.1
TMC2075A118 TMC2075NB118 TMC2075SS118 ¾” 20.3 20.1 21.8 21.8 27.9 22.1 30.0 20.8 46.0 50.5 80.0 PVC11 0.14
TMC2100A118 TMC2100NB118 TMC2100SS118 1″ 24.9 20.1 24.9 24.9 27.9 24.1
TMC2100A137 TMC2100NB137 TMC2100SS137 1″ 24.9 23.9 27.4 27.4 32.5 25.9 34.8 26.4 52.1 57.4 90.2 PVC15 0.19
TMC2125A137 TMC2125NB137 TMC2125SS137 1¼” 25.7 23.9 30.0 30.0 32.5 29.0
TMC2125A162 TMC2125NB162 TMC2125SS162 1¼” 25.7 31.0 34.3 34.3 38.1 33.0 41.1 33.3 59.9 66.0 91.2 PVC18 0.25
TMC2150A162 TMC2150NB162 TMC2150SS162 1½” 26.2 31.0 36.1 36.1 38.1 35.1
TMC2125A190 TMC2125NB190 TMC2125SS190 1¼” 25.7 38.4 43.7 39.9 48.3 34.8 65.0 71.6 91.2 PVC37 0.27
TMC2150A190 TMC2150NB190 TMC2150SS190 1½” 26.2 38.4 43.7 39.1
TMC2150A200 TMC2150NB200 TMC2150SS200 1½” 26.2 39.9 43.2 43.2 47.8 41.9 50.8 40.9 69.9 77.0 95.5 PVC21 0.31
TMC2200A200 TMC2200NB200 TMC2200SS200 2″ 26.9 39.9 43.2 43.2 47.8 41.9
TMC2150A233 TMC2150NB233 TMC2150SS233 1½” 26.2 46.0 56.1 48.3 59.2 40.9 74.9 82.6 100.8 PVC23 0.36
TMC2200A233 TMC2200NB233 TMC2200SS233 2″ 26.9 46.0 56.1 51.6
TMC2250A233 TMC2250NB233 TMC2250SS233 2½” 39.9 46.0 56.1 51.6
TMC2200A272 TMC2200NB272 TMC2200SS272 2″ 26.9 54.4 62.5 55.1 66.3 57.7 69.1 52.6 89.9 98.8 104.1 PVC28 0.70
TMC2250A272 TMC2250NB272 TMC2250SS272 2½” 39.9 54.4 62.5 62.5 66.3 61.0
TMC2300A272 TMC2300NB272 TMC2300SS272 3″ 41.4 54.4 62.5 62.5 66.3 61.0
TMC2300A325 TMC2300NB325 TMC2300SS325 3″ 41.4 63.2 70.6 70.6 75.4 66.5 82.6 69.1 110.0 120.9 118.6 PVC32 1.21
TMC2350A325 TMC2350NB325 TMC2350SS325 3½” 42.9 63.2 70.6 70.6 75.4 69.1
TMC2350A376 TMC2350NB376 TMC2350SS376 3½” 42.9 74.9 87.6 87.6 89.9 80.3 95.5 85.9 122.9 135.1 125.7 LSF33 1.51
TMC2400A376 TMC2400NB376 TMC2400SS376 4″ 43.9 74.9 87.6 87.6 89.9 85.9
TMC2400A425 TMC2400NB425 TMC2400SS425 4″ 43.9 90.4 100.1 94.0 108.0 91.2 132.8 146.1 131.1 LSF34 1.68
Dimensions displayed in millimeters unless otherwise stated

Imperial

Order Reference
(NPT suffix required)
Entry Thread “C” Minimum
Thread Length “E”
Cable Armor Diameter “A” Cable Jacket Diameter “B” Thru
Bore
“G”
Across Flats
“D”
Across Corners “D” Nominal Assembly Length “F” Shroud Approx
Weight
Aluminum
(Ozs)
Armor Stop
In
Armor Stop Out
Aluminum Nickel Plated Brass Stainless Steel NPT
Standard
NPT Option Min Max Min Max Min Max Max Max Max
TMC2050A075 TMC2050NB075 TMC2050SS075 ½” 0.78 0.42 0.55 0.55 0.63 0.50 0.75 0.51 1.20 1.32 2.44 PVC06 2.29
TMC2075A075 TMC2075NB075 TMC2075SS075 ¾” 0.80 0.42 0.55 0.55 0.63 0.51
TMC2050A099 TMC2050NB099 TMC2050SS099 ½” 0.78 0.60 0.65 0.65 0.89 0.69 0.99 0.61 1.48 1.63 2.96 PVC09 3.00
TMC2075A099 TMC2075NB099 TMC2075SS099 ¾” 0.80 0.60 0.78 0.78 0.89 0.75
TMC2075A118 TMC2075NB118 TMC2075SS118 ¾” 0.80 0.79 0.86 0.86 1.10 0.87 1.18 0.82 1.81 1.99 3.15 PVC11 5.11
TMC2100A118 TMC2100NB118 TMC2100SS118 1″ 0.98 0.79 0.98 0.98 1.10 0.95
TMC2100A137 TMC2100NB137 TMC2100SS137 1″ 0.98 0.94 1.08 1.08 1.28 1.02 1.37 1.04 2.05 2.26 3.55 PVC15 6.70
TMC2125A137 TMC2125NB137 TMC2125SS137 1¼” 1.01 0.94 1.18 1.18 1.28 1.14
TMC2125A162 TMC2125NB162 TMC2125SS162 1¼” 1.01 1.22 1.35 1.35 1.50 1.30 1.62 1.31 2.36 2.60 3.59 PVC18 8.82
TMC2150A162 TMC2150NB162 TMC2150SS162 1½” 1.03 1.22 1.42 1.42 1.50 1.38
TMC2125A190 TMC2125NB190 TMC2125SS190 1¼” 1.01 1.51 1.72 1.57 1.90 1.37 2.56 2.82 3.59 PVC37 9.45
TMC2150A190 TMC2150NB190 TMC2150SS190 1½” 1.03 1.51 1.72 1.54
TMC2150A200 TMC2150NB200 TMC2150SS200 1½” 1.03 1.57 1.70 1.70 1.88 1.65 2.00 1.61 2.75 3.03 3.76 PVC21 11.06
TMC2200A200 TMC2200NB200 TMC2200SS200 2″ 1.06 1.57 1.70 1.70 1.88 1.65
TMC2150A233 TMC2150NB233 TMC2150SS233 1½” 1.03 1.81 2.21 1.90 2.33 1.61 2.95 3.25 3.97 PVC23 12.77
TMC2200A233 TMC2200NB233 TMC2200SS233 2″ 1.06 1.81 2.21 2.03
TMC2250A233 TMC2250NB233 TMC2250SS233 2½” 1.57 1.81 2.21 2.03
TMC2200A272 TMC2200NB272 TMC2200SS272 2″ 1.06 2.14 2.46 2.17 2.61 2.27 2.72 2.07 3.54 3.89 4.10 PVC28 24.69
TMC2250A272 TMC2250NB272 TMC2250SS272 2½” 1.57 2.14 2.46 2.46 2.61 2.40
TMC2300A272 TMC2300NB272 TMC2300SS272 3″ 1.63 2.14 2.46 2.46 2.61 2.40
TMC2300A325 TMC2300NB325 TMC2300SS325 3″ 1.63 2.49 2.78 2.78 2.97 2.62 3.25 2.72 4.33 4.76 4.67 PVC32 42.68
TMC2350A325 TMC2350NB325 TMC2350SS325 3½” 1.69 2.49 2.78 2.78 2.97 2.72
TMC2350A376 TMC2350NB376 TMC2350SS376 3½” 1.69 2.95 3.45 3.45 3.54 3.16 3.76 3.38 4.84 5.32 4.95 LSF33 53.44
TMC2400A376 TMC2400NB376 TMC2400SS376 4″ 1.73 2.95 3.45 3.45 3.54 3.38
TMC2400A425 TMC2400NB425 TMC2400SS425 4″ 1.73 3.56 3.94 3.70 4.25 3.59 5.23 5.75 5.16 LSF34 59.19
Dimensions displayed in inches unless otherwise stated
