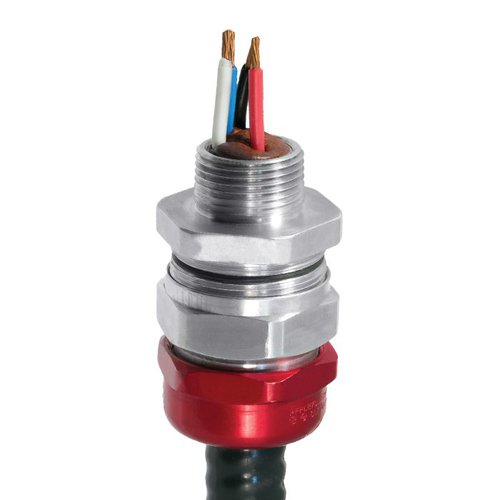

Description
Product Selection Table
| Order Reference (NPT) | Entry Thread ‘C’ | Entry Thread ‘C’ | Minimum Thread Length ‘E’ | Minimum Thread Length ‘E’ | Cable Armor Diameter ‘A’ | Cable Jacket Diameter ‘B’ | Nominal Assembly Length ‘F’ | Max | Shroud | Weight (Ozs) | |||||||
| Armor Stop in | Armor Stop Out | Across Flats ‘D’ | Across Corners ‘D’ | ||||||||||||||
| Aluminum | Nickel Plated Brass | Stainless Steel | Min | Max | Min | Max | Min | Max | |||||||||
| TMCX050SA | TMCX050SNB | TMCX050SSS | ½’ | M20 | 19.8 | 15.0 | No Stop | No Stop | 8.6 | 12.7 | 8.9 | 14.0 | 46.5 | 30.5 | 33.5 | PVC06 | 0.22 |
| TMCX050A | TMCX050NB | TMCX050SS | ½’ | M20 | 19.8 | 15.0 | No Stop | No Stop | 13.0 | 17.0 | 11.2 | 20.1 | 52.3 | 36.1 | 39.6 | PVC09 | 0.28 |
| TMCX075A | TMCX075NB | TMCX075SS | ¾’ | M25 | 20.3 | 15.0 | 15.0 | 19.3 | 19.3 | 23.4 | 17.0 | 26.4 | 53.1 | 40.9 | 45.2 | PVC10 | 0.33 |
| TMCX100A | TMCX100NB | TMCX100SS | 1′ | M32 | 24.9 | 15.0 | 19.8 | 24.6 | 24.6 | 29.2 | 22.1 | 32.3 | 56.9 | 50.0 | 55.1 | PVC13 | 0.50 |
| TMCX125A | TMCX125NB | TMCX125SS | 1 ¼’ | M40 | 25.7 | 15.0 | 27.4 | 31.2 | 31.2 | 35.3 | 29.5 | 38.1 | 56.4 | 55.1 | 60.5 | PVC15 | 0.59 |
| TMCX150A | TMCX150NB | TMCX150SS | 1 ½’ | M50 | 26.2 | 15.0 | 33.5 | 37.1 | 37.1 | 41.1 | 35.6 | 44.2 | 58.7 | 59.9 | 66.0 | PVC18 | 0.69 |
| TMCX200SA | TMCX200SNB | TMCX200SSS | 2′ | M50 | 26.9 | 15.0 | 38.4 | 42.7 | 42.7 | 47.0 | 40.1 | 50.0 | 64.0 | 70.1 | 77.0 | PVC21 | 1.20 |
| TMCX200A | TMCX200NB | TMCX200SS | 2′ | M63 | 26.9 | 15.0 | 45.0 | 49.0 | 49.0 | 53.1 | 47.2 | 56.1 | 63.2 | 74.9 | 82.6 | PVC23 | 1.10 |
| TMCX250SA | TMCX250SNB | TMCX250SSS | 2 ½’ | M75 | 39.9 | 15.0 | 52.1 | 54.9 | 54.9 | 58.9 | 52.8 | 62.0 | 69.3 | 80.0 | 88.1 | PVC25 | 1.70 |
| TMCX250A | TMCX250NB | TMCX250SS | 2 ½’ | M75 | 39.9 | 15.0 | 57.2 | 61.2 | 61.2 | 64.8 | 59.2 | 68.1 | 72.1 | 85.1 | 93.5 | PVC27 | 1.60 |
| TMCX300A | TMCX300NB | TMCX300SS | 3′ | M90 | 41.4 | 24.1 | 64.5 | 70.6 | 70.6 | 75.4 | 66.5 | 79.5 | 98.3 | 110.0 | 120.9 | LSF32 | 3.50 |
| TMCX350A | TMCX350NB | TMCX350SS | 3 ½’ | M100 | 42.9 | 24.1 | 73.9 | 83.6 | 83.6 | 88.6 | 75.9 | 97.3 | 114.8 | 133.4 | 146.8 | LSF34 | 6.70 |
| TMCX400A | TMCX400NB | TMCX400SS | 4′ | M115 | 43.9 | 24.1 | 73.9 | 83.6 | 83.6 | 88.6 | 75.9 | 97.3 | 114.8 | 133.4 | 146.8 | LSF34 | 7.50 |
| Dimensions in millimeters unless otherwise stated | |||||||||||||||||
