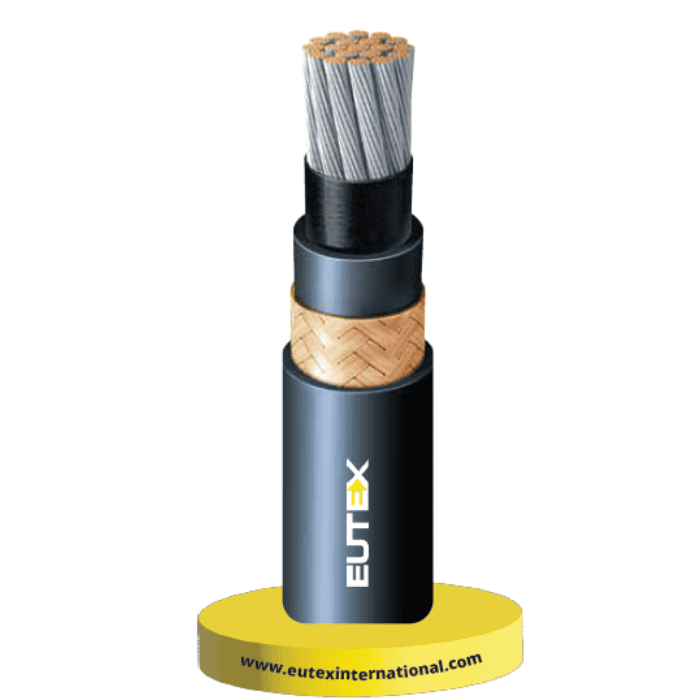

FIRE RESISTANCE
2kV FS-SP(HD), FS-SPB(HD), FS-SPBS(HD)
2kV FS-SP, FS-SPB, FS-SPBS
0.6/1kV FS-SP, FS-SPB, FS-SPBS

Application Standard

– Design guide : IEEE 1580(2010) , UL 1309(2017)
– Insulation material : IEEE 1580, Type P UL 1309, X110
– Sheath material : IEEE 1580, Type N
– Flame retardant : IEEE 1202 & IEC 60332-3 Category A
– Fire resistance : IEC 60331-21(90min), IEC 60331-1,-2(120min), FS-type only
– Cold bend / impact : CSA C22.2 NO. 2556(-40℃/-40℃)
(Fomerly CSA C22.2 NO.0.3)
