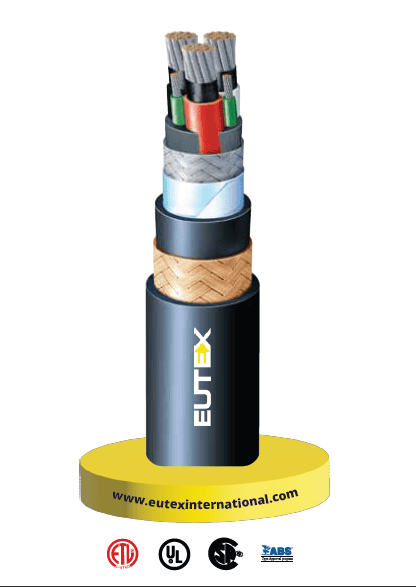

Cable Designation

FIRE RESISTANCE
0.6/1kV FS-DPN, FS-DPNB, FS-DPNBS
0.6/1kV FS-TPN, FS-TPNB, FS-TPNBS
0.6/1kV FS-FPN, FS-FPNB, FS-FPNBS
0.6/1kV FS-QPN, FS-QPNB, FS-QPNBS

Application Standard
– Design guide : IEEE 1580(2010) , UL 1309(2017)
– Insulation material : IEEE 1580, Type P UL 1309, X110
– Sheath material : IEEE 1580, Type N
– Flame retardant : IEEE 1202 & IEC 60332-3 Category A
– Fire resistance : IEC 60331-21(90min), IEC 60331-1,-2(120min), FS- type only
– Cold bend / impact : CSA C22.2 NO. 2556(-40℃/-40℃)
(Fomerly CSA C22.2 NO.0.3)
