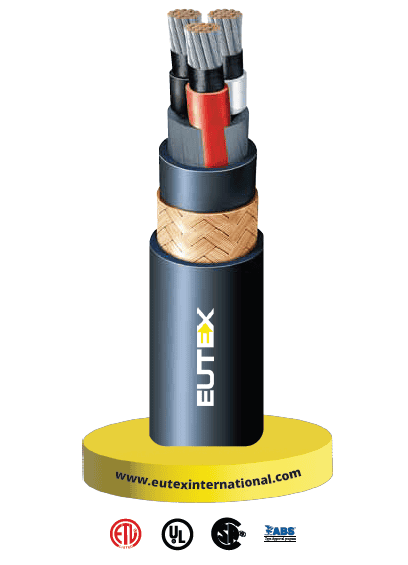

Type P Power Cable for Distribution (0.6/1kV, 2kV) Flame Retardant 2,3,4 Conductors
Type P Power Cable for Distribution (0.6/1kV, 2kV) Flame Retardant 2,3,4 Conductors
FLAME RETARDANT
0.6/1kV DPN, DPNB, DPNBS
0.6/1kV TPN, TPNB, TPNBS
0.6/1kV FPN, FPNB, FPNBS
0.6/1kV QPN, QPNB, QPNBS
Application Standard
– Design guide : IEEE 1580(2010) , UL 1309(2017)
– Insulation material : IEEE 1580, Type P UL 1309, X110
– Sheath material : IEEE 1580, Type N
– Flame retardant : IEEE 1202 & IEC 60332-3 Category A
– Fire resistance : IEC 60331-21(90min), IEC 60331-1,-2(120min), FS- type only
– Cold bend / impact : CSA C22.2 NO. 2556(-40℃/-40℃)
(Fomerly CSA C22.2 NO.0.3)
