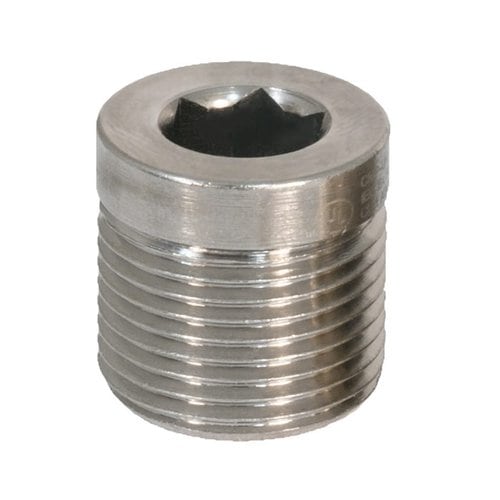

747 recessed stopper plug

747
747 recessed stopper plug

Available in brass, nickel plated brass, aluminium, stainless steel & nylon

Description

Technical

Recessed Stopper Plug, Globally Approved, Explosive Atmosphere Cable / Conduit Accessory

• Provides means of blanking unused cable entries
• Temporary or permanent
• Tamper-proof (Type B) version available
• General purpose / industrial version available
• Nylon Ex e only version available (-20°C to +60°C)
• -60°C to 200°C (metallic versions)
• Globally marked, IECEx, ATEX, cCSAus & UL

Description Allen key recess Metallic Non-Metallic
Ex ‘d’ Ex ‘e’ Industrial Ex ‘e’ Industrial
747 Recessed Non-Tamper Proof Type ‘A’
747 Recessed Tamper Proof Type ‘B’
757 Hexagon Head
757 Hexagon Head c/w ‘O’ ring seal
767 Dome Head
767 Dome Head c/w ‘O’ ring seal

Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel Only
ATEX Certificate SIRA13ATEX1265X
Code of Protection II 2G Ex d IIC Gb, Ex e IIC Gb, II 1D Ex ta IIIC Da
IM2 Ex d I Mb, Ex e I Mb
(II 2G Ex e IIC Gb, II 1D Ex ta IIIC Da only on Nylon version)
Compliance Standards EN 60079-0,1,7, 31
IECEx Certificate IECEx SIR13.0094X
Code of Protection Ex d I Mb, Ex e I Mb; Ex d IIC Gb,Ex e IIC Gb, Ex ta IIIC Da
Compliance Standards IEC 60079-0,1, 7, 31
cCSAus Certificate 1055233
Code of Protection Class I, Groups A, B, C and D; IP66, 67, 68, Enclosure Type 4X; Class II Groups E, F and G;
Class III
Ex de II, Class I, Zone 1, AEx de II;
Compliance Standards C22.2 No. 0, 0.5, 30,94,CAN/CSA E60079-0, 1, 7, UL50 Edition 11, UL1203 Edition 4,
UL 60079-0, 1, 7
UL Certificate E214221
Code of Protection Class I, Groups A,B,C,D; Class II Groups E,F,G; Class III
Compliance Standards UL 1203
EAC Certificate (Formerly GOST R, K & B) TC RU C-GB.AA87.B.00487
GOST R Certificate POCC.GB.35.H00102
KCC Certificate 14-GA4BO-0247X
CCOE / PESO (India) Certificate P333688
NEPSI Certificate GYJ13.1143X
INMETRO Certificate TÜV 12.1333X
RETIE Approval 03866
Marine Approvals LRS: 01/00173, DNV: TAE00000Y, ABS: 01-LD234401C/2-PDA, BV: 43180/A1BV
Continuous Operating Temperature -60°C to +200°C (Metallic), -20°C to +60°C (Nylon)
Ingress Protection Rating ** IP66
Available Materials Brass, Electroless Nickel Plated Brass, Aluminium, Stainless Steel, Nylon

Product Table

Metric

Ordering Reference Thread Size Minimum Thread Length Minimum Thread Length
747DAM1 M16 X 1.5 15.0 M8
747DAM2 M20 X 1.5 15.0 M10
747DAM3 M25 X 1.5 15.0 M10
747DAM4 M32 X 1.5 15.0 M10
747DAM5 M40 X 1.5 15.0 M10
747DAM6 M50 X 1.5 15.0 M10
747DAM7 M63 X 1.5 15.0 M14
747DAM8 M75 X 1.5 15.0 M14
747DAM9 M90 X 2.0 24.0 M14
747DAM10 M100 x 2.0 24.0 M14
Dimensions displayed in millimeters unless otherwise stated

Imperial

Ordering Reference Thread Size Minimum Thread Length Minimum Thread Length
747DAM1 M16 X 1.5 0.59 M8
747DAM2 M20 X 1.5 0.59 M10
747DAM3 M25 X 1.5 0.59 M10
747DAM4 M32 X 1.5 0.59 M10
747DAM5 M40 X 1.5 0.59 M10
747DAM6 M50 X 1.5 0.59 M10
747DAM7 M63 X 1.5 0.59 M14
747DAM8 M75 X 1.5 0.59 M14
747DAM9 M90 X 2.0 0.94 M14
747DAM10 M100 x 2.0 0.94 M14
Dimensions displayed in millimeters unless otherwise stated

Download Spec Sheet

Download

Technical

Recessed Stopper Plug, Globally Approved, Explosive Atmosphere Cable / Conduit Accessory

• Provides means of blanking unused cable entries
• Temporary or permanent
• Tamper-proof (Type B) version available
• General purpose / industrial version available
• Nylon Ex e only version available (-20°C to +60°C)
• -60°C to 200°C (metallic versions)
• Globally marked, IECEx, ATEX, cCSAus & UL

Description Allen key recess Metallic Non-Metallic
Ex ‘d’ Ex ‘e’ Industrial Ex ‘e’ Industrial
747 Recessed Non-Tamper Proof Type ‘A’
747 Recessed Tamper Proof Type ‘B’
757 Hexagon Head
757 Hexagon Head c/w ‘O’ ring seal
767 Dome Head
767 Dome Head c/w ‘O’ ring seal

Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel Only
ATEX Certificate SIRA13ATEX1265X
Code of Protection II 2G Ex d IIC Gb, Ex e IIC Gb, II 1D Ex ta IIIC Da
IM2 Ex d I Mb, Ex e I Mb
(II 2G Ex e IIC Gb, II 1D Ex ta IIIC Da only on Nylon version)
Compliance Standards EN 60079-0,1,7, 31
IECEx Certificate IECEx SIR13.0094X
Code of Protection Ex d I Mb, Ex e I Mb; Ex d IIC Gb,Ex e IIC Gb, Ex ta IIIC Da
Compliance Standards IEC 60079-0,1, 7, 31
cCSAus Certificate 1055233
Code of Protection Class I, Groups A, B, C and D; IP66, 67, 68, Enclosure Type 4X; Class II Groups E, F and G;
Class III
Ex de II, Class I, Zone 1, AEx de II;
Compliance Standards C22.2 No. 0, 0.5, 30,94,CAN/CSA E60079-0, 1, 7, UL50 Edition 11, UL1203 Edition 4,
UL 60079-0, 1, 7
UL Certificate E214221
Code of Protection Class I, Groups A,B,C,D; Class II Groups E,F,G; Class III
Compliance Standards UL 1203
EAC Certificate (Formerly GOST R, K & B) TC RU C-GB.AA87.B.00487
GOST R Certificate POCC.GB.35.H00102
KCC Certificate 14-GA4BO-0247X
CCOE / PESO (India) Certificate P333688
NEPSI Certificate GYJ13.1143X
INMETRO Certificate TÜV 12.1333X
RETIE Approval 03866
Marine Approvals LRS: 01/00173, DNV: TAE00000Y, ABS: 01-LD234401C/2-PDA, BV: 43180/A1BV
Continuous Operating Temperature -60°C to +200°C (Metallic), -20°C to +60°C (Nylon)
Ingress Protection Rating ** IP66
Available Materials Brass, Electroless Nickel Plated Brass, Aluminium, Stainless Steel, Nylon

Product Table

Metric

Ordering Reference Thread Size Minimum Thread Length Minimum Thread Length
747DAM1 M16 X 1.5 15.0 M8
747DAM2 M20 X 1.5 15.0 M10
747DAM3 M25 X 1.5 15.0 M10
747DAM4 M32 X 1.5 15.0 M10
747DAM5 M40 X 1.5 15.0 M10
747DAM6 M50 X 1.5 15.0 M10
747DAM7 M63 X 1.5 15.0 M14
747DAM8 M75 X 1.5 15.0 M14
747DAM9 M90 X 2.0 24.0 M14
747DAM10 M100 x 2.0 24.0 M14
Dimensions displayed in millimeters unless otherwise stated

Imperial

Ordering Reference Thread Size Minimum Thread Length Minimum Thread Length
747DAM1 M16 X 1.5 0.59 M8
747DAM2 M20 X 1.5 0.59 M10
747DAM3 M25 X 1.5 0.59 M10
747DAM4 M32 X 1.5 0.59 M10
747DAM5 M40 X 1.5 0.59 M10
747DAM6 M50 X 1.5 0.59 M10
747DAM7 M63 X 1.5 0.59 M14
747DAM8 M75 X 1.5 0.59 M14
747DAM9 M90 X 2.0 0.94 M14
747DAM10 M100 x 2.0 0.94 M14
Dimensions displayed in millimeters unless otherwise stated
