757 hexagon head stopper plug

757

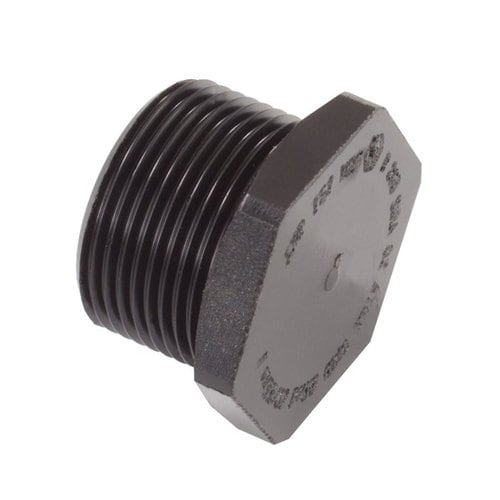

757 hexagon head stopper plug

Available brass, nickel plated brass, aluminium, stainless steel & nylon

Description

Technical

Hexagon Head Stopper Plug, Globally Approved, Explosive Atmosphere Cable / Conduit Accessory

• Provides means of blanking unused cable entries
• Temporary or permanent
• General purpose / industrial version available
• Equipment interface ‘O’ ring seal available
• Nylon Ex e only version available (-20°C to +60°C)
•-60°C to 200°C (metallic versions)
• Globally marked, IECEx, ATEX, cCSAus & UL

Description Allen key recess Metallic Non-Metallic
Ex “d” Ex “e” Industrial Ex “e” Industrial
747 Recessed Non-Tamper Proof Type ‘A’
747 Recessed Tamper Proof Type ‘B’
757 Hexagon Head x
757 Hexagon Head c/w ‘O’ ring seal x
767 Dome Head
767 Dome Head c/w ‘O’ ring seal

Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel Only
ATEX Certificate SIRA13ATEX1265X
Code of Protection II 2G Ex d IIC Gb, Ex e IIC Gb, II 1D Ex ta IIIC Da
IM2 Ex d I Mb, Ex e I Mb
(II 2G Ex e IIC Gb, II 1D Ex ta IIIC Da only on Nylon version)
Compliance Standards EN 60079-0,1,7, 31
IECEx Certificate IECEx SIR13.0094X
Code of Protection Ex d I Mb, Ex e I Mb; Ex d IIC Gb,Ex e IIC Gb, Ex ta IIIC Da
Compliance Standards IEC 60079-0,1, 7, 31
cCSAus Certificate 1055233
Code of Protection Ex e II, Class I, Zone 1, AEx e II; IP66, 67, 68; Enclosure Type 4X; Class II Groups E, F and G; Class III
Compliance Standards C22.2 No. 0, 0.5, 30,94,CAN/CSA E60079-0, 1, 7, UL50 Edition 11, UL1203 Edition 4,
UL 60079-0, 1, 7
UL Certificate E214221
Code of Protection Class I, Groups A,B,C,D; Class II Groups E,F,G; Class III
Compliance Standards UL 1203
EAC Certificate TC RU C-GB.AA87.B.00487
GOST R Certificate POCC.GB.35.H00102
KCC Certificate 14-GA4BO-0255X
CCOE / PESO (India) Certificate P333688
NEPSI Certificate GYJ13.1143X
INMETRO Approval TÜV 12.1333X
RETIE Approval 03866
Marine Approvals LRS: 01/00173, DNV: TAE00000Y, ABS: 17-LD1619350-PDA, BV: 43180/A1BV
Continuous Operating Temperature -60°C to +200°C (Metallic), -20°C to +60°C (Nylon)
Ingress Protection Rating ** IP66 or IP68 when fitted with a CMP ‘O’ ring or Entry Thread Seal**
Available Materials Brass, Electroless Nickel Plated Brass, Aluminium, Stainless Steel, Nylon

Product Table

Metric

Ordering Reference Thread Size Minimum Thread Length Across Flats “A” Across Corners Diameter Protrusion Length “C”
757DM1 M16 X 1.5 15.0 22.0 24.2 5.0
757DM2 M20 X 1.5 15.0 24.0 26.4 5.0
757DM3 M25 X 1.5 15.0 30.0 33.0 5.0
757DM4 M32 X 1.5 15.0 36.0 39.6 5.0
757DM5 M40 X 1.5 15.0 46.0 50.6 5.0
757DM6 M50 X 1.5 15.0 55.0 60.5 5.0
757DM7 M63 X 1.5 15.0 70.0 77.0 5.0
757DM8 M75 X 1.5 15.0 80.0 88.0 5.0
757DM9 M90 X 2.0 24.0 99.0 108.9 5.0
757DM10 M100 x 2.0 24.0 108.0 118.8 5.0
Dimensions displayed in millimeters unless otherwise stated

Imperial

Ordering Reference Thread Size Minimum Thread Length Across Flats “A” Across Corners Diameter Protrusion Length “C”
757DM1 M16 X 1.5 0.59 0.87 0.95 0.20
757DM2 M20 X 1.5 0.59 0.94 1.04 0.20
757DM3 M25 X 1.5 0.59 1.18 1.30 0.20
757DM4 M32 X 1.5 0.59 1.42 1.56 0.20
757DM5 M40 X 1.5 0.59 1.81 1.99 0.20
757DM6 M50 X 1.5 0.59 2.17 2.38 0.20
757DM7 M63 X 1.5 0.59 2.76 3.03 0.20
757DM8 M75 X 1.5 0.59 3.15 3.46 0.20
757DM9 M90 X 2.0 0.94 3.90 4.29 0.20
757DM10 M100 x 2.0 0.94 4.25 4.68 0.20
Dimensions displayed in millimeters unless otherwise stated
