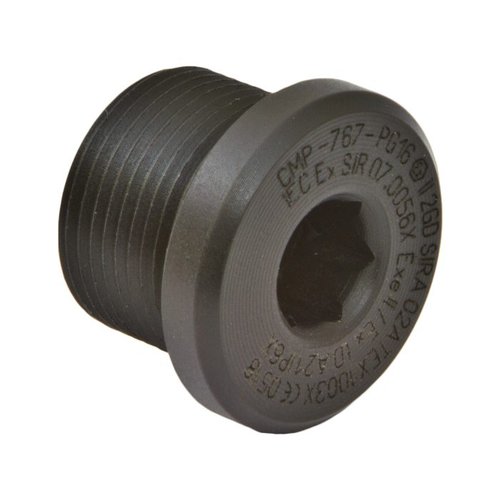

767 Dome Stopper Plug

Products > 767 Dome Stopper Plug

767 Dome Stopper Plug

767 Dome Stopper Plug

INQUIRE

Available brass, nickel plated brass, aluminium, stainless steel & nylon



Dome Head Stopper Plug, Globally Approved, Explosive Atmosphere Cable / Conduit Accessory

• Provides means of blanking unused cable entries
• Temporary or permanent
• General purpose / industrial version available
• Equipment interface o-ring seal available
• Nylon Ex e only version available (-20°C to +60°C)
• -60°C to +200°C (metallic versions)
• Globally marked, IECEx, ATEX, cCSAus and UL (metallic versions only)
• Nylon stopper 717 / 717e to be used for sizes M20, M25, M32, 1⁄2″, 3⁄4″ and 1″

Description

Description Allen key recess Metallic Non-Metallic
Ex d Ex e Industrial Ex e Industrial
747 Recessed Non-Tamper Proof Type ‘A’ Y Y Y Y Y Y
747 Recessed Tamper Proof Type ‘B’ Y Y Y Y Y Y
757 Hexagon Head N Y Y Y Y Y
757 Hexagon Head c/w ‘O’ ring seal N Y Y Y Y Y
767 Dome Head Y Y Y Y Y Y
767 Dome Head c/w ‘O’ ring seal Y Y Y Y Y Y
717 Universal Y N N N Y Y



Product Selection Table



Ordering Reference Thread Size Minimum Thread Length Head Diameterq A Protrusion Length ‘B’ Allen Key
Size A/F
767DM1 M16 X 1.5 15.0 22.0 5.5 M8
767DM2 M20 X 1.5 15.0 27.0 5.5 M10
767DM3 M25 X 1.5 15.0 30.0 5.5 M10
767DM4 M32 X 1.5 15.0 36.0 5.5 M10
767DM5 M40 X 1.5 15.0 46.0 5.5 M10
767DM6 M50 X 1.5 15.0 55.0 5.5 M10
767DM7 M63 X 1.5 15.0 68.0 5.5 M10
767DM8 M75 X 1.5 15.0 80.0 5.5 M14
767DM9 M90 X 2.0 24.0 95.0 5.5 M14
767DM10 M100 x 2.0 24.0 108.0 5.5 M14
Dimensions displayed in millimeters unless otherwise stated
If a nylon stopper is required for sizes M20, M25, M32, 1⁄2″, 3⁄4″ and 1″ please order717 or 717e.
