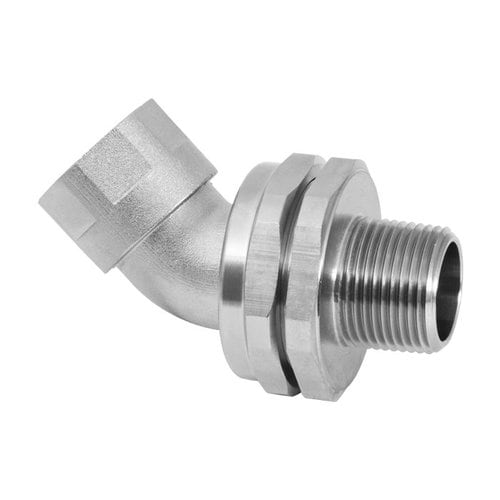

784 45 Degree Union

Products > 784 45 Degree Union

784 45 Degree Union

INQUIRE

Available in brass, nickel plated brass, aluminium, stainless steel

5° Union, Globally Approved, Explosive Atmosphere Cable / Conduit Accessory

• Allows the connection of conduit or glands to equipment
• Suitable for rigid or flexible conduit
• Integral coupling eliminates the need to rotate the conduit
• General Purpose / industrial version available
• Equipment interface ‘O’ ring seal available
• -60°C to 200°C
• Globally marked, IECEx, ATEX & cCSAus

Note:

Male-to-Male or Female-to-Female thread option available.

Available with an equipment interface ‘O’ ring seal. For such options please add the suffix letter “R” after the type number in the ordering reference above, e.g. 784RDM2M2.

Description

Product Selection Table



METRICNPT
Ordering Reference
(Brass, Metric)		Male Forward Thread Size ‘A’Minimum
Thread Length ‘E’		Female Rear Thread Size ‘B’Ordering Reference
(Brass, NPT)		Male Forward NPT Thread Size ‘A’Minimum
NPT Thread Length ‘E’
(in)		Female Rear Thread Size ‘B’Bore Diameter ‘C’Max Protrusion Length “D”Max Overhang Length
‘F’		Across
Flats Hex
‘G’		Across
Corners Ø
‘G’		Installation
Torque (Nm)
784DM2M2M20 X 1.515.0M20 X 1.5784DT1T1½’0.79½’14.360.655.846.050.67
784DM3M3M25 X 1.515.0M25 X 1.5784DT2T2¾’0.80¾’20.165.961.250.055.010
784DM4M4M32 X 1.515.0M32 X 1.5784DT3T31′0.981′26.469.369.760.066.015
784DM5M5M40 X 1.515.0M40 X 1.5784DT4T41¼’1.011¼’32.674.976.465.071.525
784DM6M6M50 X 1.515.0M50 X 1.5784DT5T51½’1.031½’43.093.587.975.082.530
784DM7M7M63 X 1.515.0M63 X 1.5784DT6T62′1.062′53.0102.7102.890.299.245
Dimensions displayed in millimeters unless otherwise stated



Download Spec Sheet

Download

Product Selection Table



METRICNPT
Ordering Reference
(Brass, Metric)		Male Forward Thread Size ‘A’Minimum
Thread Length ‘E’		Female Rear Thread Size ‘B’Ordering Reference
(Brass, NPT)		Male Forward NPT Thread Size ‘A’Minimum
NPT Thread Length ‘E’
(in)		Female Rear Thread Size ‘B’Bore Diameter ‘C’Max Protrusion Length “D”Max Overhang Length
‘F’		Across
Flats Hex
‘G’		Across
Corners Ø
‘G’		Installation
Torque (Nm)
784DM2M2M20 X 1.515.0M20 X 1.5784DT1T1½’0.79½’14.360.655.846.050.67
784DM3M3M25 X 1.515.0M25 X 1.5784DT2T2¾’0.80¾’20.165.961.250.055.010
784DM4M4M32 X 1.515.0M32 X 1.5784DT3T31′0.981′26.469.369.760.066.015
784DM5M5M40 X 1.515.0M40 X 1.5784DT4T41¼’1.011¼’32.674.976.465.071.525
784DM6M6M50 X 1.515.0M50 X 1.5784DT5T51½’1.031½’43.093.587.975.082.530
784DM7M7M63 X 1.515.0M63 X 1.5784DT6T62′1.062′53.0102.7102.890.299.245
Dimensions displayed in millimeters unless otherwise stated
