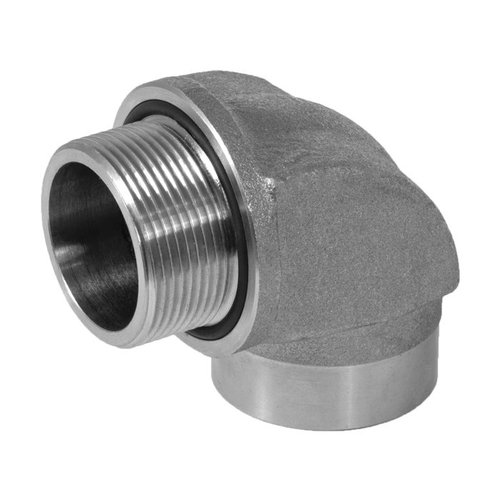

787 series 90 degree adaptor

787
787 series 90 degree adaptor

Available in brass, nickel plated brass, aluminium, stainless steel

Description

Technical

90° Adaptor, Globally Approved, Explosive Atmosphere Cable / Conduit Accessory

• Protects cables from excessive bending stress
• General purpose / industrial version available
• Supplied with male or female threads
• Can be supplied with thread conversion
• Equipment interface ‘O’ ring seal available
• -60°C to +200°C
• Globally marked, IECEx, ATEX & cCSAus
• Can be used with 737 (not Ex d direct entry applications)

Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel Only
ATEX Certificate SIRA14ATEX1033U
Code of Protection II 2 G Ex d IIC Gb,Ex e IIC Gb, II 1 D Ex ta IIIC Da
IM2 Ex d I Mb, Ex e I Mb
Compliance Standards EN 60079-0,1,7,31
IECEx Certificate IECEx SIR14.0014U
Code of Protection Ex d I Mb/ Ex e I Mb/ Ex d IIC Gb / Ex e IIC Gb / Ex ta IIIC Da
Compliance Standards IEC 60079-0,1,7,31
cCSAus Certificate 1055233
Code of Protection Class I, Groups A, B, C and D; IP66, 67, 68; Enclosure Type 4X; Ex de II, Class I, Zone 1, AEx de II;
Compliance Standards C22.2 No. 0, 0.5-M1982, 30, 94, CAN/CSA E60079-0,1,7, UL 50, Edition 11, UL 1203, Edition 4,
UL 60079-0,1,7
EAC Certificate (Formerly GOST R, K & B) TC RU C-GB.AA87.B.00487
GOST R Certificate POCC.GB.35.H00102
NEPSI Certificate GYJ13.1142X
INMETRO Approval TÜV 12.1335U
RETIE Approval 03866
Marine Approvals LRS: 01/00173, ABS: 17-LD1619350-PDA, BV: 43180/A1 BV
Ingress Protection Rating ** IP66, IP67 & IP68 (when fitted with CMP sealing accessories)
Available Materials Brass, Electroless Nickel Plated Brass, Aluminium, Stainless Steel

Product Table

Metric

Ordering Reference Male
Thread Size “A”
Minimum
 Thread Length “E”
Bore
Diameter “C”
Female Thread Size Protrusion Length “D” Protrusion Length “F” Width “B” Width “B”
787DM2M2 M20 X 1.5 15.3 14.0 M20 X 1.5 29.6 41.0 24.0 7
787DM3M3 M25 X 1.5 15.3 18.6 M25 X 1.5 36.3 49.3 29.0 10
787DM4M4 M32 X 1.5 15.3 25.6 M32 X 1.5 45.2 56.3 36.0 15
787DM5N5 M40 X 1.5 15.3 33.6 M40 X 1.5 54.2 64.8 44.0 25
787DM6M6 M50 X 1.5 15.3 41.0 M50 X 1.5 68.3 74.0 54.0 30
787DM7M7 M63 X 1.5 15.3 50.0 M63 X 1.5 97.0 104.3 75.3 45
787DM8M8 M75 X 1.5 15.3 61.3 M75 X 1.5 97.0 111.3 79.5 45
787DM9M9 M90 X 2.0 15.3 80.0 M90 X 2.0 100.0 131.3 110.0 45
787DM10M10 M100 X 2.0 15.3 91.0 M100 X 2.0 110.0 141.3 115.0 45
Dimensions displayed in millimeters unless otherwise stated
