Conqueror Heavy Duty Stainless Steel Hinged Cable Cleat

Products > Conqueror Heavy Duty Stainless Steel Hinged Cable Cleat

Conqueror

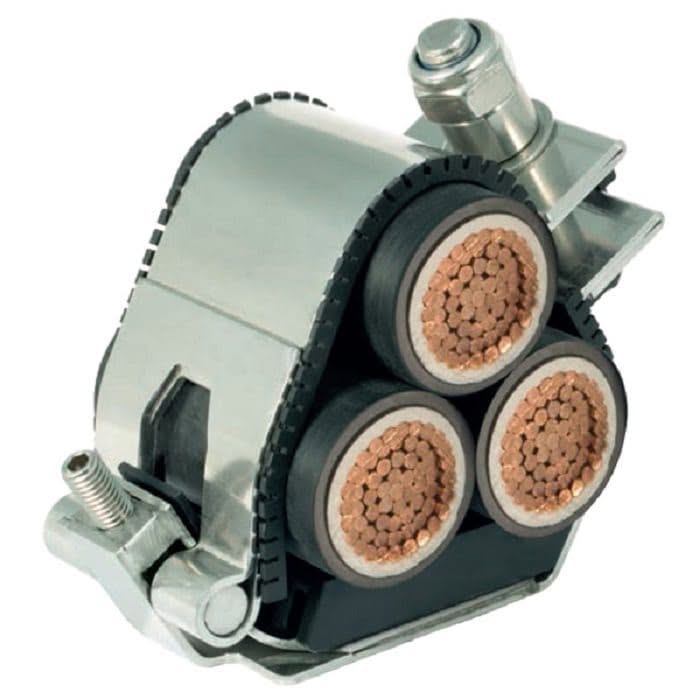

Conqueror Heavy Duty Stainless Steel Hinged Cable Cleat

INQUIRE

Features

  • Third party certification to IEC 61914
  • 316L stainless steel
  • 23-130mm in 15 sizes for trefoil formation /application
  • Short circuit rating of 170kA peak fault
  • Operating temperature -60°C to +60°C
  • Liners are classified as Low Smoke & Fume (LSF), Zero Halogen (LS0H) and Phosphorus Free
  • Combined single (M12) and two bolt (M10) fixing design
    300mm Conqueror RTSS (0.1 sec)
    Cable OD (mm) Peak kA
    36 170.0
    38 174.6
    43 185.7
    59 217.6
    65 228.4

Description

Short Circuit Testing to IEC 61914 – Clause 9.5
Trefoil Formation
One short circuit 300mm fixed cleat centres Two short circuits 300mm fixed cleat centres One short circuit 600mm fixed cleat centres One short circuit 600mm fixed cleat centres Two short circuits 600mm fixed cleat centres
0.1 sec 1 sec 0.1 sec 3 sec 1 sec
170kA Peak 90kA Peak 131kA Peak 61kA Peak 80kA Peak
77.3kA RMS 43.2kA RMS 59.6kA RMS 29.1kA RMS 38.1kA RMS



Product Selection Table



Conqueror Part No. Cable Ø Range Take (mm) Dimensions (mm) Weight (g)
W H D P Fixing Hole Ø
D1 D2
RTSS023032 23-32 122 99 54 25 2 x M10 1 x M12 509
RTSS030039 30-39 126 111 54 25 2 x M10 1 x M12 534
RTSS037046 37-46 132 117 54 25 2 x M10 1 x M12 557
RTSS044053 44-53 151 128 54 50 2 x M10 1 x M12 676
RTSS051060 51-60 154 139 54 50 2 x M10 1 x M12 694
RTSS058067 58-67 157 151 54 50 2 x M10 1 x M12 727
RTSS065074 65-74 176 163 54 75 2 x M10 1 x M12 839
RTSS072081 72-81 182 175 54 75 2 x M10 1 x M12 866
RTSS079088 79-88 191 190 54 75 2 x M10 1 x M12 900
RTSS086095 86-95 216 202 54 75 2 x M10 1 x M12 1023
RTSS093102 93-102 222 215 54 75 2 x M10 1 x M12 1050
RTSS100109 100-109 228 228 54 75 2 x M10 1 x M12 1079
RTSS107116 107-116 254 241 54 75 2 x M10 1 x M12 1199
RTSS114123 114-123 257 254 54 75 2 x M10 1 x M12 1228
RTSS121130 121-130 268 267 54 75 2 x M10 1 x M12 1255
