Earth Tags

Accessories for cable glands, available in brass, stainless steel, aluminium and nickel plated brass

EUTEX slip-on Earth Tags, installed between the Cable Gland and equipment, provide an earth bond connection as specified in BS6121:Part 5:1993 and comply with category B rating specified in IEC 62444. EUTEX Earth Tags have been independently short circuit tested to verify their suitability under specified service conditions. A copy of the test report is available upon request and is an important factor when selecting earth tags from any manufacturer, as without this the safety of installations may be compromised.

Stainless steel, aluminium and nickel plated brass earth tags are also available.

Description

Cable Gland Earth Tags Technical Info

CMP slip-on Cable Gland Earth Tags, installed between the Cable Gland and equipment, provide an earth bond connection as specified in BS6121:Part 5:1993 and comply with category B rating specified in IEC 62444. CMP Earth Tags have been independently short circuit tested to verify their suitability under specified service conditions. A copy of the test report is available upon request and is an important factor when selecting earth tags from any manufacturer, as without this the safety of installations may be compromised.

Stainless steel, aluminium and nickel plated brass earth tags are also available. Please refer to , e.g. 20ET4 for M20 Stainless Steel Earth Tag, 050NPTET4 for 1/2” NPT Stainless Steel Earth Tag.

Product Table

Metric

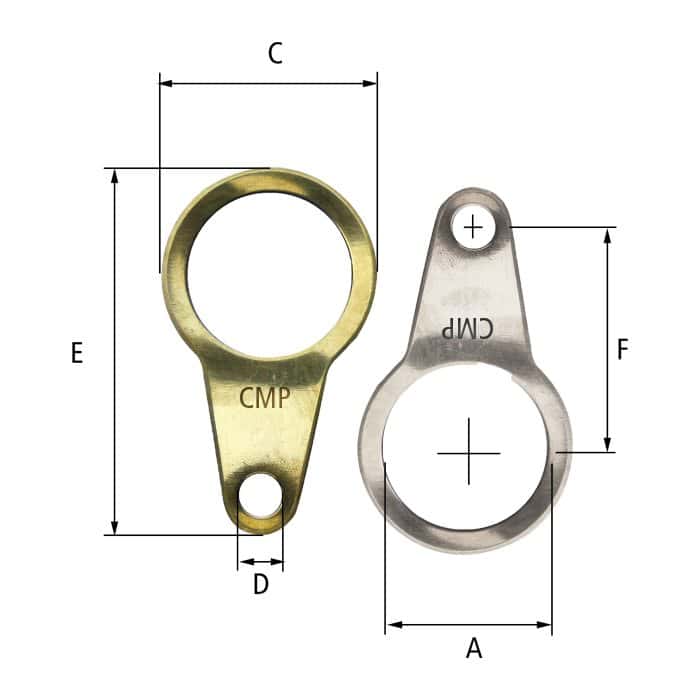

Metric Ordering Reference (Brass)Reference Diameter “A”Minimum ThicknessNominal Diameter “C”Hole Size “D”Nominal Length “E”Nominal Centres “F”NPT Ordering Reference (Brass)Reference Diameter “A”Minimum ThicknessNominal Diameter “C”Hole Size “D”Nominal Length “E”Nominal Centres “F”
16ETM161.325.4M650.430.2050NPTET1/2 NPT1.327.1M652.933.1
20ETM201.327.1M652.333.1075NPTET3/4 NPT1.535.1M659.235.6
25ETM251.535.1M659.235.6100NPTET1 NPT1.545.2M1277.043.1
32ETM321.545.2M1277.043.1125NPTET1 1/4 NPT1.553.7M1388.745.4
40ETM401.553.7M1388.745.4150NPTET1 1/2 NPT1.565.2M13111.258.1
50ETM501.565.2M13111.258.1200NPTET2 NPT1.582.6M13128.766.8
63ETM631.582.6M13128.766.8250NPTET2 1/2 NPT1.595.4M13141.573.0
75ETM751.595.4M13141.573.0300NPTET3 NPT2.0114.0M13161.085.0
90ETM902.0114.2M13161.085.0350NPTET3 1/2 NPT2.0125.0M13194.8103.0
100ETM1002.0125.0M13194.8118.0
All dimensions shown in millimetres unless otherwise stated

Imperial

Metric Ordering Reference (Brass)Reference Diameter “A”Minimum ThicknessNominal Diameter “C”Hole Size “D”Nominal Length “E”Nominal Centres “F”NPT Ordering Reference (Brass)Reference Diameter “A”Minimum ThicknessNominal Diameter “C”Hole Size “D”Nominal Length “E”Nominal Centres “F”
16ETM160.0511.000M61.9841.189050NPTET1/2 NPT0.0511.067M62.0831.303
20ETM200.0511.067M62.0591.303075NPTET3/4 NPT0.0591.382M62.3311.402
25ETM250.0591.382M62.3311.402100NPTET1 NPT0.0591.780M123.0311.697
32ETM320.0591.780M123.0311.697125NPTETT 1 1/4 NPT0.0592.114M133.4921.787
40ETM400.0592.114M133.4921.787150NPTET1 1/2 NPT0.0592.567M134.3782.287
50ETM500.0592.567M134.3782.287200NPTET2 NPT0.0593.252M135.0672.630
63ETM630.0593.252M135.0672.630250NPTET2 1/2 NPT0.0593.756M135.5712.874
75ETM750.0593.756M135.5712.874300NPTET3 NPT0.0794.488M136.3393.346
90ETM900.0794.496M136.3393.346350NPTET3 1/2 NPT0.0794.921M137.6694.055
100ETM1000.0794.921M137.6694.646
All dimensions shown in inches unless otherwise stated
