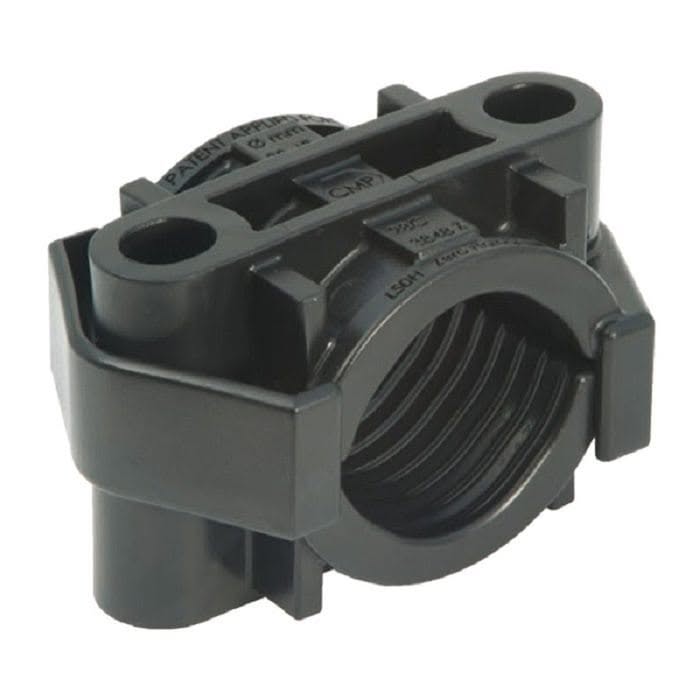

Falcon Nylon Cable Cleat

INQUIRE

Features

  • Third party certification to IEC 61914
  • Available in three different materials:
    • Nylon
    • Low Smoke & Fume (LSF), Zero Halogen (LS0H, Phosphorus Free and V0 Nylon
    • LUL approved polymer
  • Sunlight (UV) & weather resistant
  • Operating temperature -40°C to +60°C
  • Can be double stacked
  • 38 – 135mm in 8 sizes
  • Excellent axial & lateral load retention
  • Two bolt fixing design





Description

The Falcon Two Bolt single cable cleat is a non-metallic cable cleat which has been designed, constructed, and tested in accordance with the International Standard ‘cable cleats for Electrical Installations’ (IEC 61914).

It ensures the retention and securing of single cables, without damaging or deforming the cable. The cable cleat is manufactured from various materials making it suitable for both indoor and outdoor applications. Due to its unique twin arc internal patent pending design profile it exhibits excellent retention, limiting both the axial and lateral movement. The Falcon Two Bolt cable cleats have an excellent range take and are suitable for cable diameters of 38mm up to 135mm in only eight sizes. This cable cleat has two M12 clearance holes for securing it to a mounting surface, which allows for either M10 or M12 fasteners to be used.

Short Circuit Testing to IEC 61914 – Clause 9.5
Multicore Formation Parallel Formation
Two short circuits 600mm fixed cleat centres One short circuit 600mm fixed cleat centres 105mm cable centres Two short circuits 600mm fixed cleat centres 105mm cable centres
0.1 sec 0.1 sec 0.1 sec
76kA Peak 110kA Peak 86kA Peak
36.2kA RMS 50.0kA RMS 40.9kA RMS



Product Selection Table

Falcon Part No. Cable Ø range take (mm) Dimensions mm Weight
W *(LUL +5%)
(g)
W H D P Fixing Hole Ø
2BC038048 38 – 48 96 74 61 65 – 69 2 x M10 / M12 124
2BC048058 48 – 58 107 84 61 76 – 80 2 x M10 / M12 146
2BC058070 58 – 70 119 97 61 88 – 92 2 x M10 / M12 176
2BC070083 70 – 83 133 110 61 102 – 106 2 x M10 / M12 211
2BC083097 83 – 97 147 124 61 116 – 120 2 x M10 / M12 242
2BC096109 96 – 109 160 136 61 129 – 133 2 x M10 / M12 276
2BC106120 106 – 120 172 148 61 141 – 145 2 x M10 / M12 310
2BC120135 120 – 135 187 163 61 156 – 160 2 x M10 / M12 349



Download Spec Sheet

Download

The Falcon Two Bolt single cable cleat is a non-metallic cable cleat which has been designed, constructed, and tested in accordance with the International Standard ‘cable cleats for Electrical Installations’ (IEC 61914).

It ensures the retention and securing of single cables, without damaging or deforming the cable. The cable cleat is manufactured from various materials making it suitable for both indoor and outdoor applications. Due to its unique twin arc internal patent pending design profile it exhibits excellent retention, limiting both the axial and lateral movement. The Falcon Two Bolt cable cleats have an excellent range take and are suitable for cable diameters of 38mm up to 135mm in only eight sizes. This cable cleat has two M12 clearance holes for securing it to a mounting surface, which allows for either M10 or M12 fasteners to be used.

Short Circuit Testing to IEC 61914 – Clause 9.5
Multicore Formation Parallel Formation
Two short circuits 600mm fixed cleat centres One short circuit 600mm fixed cleat centres 105mm cable centres Two short circuits 600mm fixed cleat centres 105mm cable centres
0.1 sec 0.1 sec 0.1 sec
76kA Peak 110kA Peak 86kA Peak
36.2kA RMS 50.0kA RMS 40.9kA RMS



Product Selection Table

Falcon Part No. Cable Ø range take (mm) Dimensions mm Weight
W *(LUL +5%)
(g)
W H D P Fixing Hole Ø
2BC038048 38 – 48 96 74 61 65 – 69 2 x M10 / M12 124
2BC048058 48 – 58 107 84 61 76 – 80 2 x M10 / M12 146
2BC058070 58 – 70 119 97 61 88 – 92 2 x M10 / M12 176
2BC070083 70 – 83 133 110 61 102 – 106 2 x M10 / M12 211
2BC083097 83 – 97 147 124 61 116 – 120 2 x M10 / M12 242
2BC096109 96 – 109 160 136 61 129 – 133 2 x M10 / M12 276
2BC106120 106 – 120 172 148 61 141 – 145 2 x M10 / M12 310
2BC120135 120 – 135 187 163 61 156 – 160 2 x M10 / M12 349
