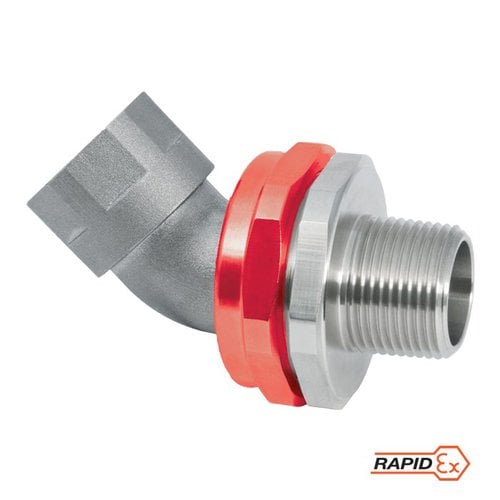

px784 rex series 45 degree rapidex barrier union

PX784REX
px784 rex series 45 degree rapidex barrier union

Available in brass, nickel-plated brass, aluminum, stainless steel

Description

Technical

45° Union, Globally Approved, Explosive Atmosphere Barrier Cable / Conduit Accessory

  • RapidEx liquid pour sealing system
    • Enhances reliability, reduces risk
    • Reduces man hours
    • Reduces cost
  • Allows the connection of conduit or glands to equipment
  • Suitable for rigid or flexible conduit
  • Integral coupling eliminates the need to rotate the conduit
  • General Purpose / industrial version available
  • Equipment interface ‘O’ ring seal available
  • -60°C to +85°C
  • Globally marked, IECEx, ATEX & cCSAus

Note: Male-to-Male or Female-to-Female thread option available.

Available with an equipment interface ‘O’ ring seal. For such options please add the suffix letter “R” after the type number in the ordering reference above, e.g. PX784REXRDM2M2.

For epoxy compound version please remove “REX” from ordering reference.

If 2 separate enclosures are required to be connected together please contact CMP Products.



Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
ATEX Certificate SIRA10ATEX1306U
Code of Protection II 2 GD Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da IP6X
IM2 Ex d I Mb / Ex e I Mb
Compliance Standards EN 60079-0,1,7,31
IECEx Certificate IECEx SIR 10.0148U
Code of Protection Ex d IIC Gb, Ex e IIC Gb, Ex d I Mb, Ex e I Mb, Ex ta IIIC Da IP6X
Compliance Standards IEC 60079-0,1,7,31
cCSAus Certificate 1055233
Code of Protection Class I, Div 1 & 2, Groups A,B,C,D ; Enclosure type 4X : Class I, Zone 1, AEx de II ; Ex de II
Compliance Standards C22.2 No.0,0.5,30,94, CAN/CSA E60079-0,1,7, CAN/CSA E61241-1, UL Std 50, 1203, UL 60079-0,1,7
EAC Certificate (Formerly GOST R, K & B) TC RU C-GB.AA87.B.00487
INMETRO Approval TÜV 12.1334U
RETIE Approval 03866
Marine Approvals LRS: 01/00173
Ingress Protection Rating ** IP66 when fitted with a CMP ‘O’ ring or Entry Thread Seal**
Available Materials Brass (standard), Electroless Nickel Plated Brass, Aluminium, Stainless Steel

Product Table

Metric

METRIC NPT
Ordering Reference
(Brass, Metric)
Male Forward Thread Size “A” Minimum
Thread Length “E”
Female Rear Thread Size “B” Ordering Reference
(Brass, NPT)
Male Forward NPT Thread Size “A” Minimum
NPT Thread Length “E”
(in)
Female Rear Thread Size “B” Diameter over Cores “C” Max. number of Cores Max Protrusion Length “D” Max Overhang Length
“F”
Across
Flats Hex
“G”
Across
Corners Ø
“G”
Installation
Torque (Nm)
PX784REXDM2M2 M20 X 1.5 15.0 M20 X 1.5 PX784REXDT1T1 ½”  0.79 ½” 12.6 11 60.6 55.8 46.0 50.6 7
PX784REXDM3M3 M25 X 1.5 15.0 M25 X 1.5 PX784REXDT2T2 ¾” 0.80 ¾” 17.5 21 65.9 61.2 50.0 55.0 10
PX784REXDM4M4 M32 X 1.5 15.0 M32 X 1.5 PX784REXDT3T3 1″ 0.98 1″ 23.6 38 69.5 70.2 60.0 66.0 15
PX784REXDM5M5 M40 X 1.5 15.0 M40 X 1.5 PX784REXDT4T4 1¼” 1.01 1¼” 30.0 59 74.9 76.4 65.0 71.5 25
PX784REXDM6M6 M50 X 1.5 15.0 M50 X 1.5 PX784REXDT5T5 1½” 1.03 1½” 41.0 89 93.5 88.0 75.0 82.5 30
PX784REXDM7M7 M63 X 1.5 15.0 M63 X 1.5 PX784REXDT6T6 2″ 1.06 2″ 53.7 115 102.7 103.4 90.2 99.2 45
Dimensions displayed in millimeters unless otherwise stated

Imperial

METRIC NPT
Ordering Reference
(Brass, Metric)
Male Forward Thread Size “A” Minimum
Thread Length “E”
Female Rear Thread Size “B” Ordering Reference
(Brass, NPT)
Male Forward NPT Thread Size “A” Minimum
NPT Thread Length “E”
(in)
Female Rear Thread Size “B” Diameter over Cores “C” Max. number of Cores Max Protrusion Length “D” Max Overhang Length
“F”
Across
Flats Hex
“G”
Across
Corners Ø
“G”
Installation
Torque (Nm)
PX784REXDM2M2 M20 X 1.5 0.59 M20 X 1.5 PX784REXDT1T1 ½” 0.79 ½” 0.50 11 2.39 2.20 1.81 1.99 7
PX784REXDM3M3 M25 X 1.5 0.59 M25 X 1.5 PX784REXDT2T2 ¾” 0.80 ¾” 0.69 21 2.59 2.41 1.97 2.17 10
PX784REXDM4M4 M32 X 1.5 0.59 M32 X 1.5 PX784REXDT3T3 1″ 0.98 1″ 0.93 38 2.74 2.76 2.36 2.60 15
PX784REXDM5M5 M40 X 1.5 0.59 M40 X 1.5 PX784REXDT4T4 1¼” 1.01 1¼” 1.18 59 2.95 3.01 2.56 2.81 25
PX784REXDM6M6 M50 X 1.5 0.59 M50 X 1.5 PX784REXDT5T5 1½” 1.03 1½” 1.61 89 3.68 3.46 2.95 3.25 30
PX784REXDM7M7 M63 X 1.5 0.59 M63 X 1.5 PX784REXDT6T6 2″ 1.06 2″ 2.11 115 4.04 4.07 3.55 3.91 45
Dimensions displayed in inches unless otherwise stated
