Sapphire Heavy Duty Stainless Steel Hinged Cable Cleat

Products > Sapphire Heavy Duty Stainless Steel Hinged Cable Cleat

SAPPHIRE-multi

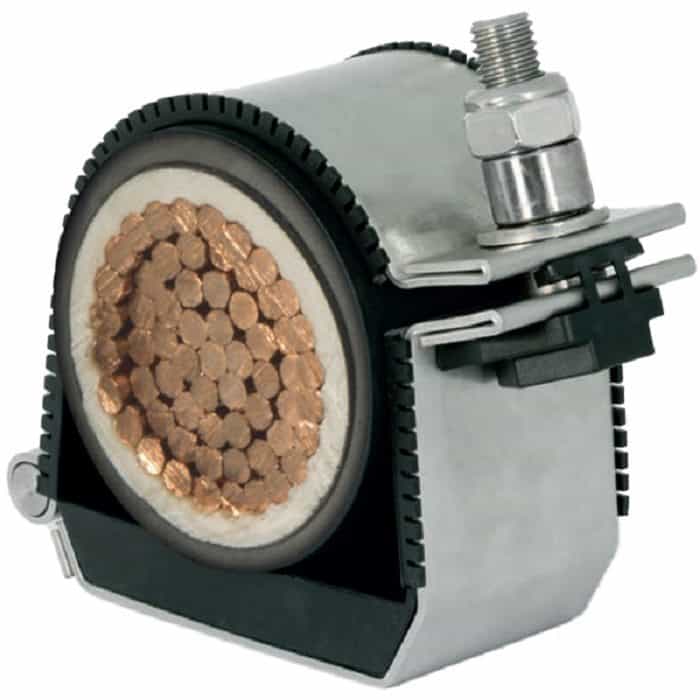

Sapphire Heavy Duty Stainless Steel Hinged Cable Cleat

INQUIRE

Features

  • Third party certification to IEC 61914
  • 316L stainless steel
  • 19 to 150mm in 13 sizes for single / parallel formation
  • Standard Polymer Liners are classified as Low Smoke
    and Fume Zero Halogen (LSF0H), Phosphorus-free
  • Combined single (M12) and two bolt (M10) fixing design

Description

Short Circuit Testing to IEC 61914 – Clause 9.5

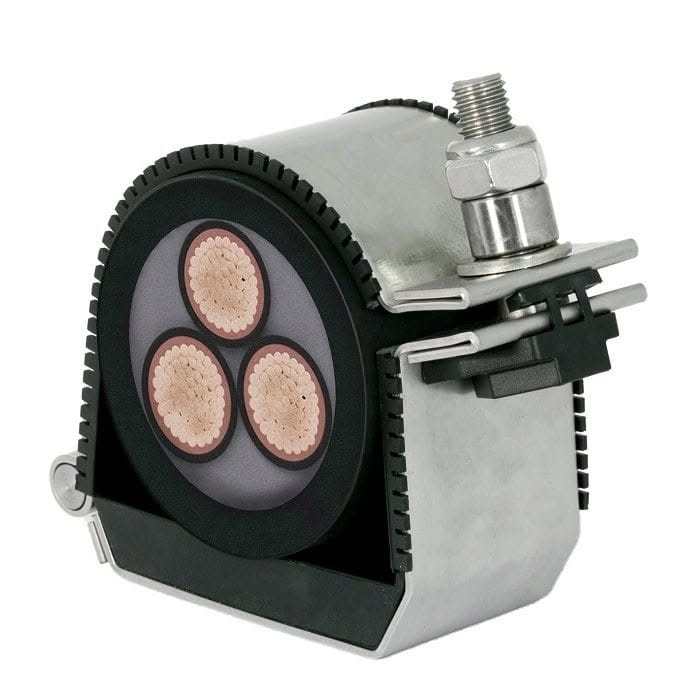

Multicore Formation Parallel Formation
One short circuit 600mm fixed cleat centres Two short circuits 600mm fixed cleat centres One short circuit 600mm fixed cleat centres 105mm cable centres Two short circuits 600mm fixed cleat centres 105mm cable centres
0.1 sec 0.1 sec 0.1 sec 0.1 sec
105kA Peak 105kA Peak 110kA Peak 109kA Peak
50.0kA RMS 50.0kA RMS 50.0kA RMS 50.0kA RMS



Product Selection Table

Part No. Cable Ø range take (mm) Dimensions mm Weight (g)
W H D P Fixing Hole Ø
D1 D2
SHDSS019026 19-26 94 85 54 25 2 x M10 1 x M12 395
SHDSS026032 26-32 95 88 54 25 2 x M10 1 x M12 402
SHDSS032038 32-38 96 93 54 25 2 x M10 1 x M12 431
SHDSS038046 38-46 100 100 54 25 2 x M10 1 x M12 446
SHDSS046051 46-51 104 103 54 25 2 x M10 1 x M12 456
SHDSS051058 51-58 108 107 54 25 2 x M10 1 x M12 472
SHDSS058070 58-70 129 119 54 50 2 x M10 1 x M12 554
SHDSS070083 70-83 137 120 54 50 2 x M10 1 x M12 581
SHDSS083097 83-97 157 137 54 75 2 x M10 1 x M12 665
SHDSS096109 96-109 165 133 54 75 2 x M10 1 x M12 688
SHDSS106120 106-120 170 142 54 75 2 x M10 1 x M12 713
SHDSS120135 120-135 197 157 54 75 2 x M10 1 x M12 814
SHDSS135150 135-150 205 172 54 75 2 x M10 1 x M12 847



Download Spec Sheet

Download
Short Circuit Testing to IEC 61914 – Clause 9.5
Multicore Formation Parallel Formation
One short circuit 600mm fixed cleat centres Two short circuits 600mm fixed cleat centres One short circuit 600mm fixed cleat centres 105mm cable centres Two short circuits 600mm fixed cleat centres 105mm cable centres
0.1 sec 0.1 sec 0.1 sec 0.1 sec
105kA Peak 105kA Peak 110kA Peak 109kA Peak
50.0kA RMS 50.0kA RMS 50.0kA RMS 50.0kA RMS



Product Selection Table

Part No. Cable Ø range take (mm) Dimensions mm Weight (g)
W H D P Fixing Hole Ø
D1 D2
SHDSS019026 19-26 94 85 54 25 2 x M10 1 x M12 395
SHDSS026032 26-32 95 88 54 25 2 x M10 1 x M12 402
SHDSS032038 32-38 96 93 54 25 2 x M10 1 x M12 431
SHDSS038046 38-46 100 100 54 25 2 x M10 1 x M12 446
SHDSS046051 46-51 104 103 54 25 2 x M10 1 x M12 456
SHDSS051058 51-58 108 107 54 25 2 x M10 1 x M12 472
SHDSS058070 58-70 129 119 54 50 2 x M10 1 x M12 554
SHDSS070083 70-83 137 120 54 50 2 x M10 1 x M12 581
SHDSS083097 83-97 157 137 54 75 2 x M10 1 x M12 665
SHDSS096109 96-109 165 133 54 75 2 x M10 1 x M12 688
SHDSS106120 106-120 170 142 54 75 2 x M10 1 x M12 713
SHDSS120135 120-135 197 157 54 75 2 x M10 1 x M12 814
SHDSS135150 135-150 205 172 54 75 2 x M10 1 x M12 847
