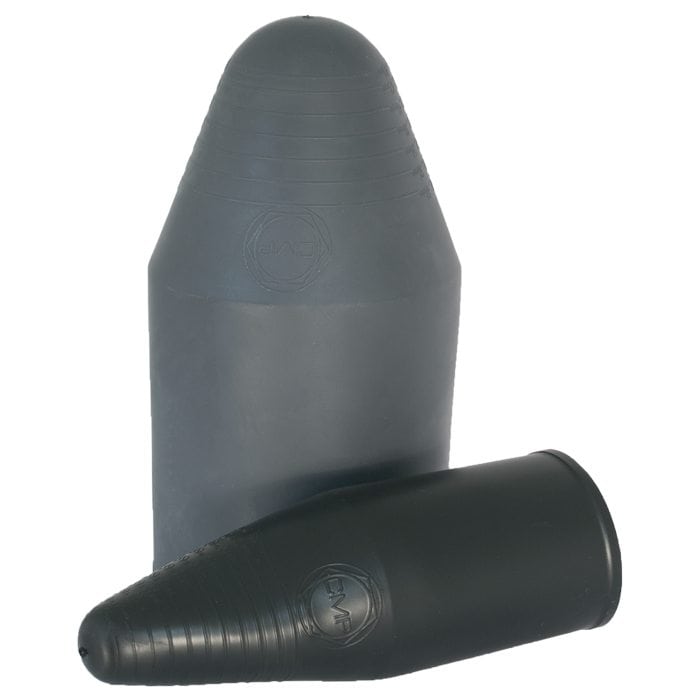

EUTEX_SHROUDS-IMAGE

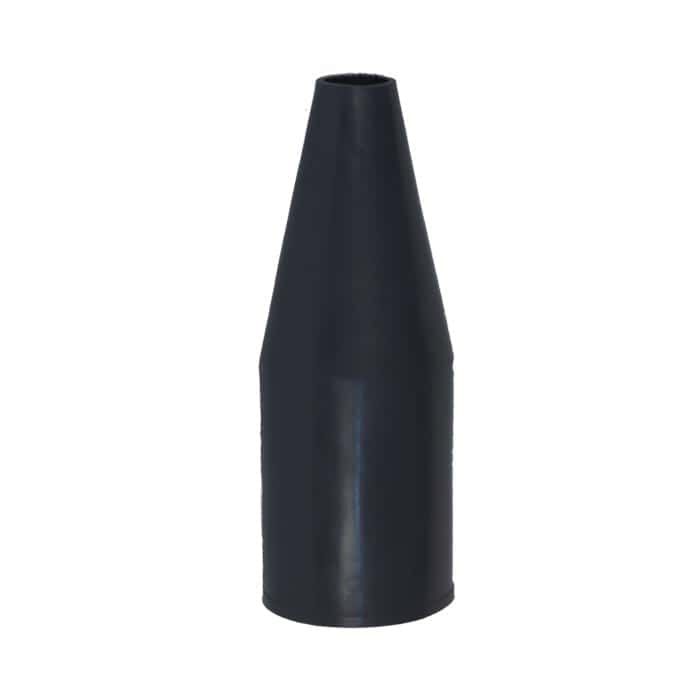

Shroud - Image 2

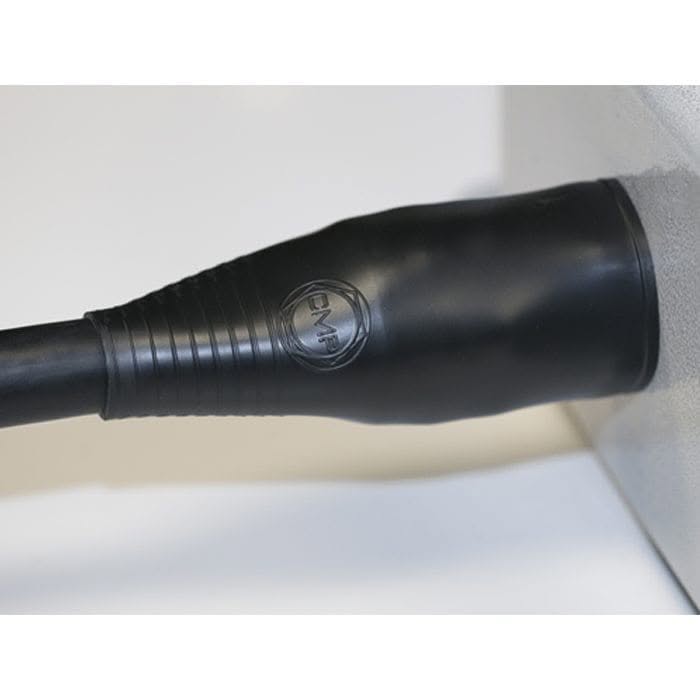

Shroud - Image 3

Shroud

INQUIRE

EUTEX cable shrouds are available in a variety of colours, not all colours are available in all materials, please enquire for further information.

Temperature ratings for CMP shrouds are as follows:

  • PVC -60°C to +90°C
  • LSF -60°C to +130°C
  • PCP -60°C to +100°C

Alternatively, a link to the installation video can be found below.

Note: PCP cable shrouds are available, only in open-ended style and only in the colour black.

Description

EUTEX cable shrouds minimize the risk of dirt or foreign substances gathering on the cable gland and point of cable to cable interface.

LSF cable shrouds are Low Smoke & Fume (LSF), and Phosphorus Free to suit all EUTEX SOLO Cable Glands. Manufactured from low smoke, self-extinguishing, non-drip, and halogen-free material, these shrouds are rated UL94 V0 and are essential for areas where fire safety is key. EUTEX LSF shrouds and EUTEX SOLO Cable Glands meet the requirements of the London Underground Fire Safety Regulations and as such, they are LUL approved for use within the London Underground network.

EUTEX cable shrouds are available in a variety of colors, not all colors are available in all materials, please enquire for further information.

Cable Shrouds Table



STANDARD GLANDS A2 A2e / A2F / A2HT / A2F100 / A2E100 RA2E A2RC / A2FRC ZEN BW BWL C2K / C2KGP CW / CWe / CX / CXe CXT E-TYPE PX2K PXRC PXSS2K PXSS2K-HC S-TYPE T3CDS / T3CDS-PB TE1FU / TE1FU-PB
Size Metric NPT
16 M16 1/2″ PVC02 PVC04 – PVC04 – – – PVC04 – – PVC04 – – – – PVC04 PVC36 PVC04
20s/16 M20 1/2″ PVC04 PVC04 PVC05 PVC04 – – PVC04 PVC04 PVC04 PVC04 PVC04 PVC06 – PVC06 PVC06 PVC04 PVC36 PVC04
20s M20 1/2″ PVC04 PVC04 PVC05 PVC04 PVC04 PVC02 PVC04 PVC04 PVC04 PVC04 PVC04 PVC06 – PVC06 PVC06 PVC04 PVC36 PVC04
20 M20 1/2″ PVC05 PVC05 PVC05 PVC05 PVC06 PVC05 PVC06 PVC06 PVC06 PVC05 PVC06 PVC06 PVC06 PVC06 PVC06 PVC05 PVC06 PVC06
25s M25 3/4″ – – – – PVC09 – – PVC09 PVC09 – PVC09 PVC09 – – – – PVC09 PVC09
25 M25 3/4″ PVC09 PVC09 PVC09 PVC09 PVC09 PVC07 PVC09 PVC09 PVC09 PVC09 PVC09 PVC09 PVC09 PVC09 PVC09 PVC09 PVC09 PVC09
32 M32 1″ PVC10 PVC10 PVC10 PVC10 PVC11 PVC10 PVC11 PVC11 PVC11 PVC10 PVC11 PVC11 PVC10 PVC10 PVC10 PVC10 PVC11 PVC11
40 M40 1-1/4″ PVC13 PVC13 PVC13 PVC13 PVC15 PVC13 PVC15 PVC15 PVC15 PVC13 PVC15 PVC15 PVC13 PVC13 PVC13 PVC13 PVC15 PVC15
50s M50 1-1/2″ PVC15 PVC15 PVC18 PVC15 PVC18 PVC16 PVC18 PVC18 PVC18 PVC15 PVC18 PVC18 PVC15 PVC15 PVC18 PVC15 PVC18 PVC18
50 M50 2″ PVC18 PVC18 PVC18 PVC18 PVC21 PVC19 PVC21 PVC21 PVC21 PVC18 PVC21 PVC21 PVC18 PVC18 PVC18 PVC18 PVC21 PVC21
63s M63 2″ PVC21 PVC21 PVC23 PVC21 PVC23 PVC23 PVC23 PVC23 PVC23 PVC21 PVC23 PVC23 PVC21 PVC21 PVC21 PVC21 PVC23 PVC23
63 M63 2-1/2″ PVC23 PVC23 PVC23 PVC23 PVC25 PVC24 PVC25 PVC25 PVC25 PVC23 PVC25 PVC25 PVC23 PVC23 PVC23 PVC23 PVC25 PVC25
75s M75 2-1/2″ PVC26 PVC26 PVC26 PVC26 PVC28 PVC27 PVC28 PVC28 PVC28 PVC26 PVC28 PVC28 PVC26 PVC25 PVC25 PVC26 PVC28 PVC28
75 M75 3″ PVC24 PVC24 PVC27 PVC26 PVC30 PVC29 PVC30 PVC30 PVC30 PVC26 PVC30 PVC30 PVC26 PVC27 PVC27 PVC26 PVC30 PVC30
90 M90 3″ PVC31 PVC31 PVC31 PVC31 PVC32 – PVC32 PVC32 PVC32 PVC31 PVC32 PVC32 PVC31 PVC31 – PVC31 PVC32 PVC32
100 M100 4″ – – – – – – – – – – – – – – – – –
115 M115 4-1/2″ – – – – – – – – – – – – – – – – –

Download Spec Sheet

Download
