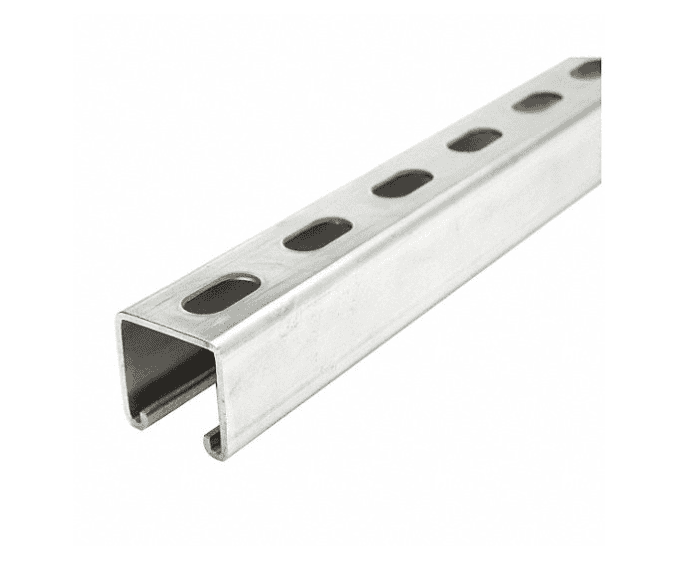

Stainless Steel 316L Strut

Deep Channel Slotted

  • Steel with a Minimum yield strength 280 N/mm.
  •  Beams are assumed to be simply supported.
  •  Load and deflection are calculated using a safety factor of 1.6 and allowable stress of 175 N/mm.
  •  Results given are for Pre-galvanized steel, Hot dipped galvanized will reduce the stress due to the heat treatment and reduce the loading in the chart by a factor of approx 18%.
  • Beam loads are calculated from the column face and effective length in BS5950.



The tables show

1) The max safe working load
2) the load to give 1/200 deflection
3) load to give 1/360 deflection – the deflection used will depend on the installation designer.

  • This also applies to Point and UDL loads.
  • Intelok Slotted Deep Channel
  • Stock Houston – Ships Today
  • 1-5/8″ x 1-5/8″ (2.5mm) 12-Gauge
  • 1.4404 (316L Stainless Steel)
  • 3m (10’) Lengths

Description

Deep Channel Slotted

  • Steel with a Minimum yield strength 280 N/mm.
  •  Beams are assumed to be simply supported.
  •  Load and deflection are calculated using a safety factor of 1.6 and allowable stress of 175 N/mm.
  •  Results given are for Pre-galvanized steel, Hot dipped galvanized will reduce the stress due to the heat treatment and reduce the loading in the chart by a factor of approx 18%.
  • Beam loads are calculated from the column face and effective length in BS5950.

Additional information

Weight 16 lbs
Dimensions 122 × 48 × 6 in

Deep Channel Slotted

  • Steel with a Minimum yield strength 280 N/mm.
  •  Beams are assumed to be simply supported.
  •  Load and deflection are calculated using a safety factor of 1.6 and allowable stress of 175 N/mm.
  •  Results given are for Pre-galvanized steel, Hot dipped galvanized will reduce the stress due to the heat treatment and reduce the loading in the chart by a factor of approx 18%.
  • Beam loads are calculated from the column face and effective length in BS5950.
