Products > Zenith Heavy Duty Aluminum Cable Cleat

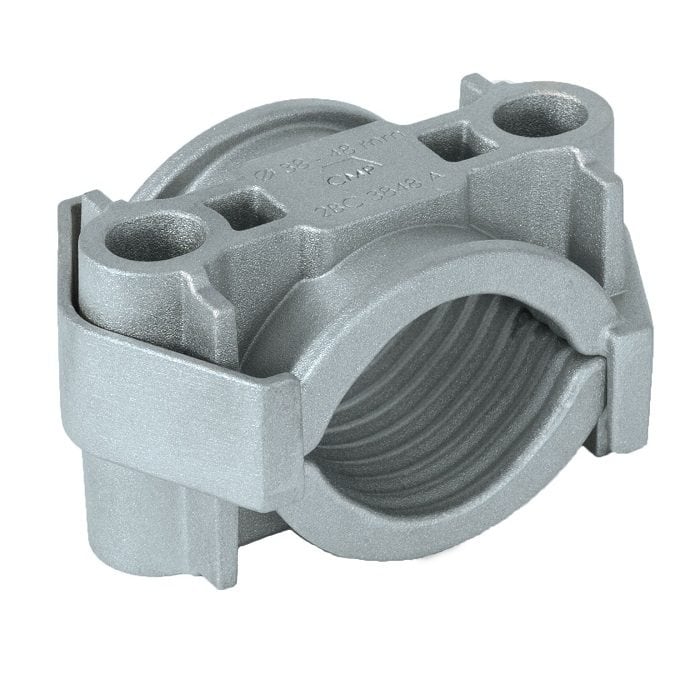

Zenith-2

Zenith

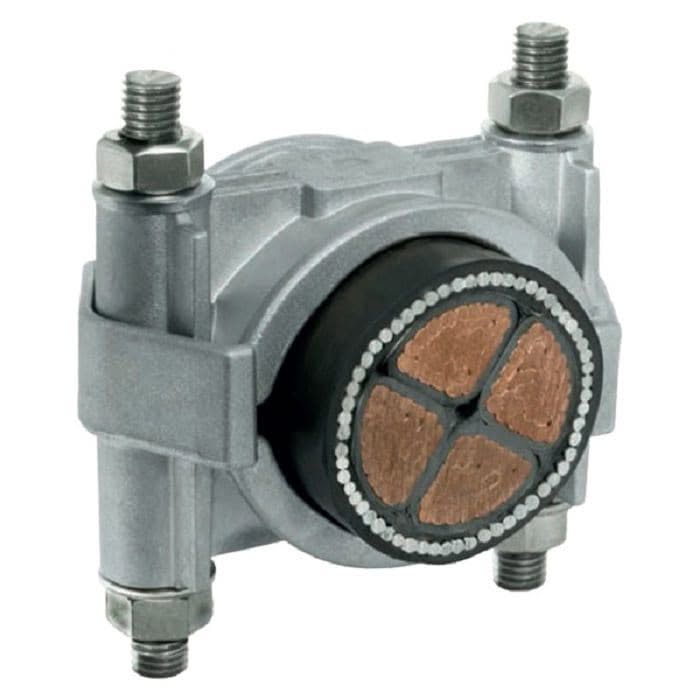

Zenith Heavy Duty Aluminum Cable Cleat

0Features

Third party certification to IEC 61914
Available in high pressure die cast aluminium
Sunlight (UV) & weather resistant
Operating temperature -60°C to 150°C
Can be double stacked
38 – 151mm in 9 sizes
Excellent axial & lateral load retention
Two bolt fixing design

Description
Download Spec Sheet

Description

0

Short Circuit Testing to IEC 61914 – Clause 9.5
Multicore Formation		Parallel Formation
One short circuit 600mm fixed cleat centres	Two short circuits 600mm fixed cleat centres	One short circuit 600mm fixed cleat centres 105mm cable centres	Two short circuits 600mm fixed cleat centres 105mm cable centres	One short circuit 600mm fixed cleat centres 105mm cable centres	Two short circuits 600mm fixed cleat centres 105mm cable centres
0.1 sec	0.1 sec	0.1 sec	0.1 sec	1 sec	1 sec
102kA Peak	102kA Peak	130kA Peak	120kA Peak	81kA Peak	71kA Peak
48.6kA RMS	48.6kA RMS	59.0kA RMS	54.5kA RMS	36.8kA RMS	32.2kA RMS

Product Selection Table

Zenith Part No.	Cable Ø range take (mm)	Dimensions mm					Weight (g)
Zenith Part No.	Cable Ø range take (mm)	W	H	D	P	Fixing Hole Ø	Weight (g)
2BC038048A	38 – 48	96	68	61	67	2 x M10 / M12	250
2BC048058A	48 – 58	107	78	61	78	2 x M10 / M12	297
2BC058070A	58 – 70	119	91	61	90	2 x M10 / M12	357
2BC070083A	70 – 83	133	104	61	104	2 x M10 / M12	420
2BC083097A	83 – 97	147	118	61	118	2 x M10 / M12	484
2BC096109A	96 – 109	160	130	61	131	2 x M10 / M12	549
2BC106120A	106 – 120	172	142	61	143	2 x M10 / M12	616
2BC120135A	120 – 135	187	157	61	158	2 x M10 / M12	693
2BC135151A	135 – 151	201	174	61	172	2 x M10 / M12	768
